Neweek ручная закаточная машина руководство могут уплотнитель

1. The can seaming machine is suitable for the sealing of metal cans, PET plastic cans, paper cans and other cans of various round mouths.

2. The quality is reliable, and the can lid is wound and sealed to achieve the requirements of no water leakage, no burrs and no wrinkles.

3. The operation is simple and light, and the lighting power supply can be used for one person to complete the operation.

4.This manual can sealer is an ideal equipment for food, beverage, nourishing health care products, etc.

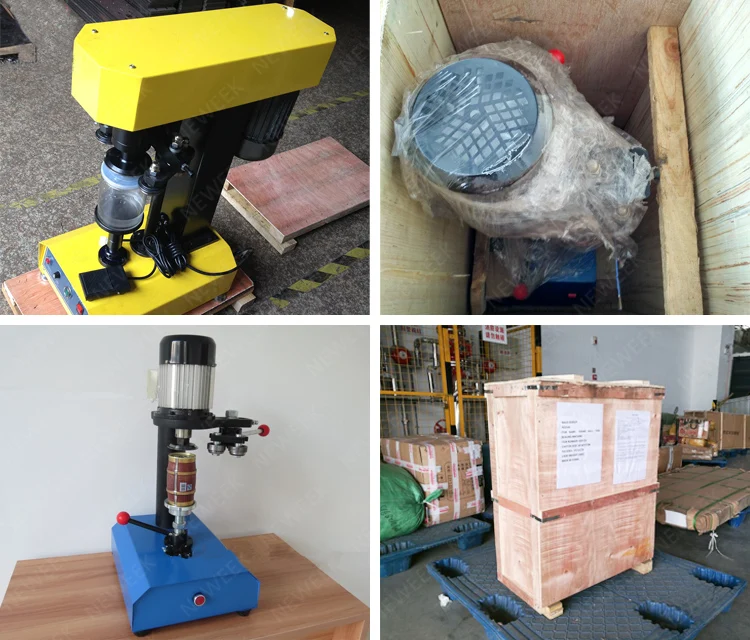

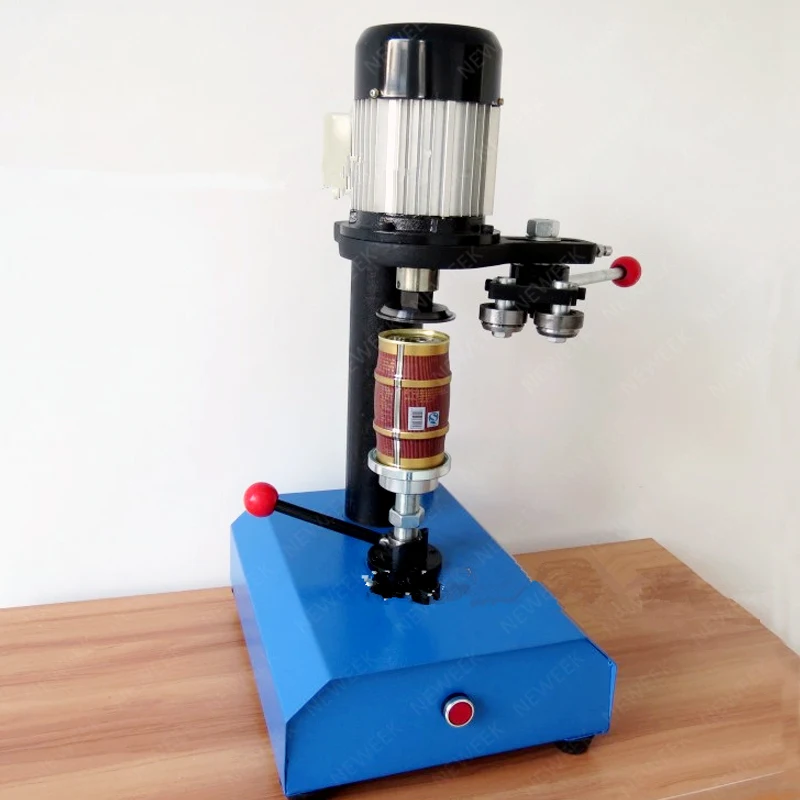

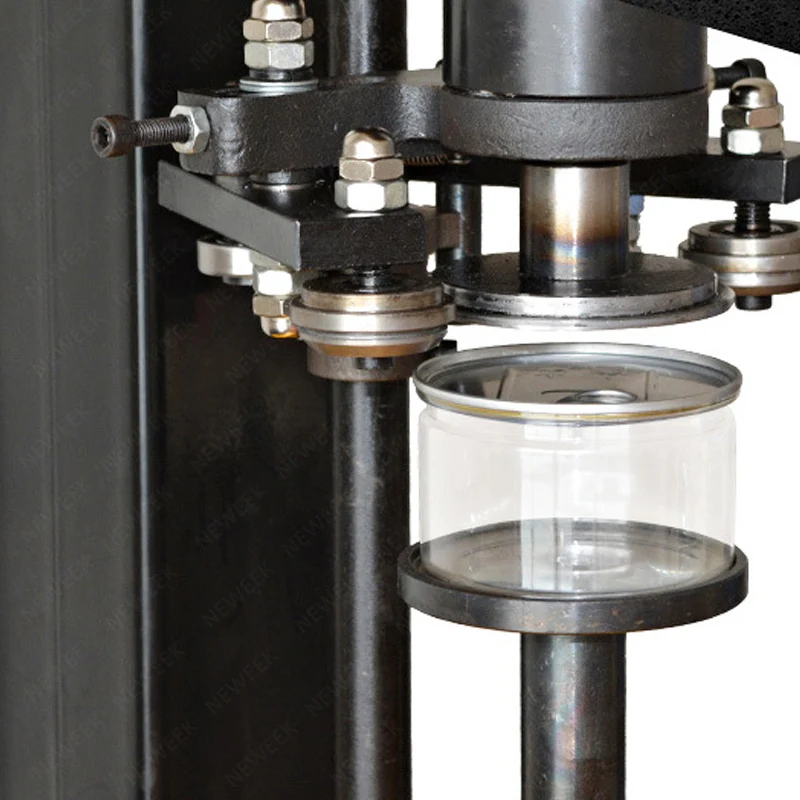

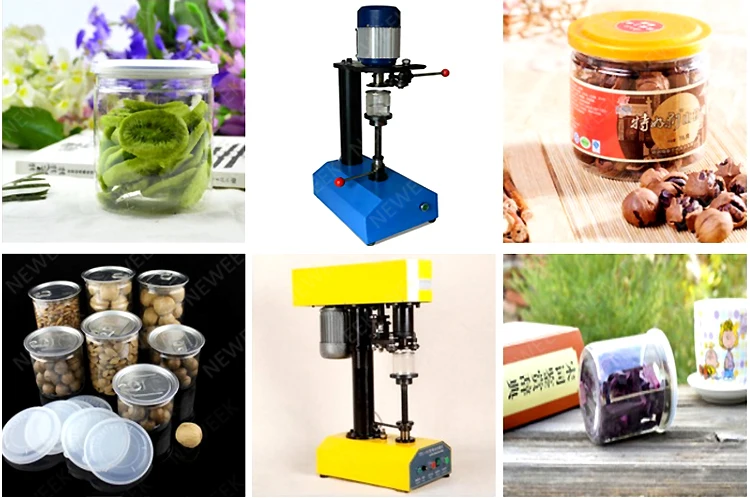

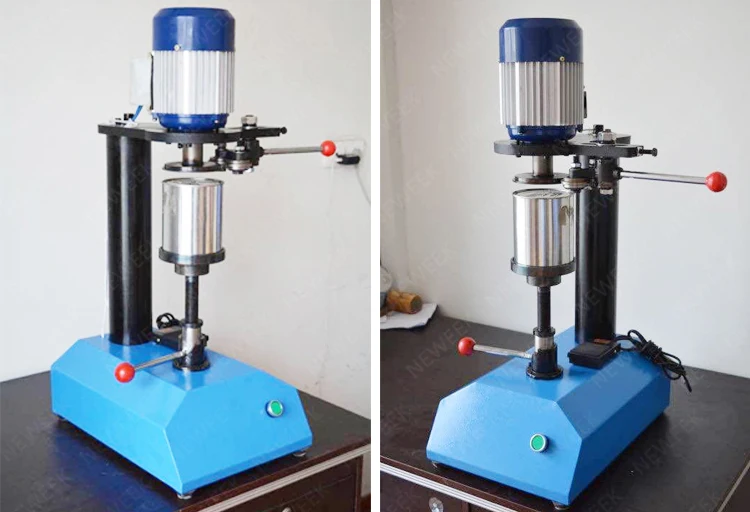

Different views of hand can seamer manual can sealer

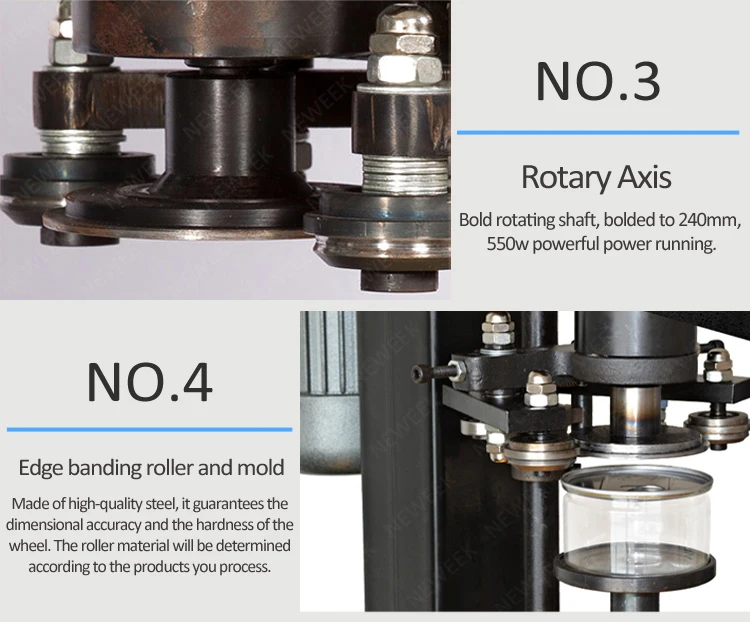

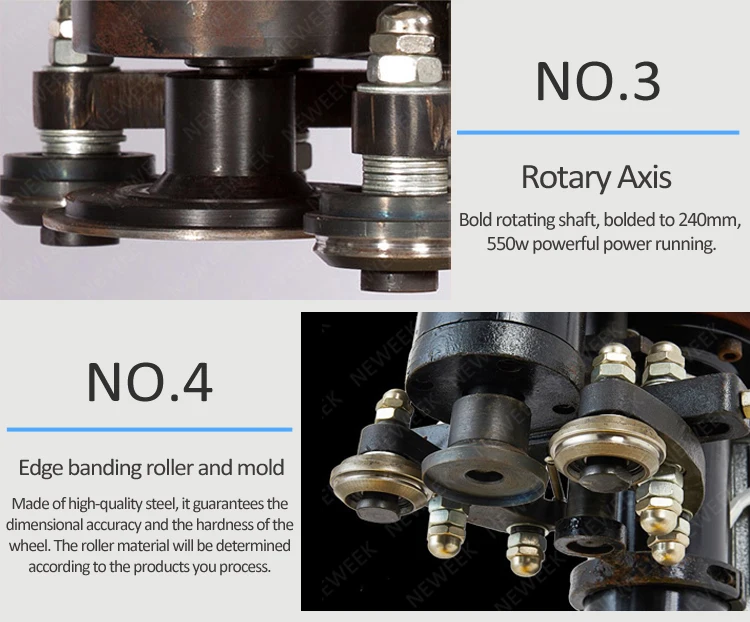

Main Features of hand can seamer manual can sealer

1. Pure copper wire motor, suitable for long life, low noise and high safety factor
2. The rotating shaft of the machine is directly 36mm, which effectively protects the motor from running smoothly and is heat-treated by vacuum, which is not easy to deform and more durable.
3. The manual can sealer support plate is made by cutting the same quality steel plate on the ship's deck.

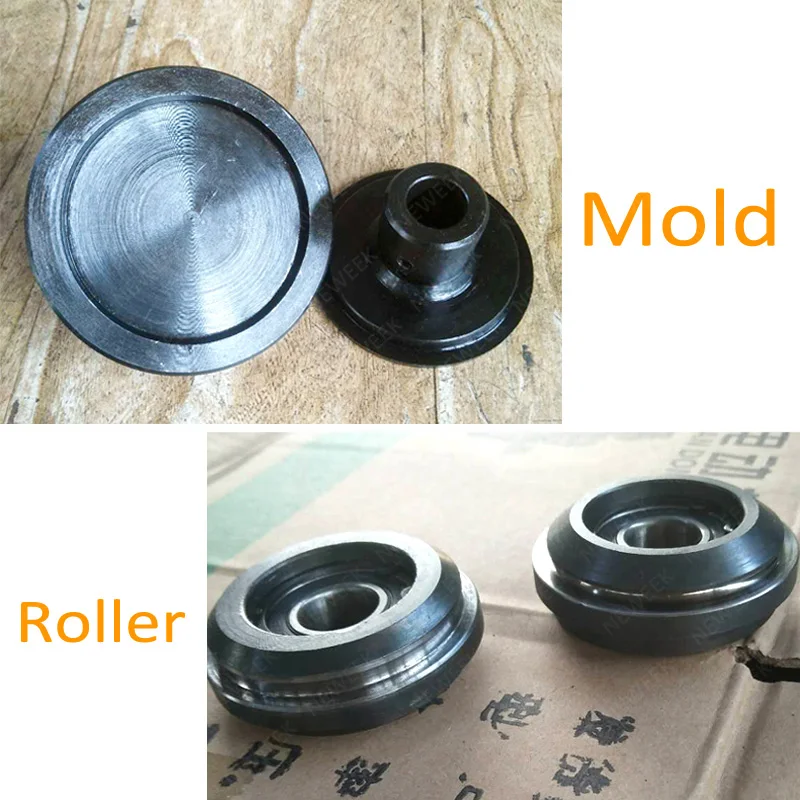

4. Using high-quality abrasive steel, after 24 hours of vacuum heat treatment, the hardness of the roller is guaranteed.
5. With three-point positioning, the upper and lower molds are not easily displaced.

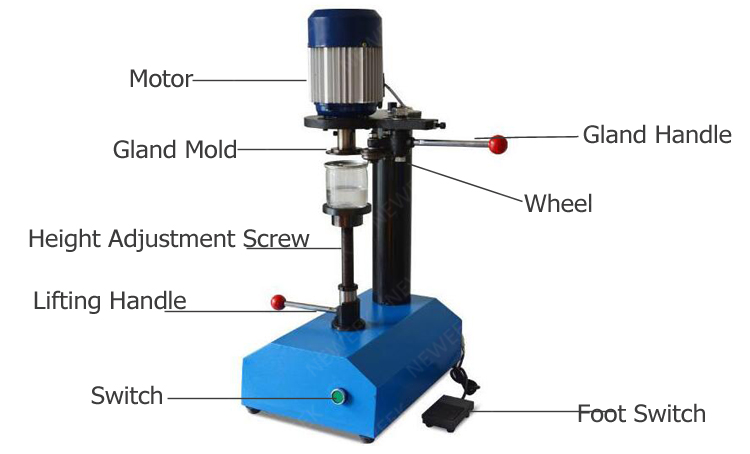

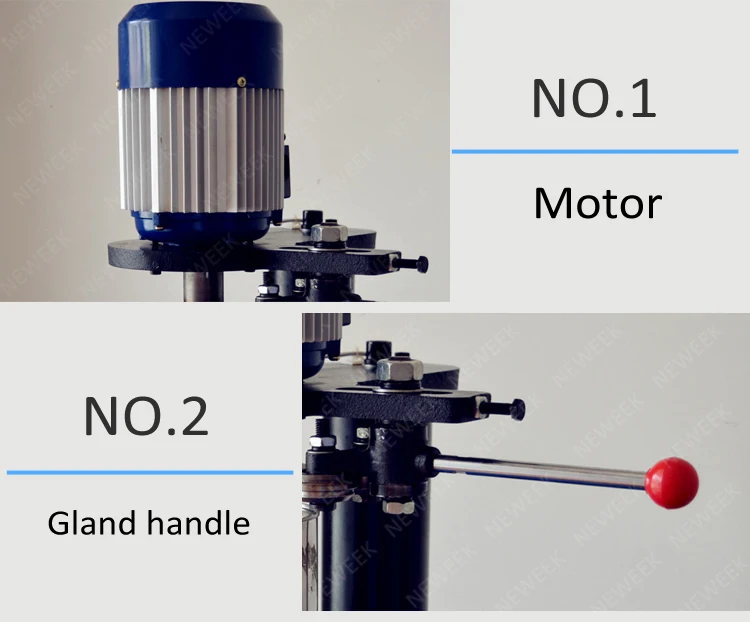

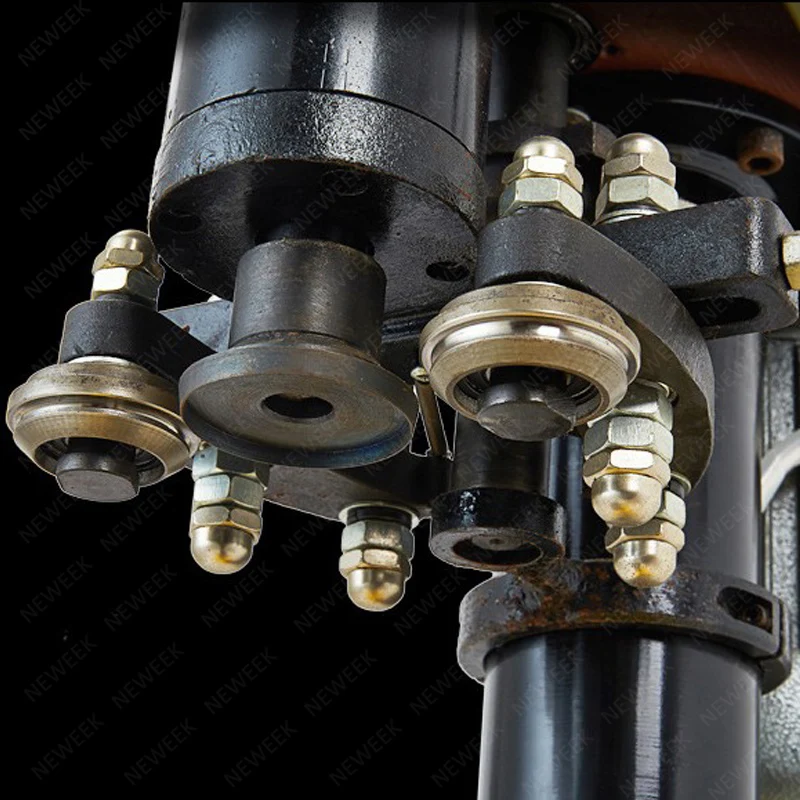

The structure of drink tin sealing machine

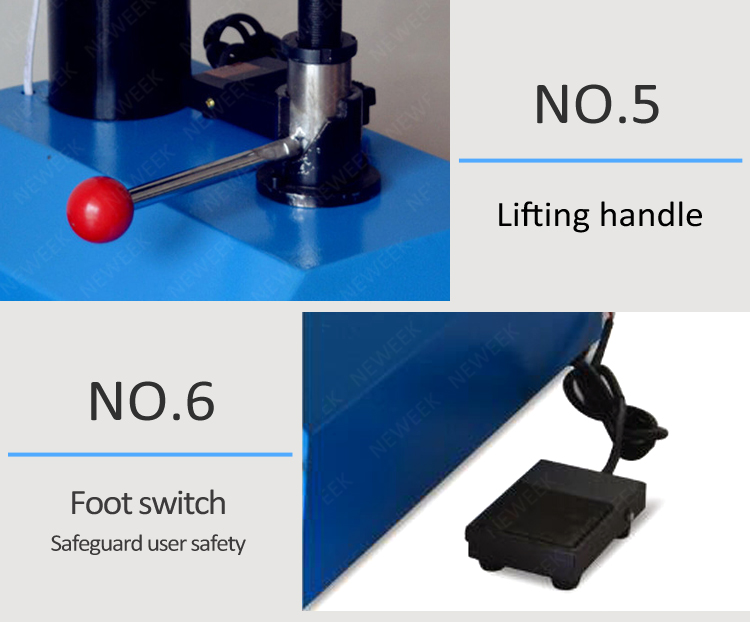

Operating steps of hand can seamer manual can sealer
1. This manual can sealer is composed of motor, indenter, tray, column, hob, handle, base and so on.
2. After pressing the switch, the motor drives the upper pressing head to rotate, and the left hand pulls the lifting handle to the highest position to rotate the tank body and the pressing head synchronously. The pressing head simultaneously presses the can lid to seal the can body, and the pressing force is felt. Moderate;
3. In the second step, the right hand pulls the handle of the hob. Under the action of the upper handle, the hob presses the can lid successively, and the sealing process is completed.
4. Adjust the can diameter: adjust the distance between the head hob and the indenter through the fine adjustment nut on the hob handle. The second hob is adjusted by the eccentric shaft of the hob.
5. Adjust the tank height: through the high and low adjustment rods.

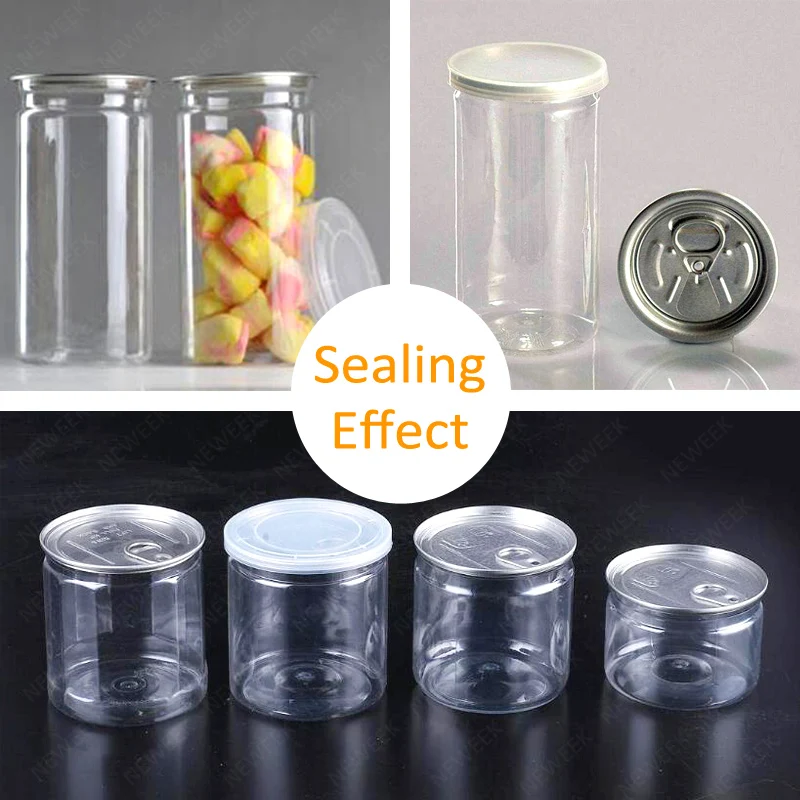

Packaging effect of the manual can sealer is as shown:

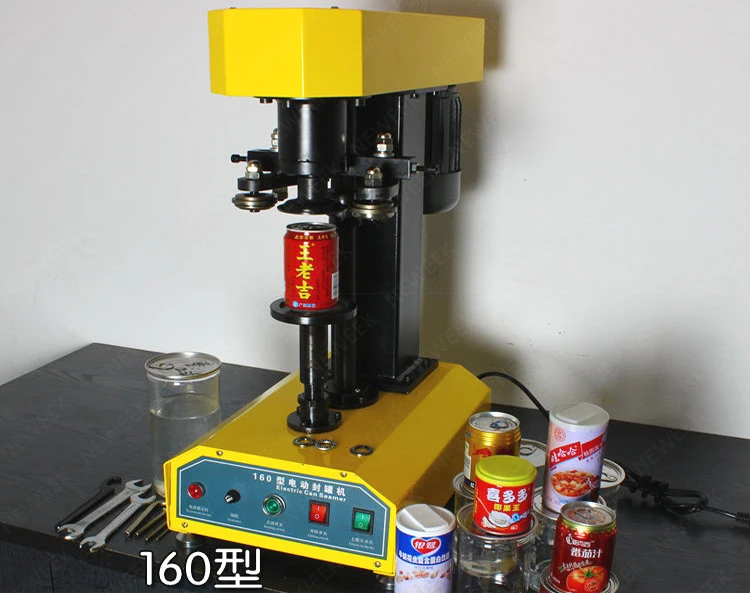

Electric can sealing machine

If you need more output, you can choose the can seamer manual as shown in the picture below, electric working, working efficiency is higher.

Packing:

Usually, we use standard export wooden cases for packing this  can seamer manual . We will first wrap the entire machine with a plastic film to prevent the hand cap sealing machine from being damaged and scratched. Then fix the fuselage with a wooden box to prevent the tin can sealing machine from being bumped and damaged during transportation. If you have special requirements, you can contact us.

Delivery:

About this  can seamer manual, we have two modes of transportation: sea and air. We can also deliver the  can seamer manual  to your agent in China if you have.

NEWEEK was established in 2010, mainly producing packing machine. We have always been rigorous and scientific to produce machines that ensure the quality of every part of the can seamer manual to ensure a better quality for our customers. At the same time, we are committed to improving the professionalism of our team in order to provide better service to our customers. Almost 10 years efforts, we have exported thousands of economic and high quality products to our customers all over the world, and also accumulated valuable experiences on technology, delivery, certification, after-sale service, etc.

We have been engaged in the packing machinery industry for many years and have accumulated rich experience. We always insist on producing machines with rigorous and scientific attitude, and at the same time strengthen personnel training and provide customers with quality services more professionally.

1. We provide one-to-one online service throughout the day. If you have any questions about the hand seamer, please feel free to contact us. We will provide professional answers for you.
2. We accept product customization. Regarding this hand seamer, if you have special requirements, any parts, we can customize according to your requirements. It is our constant pursuit to make the products that customers are most suitable for.
3. Under the same competitive conditions, we will provide you with the best price in good condition without reducing the performance of the products and replacing the parts.
4. The warranty period of our hand seamer is 1 year. During the warranty period, the machine parts are damaged by non-human factors, we will provide new parts for replacement free of charge (except the wearing parts).
5. We provide engineers with overseas services. If you need it, our engineers can come to you to guide you through the installation and use of hand seamer.

Thank you for your precious time! For more information about the manual can sealer, please feel free to contact me!
