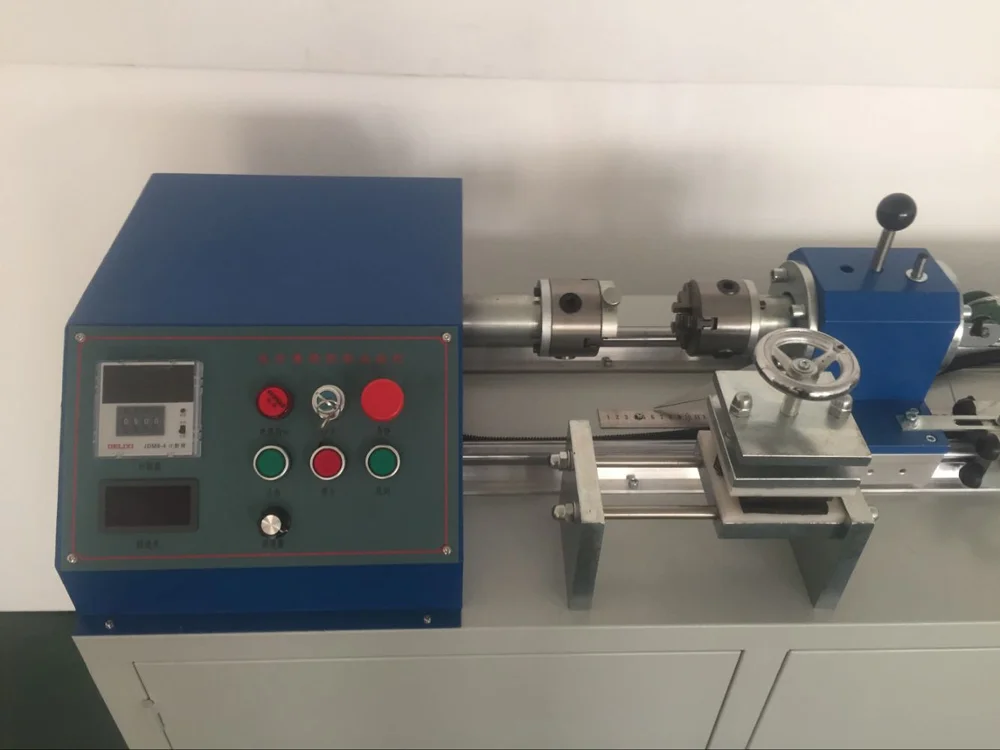

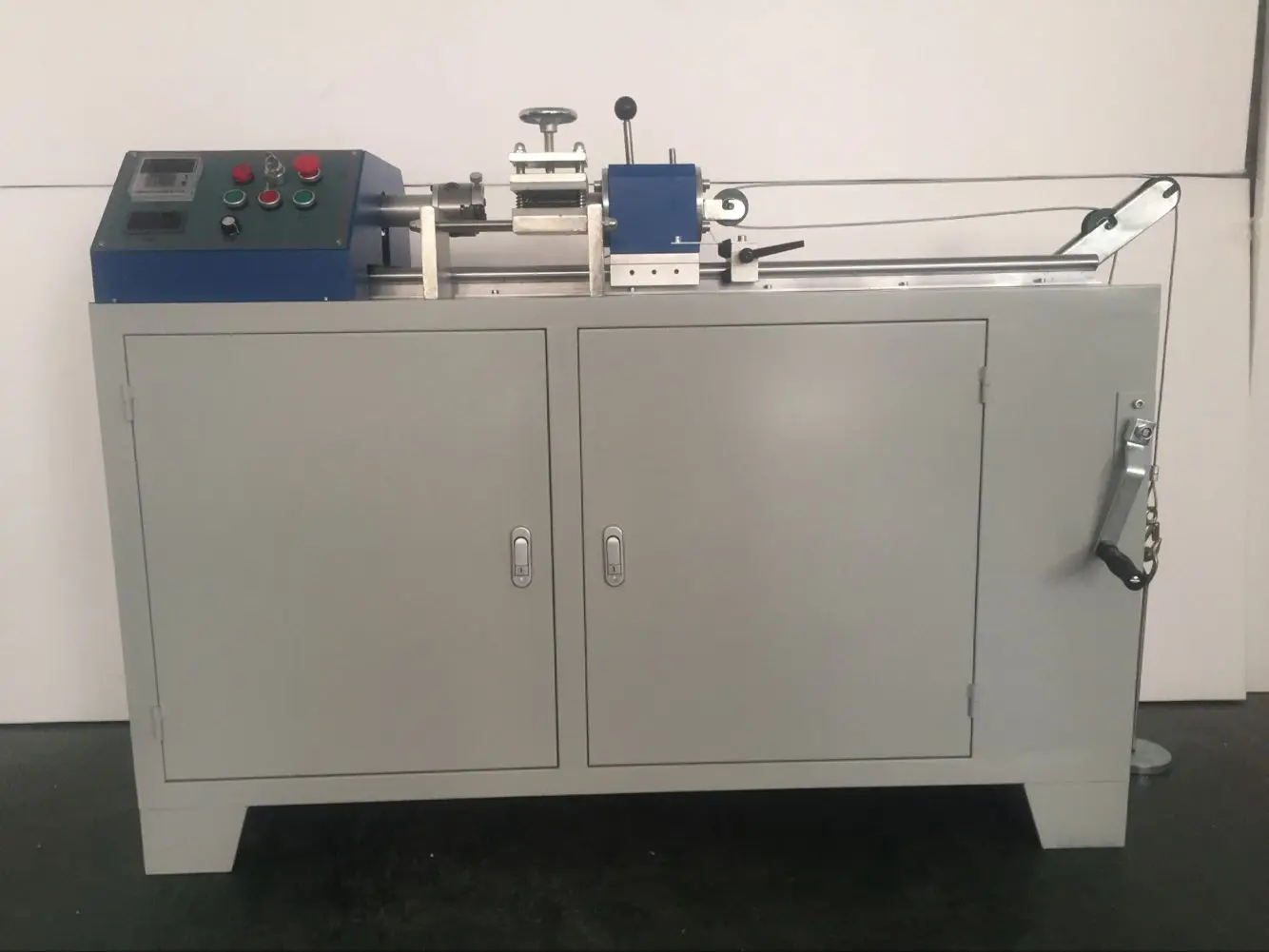

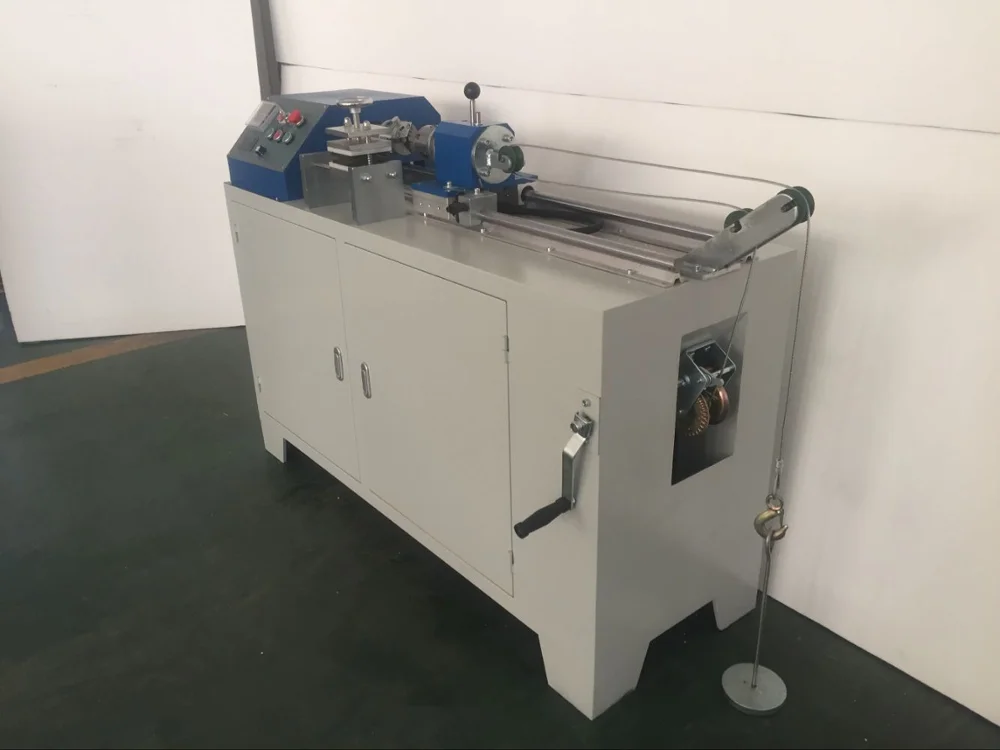

Цифровой дисплей тестер торсионной проволоки/машина для скручивания и обмотки проводов

This machine is a testing machine for testing the toughness and adhesion properties of steel and aluminum wires. It is used for winding and torsion of aluminum wire, copper rod, steel wire and steel core aluminum stranded wire.

Features

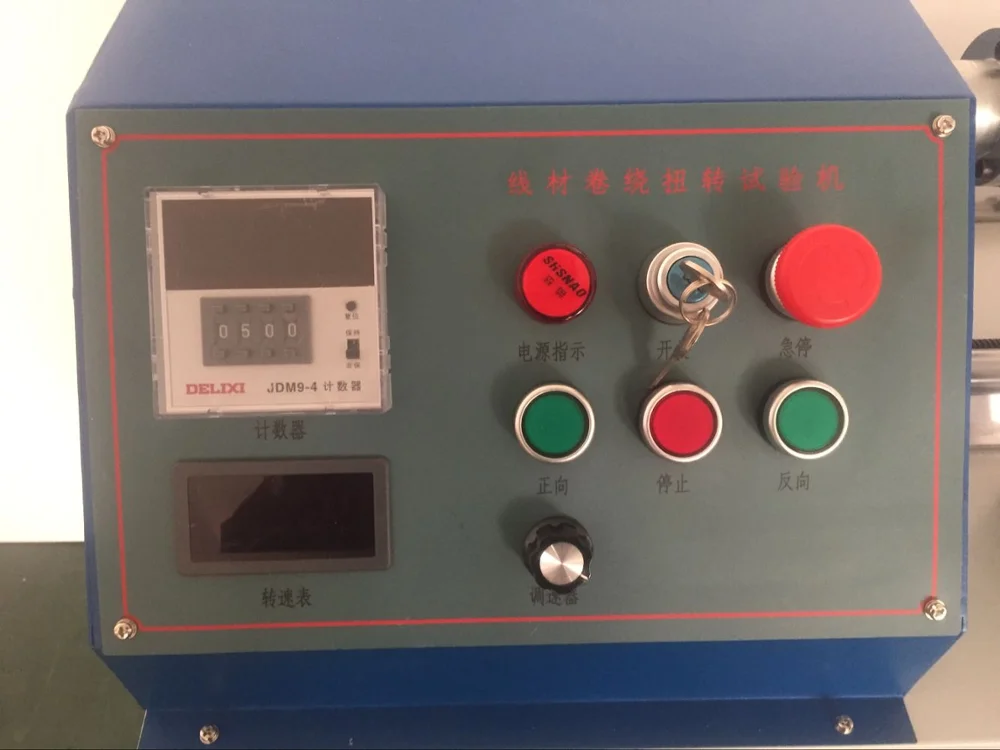

1.Work times can be set and stop automatically.
2.The counterweight is lifted by hand winch, which is easy to operate.
3.After the sample is twisted and broken, touch the micro switch to accurately record the number of turns.

1.Aluminum wire: 3mm ~ 6mm, use core rod for test,if it is less than 3mm, suggest to wind it manual
2.Steel wire: less than 4mm
3.Copper rod: reverse range:5 ~ 10 mm(must be equipped with a special fixture copper rod)
4.Effective width of wire pressing plate: 80mm,stroke: 200mm
5.Effective working length of core rod: 70mm
6.Winding and twisting speed: 1-60 r/min (adjustable)
7.Core rod diameter:1.25mm,2.25mm,2.75mm,3.0mm,3.5mm,4.25mm,4.75mm,5.0mm,6.75mm,8. 25, 9.0mm,   11mm, 12mm, 14mm, 17mm, 19mm
8.Counting range:1 ~ 999999
9.Torsion counterweights: 7(pcs) x 5kg, 1(pcs) x 2kg,1(pcs) x 0.5kg
10.Dimensions(mm): 950(L) × 500(W) × 1400(H)
11.Motor power:0.5kW
12.Rated voltage: 220V,50Hz

Tip: switch pin  for winding and torsion should be pulled out during winding, otherwise the mandrel will be broken and put in during torsion, otherwise it cannot be twisted.

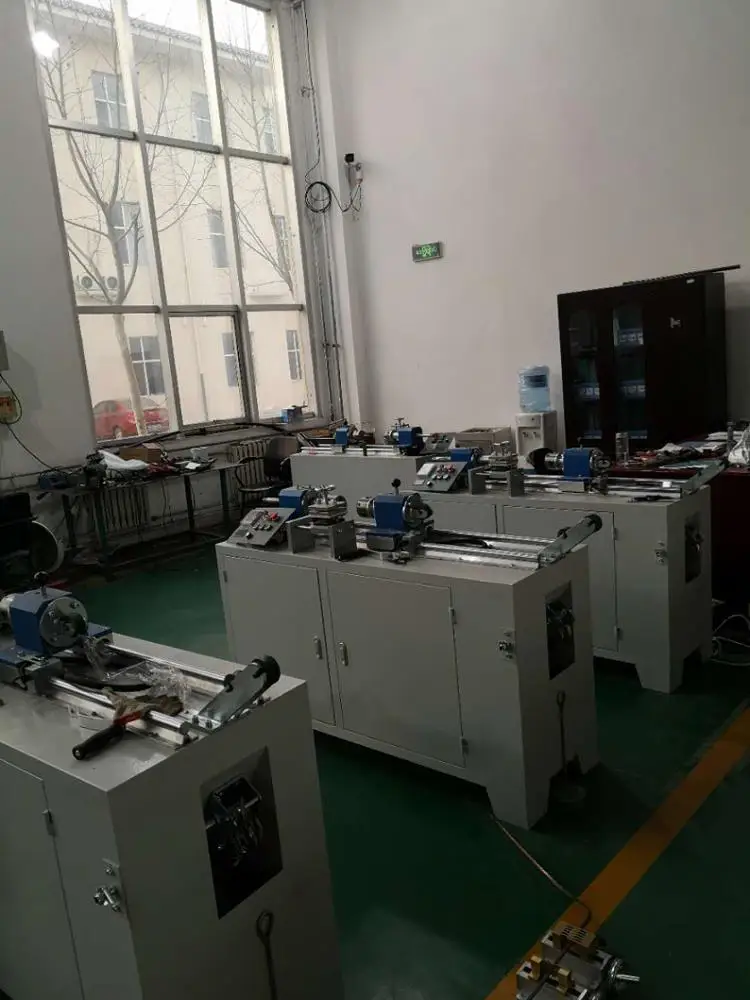

Hebei Fangyuan Instrument & Equipment Co., Ltd. Was established in 2001. It is a high-tech enterprises which specialized in testing equipments research, produce, sale and service. Our products involved industries about wire and cable, plastic package, fireproof door, paper product package and foods. We have 17 years' designed and developed experience, over 20 aftersales service employees. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
