A.Brief introduction:

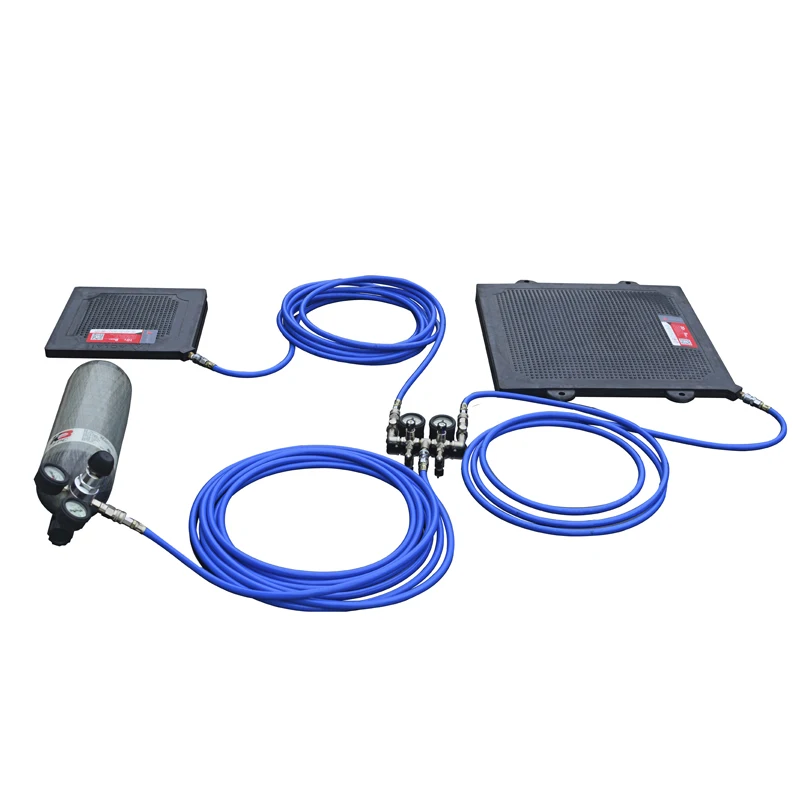

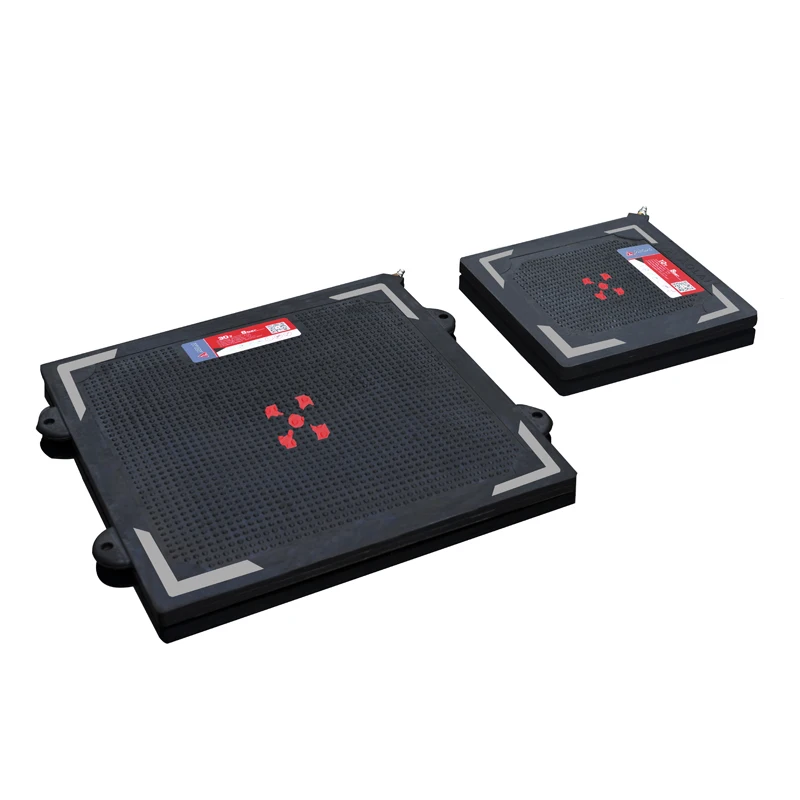

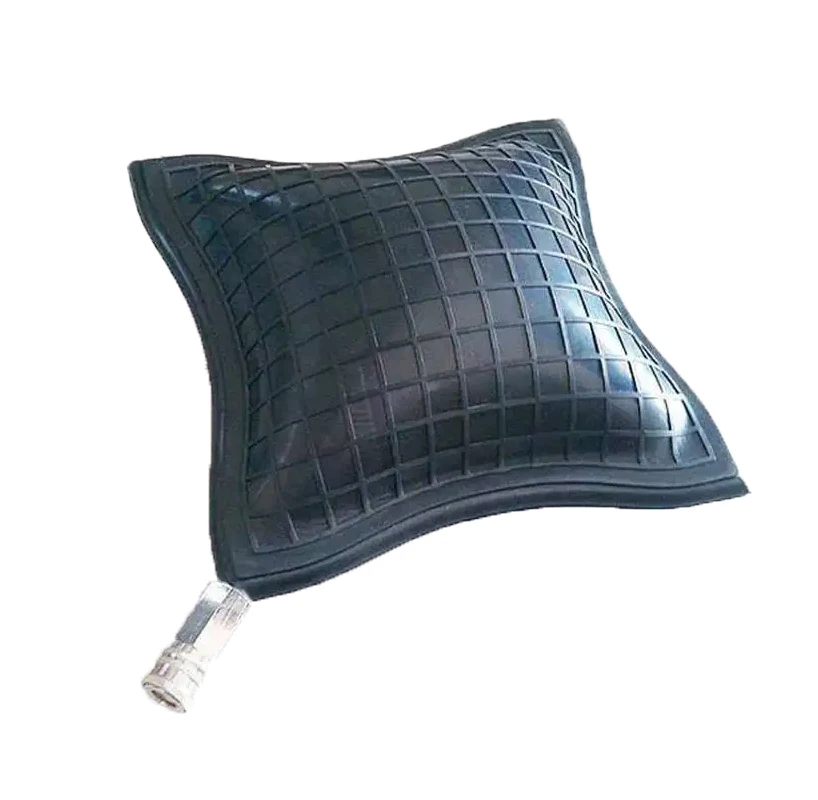

Plate air cushion rescue tools high pressure lifting bagsis a special tool for rescue and other emergency situation; it is multi-functional of lifting, pushing & pulling, extruding, separating etc. air lifting bag is made of CR121 type Neoprene,durable and resistant,the unit is mainly composed of high pressure gas cylinder,valves,pressure reducer,high pressure hose,air bag,etc.
B.Technical Parameter
Model | Area (cm) | Thickness (mm) | Lifting Force (t) | Max Lift Height (mm) | Max.Air Volume Needed (L) | Max. Pressure (bar | Test pressure (bar) | Weight (kg) |
P1 | 15*15 | 25 | 1.0 | 75 | 2.7 | 8 | 12 | 0.68 |
P5 | 25*25 | 25 | 3.3 | 120 | 15.8 | 8 | 12 | 1.92 |
P6 | 30*30 | 25 | 6.4 | 165 | 39.6 | 8 | 12 | 2.86 |
P8 | 35*35 | 25 | 8.6 | 185 | 69.9 | 8 | 12 | 3.7 |
P10 | 37*37 | 25 | 10.9 | 200 | 97 | 8 | 12 | 4.22 |
P12 | 39*39 | 25 | 12.2 | 230 | 126.3 | 8 | 12 | 4.64 |
P18 | 47*47 | 25 | 18.7 | 270 | 195.3 | 8 | 12 | 7.54 |
P20 | 50*50 | 25 | 20.6 | 306 | 196.1 | 8 | 12 | 7.70 |
P24 | 56*56 | 25 | 24.5 | 330 | 211.5 | 8 | 12 | 9.72 |
P30 | 65*65 | 25 | 31 | 360 | 463 | 8 | 12 | 13.32 |
P40 | 75*75 | 25 | 42 | 418 | 729 | 8 | 12 | 18.60 |
P54 | 86*86 | 25 | 54.4 | 478 | 1117.8 | 8 | 12 | 24.22 |
P68 | 96*96 | 25 | 68.7 | 520 | 1457. | 8 | 12 | 32.90 |
C.Application:
Traffic emergency rescue, Railway, Tunnel, Subway rescue & earthquake disaster relief accident rescue, mining rescue etc. lifting function needed situations.
D.Main parts
E.Warranty:
One year warranty;
Free technical support throughout service time
Q: What are the conditions of becoming a distributor of Aolai in my region?
A: As long as you own the marketing resources in your region that can help us to sell.Or you have capacity to do local after sales services.
Q: What are the benefits of being a Aolai distributor?
A: - Special discount .
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How can i become a distributor of Aolai ?
A: Contact us immediately for further details by sending us an inquiry.
