Cheap price automated warehouse collapsible pallet shuttle racking system
Product Description

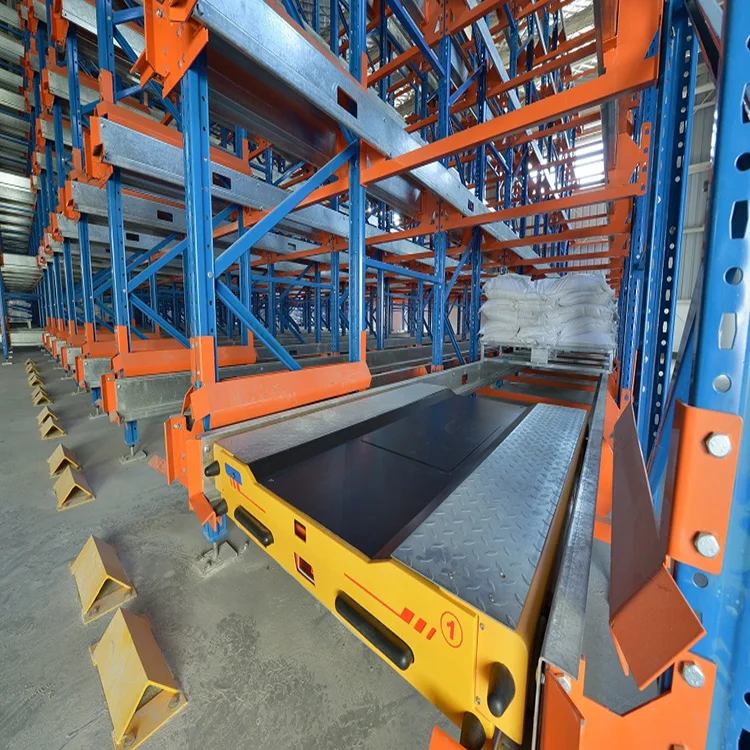

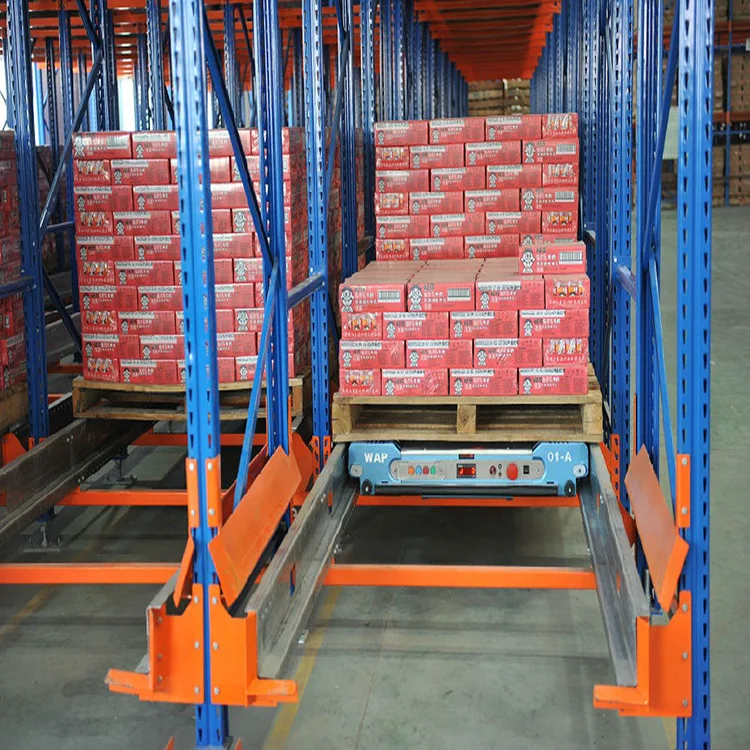

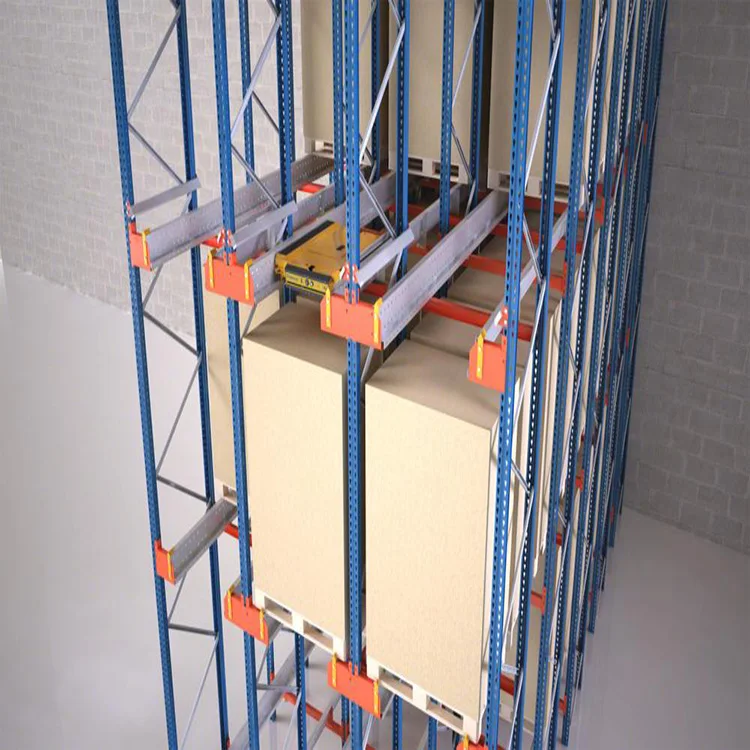

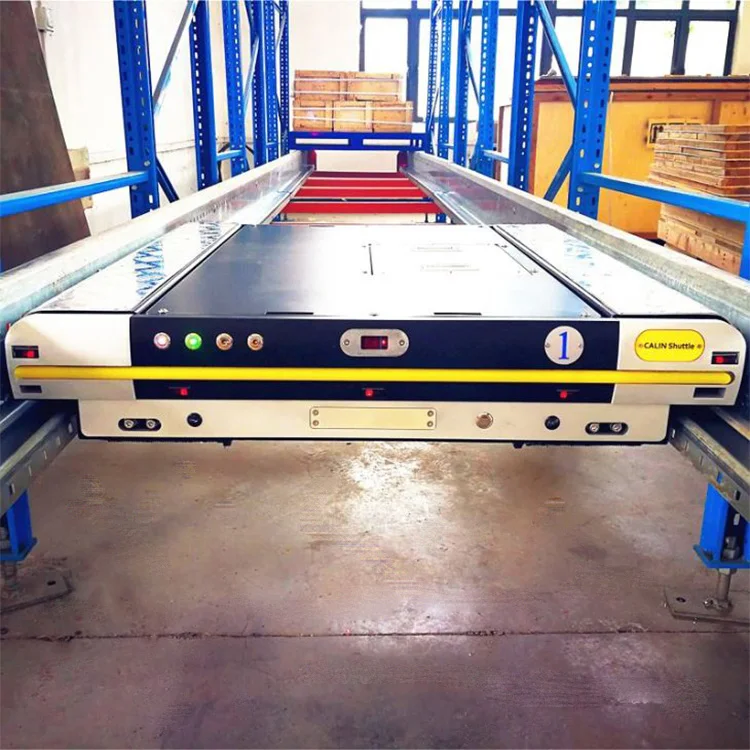

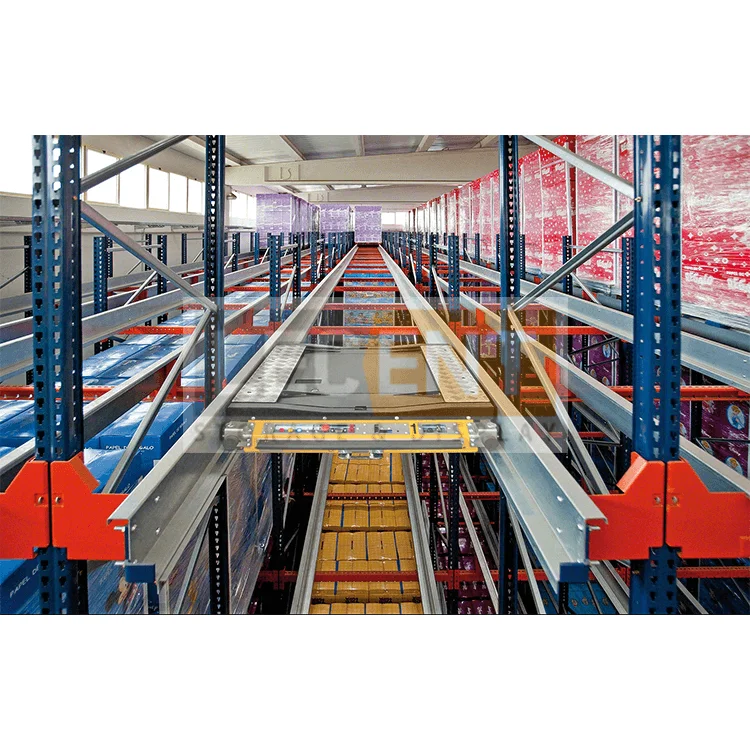

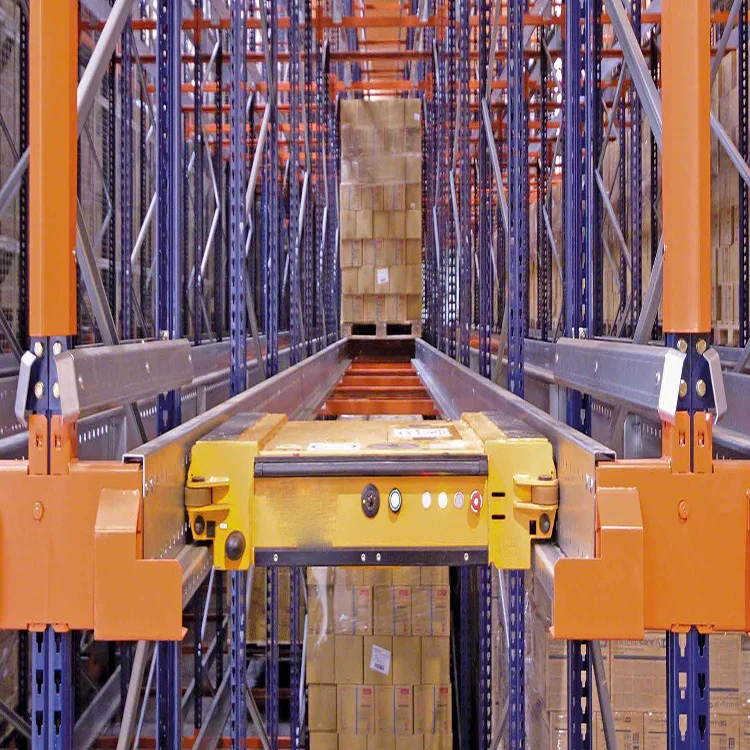

radio shuttle racking is a racking system with high density storage including racking and electrically powdered pallet runners,which works with forklifts.This shuttle is a self-powdered device that runs on rails in the storage lanes for the loading and unloading of pallets.The automated system guarantees the highest possible storage density.
RADIO SHUTTLE RACKING
| Item | Basics | Notes |
| Model | TDRLL-B-1210 |  |
| Pallet Size | width 1200mm depth1000mm | |
| Capacity | Max1500kg |
| Item | Basics | Notes | |
| Drive | speed | Empty:1.0m/s,Load:0.8% | |
| Accelerate | ≤0.5/s2 | ||
| Motor | Brushed Servo Moter 24VDC600W | Keya Servo | |
| Lift | Lift Height | 40mm | zhongda Motor |
| Motor | Brushed Servo Motor 24VDC400-600W | ||
| Positioning | Running:Laser+Encodes | German made | |
| Pallets:Laser | German P+F | ||
| Lift:Proximity Switches | German P+F/SICK | ||
| Control | S7-200 PLC Programmable Controller | Germany SIEMENS | |
| Controller | Working Frequency 433MHZ, at least 100m communication distance | Customized imported Tele-radio | |
| Two way communication,with LDC screen | |||
| Working temperature :-30ºC+80ºC IP67 | |||
Company Information
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for over 15 years.
Business scope:
| Light duty rack | Selective pallet racking | VNA Pallet Racking | Wire mesh panel | Tool cabinet | |||||
| Modular wire shelving | Double deep pallet racking | Mezzanine Rack | Wire mesh container | Dock leveler | |||||
| Slotted angle shelving | Drive In pallet racking | Steel platform | Steel pallet | Supermarket shelving | |||||
| Boltless rivet shelving | Radio shuttle racking | Mobile shelving | Storage cage | Shopping basket | |||||
| Longspan shelving | Cantilever racking | Steel locker | Steel pallet box | Transportation cart |
Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations , SEMA and CE certificate . Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.
The working flow of steel shelving, as follows
Remarks: Our storage racking are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it's better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it's one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.
Our Services
We offer professional consultation and design. Our experienced staff would assist you in designing a storage system that best suits your particular needs.
We also offer:
1. Professional CAD Drawings
2. Stamped Engineered Drawings
3. Custom designed and built to meet your specific needs and requirements.
4. Custom sizes and colors are also available.
1. Professional CAD Drawings
2. Stamped Engineered Drawings
3. Custom designed and built to meet your specific needs and requirements.
4. Custom sizes and colors are also available.
After Sales Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
5.Record customer respond,suggestion,requirement.
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
5.Record customer respond,suggestion,requirement.
FAQ
Are you distributor or manufacturer?
We are professional and leading manufacturer for nearly 15 years.We produce and export high quality pallet racking and shelving system which have a very high reputation among our customers. Our pallet racking, long span shelving, cantilever racking and rivet shelving, drive in rack, steel mezzanine sell very well among our distributors in Europe, Mideast, Australia ,South Africa and Asia.
We are professional and leading manufacturer for nearly 15 years.We produce and export high quality pallet racking and shelving system which have a very high reputation among our customers. Our pallet racking, long span shelving, cantilever racking and rivet shelving, drive in rack, steel mezzanine sell very well among our distributors in Europe, Mideast, Australia ,South Africa and Asia.
1) Our Excellent Service
For a quick, no hassle quote just send email to ours
We promise to reply with a price within 24 hours - sometimes even within the hour.
For a quick, no hassle quote just send email to ours
We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 25 days.
For Normal orders, we will promise to produce within 25 days.
3)Our Warranty
The High Standards in the Design and Manufacturing of its systems enables us to support its products with a limited 3-Year Warranty, the Longest Manufacturer's Warranty !
The High Standards in the Design and Manufacturing of its systems enables us to support its products with a limited 3-Year Warranty, the Longest Manufacturer's Warranty !
4)What are our company delivery times?
This depends on the product. Typically standard products are delivered within 25 days.
The delivery time of the special products is according to the time of setting up of the tooling.
This depends on the product. Typically standard products are delivered within 25 days.
The delivery time of the special products is according to the time of setting up of the tooling.
5)What are the payment term?
A. 30% T/T down payment and 70% T/T payment against receipt of the copy of B/L.
B. Letter of credit payment
A. 30% T/T down payment and 70% T/T payment against receipt of the copy of B/L.
B. Letter of credit payment
6)May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information.
Yes .We will send you information and photos at different production stage of your order. You will get the latest information.
