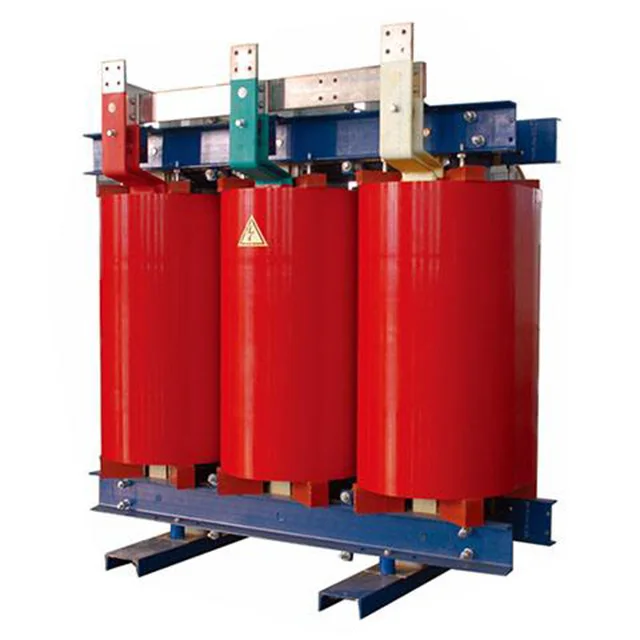

Трансформаторы Mva 1MVA 1000 кВА 1000ква из литой смолы сухого типа мощность тороидальная распределительная 10кВ с низким уровнем потери 1 Yyn0/dyn11

 Product Introduction

A. the material of iron corn is high magnetic flux cold rolled grain oriented silicon steel sheet, of which the thickness

is less than 0.3 mm. Meanwhile, Protective resin covered on the surface of iron core for Moisture proof and rust proof.

B. The structure of low voltage winding is Cylindrical, which is made by copper foil. The high voltage winding has

the structure of Multi-storey. The style of designing can improve the mechanical strength and the ability of Anti short circuit.

C. The cooling system equips low noise fans adapted by Temperature Controller to add 40% more capacity for the Transformer.

D. the Protection Level of the transformer executed by the standard of IP20 can defense the transformer from any items

which the diameter is greater than 12 mm. To meet the needs of clients, the protection level can reach to IP23,

which can defense ≤60 degree angle water falls.

E. No load loss and load loss  meet the standard of GB/T 10228-2008, however, the no load loss of SC(B) 10 is lower 10%

of the standard of GB/T 10228-2008 and the load loss is lower than 5% of GB/T 10228-2008.

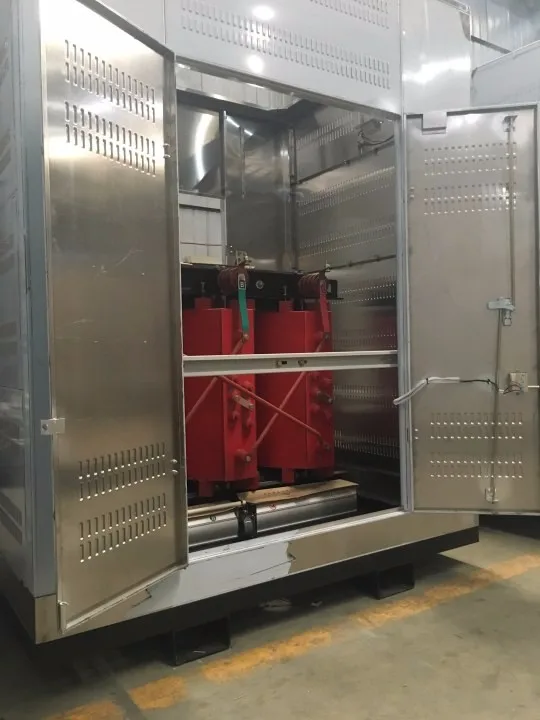

  Transformer Shell in Process

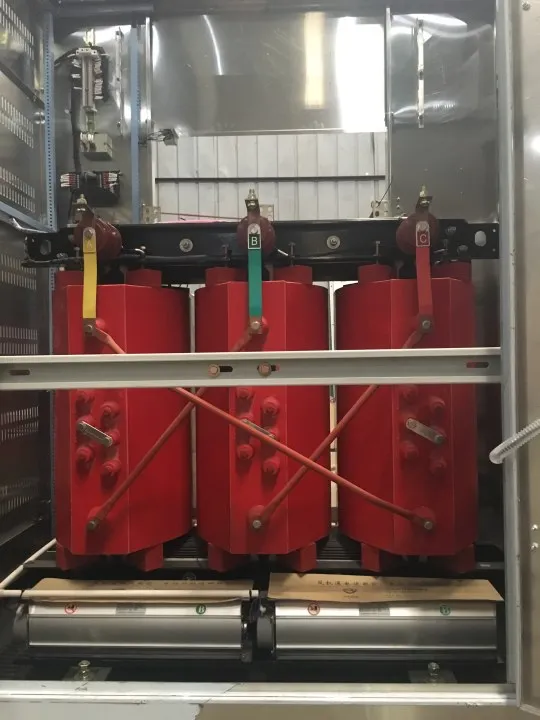

                          Sheet Iron Shell                                            Stainless Steel Shell

  Winding in Process

  Manufacturing Equipments

 Test Center

 Company Introduction

 1. The Conso Electric is handquartered in Yueqing, China;

 2. It has OEM status of Heag Group and XJ group;

 3. The main product is 10kv to 35kv Transformer, Substation and VCB.

  Human Resource

   Office Building

Reliable in Quality and Competitive in Price

Our product meets the standard of IEC and GB. The product runs comprehensive type tests according to

the lastest IEC and GB standard. The ISO sends specialists to inspect annually in Conso Electric of China.
