Безопасный для окружающей среды электронный 10368 18awg галогенный провод кабелей awm коаксиальные кабели

Сохранить в закладки 62271972794:


Цена:0,13 $ - 0,17 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





750



Product Description

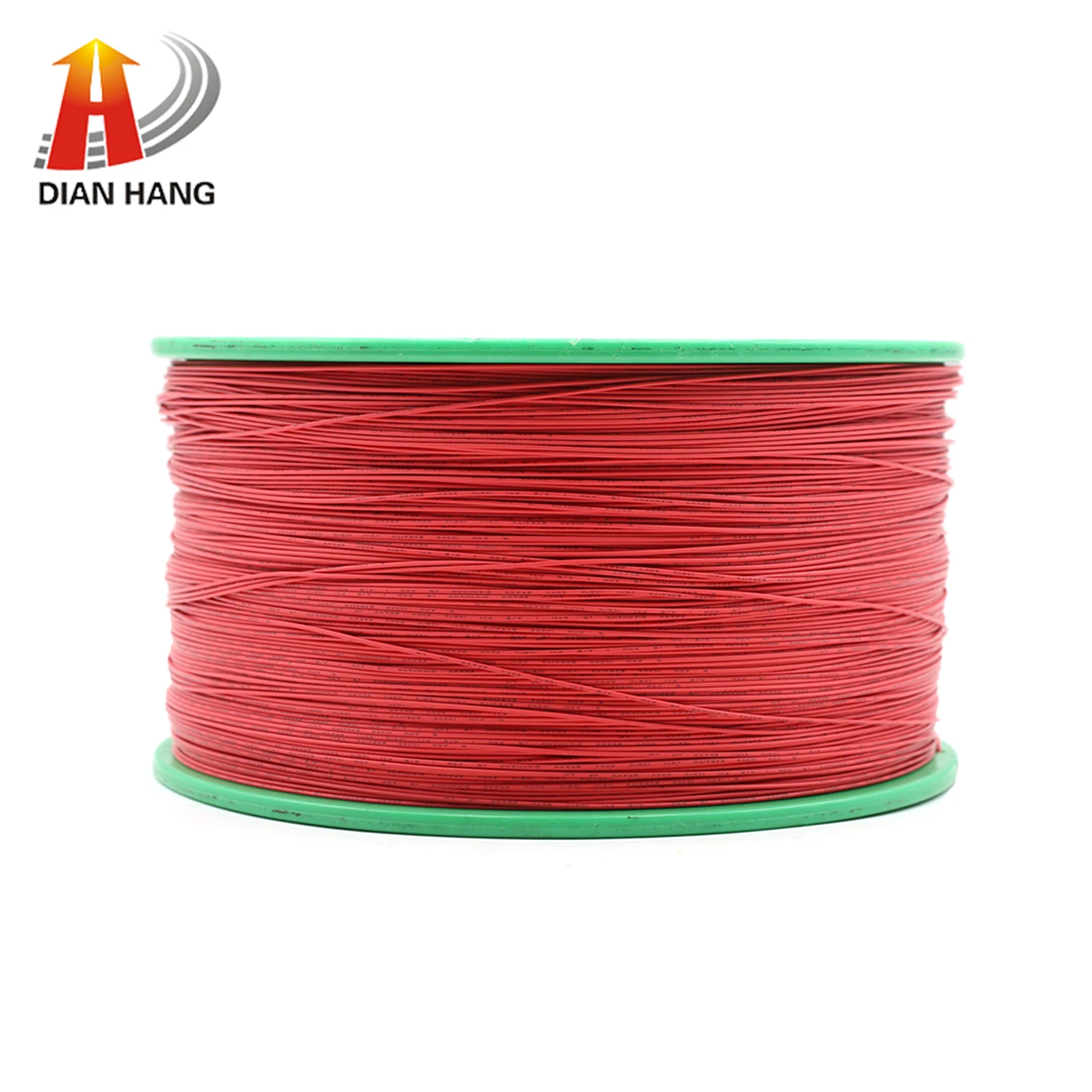

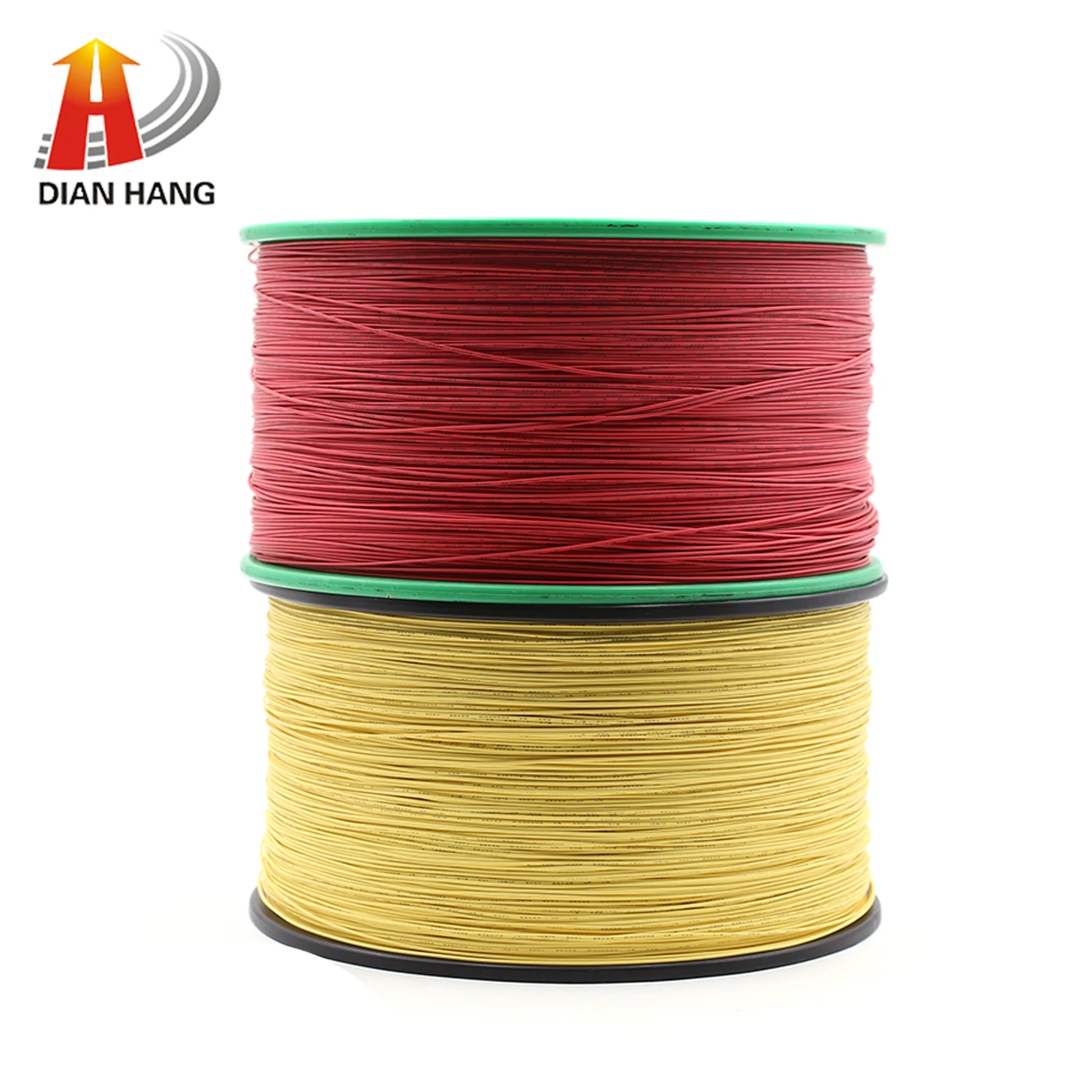

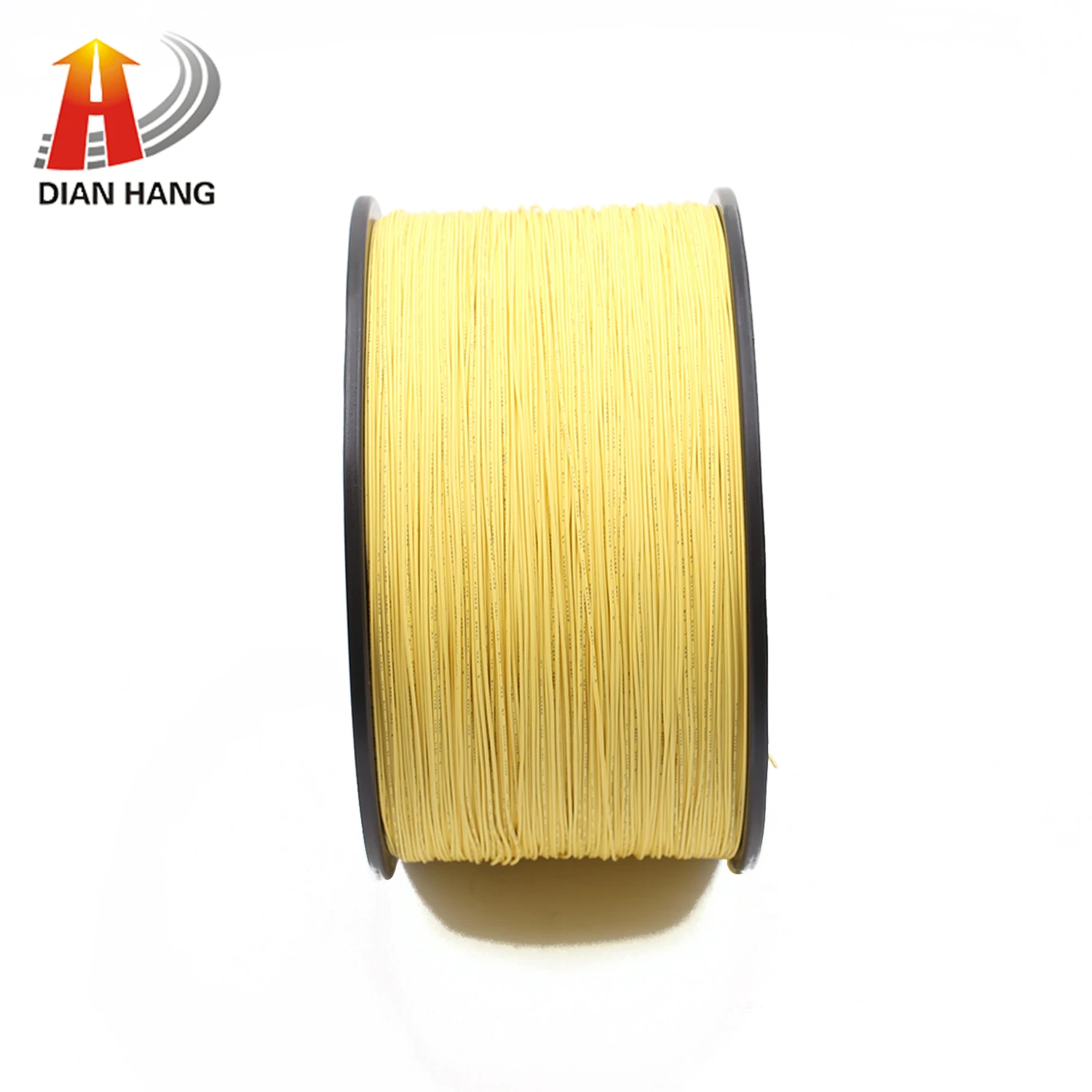

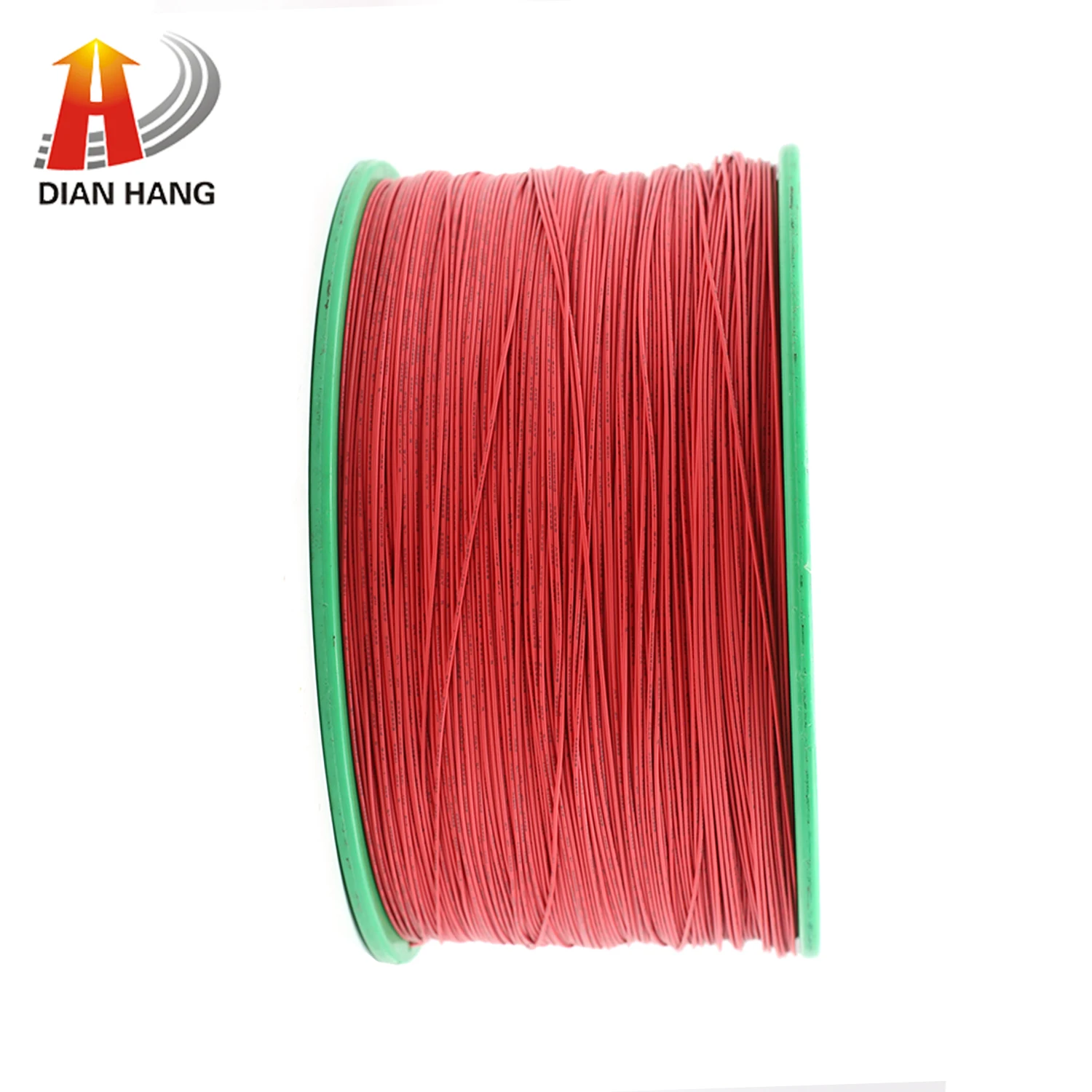

UL10368 Halogen free wire


Rated temperature:105℃


Rated voltage:300V


Reference standard:UL758,UL1581,CSA C22.2No.210.2

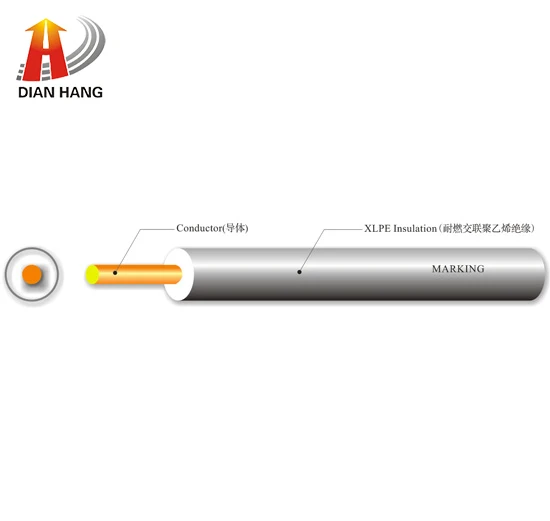

Solid or stranded, tinned or bare copper conductor 30~10AWG


XLPE insulation, comply with ROHS, REACH environmental standard


Passes UL VW-1, and JQA F-Mark flame test


Uniform insulation thickness to ensure easy stripping and cutting


Application:


For general purpose internal wiring of appliance
































































































































UL modelconductorinsulation

maximum conductor


resistance


compressive strength
10368specification(AWG)constructionoutside diameterthickness

outside


diameter


(Ω/Km,20℃,Dc) (Vac,1min)
(mm)(mm)(mm)
307/0.100.30.250.83812000
287/0.1270.380.260.92392000
267/0.160.480.2611502000
247/0.200.60.251.194.22000
227/0.2540.760.271.359.42000
207/0.320.960.271.536.72000
1816/0.2541.170.311.823.22000
1626/0.2541.490.312.114.62000
1441/0.2541.880.312.58.962000
1265/0.2542.360.373.15.642000
107/15/0.2543.420.394.23.542000
