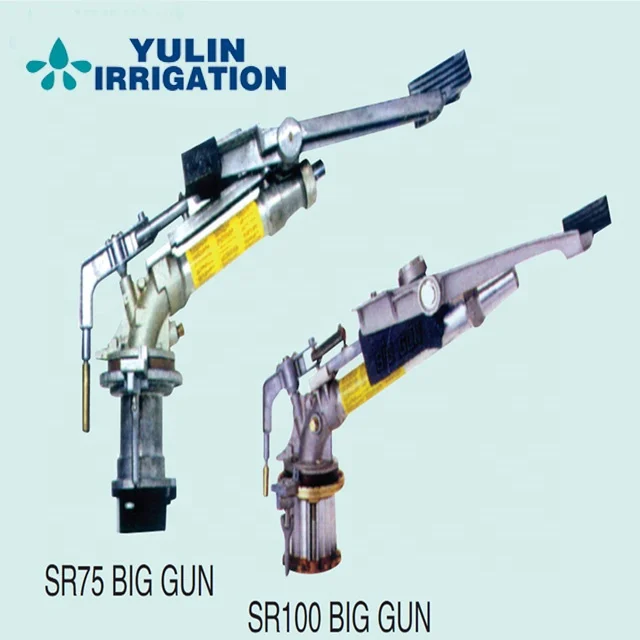

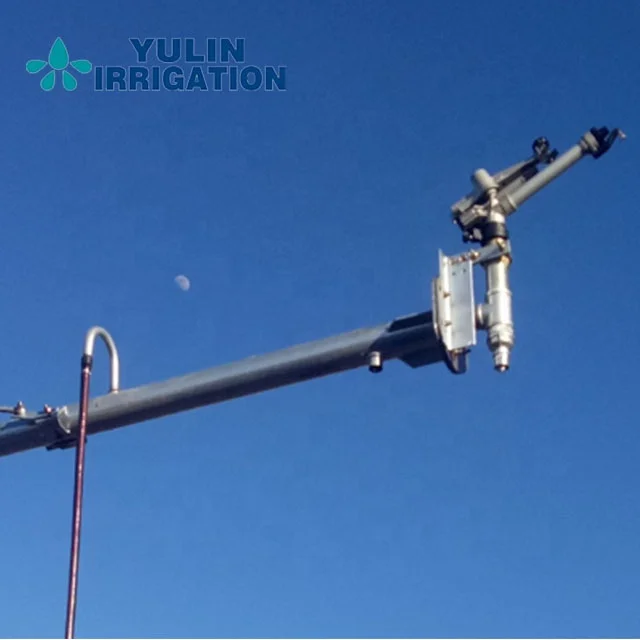

Заводская цена высокое качество большой дождевой пистолет Дождеватель для фермерской системы орошения
- Категория: >>>
- Поставщик: China Yulin Irrigation Equipment Co. Ltd.
Сохранить в закладки 62277643253:
Описание и отзывы
Характеристики
Product Description
Agriculture machinery equipment of irrigation systems pivot machine with Factory Price High Quality Big Rain gun Sprinkler For Farm Irrigation System | ||
Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe） | |
Standard span | 6-5/8''(168mm)*54.5m(8 pipes) | |
King-sized span | 6-5/8''(168mm)*61.3(9 pipes) | |
Overhang | 5-9/16''(141mm) | |
King-sized overhang | 4''(101mm) | |
Pipe length | 22feet/one (6.7m) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Working voltage | 460--380V/50--60HZ | |
Power supply mode | Diesel generator and the local power company provide | |
Tire type | 14.9-24 irrigation tire | |
Motor speed reducer | Electric transmission gearbox(American) | |
Motor power | 0.75~1.5 horse power | |
Motor speed reducer | output speed of electric transmission gearbox:28~86RPM | |
Span body tower structure | Adopt "V" model tower | |
Sprayer | Standard configuration's N D3000; selective configuration:USA N R3000 | |
All the equipment with | The pressure of sprinkler pressure governor:15PSI (20PSI)(10PSI) | |
Main cable | 4*4mm²+6*1.0mm²(resisting ultra violet and aging) | |
The end has | LED working status instruction light | |
Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Irrigation intake caliber | 8inches,the spot water supply pipe is more than 6 inches | |
Irrigation intake pressure | 0.20--0.35mpa | |
Standard irrigation truss height from the ground | 3.2m | |
Sprayer spacing | 2.2--4m (the quantity:2-3sprayer/water pipes) | |
After complete machine steel component was welded, it adopts hot galvanizing | ||

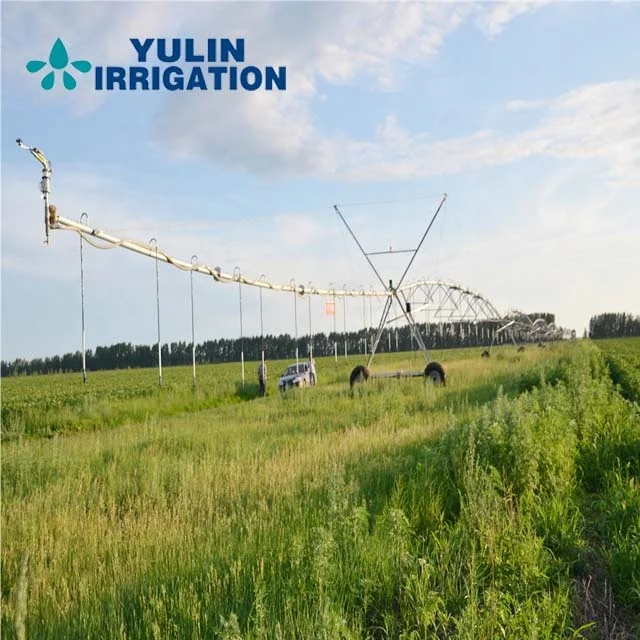

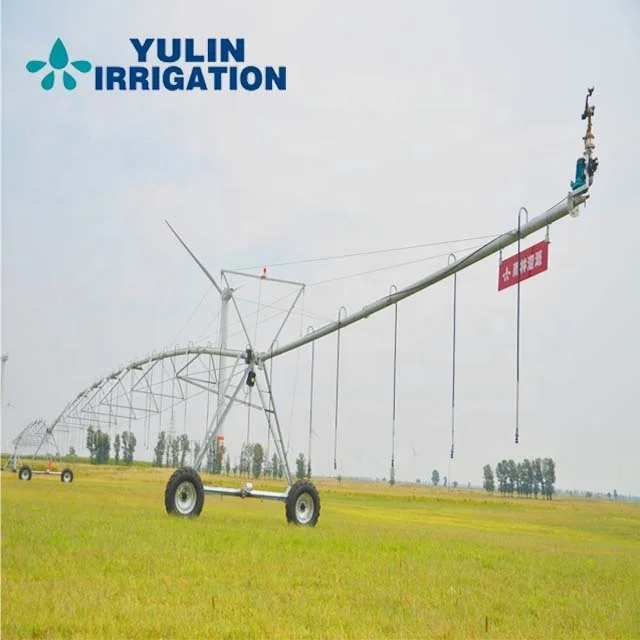

Pivots are irrigation systems consisting of one or more spans which rotate around a fixed point anchored to the ground.The spans turn repeatedly around a fixed central point. They are simple to use and require little intervention. These machines are both reliable and excellent value for money.
ZONAL PIVOT IRRIGATION
The spans rotate less than 360 degree and therefore maximize the irrigated surface area when there is an obstacle (farm building, tree,pylon etc.) situated in the middle of the Field, or where the shape of the Field does not allow full rotation.An automatic reverse system allows continuous operation whilst the security system ensures that the spans stop at the end of the irrigated
Details Images
Standard Control Panel
1. Work status indication and real-time monitoring; 2. Failure alarm;
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine;
6. Digital display percentage table that allows to adjust the working rate;
7. Indication of possible reasons for breakdown; 8. Auto-stop if voltage is low/high;
9. Auto-reverse function;
10.Equipped with lighting arrester to prevent lighting stroke;
11.Extreme temperature protection switch (≤4°C)
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine;
6. Digital display percentage table that allows to adjust the working rate;
7. Indication of possible reasons for breakdown; 8. Auto-stop if voltage is low/high;
9. Auto-reverse function;
10.Equipped with lighting arrester to prevent lighting stroke;
11.Extreme temperature protection switch (≤4°C)
D3000
The working sprinklers we use are from American
Sprinkler, which is near to the land to save more water
&labour and increase the irrgation ratio each hour.
You can choose the sprinkler model you like.
Sprinkler, which is near to the land to save more water
&labour and increase the irrgation ratio each hour.
You can choose the sprinkler model you like.
R3000
The working sprinklers we use are from American
Sprinkler, which is near to the land to save more water
&labour and increase the irrgation ratio each hour.
You can choose the sprinkler model you like.
Sprinkler, which is near to the land to save more water
&labour and increase the irrgation ratio each hour.
You can choose the sprinkler model you like.
Our Company
Factory
China Yulin Irrigation Equipment Co., Ltd. is a leading manufacturer of agricultural irrigation equipment in China. As an OEM manufacturer we have supplied more than 1,000.00 large scale irrigation projects between from 2000 to 2008 to the American irrigation company. We rae the only Chinese manufacturer who has achieved American certification on technology, manufacturing process, management standards and quality assurance.
Development
Starting from 2009 Yulin has marketed irrigation equipment under the brand of HUAXING YULIN, which has developed into a major supplier for industry and the Chinese government through large government project tenders.
The manufacturing plant covers an area of 35,000.00 square meters with the whole plant covering 45,000.00 square meters. Total investment has reached 40 million RMB. Yulin has a new production plant with research and development at its heart. With modern advanced manufacturing equipment and rigorous quality control procedures, Yulin irrigation equipment offers quality and lifespan on a par with American products.
Certifications
Packing & Delivery
Loading Container: 40GP for whole machine
20GP for irrigation machine
Mix container to loading for client
Vessel Compamy: COSCO,ZIM,CMA and famouse international vessel company
Standard Packing:
Pipe:5 pieces of pipe for one line,four line as one packing
10 pieces of pipe for one line,two line as one packing
Eletricity parts :packaged by carton and then put inside of iron box
Angles: each span angle with different color marked for client as one packing
Our Service
1.24 hours online timely reply to each question from clients
2.Professional irrigation design service for the customerized land size for client
3.Techinical installation and debugging for your irrigation system
4.Perfect and timely after-sale service for clients and dealer
Debugging
Installing
Engineer with clients
Engineer with clients
FAQ
1. What is the minimum quantity I can order?
-1 set
2. How many meters machine can be loaded into 1x40HC?
- about 500m
3.What is your average production lead time?
- about 20 days after received your prepayment.
4. What's the payment terms?
-T/T
5. Do I get any guarantee from your company?
-1 year warranty time for the whole electric parts;
-2 years warranty time for the irrigation tire;
-5 years warranty time for the moter and gearbox;
-10 years warranty time for the galvanization.
6. What happen in case any quality problem is identified after arrival?
-We take full responsibility for any manufacturing defect, would either refund or reship good products
to you.
Contact
Похожие товары

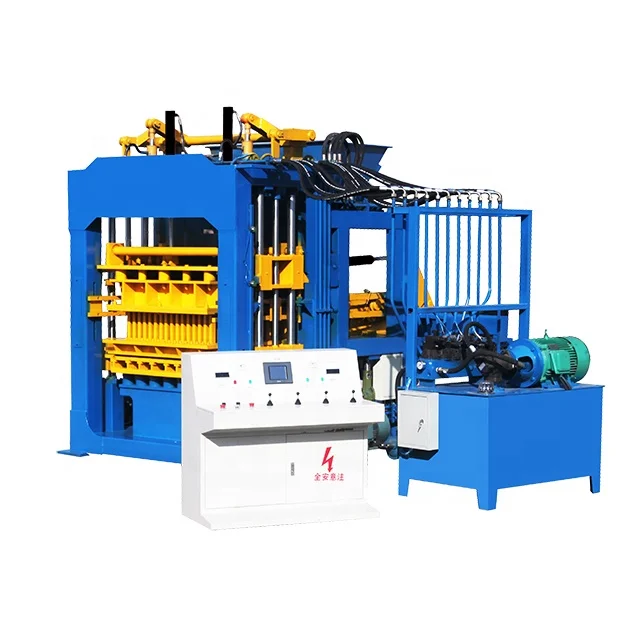

QT10-15 полностью автоматическая машина для производства кирпича flyash в Индии

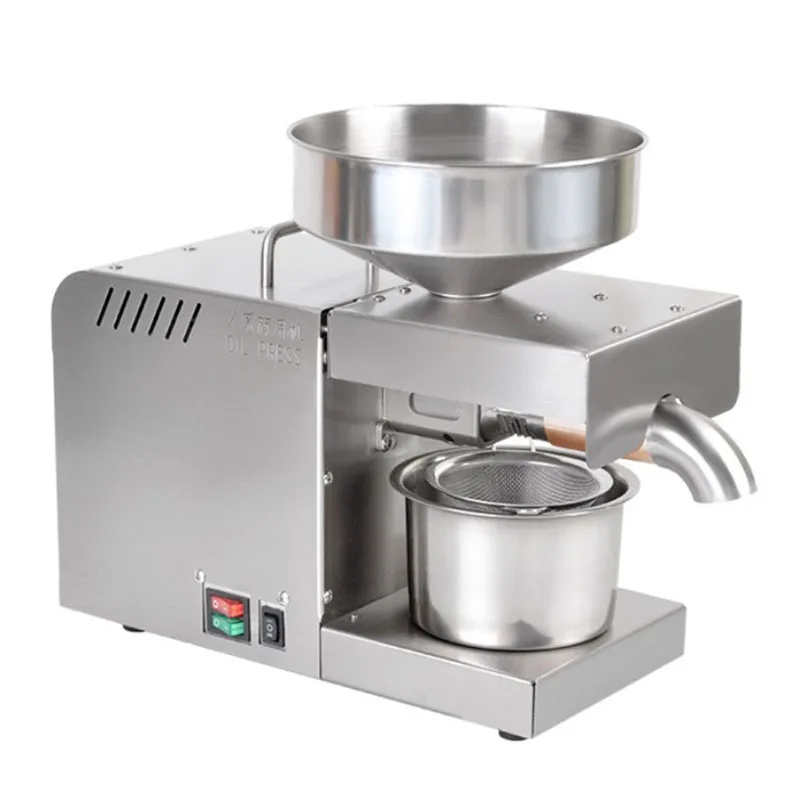

YTK-X5 масло пресс машина для домашнего использования 610 Вт мини жмых нажатии холодного отжима масла
175,00 $ - 195,00 $
Сборный дом 850 г PVD 6 м круглая покрытая палатка купольные палатки для четырех
850,00 $ - 1 080,00 $

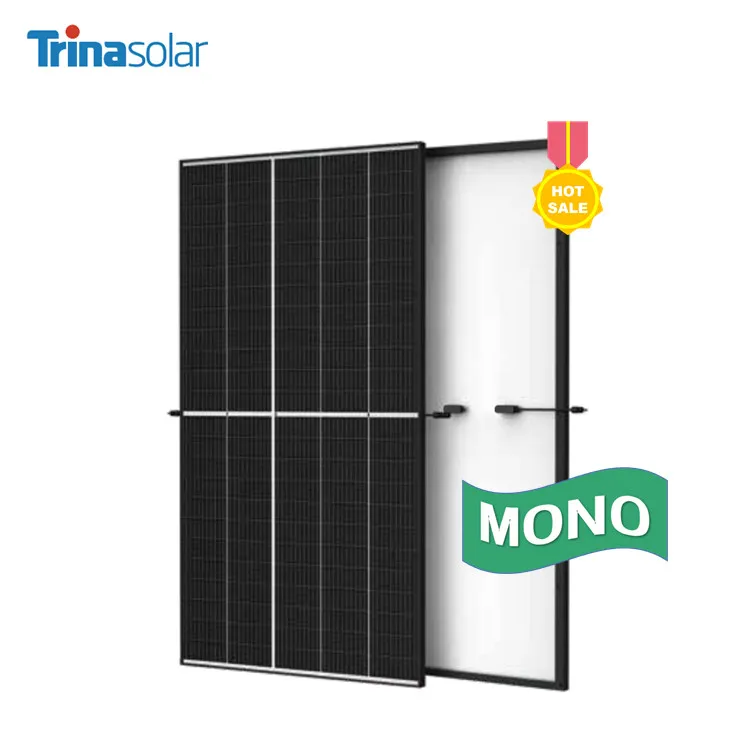

Trina solar vertex s tsm 400 Вт солнечная панель 405 Вт фотоэлектрическая панель моноэлементные солнечные модули
0,21 $ - 0,23 $

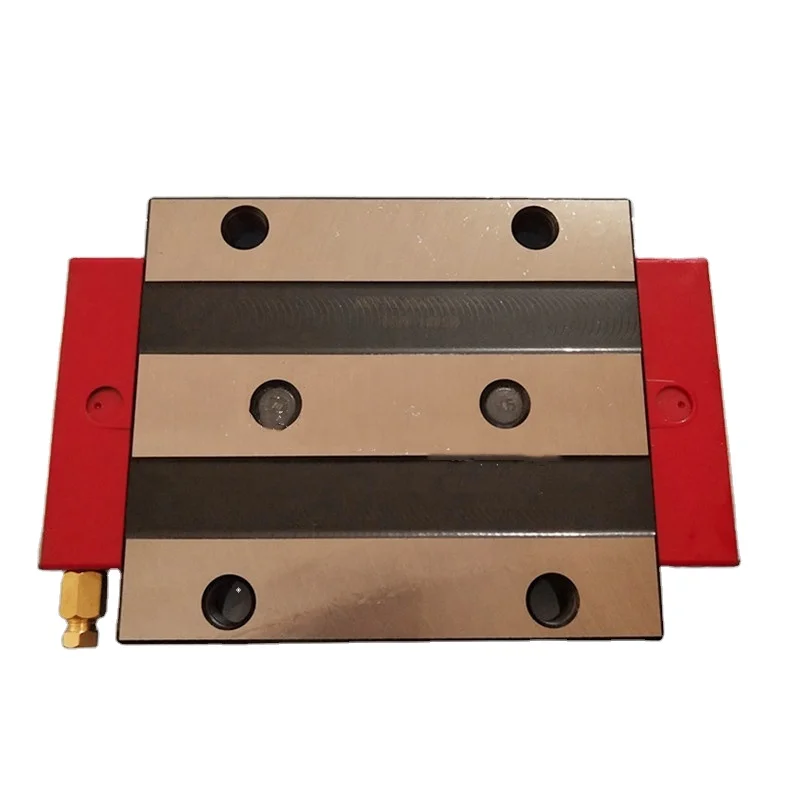

Schneeбергер, линейная направляющая, модель MRB65

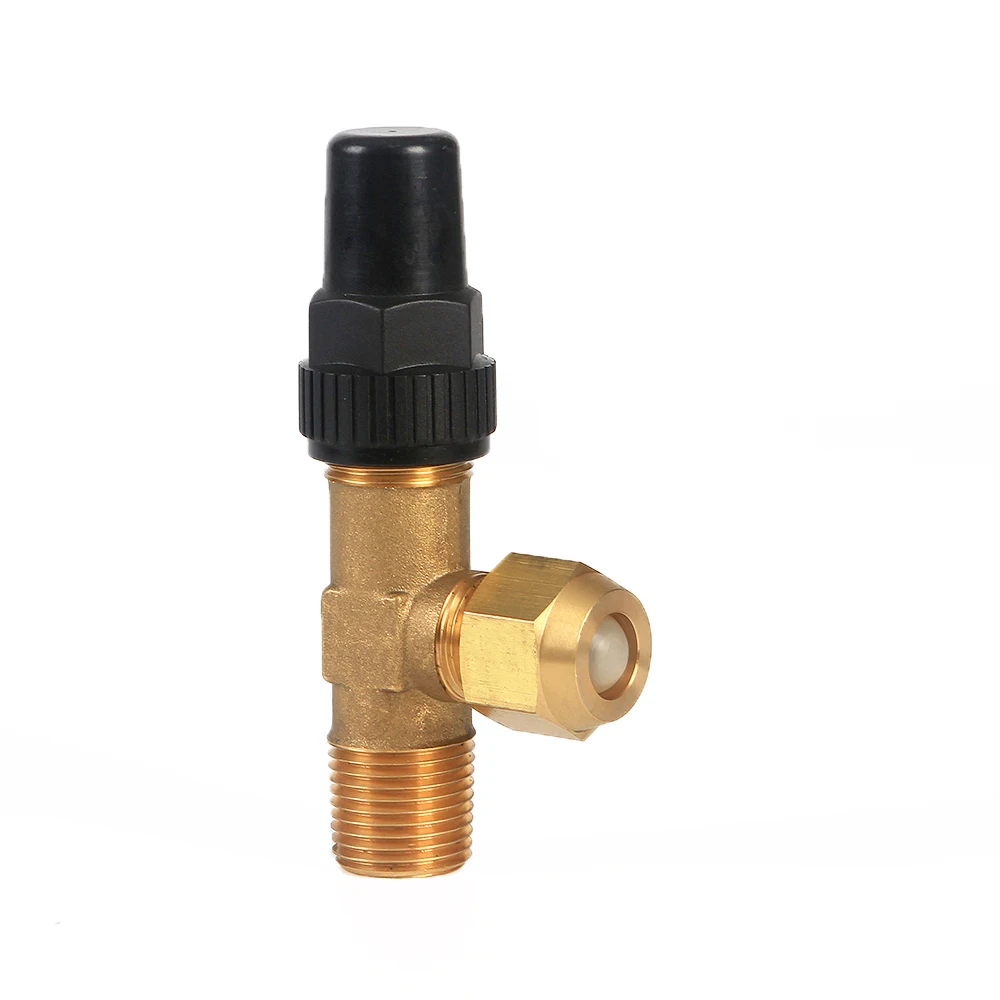

Компрессионный желтый и черный латунный прямоугольный запорный шарик для проверки с воздушным приводом, быстрый запорный клапан
2,20 $ - 2,60 $

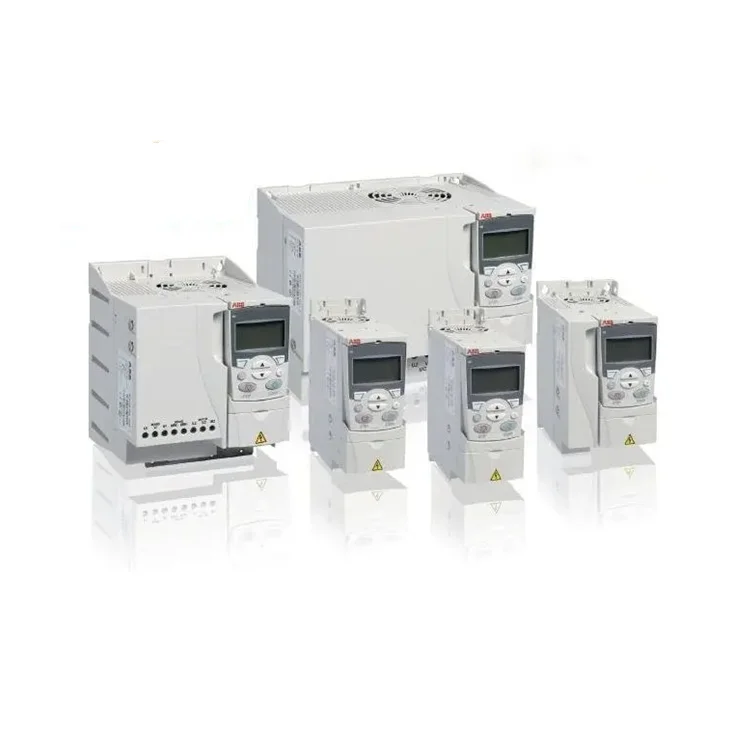

Лидер продаж бренд ABB новый оригинальный модуль Plc преобразователь привода быстрая доставка
