Заводская цена вакуумная ленточная сушилка для травяного экстракта растительный экстракт кокосовый какао порошок

Сохранить в закладки 62277789682:


Цена:750 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


6_01



6_02

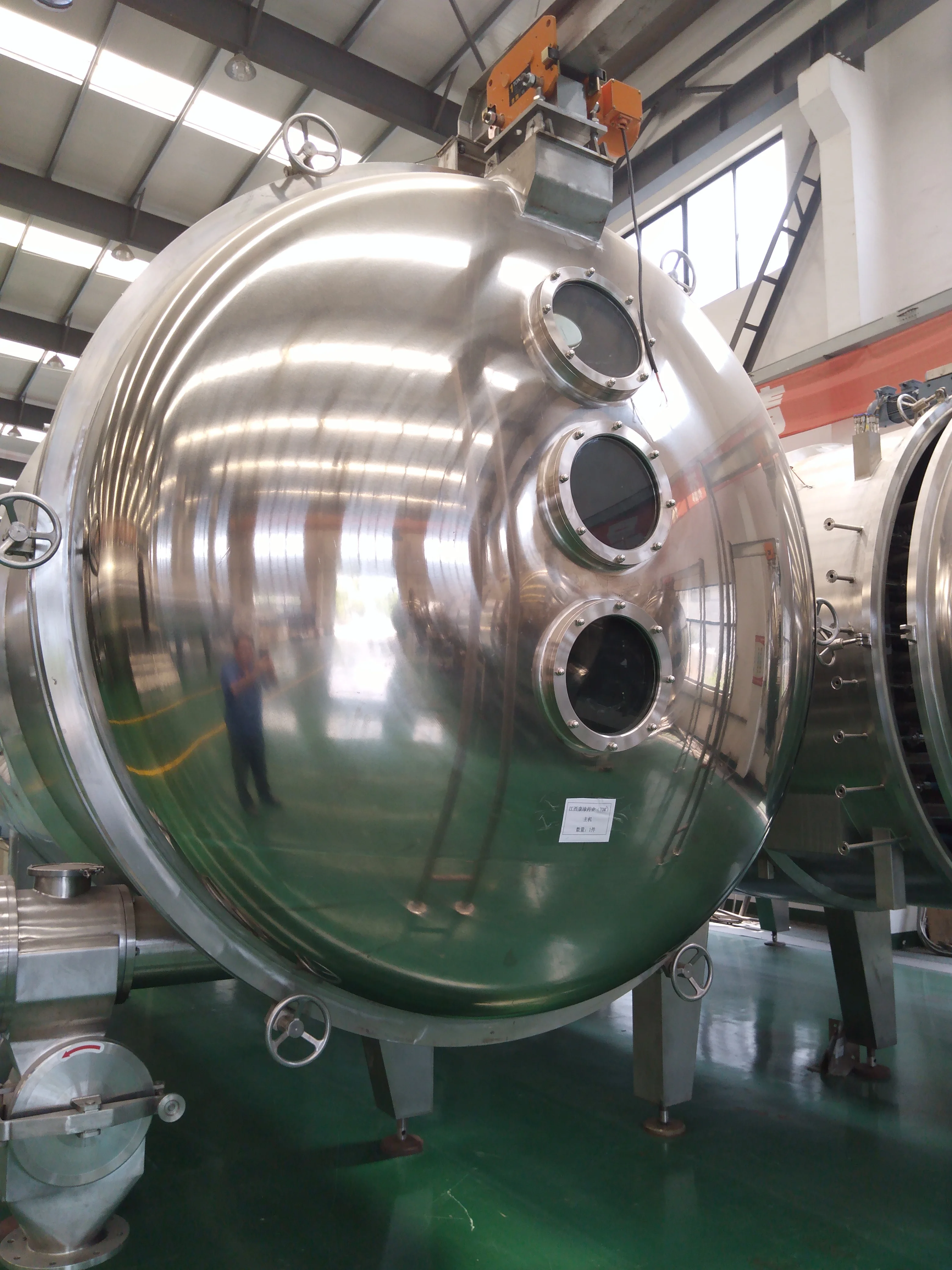

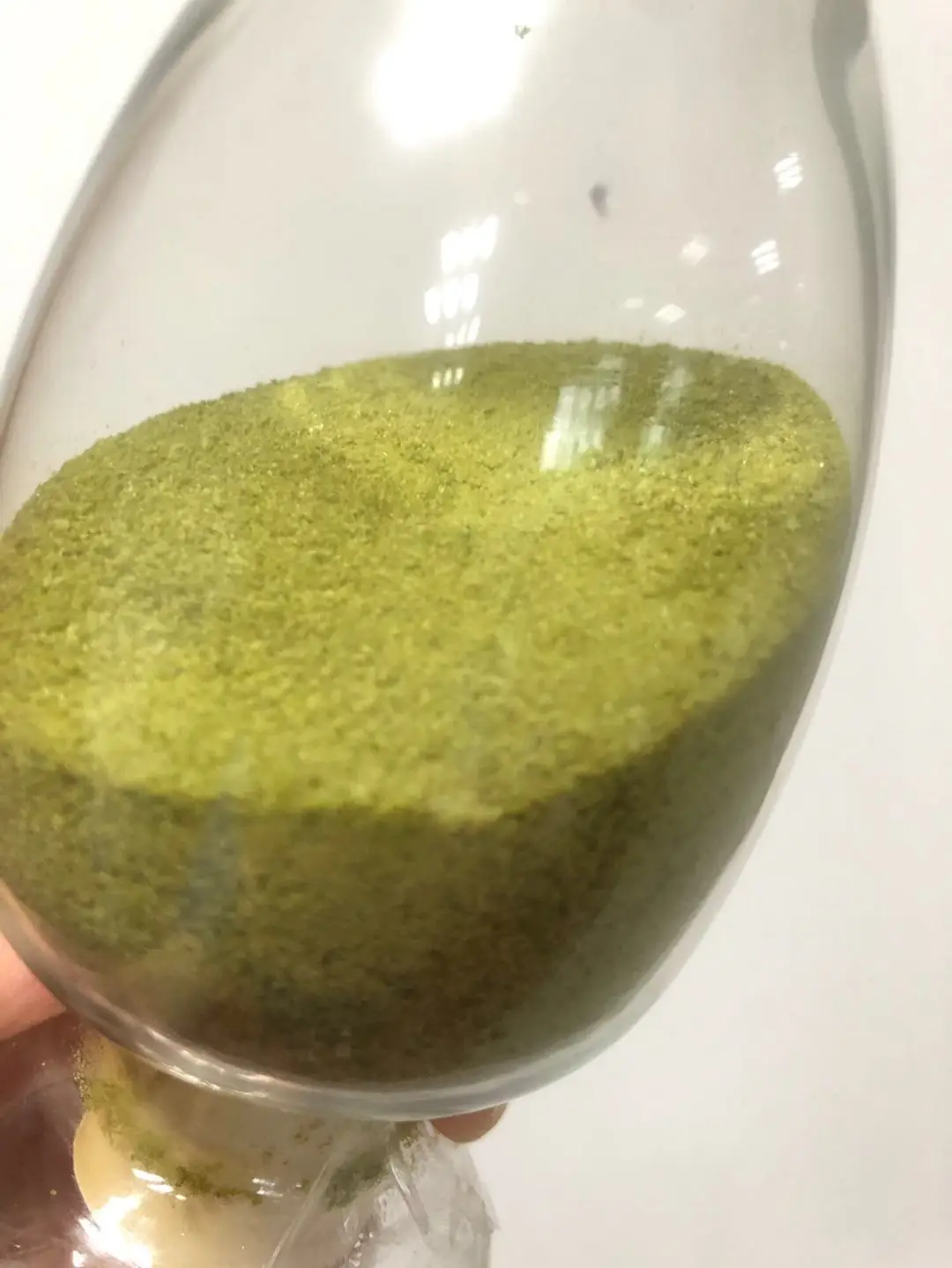

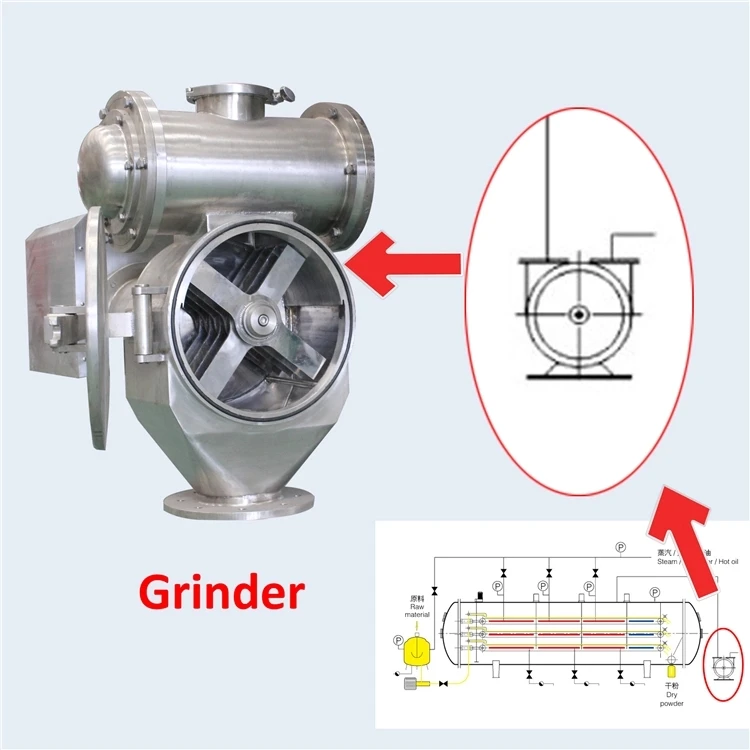

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

EQUIPMENT  ADVANTAGE:
1.Less labor cost and energy consumption
2.Little loss of product and solvent recycling possible
3.PLC automatic control system & CIP cleaning system
4.Good solubility & excellent quality of the products
5.Continuous feed-in, dry, granulate, discharge in vacuum state
6.Completely closed system and no contamination
7.Adjustable drying temperature (30-150℃)& drying time (30-60min)
8.GMP standards



-2_







































































































Model



Diameter



Length



Height



Heating area



Moisture contentoffeeding material



Moisture content of dried product



Heating


resource



Water Evaporation



Dryer body


power







mm



mm



mm



Square meter



%



%







kg/h



kw



MJY30-4



1700



9800



2700



30



20-80


Mobility



0.2-5


Adjustable






Steam or Hot water or


Hot oil



15-25



10.00



MJY60-6



2200



10800



3650



60



45-55



14.00



MJY80-6



2200



13500



3650



80



60-75



14.50



MJY100-6



2200



16100



3650



100



80-90



15.50



MJY120-7



2200



16100



3650



120



100-110



16.50



MJY160-8



2800



17300



4100



160



120-140



18.50



MJY200-10



2800



17300



4150



200



160-180



25.50







If the solvent of raw material is organic (ethanol, acetone, methanol etc.),evaporation capacity would rise. Evaporation capacity is closely related with drying temperature.


81882


.jpg






6_04


Vacuum belt dryer (VBD) is mainly used in drying many kinds of liquid or paste raw material, such as Traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.


6_056_066_08



FAQ


6_10


Question 1: What is the working principle of vacuum belt dryer?


Answer:Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.





Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?


Answer:with CIP cleaning, vacuum belt dryer is the best choice for GMP performance.





Question 3: What kind of products can vacuum belt dryer dry?


Answer:all kinds of liquid material for vacuum belt dryer.





Question 4:How to ship vacuum belt dryer?


Answer: Flat Rack+container





Question 5:What is the delivery time?


Answer: 120 days





Question 6:What is the after-sales service type?


Answer: engineers onsite to guide installation, commissioning and training.





Question 7:How many years history of your factory?


Answer: Since 1998.





Question 8:How many sets vacuum belt dryer are been sold every year?


Answer: Over 80 sets





Question 9: What is drying temperature?


Answer: 30-150℃(adjustable)
