Машина для перемотки ПВХ пленки

Сохранить в закладки 62280761034:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Please Attention

"with us your MONEY in safe ; your BUSINESS in safe"

YIDAO FACTORY OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: NO MOQ ,1PC OK.
4.ONLINE PAYMENT.
5.SUPPORT 7 DAYS REFUND.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS". WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTREPRISE".
WELCOME TO CONTACT US.

Product Description

Machine features:


This machine is applicable to slit the narrow scope paper. It can automatically meter, set length, stop , winding is controlled by photoelectric eyes. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.


Technical parameters:

\t
Item No.
\t
YD-320FQ
\t
Slitting Speed
\t
70m/min
\t
Max. Web Width
\t
320mm
\t
Max. Unwinding Diameter
\t
500mm
\t
Max. Rewinding Diameter
\t
480mm
\t
Slitting Precision
\t
±0.1mm
\t
Total Power
\t
0.75KW
\t
Machine size
\t
1100x900x1300mm
\t
Machine Weight
\t
400kgs

*the voltage can customize according to your country standards.

Standard Configuration:
1) With one slitting station
2) With 1pc of 3" unwinding shaft
3) With 2pc of 3" rewinding shafts
4) With meter/number counter.
5) With two photoelectric eyes
6) With 10 sets round slitting knives.
7) With one magnetic powder brake, two magnetic powder clutch.
8)Machine has blower fan to blow away the trimmed sides



Application:

slitting for label,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.

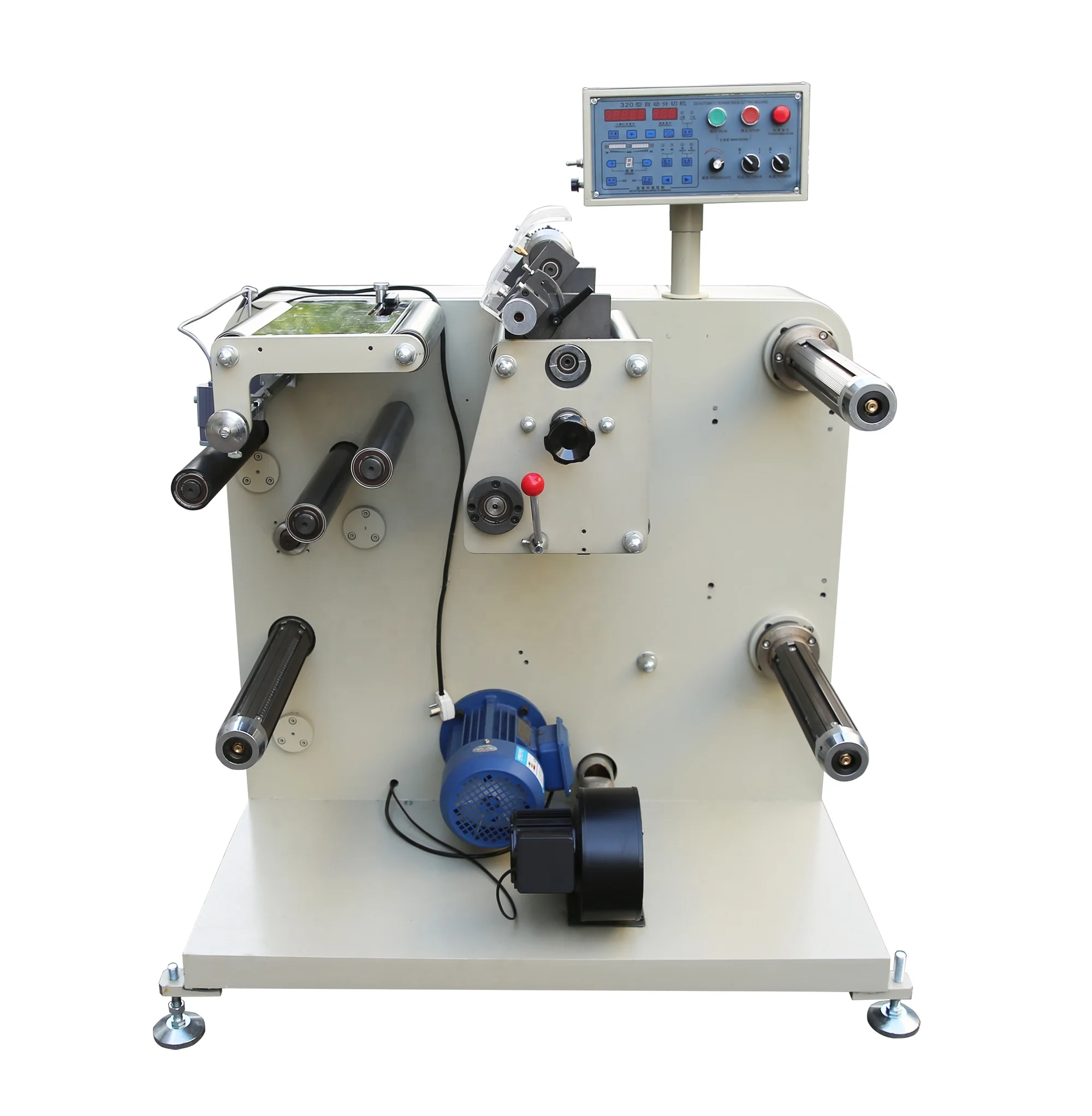

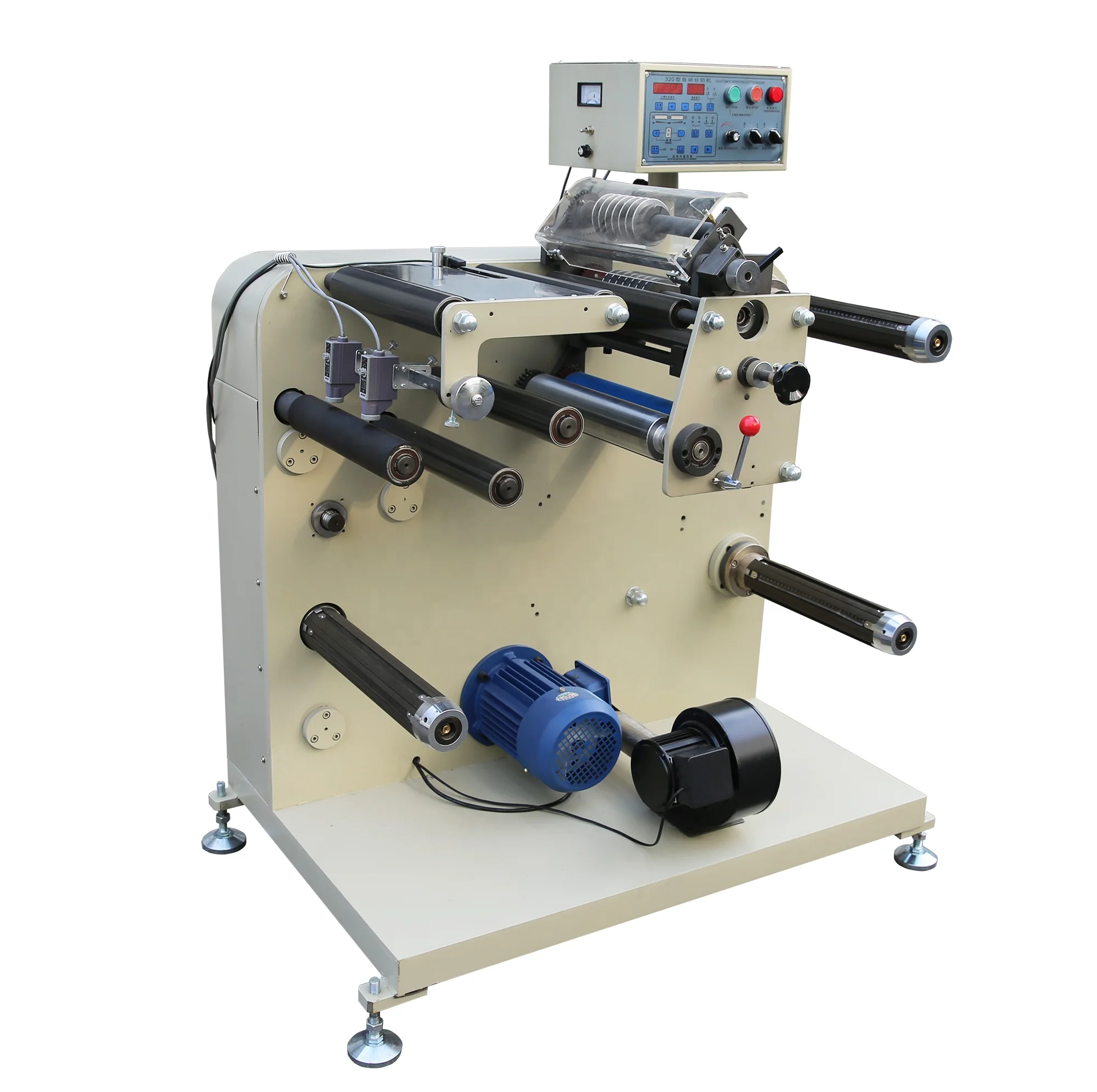

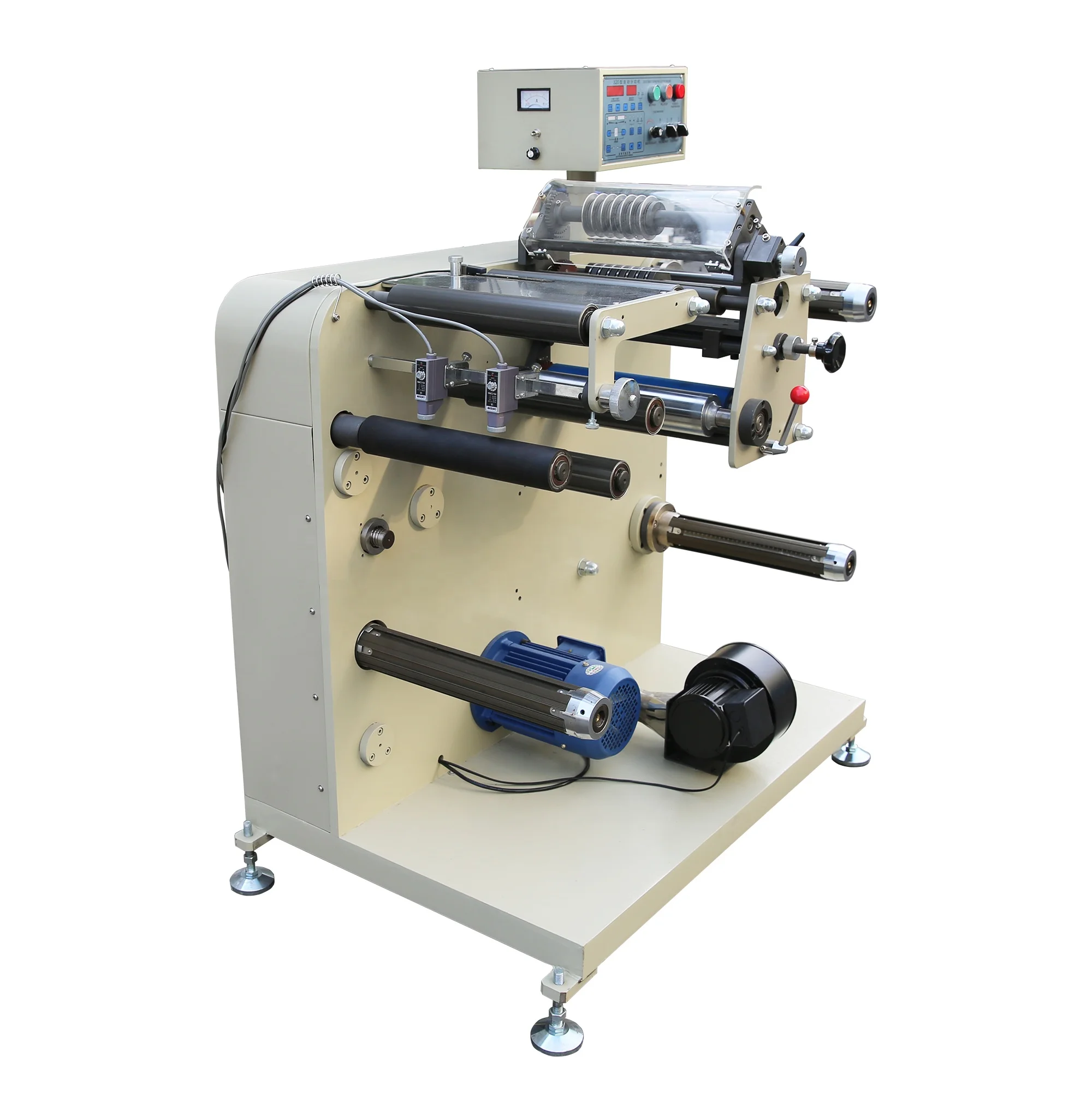

Machine Display
Machine Details




Control Panel

You can set slitting speed,running length on it.
It is very easy for worker to operate the machine.


Slitting Blades

This machine is standard equipped with 10 sets of slitting blades,the min slitting width is 15mm.if you want to slit smaller width,you can customize self-lock knives.
It's easy to adjust the slitting width based on your products.



Tension Controller

Unwinding and rewinding tension adjustable via magnetic powder brake/clutch.

You can set the tension according to your material and requirements.

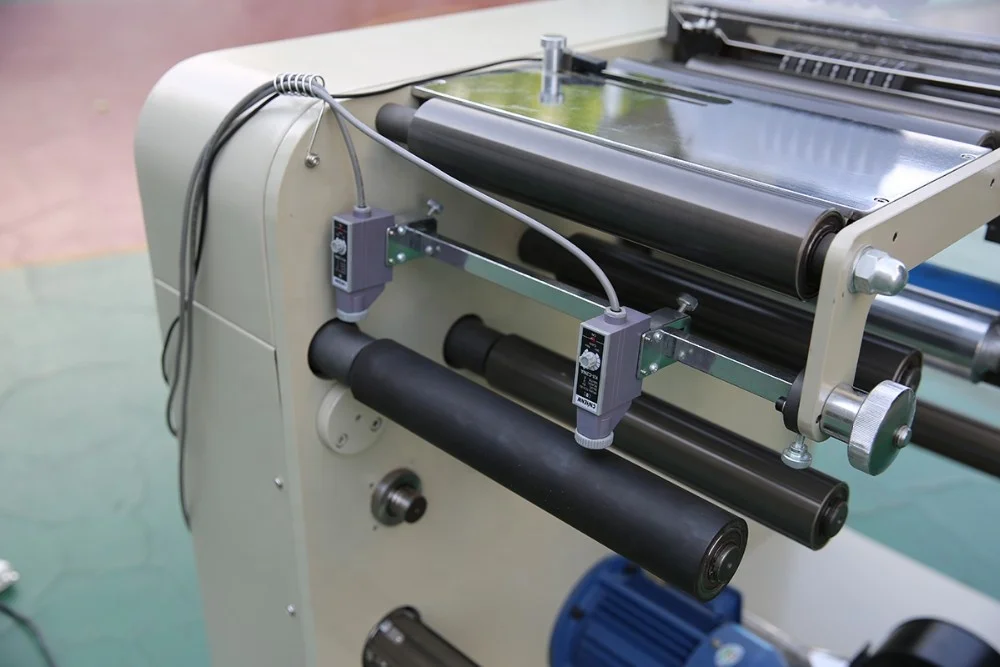

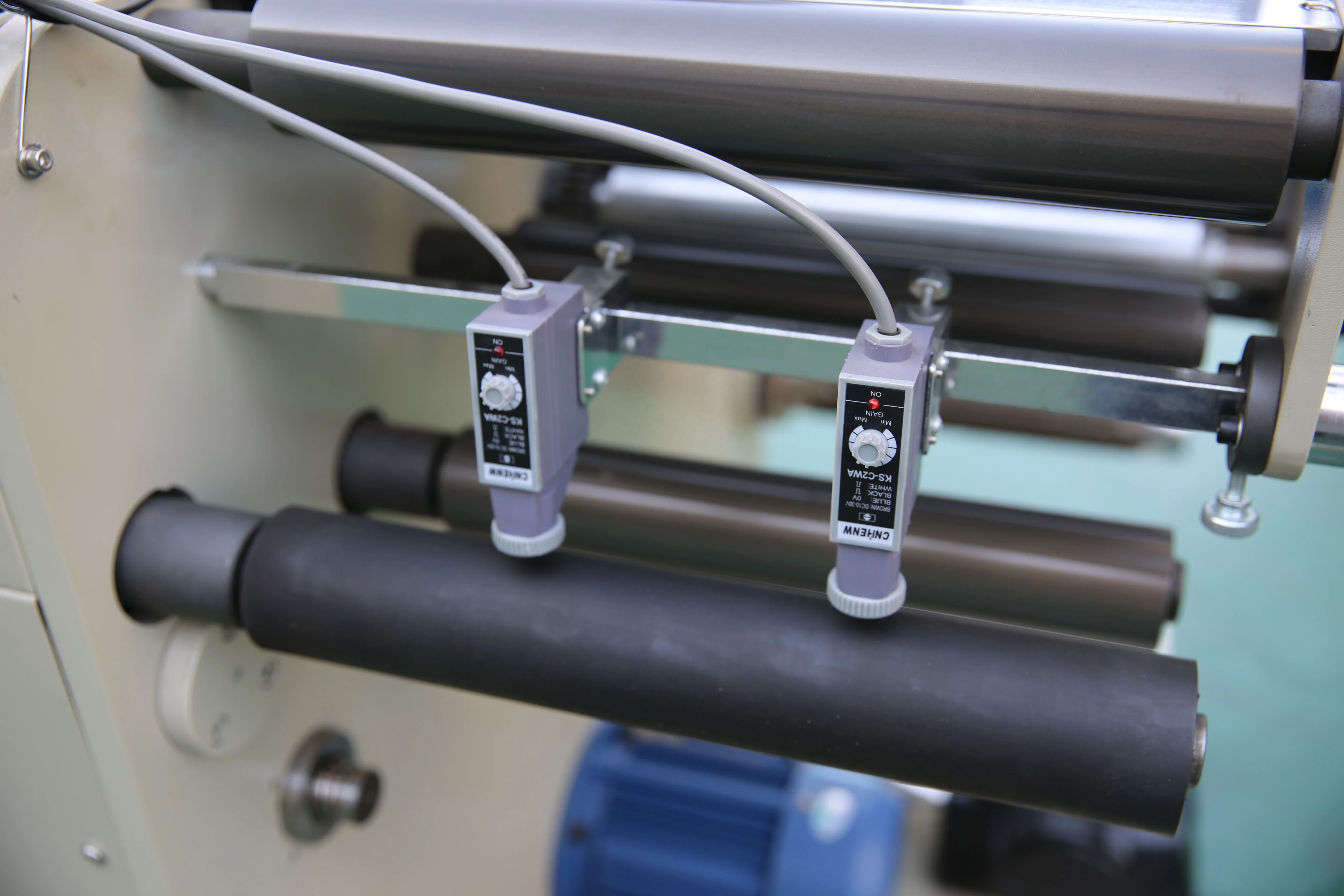

Edge/line Position Controller

These electrical photo sensors is used to guide the non neat material.to make sure the slitting rewinding effect is good.
The photo sensors focus on the edge of material,you can choose to use single sensor or double sensors.

After-service

1. Training Service
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.

2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.

Application
Packing & Delivery

PACKAGE: Awe use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .


SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .
