Новые высококачественные популярные коммерческие складные машины для стирки полотенец в

Новые высококачественные популярные коммерческие складные машины для стирки полотенец в

Категория: Commercial Laundry Equipment >>>
Поставщик: Shanghai Baiqiang Washing Equipment Manufacturing Co. Ltd.

Цена:14 800,00 $ - 20 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

New top grade popular commercial hotel towel folder laundry folding machines

Product Description

Product Show.jpg

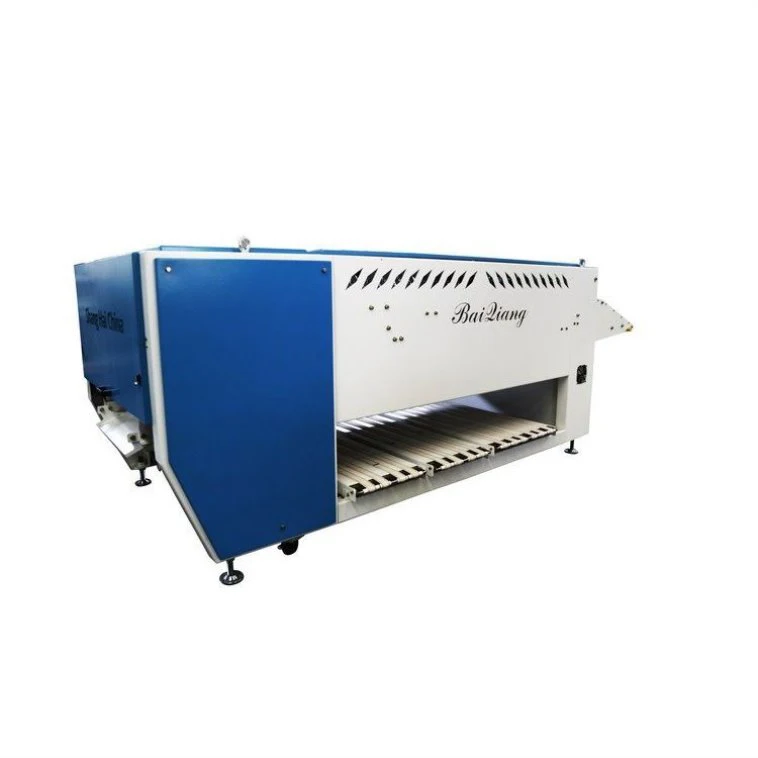

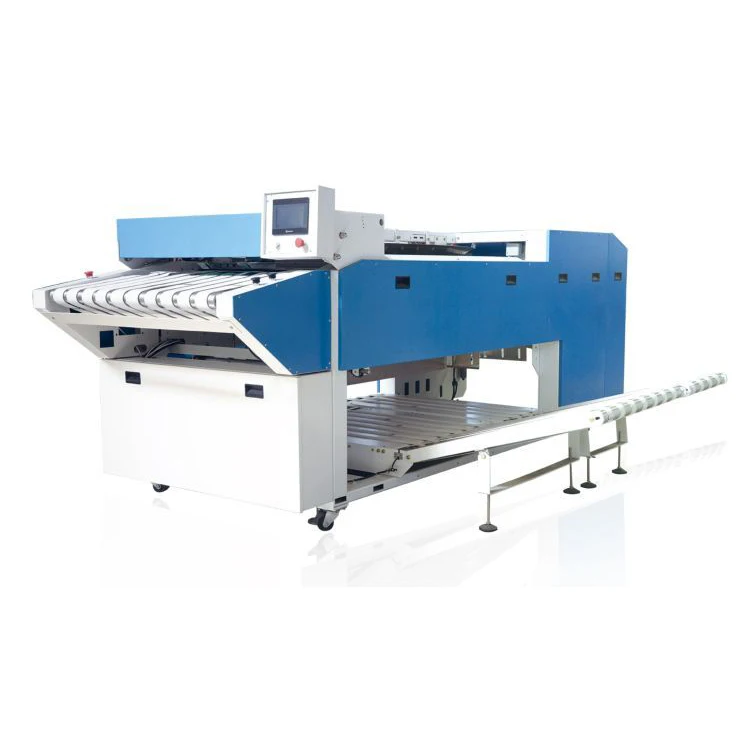

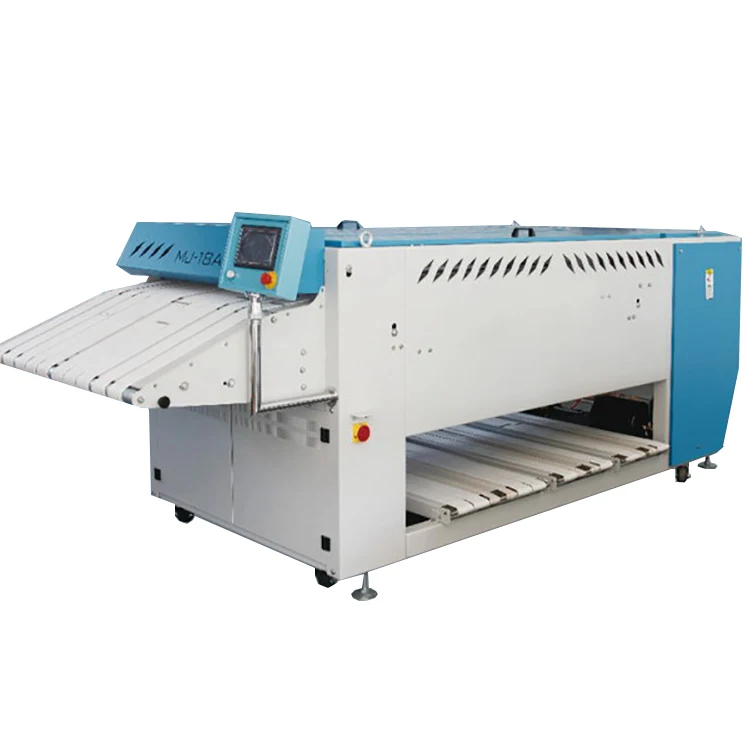

Pictures of commercial laundry folding machines:

towel folding towel folding machine(zt)4

Machine Parameter for commercial laundry folding machines:

Model	ZD3000V	ZD3300V
Max Folding Speed(m/min)	53	53
Max Folding LxW(mm)	3000*3000	3300*3300
Max NO. of Folds(times)	32	32
Rated Voltage	AC380/50	AC380/50
Motor Power(kw)	2.25	2.25
Air Inlet Diameter(inch)	G1/2"	G1/2"
Min Air Inlet Pressure(Mpa)	0.7	0.7
Air Consumption(m³/h)	10	10
Dimension(mm)	411628001760	441628001760
Total Weight(kg)	1780	1830

Important parts are imported :

1.Electro-Optical System is Germany  P+F
2.Clutch Brake  is Japan  Mikipulley .
3.Motor  is TaiWan S-Bond
4.Pneumatic Component is Korea ARK

Features of commercial laundry folding machines :

1- Intelligent controller with TOUCH SCREEN

2- With SELF-DIAGNOSIS function and SELF-MANAGEMENT SYSTEM, perfect SAFE-PROTECTION SYSTEM and SELF-MAINTENANCE for testing points

3- Programmable optional SINGLE, DOUBLE and FOUR lanes simultaneous folding

4- STANDARD 1st , 2nd and 3rd folds by air, 4th and 5th folds by Knife and blade; Optional 1st and 2nd folds by air, 3rd 4th and 5th folds by Knife and blade

5- AUTOMATIC BELT TENSIONING in cross fold section and jam alarm in cross fold section

6- All valves are pneumatically control

7- “By pass” system

8- Precise and accurate folds

9- Frequency inverter

10- Emergency stop buttons

11- Production counters per lane

12- High quality folding performance

13- Measurement by PHOTOELECTRIC SENSORS

14- Uses the HIGH INTELLIGENCE INFRARED TESTING SYSTEM to detect the size of linen and actual movement speed to improve the fold precision and accuracy.

15- With the function of FOUR CHANNELS FOLDING (TWO LATERAL FOLDS AND TWO CROSS FOLDS), this folder can improve the ironing and folding capacity of small linen, and lower the energy consumption

16- China pioneering ANTI-STATIC BAR effectively reduces the static on the linen, to improve the folding performance and ensure stable and reliable operation.

17- With PATENTED REVERSE ANTI-STATIC DEVICE, it can remove the static on the belts, to avoid the adhesion of the linen and belts in the process of folding.

18- Variable speed synchronizes by speed of flatwork ironer; Working together with various flatwork ironers

19- STACKER STATION is optional.

Standard Lateral Folds Section:

Folding width: Max. 3.3m

Number of lanes: 1, 2, or 4

Number of lateral folds: 1 or 2

Max. length single-lane: 3.3m

Max. length multi-lane: 1.2m

Standard Cross Folds Section:

Number of lanes: 1

Number of cross folds: 1, 2 or 3

Max. width: 850mm
