200 м 300 350 600 стальная гусеничная вращающаяся буровая установка для водяных скважин/шахтное буровое оборудование
130 481,60 ₽ - 131 468,44 ₽
800 метров многофункциональная установка для бурения скважин
- Категория: >>>
- Поставщик: Beijing Jincheng Mining Technology Co. Ltd.
Сохранить в закладки 62288386318:
Описание и отзывы
Характеристики

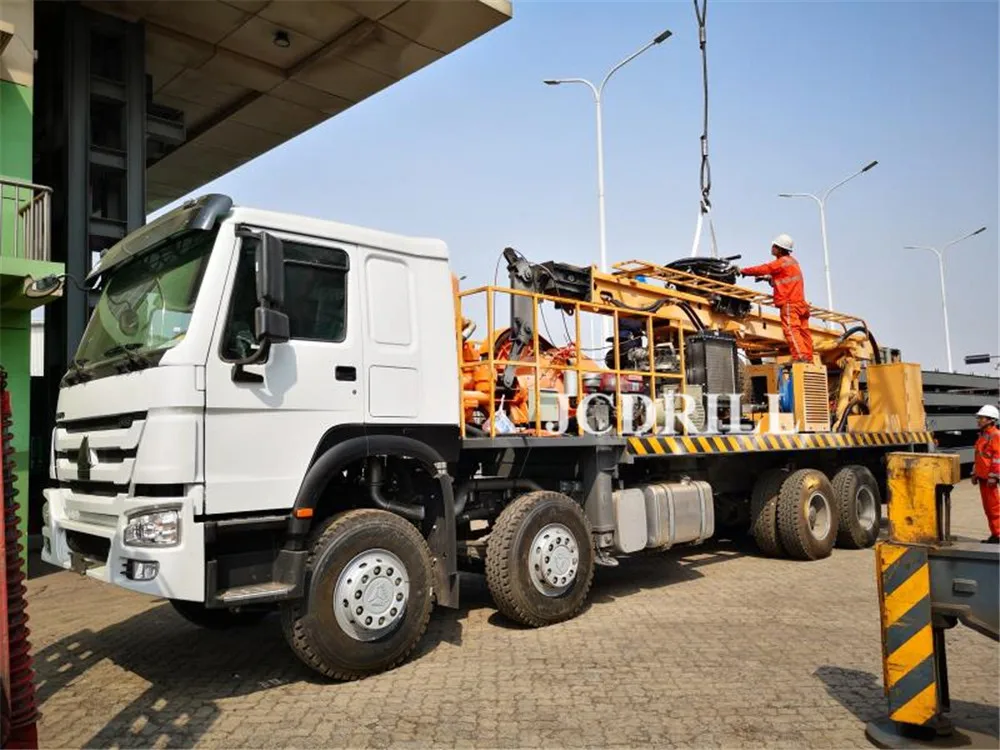

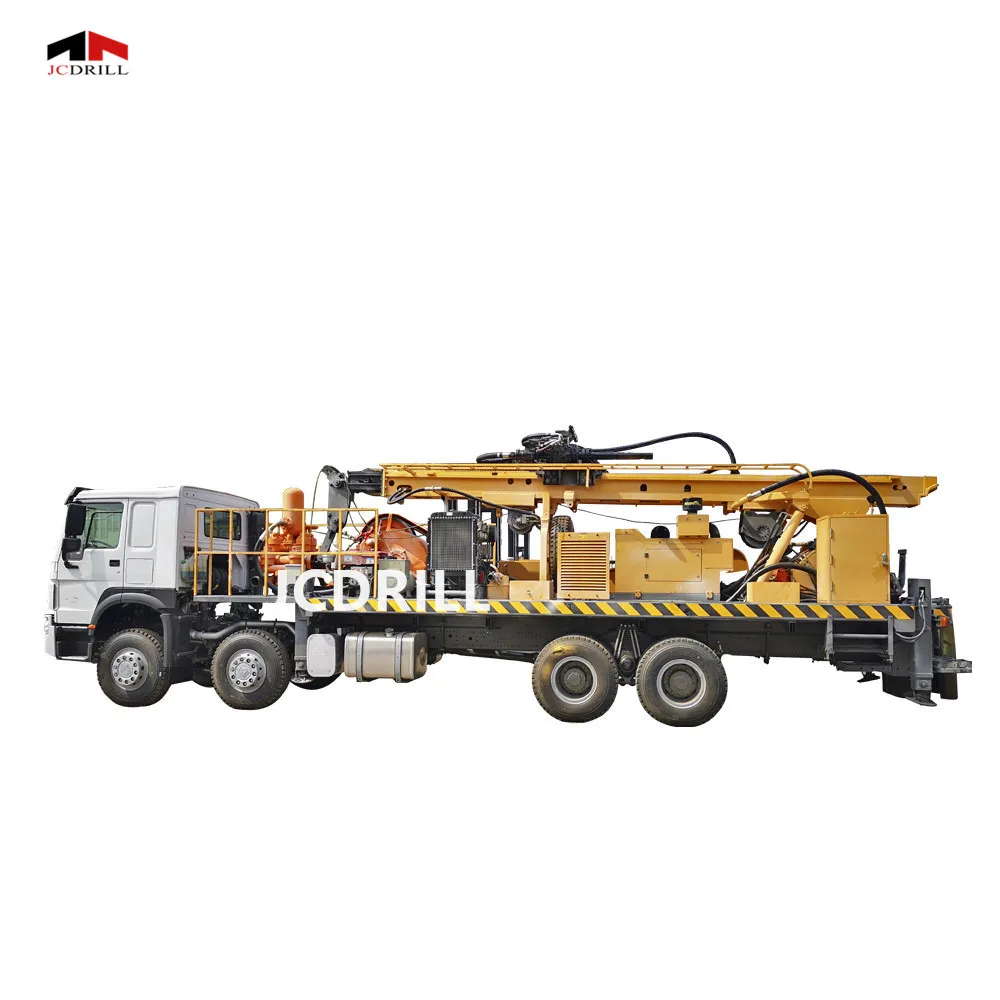

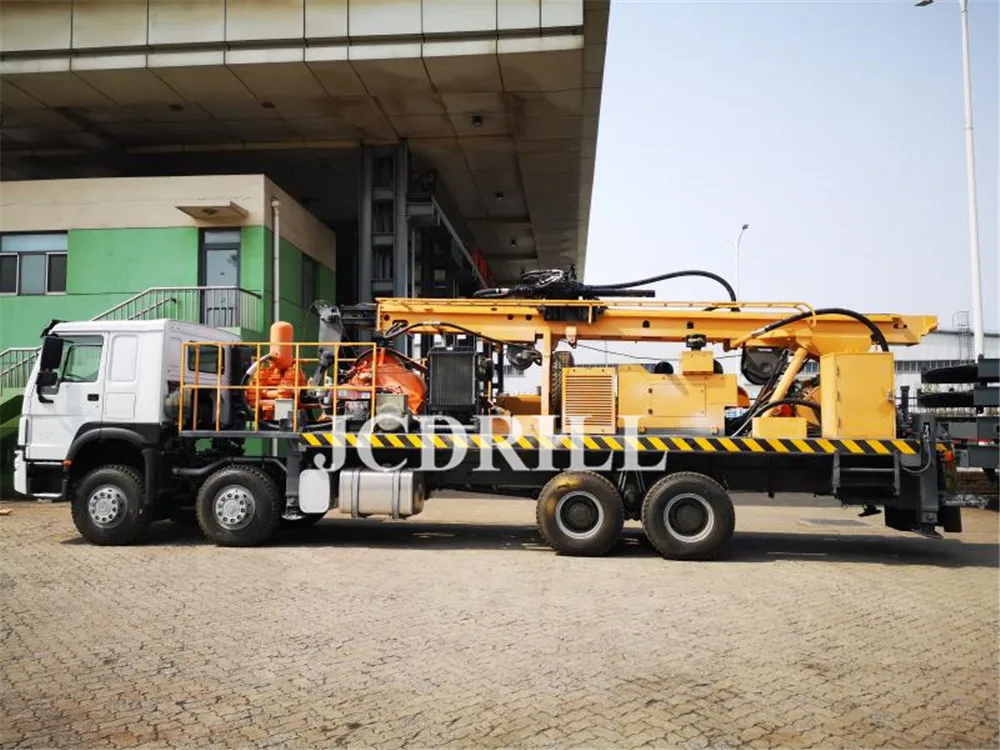

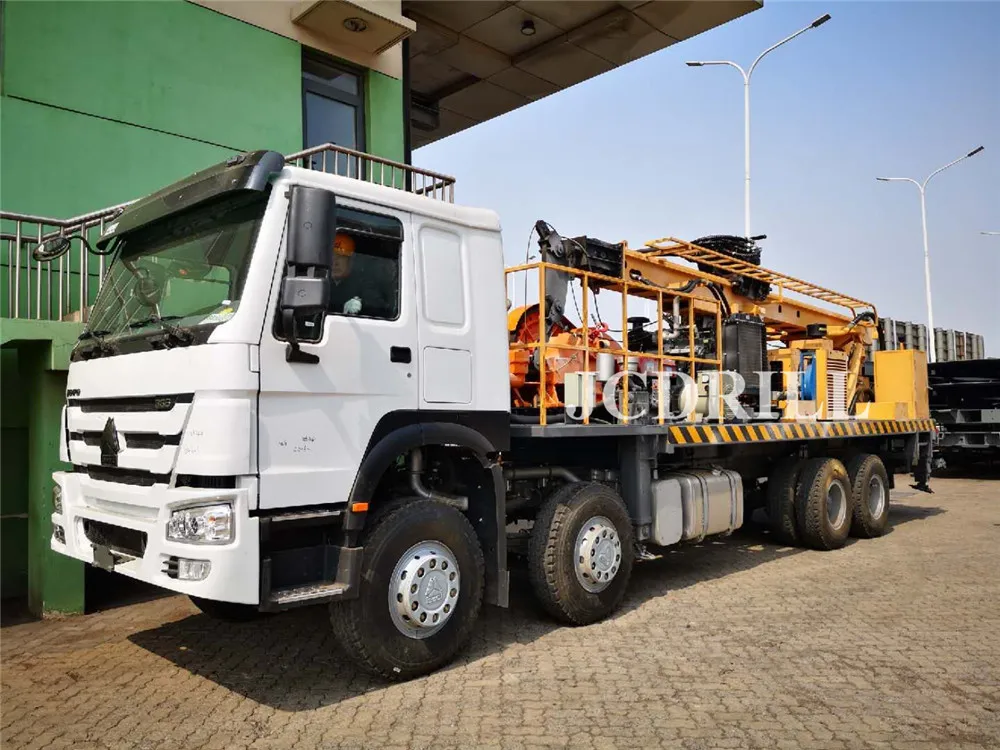

CSD800 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling
rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and
agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD800 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and
agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD800 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Specification
General | ||||||
1 | Geology drilled | All kinds | ||||
2 | Drilling Type | DTH & Mud Rotary | ||||
3 | Drill system and operation | Hydraulic | ||||
4 | Hole Diameter | mm | Φ140—Φ650 | |||
5 | Hole Depth | m | 800 | |||
6 | Rotation Torque | Nm | 9600 1st Gear | |||
24500 2nd Gear | ||||||
7 | Rotation Speed | rpm | 0-80 1st Gear | |||
0-110 2nd Gear | ||||||
8 | Drill pipe diameter | mm | 89/114 | |||
9 | Drill pipe length | mm | 4000/4500 | |||
10 | Axial pressure | T | 10 | |||
Winch | ||||||
11 | most. Lifting force | T | 42 | |||
12 | Lifting force of Main winch(Optional) | T | 4 | |||
13 | Lifting force of hoist | T | 1.5 | |||
14 | Length of steel wire rope(tool winch) | m | 100 | |||
15 | Lifting height of tool winch | m | 8 | |||
Engine | ||||||
16 | Diesel Engine type | CMS | ||||
17 | Rated Horse power | Kw | 132 | |||
18 | Electrical System | Volt | 24 | |||
Compressor required | ||||||
19 | Compressor Type | Rotary Screw/Movable | ||||
20 | Pressure Required | Mpa | 1.05—6.9 | |||
21 | Air consumption | m³/min | 16—96 | |||
Truck | ||||||
22 | Manufacturer | SINOTRUCK HOWO | ||||
23 | Model | ZZ1317M4661W | ||||
24 | Engine | WD615.62 | ||||
25 | Rated Horse power | KW | 213 | |||
26 | Discharge Standard | EU-2 | ||||
27 | Drive type | 8*4 | ||||
28 | most.Speed | Km/h | 102.9 | |||
29 | Steering wheel | left/right(Optional) | ||||
Mud Pump | ||||||
30 | Type | Hydraulic | ||||
31 | Model | BW850 | ||||
32 | Stroke | mm | 260 | |||
33 | Displacement | L/Min | 850 | |||
34 | Discharge pressure (Mpa) | Mpa | 2-5 | |||
35 | Suction tube diameter | mm | 89 | |||
36 | Discharge pipe diameter | mm | 51 | |||
37 | Liner Diameter | mm | 150 | |||
Generator | ||||||
38 | Generator | Optional | ||||
Dimension | ||||||
39 | Net Weight | T | 22 | |||
40 | Shipping Length | mm | 10500 | |||
41 | Shipping Width | mm | 2480 | |||
42 | Shipping Height | mm | 3650 | |||
43 | Working size(L*W*H) | mm | 11000*2480*7147 | |||
1.The drilling rig can use air DTH Hammer drilling and mud drilling. 2.Centralized control console is suitable for each
manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,have two gear,rotation speed is 0-80 and110rpm stepless adjustment and the rotary torque is 9600-24500Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, guide dumping.
13.Competitive in price, low cost of maintain.
manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,have two gear,rotation speed is 0-80 and110rpm stepless adjustment and the rotary torque is 9600-24500Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, guide dumping.
13.Competitive in price, low cost of maintain.
