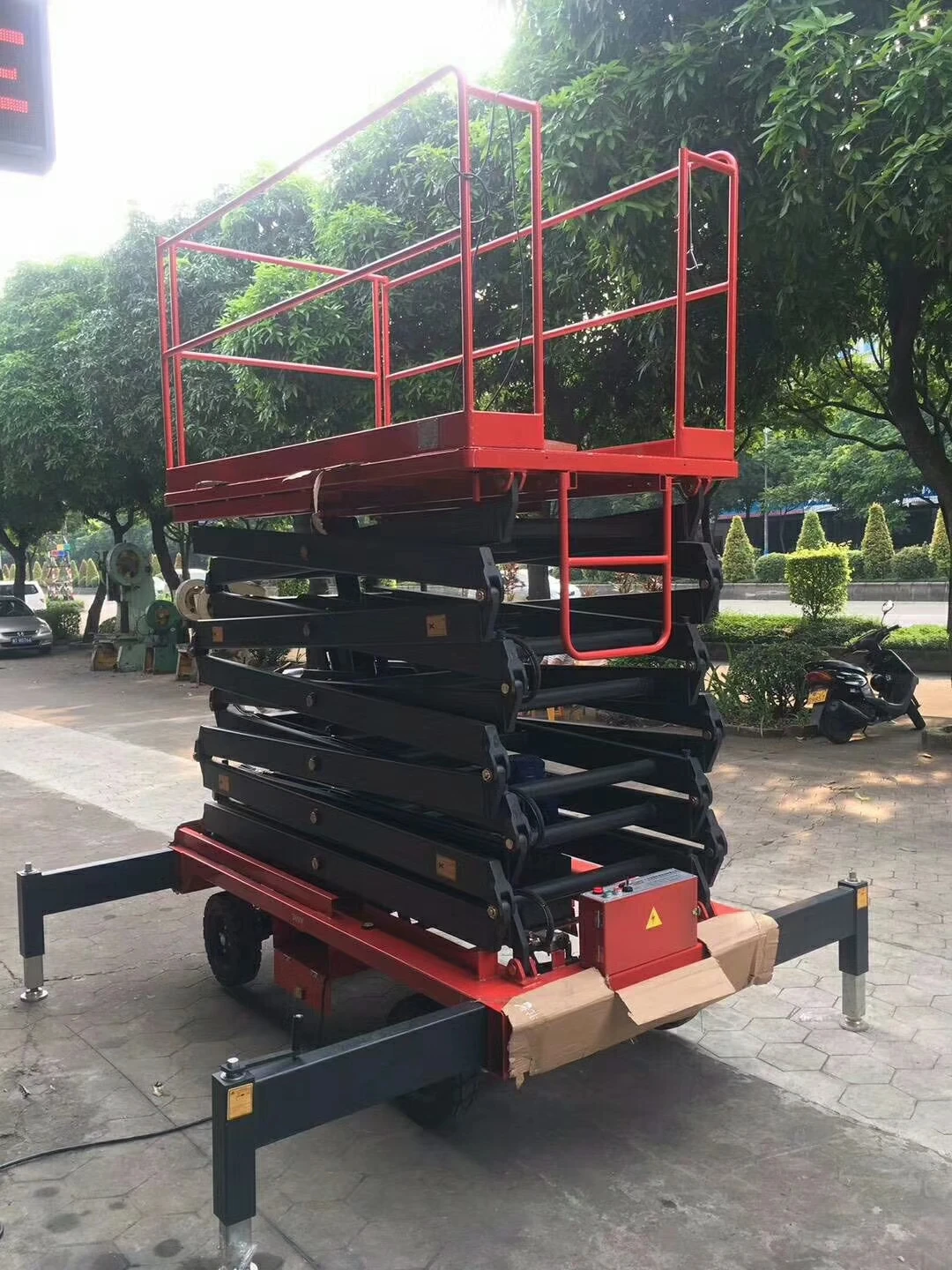

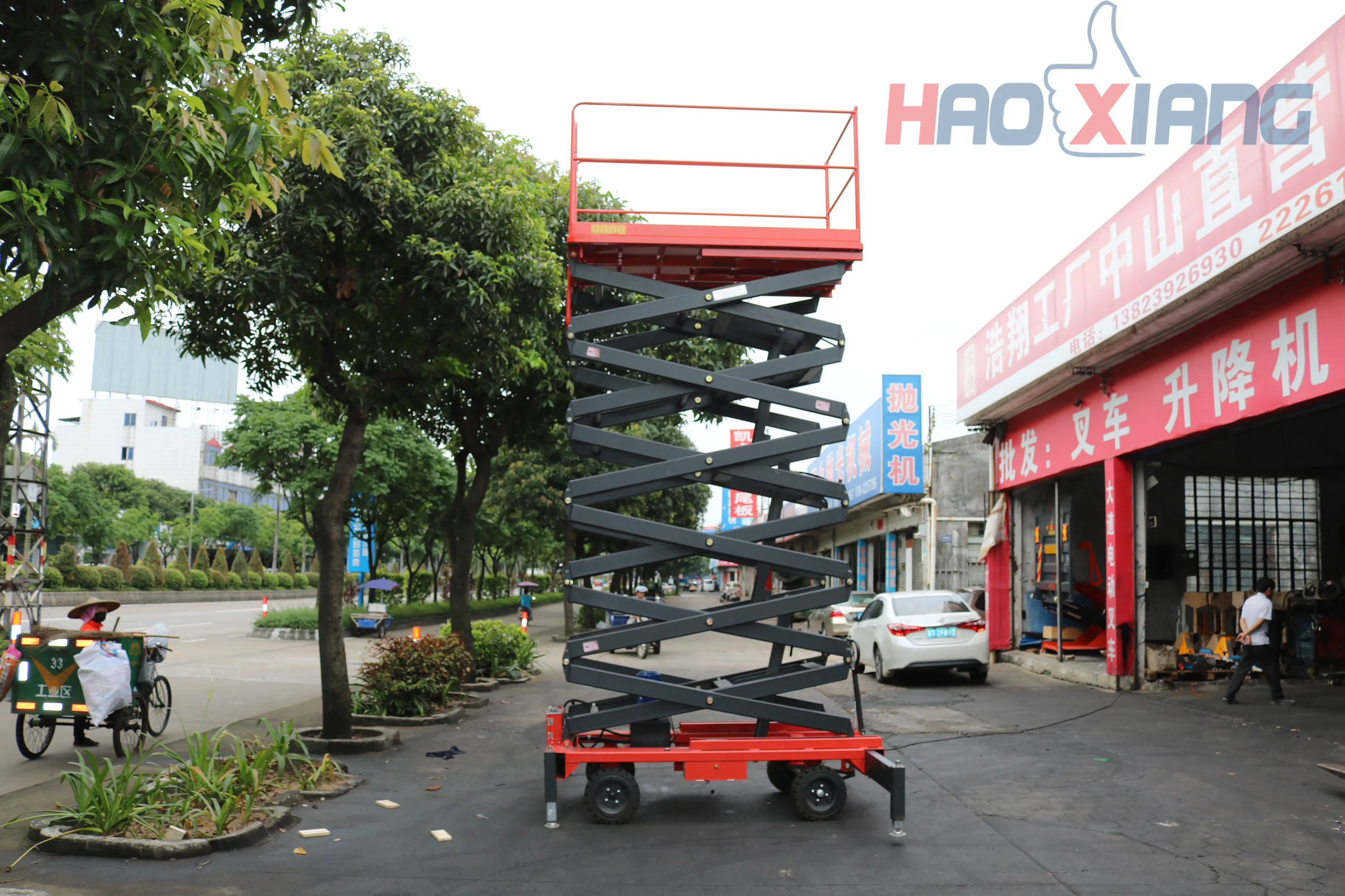

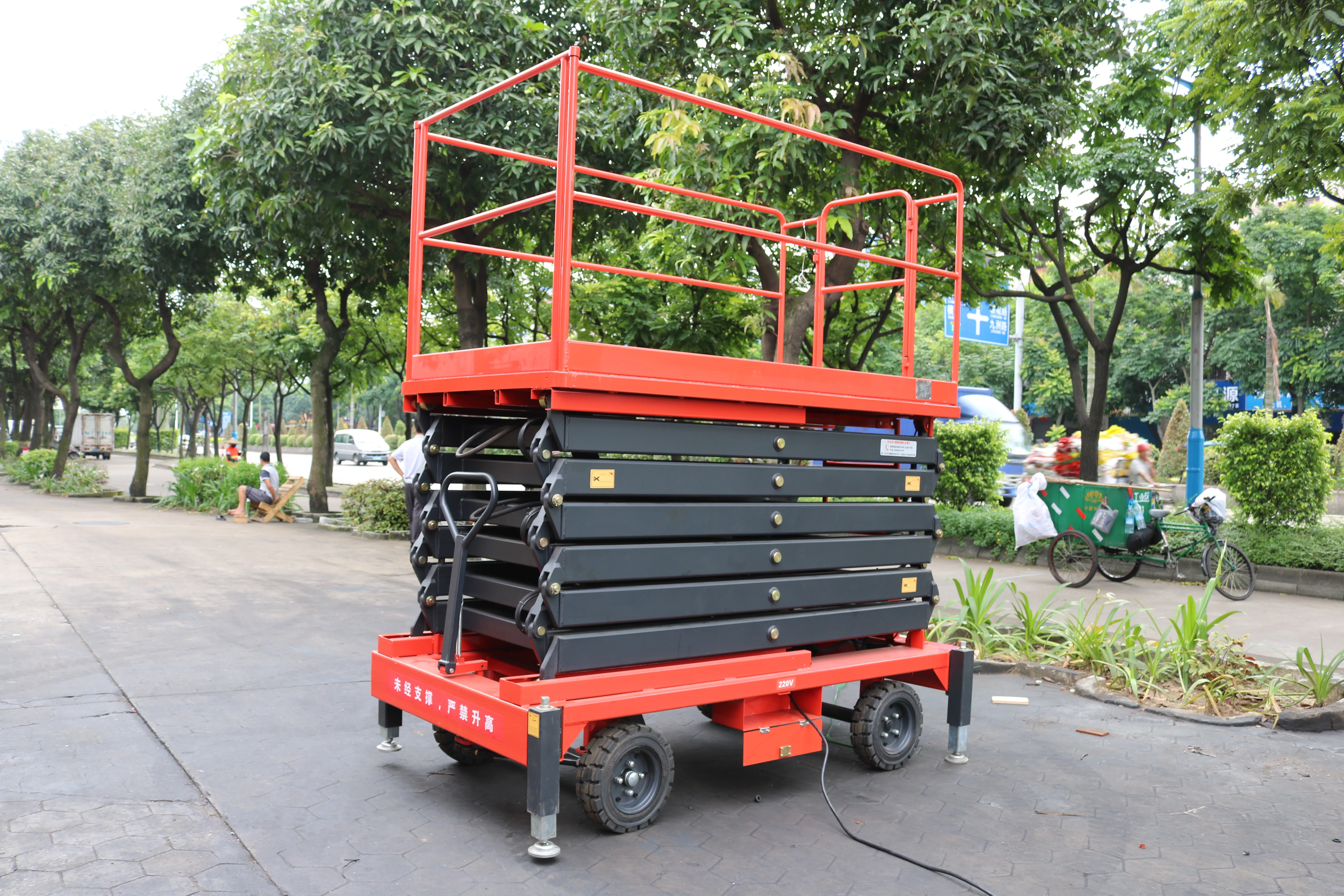

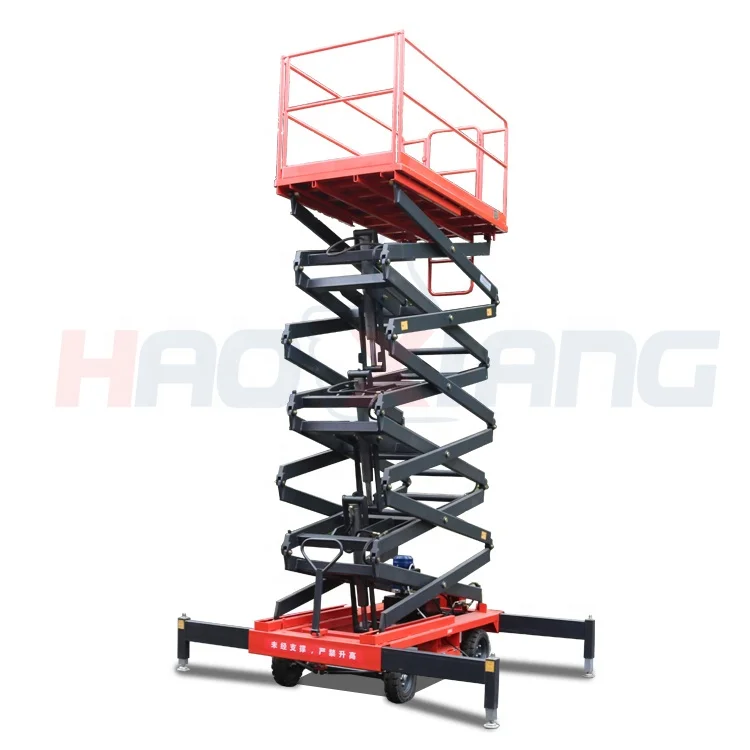

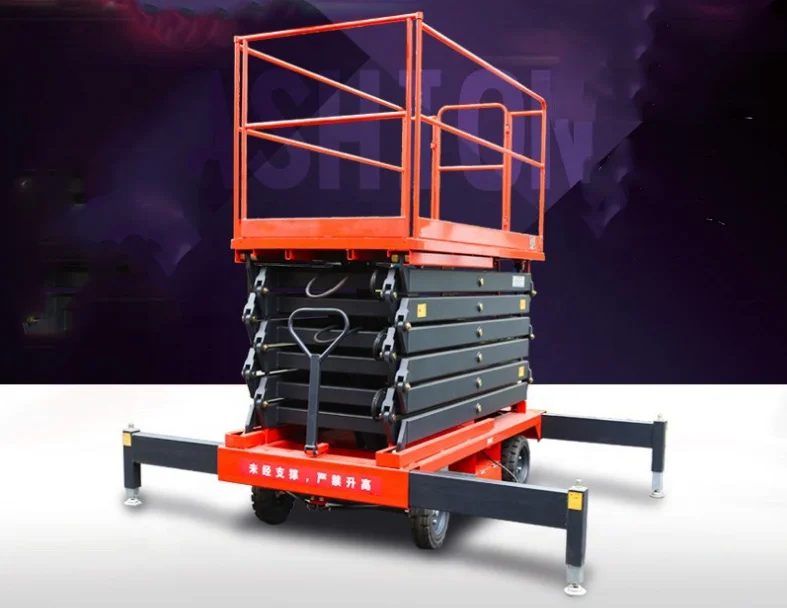

Mobile Skylift manual folding Electric Scissor Lift aerial work platform
Mobile scissor lift table is widely used in situations such as high altitude installation,maintenance,decoration,cleaning and so on where working shall be movable and it can also be used as an equipment to do short-distance transporting and parallel loading business.It’s scissors structure makes the table highly stable after being raised.It’s wide table and strong carrying capacity make the range of high altitude working larger and working itself more convenient,more efficient and safer.
Both direct current and alternating current are feasible.
Our Product



Technical parameter
Model | Unit | SJY0.5-7 | SJY0.5-9 | SJY0.5-11 | SJY0.5-14 | SJY0.5-12 | SJY0.3-13 | |
Capacity | kg | 490 | 300 | |||||
Max.Platform height | mm | 7000 | 9000 | 11000 | 14000 | 12000 | 13000 | |
Min.Platform height | mm | 1120 | 1240 | 1370 | 1835 | 1656 | 1495 | |
Working platform size | mm | 2150×1140 | 2500×1260 | 2150×1140 | ||||
Unfolding size | mm | 2130×2890 | 2560×2890 | 2130×2890 | ||||
Lift motor | V/KW | 220/380/2.2 | 220/380/3 | 220/380/2.2 | ||||
Voltage | V/KW | 220/380 | ||||||
Overall length | mm | 2250 | 2558 | 2250 | ||||
Overall width | mm | 1300 | 1365 | 1300 | ||||
Overall height | mm | 2120 | 2240 | 2370 | 2987 | 2650 | 2495 | |
Weight | kg | 1260 | 1480 | 1680 | 2680 | 2040 | 1880 | |

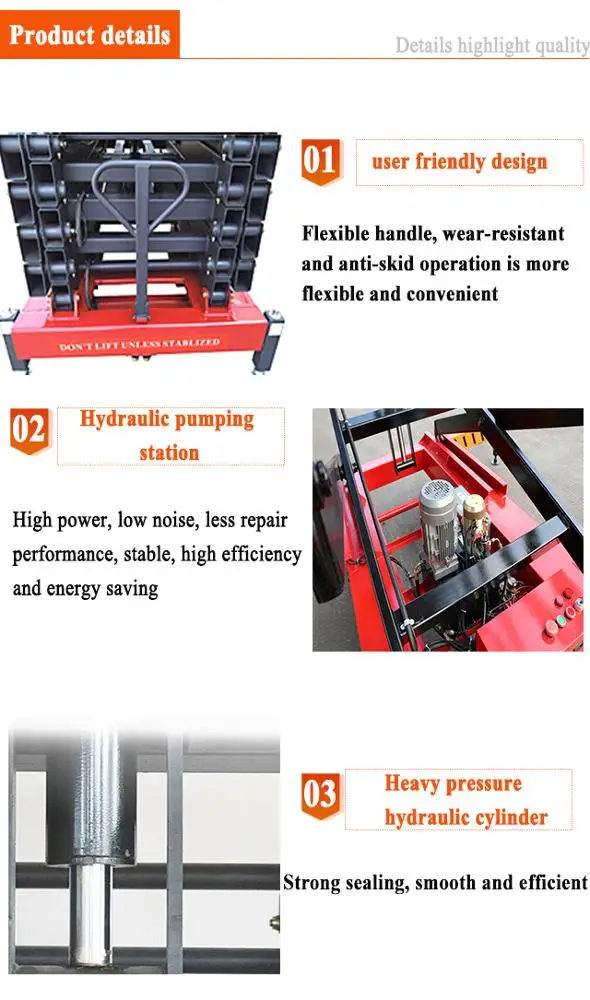

Advantages
1. Lifting structure is made of highly strong steel rectangular pipe.
2. Hydraulic protection system for table overload is built in.
3. Anti-falling protection device to prevent rupture of pipes is built in.
4. Controllable decreasing valve is built in for emergency decrease when power is out.
5. The body of hydraulic cylinder has been finely ground so that it has great hermetic quality.

1.We can design the hydraulic scissor lift table as per your requirement.
2.Recommend products that suit you according to your needs.
3.Operation video can be sent to you if needed.
4.User-friendly English manual for machine installation using and maintenance.
5.12 months warranty for whole machine without man-made faults.
6.We will send you parts for free if there are any non-human factors faults during warranty time.
7.Supply 24-hours technical assistance by email, telephone or other communication online.
8. Engineers are available to your country if necessary.
