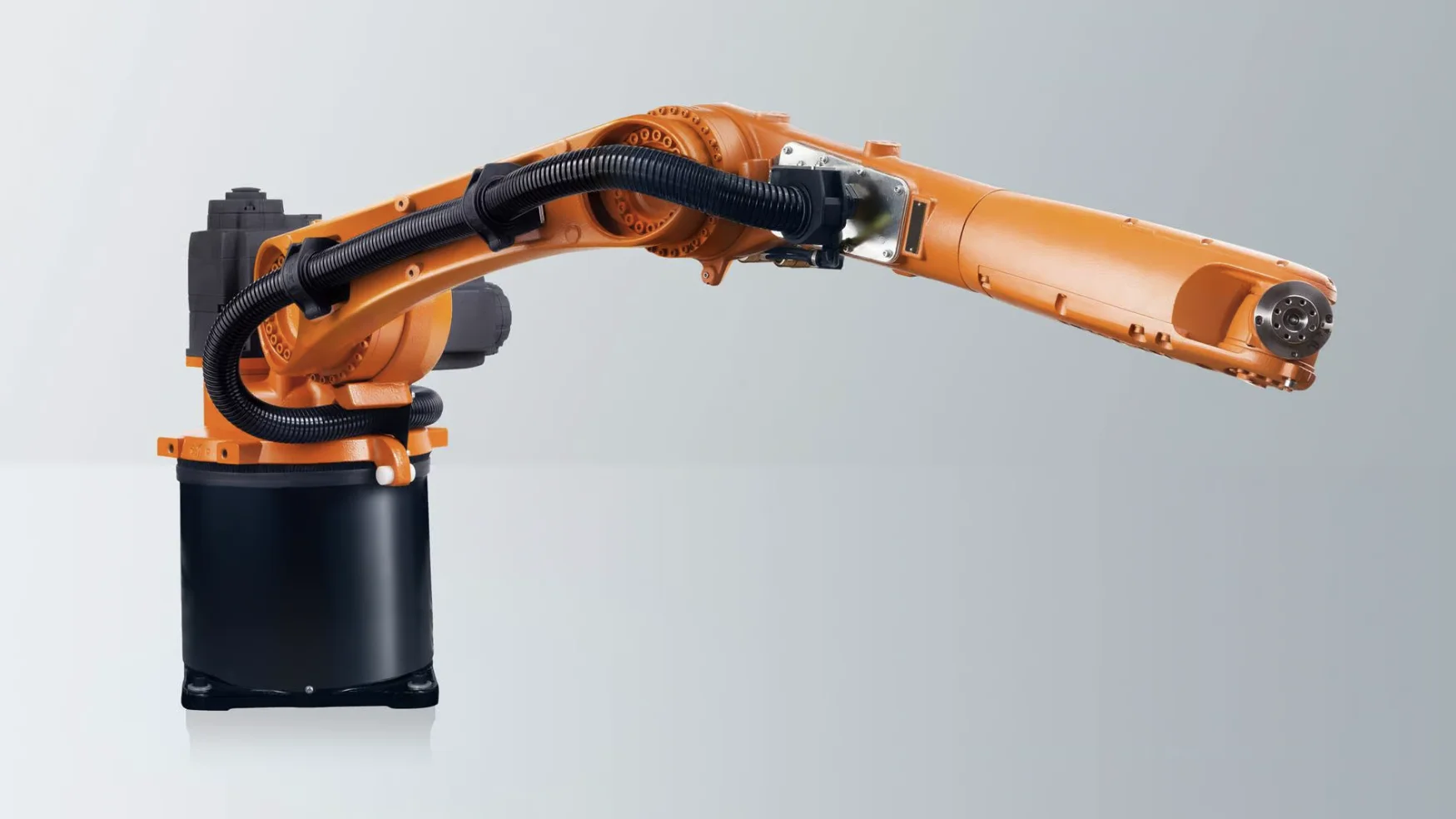

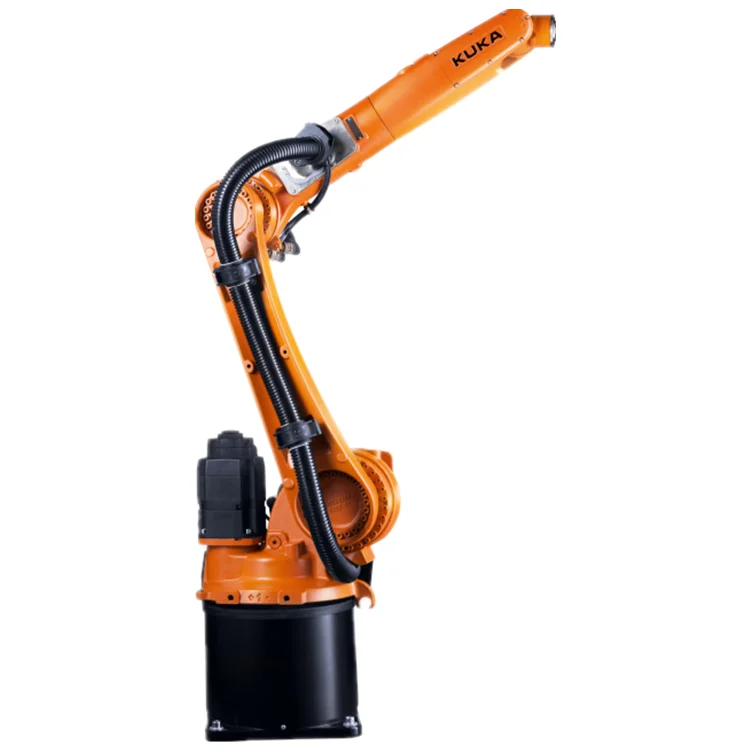

Рука робота 6 оси KUKA KR R1820 новая рука для промышленного Mig Mag сварки со сварочным аппаратом и установщиком

Сохранить в закладки 62294918570:


Цена:25 000,00 $ - 30 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


robot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machine



Product image


 robot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machinerobot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machinerobot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machinerobot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machine








Product Description



























































































Product namerobot arm kuka 6 axis  and low cost  robot arm for industrial robot welding mig mag pulse with Panasonic 350GL5 welding machine
ModelKR 6 R1820
Maximum reach1820 mm

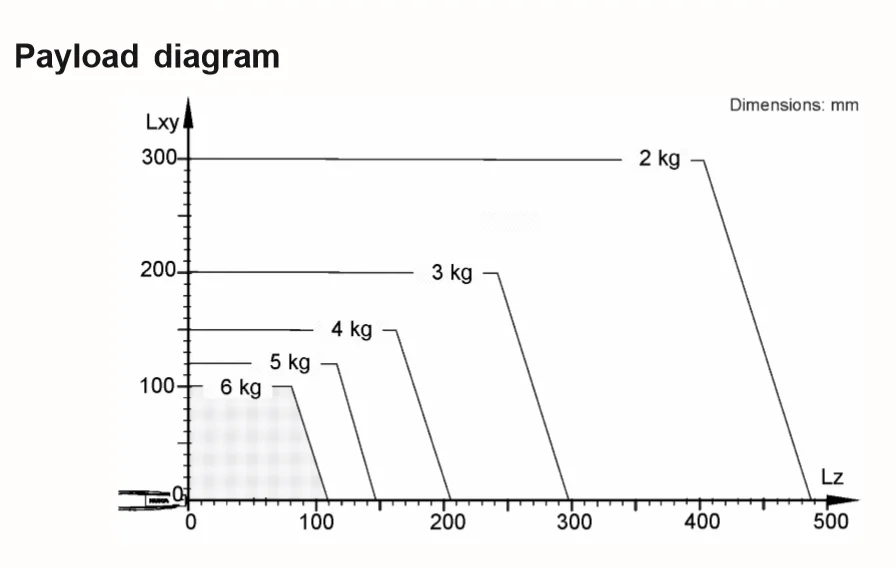

Maximum payload6 kg
Pose repeatability (ISO 9283)± 0.04 mm
Number of axes6
Mounting positionFloor/ Ceiling/Wall
Footprint333.5 mm x 307 mm
Weightapprox. 168 kg
Protection ratingIP54
Controller KR C4 compact
Teach pendant KUKA smartPAD

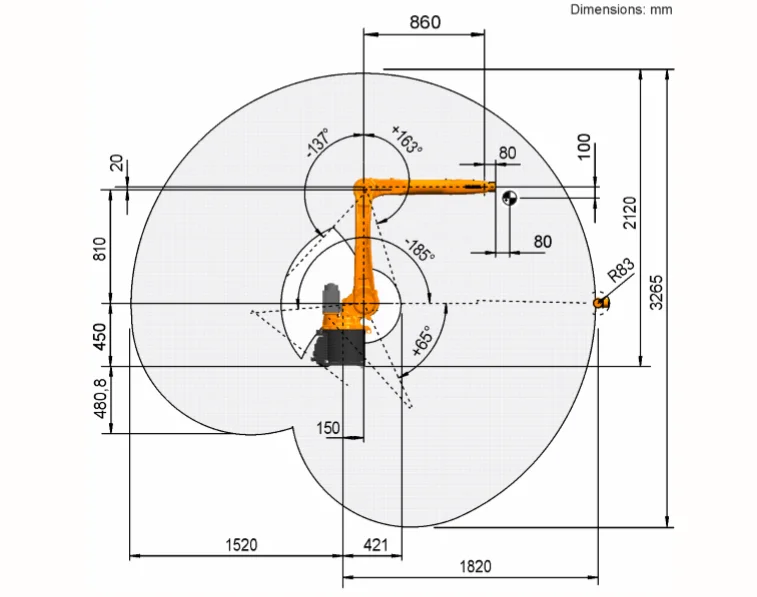

Motion range
A1±170°
A2(-180° / 65°)
A3(-137°- 163°)
A4±185°
A5±120°
A6±350°
