13.56Mhz RFID card reader GPS bus fare box 4G WIFI NFC POS terminal bus fare validator GPRS POS system with free SDK
Company Information
Factory Card Reader with qr code scaner
Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom, Chile, Zimbabwe, Thailand, United States, Tajikistan,Dubai, Russia,Qatar...
CL-A0618 details
Detailed Images
Product Description
1. Application environment:

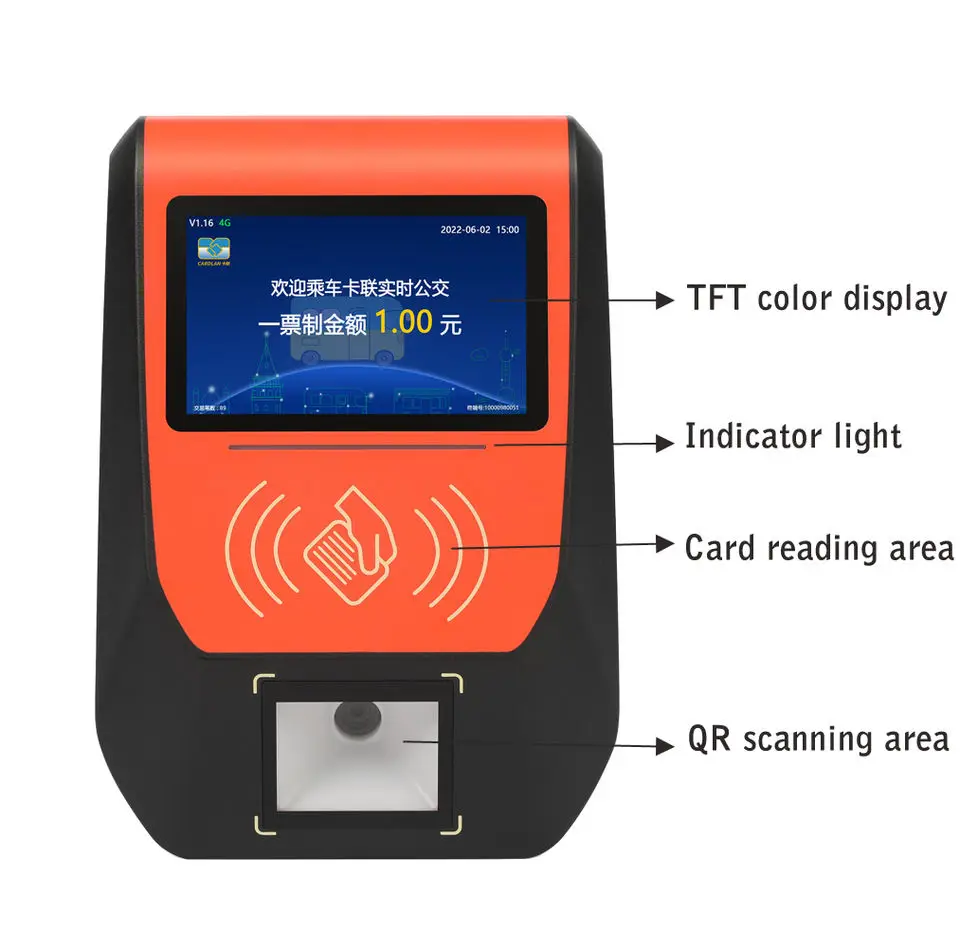

CL-A0618 smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field:
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
2. Functional features:
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
l Support consumption details and statistics query, according to card No., time, operator No. etc.
3. Technical specifications:
| Model: | CL-A0618 card reader for public transportation | Data capacity: | more than one million detailed data for console storage |
| Dimension: | 240*170*74.7 mm | Card capacity: | 5000,000 pcs |
| Material: | Engineering Plastics(Anti static electricity coating design, be protected from high-frequency interference) | Black list: | Two hundred million,download from USB flash disk |

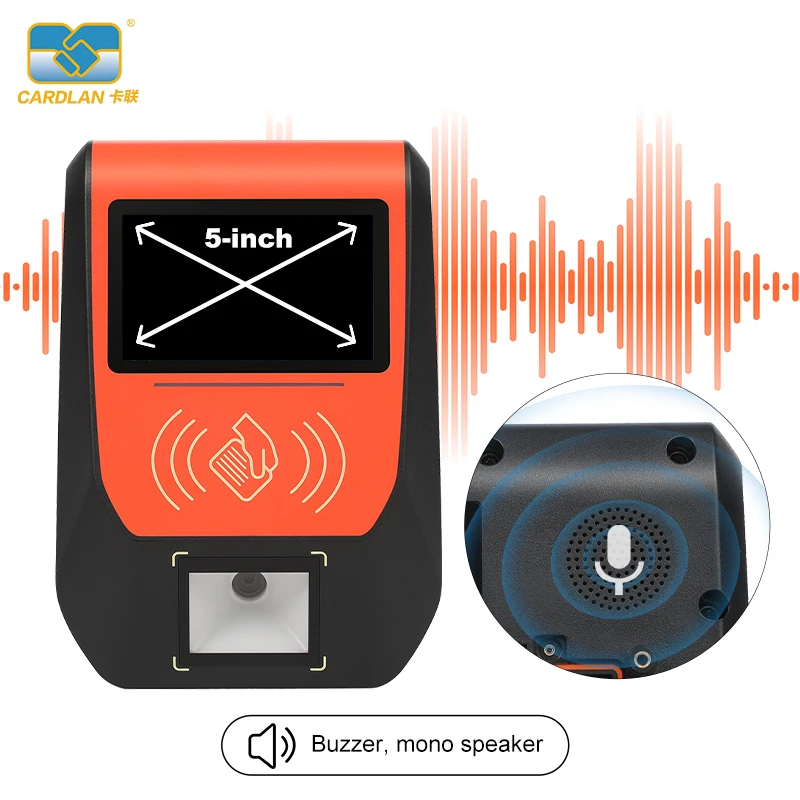

| Display: | 5 inch LCD display, 800*480 | Working Voltage: | DC 8V-50V |
| Operating system: | Linux / Android system | Data collection: | WIFI/GPRS wireless collection and USB local collection |
| CPU: | ARM9 core processor,240Mhz | Operating temperature: | -30℃~75℃ |
| Memory: | 128MB NAND Flash main memory, support TF card, Max 32G | Storage temperature: | -45℃~85℃ |
Indicator light: | Red and green | Humidity: | 0-90% RH non condensing |
| Sound prompting: | Buzzer,Single channel loudspeaker | Audio: | 8Ω ,2W |
| Flash Memory: | 32MBytes SDRAM | RFID: | Can read and write ISO14443 Type A\\B Electronic tag |
| Read card distance: | 0~150mm | Frequency: | 13.56MHz |

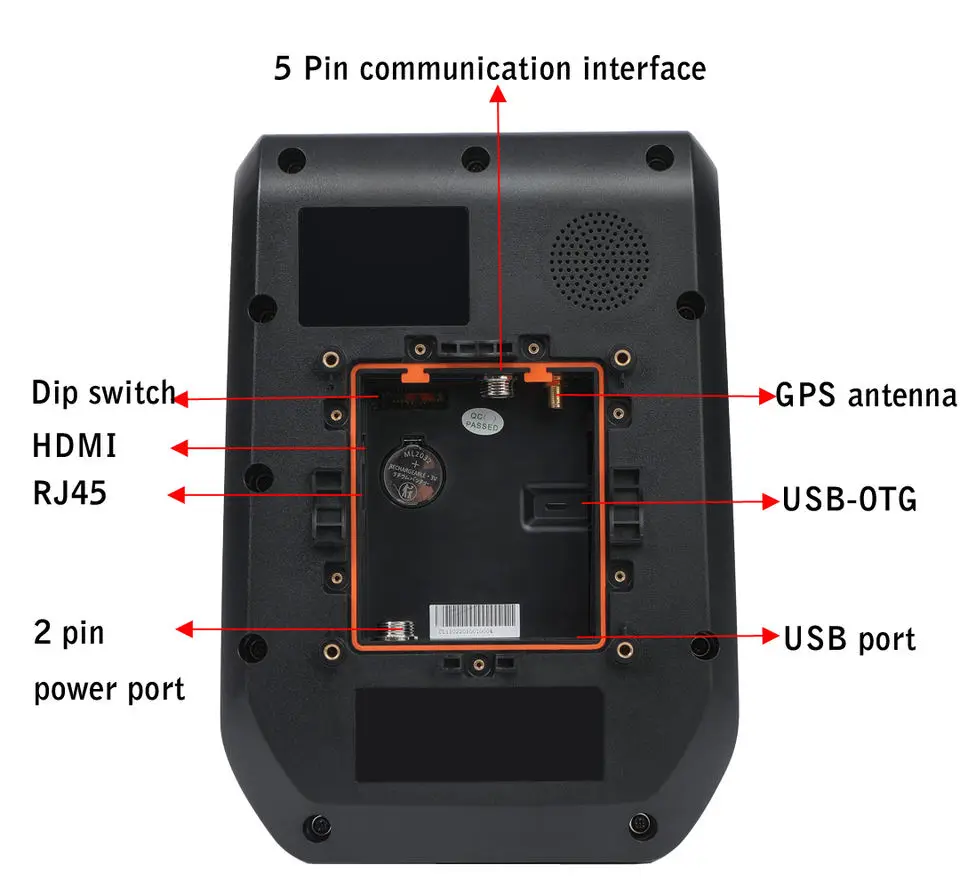

| Supporting card: | Mifare 1 card, CPU card, UnionPay IC card | Interfaces/Connectors: | USB-HOST,USB-OTG,RS485 or TTL-232 |
Printing module: | Support external POS 58 printer (need 5pin aviation plug turn DB9 cable) | Width of receipt: | Thermal paper, 58 mm |
| Power consumption: | ≤10 W | Wireless Communication: | GPRS.,3G,4G optional |
| WIFI: | Support 802.11n/b/g standard,150Mbps,2.4Ghz | Voice Prompt: | 16KHz,16bit single channel voice prompt |
| Upgrading: | Connect USB to PC, upgrade with GPRS | Position way: | GPS, Beidou positioning (Optional) |
Working Mode: | Stand-alone or connect to server | Warning Function: | Warning when card balance is insufficient or data memory is full |
PROVIDE FREE SDK SUPPORT SECONDARY DEVELOPMENT TO TOPOLOGY YOUR OWN SPECIFIC FUNCTION !
Packaging & Shipping
Package for Bus card reader:
1. Each device with foam into a box.
2. 1 unit / gift box; 21 boxes / carton, carton size 57*51*30 cm.
3. 60 set of cables / carton, 56 kgs / carton, carton size 58*38*51 cm.
4. Packed as customers' request.
Certifications
Quality control

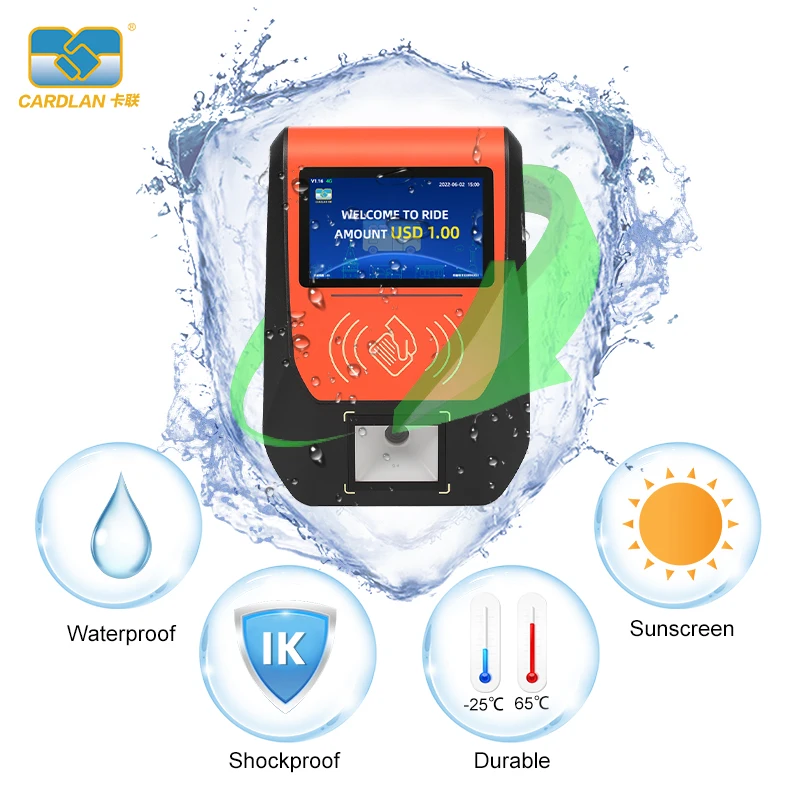

Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
FAQ
A: Are you manufacturer?
-Yes, we are a manufacturer, which is focus on R&D(research and develop) bus pos system with hardware&software since 2000.
A: Would you provide SDK?
-Yes, we will offer free SDK for your own topology after (sample) order setted.
A: What warranty for the products?
-According to our warranty policy, we will provide 12 months warranty time from the shipment date for all products (Excluded the consumable parts).
A: What is the minimum order?
-We can accept one unit for standard products, for sample and manager system test.
A: Can I get the free sample?
-Sorry, generally we would not provide free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Do you accept Paypal?
-Yes, PayPal is available. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
A: What's the delivery time?
-Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks, depends on exact quantity and model.
A: Which way to deliver the goods?
-By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
-By Sea: Inform us the Sea Port to check the ship line.
-By Air: Inform us the Airport to check the flight.
-Or pick up by the customers.
A: What the after sale service?
-a. Our all products will provide 12 months warranty;
-b. Enough stock spare parts for guarantee;
-c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
-d. As for the returned failure products, we will fix it and return to the customers in one week after we receive it;
-e. We can remoting control to helps you solve problems.
