Портативная Индукционная роликовая закалка 20 кВт для закалки вала
- Категория: Промышленные печи >>>
- Поставщик: Guangdong Lihua Induction Equipment Co. Ltd.
Сохранить в закладки 62296930195:
Описание и отзывы
Характеристики
Product Description
■ Ultrahigh frequency induction heating equipment is mostly used for welding and surface heat treatment of industrial metal parts.
■ Small volume, light weigh and energy saving (saving 70% than the glass ceramic tube high frequency machine).
■ It can heat and weld minimum 0.1mm workpiece. The welding points are beautiful and delicate, the surface pattern will not be damaged, the internal crystal structure of the metal won’t be changed.
■ Working frequency 100-1100Khz, Power 3-60kw. Other frequency and power can be customized.
■ Small volume, light weigh and energy saving (saving 70% than the glass ceramic tube high frequency machine).
■ It can heat and weld minimum 0.1mm workpiece. The welding points are beautiful and delicate, the surface pattern will not be damaged, the internal crystal structure of the metal won’t be changed.
■ Working frequency 100-1100Khz, Power 3-60kw. Other frequency and power can be customized.

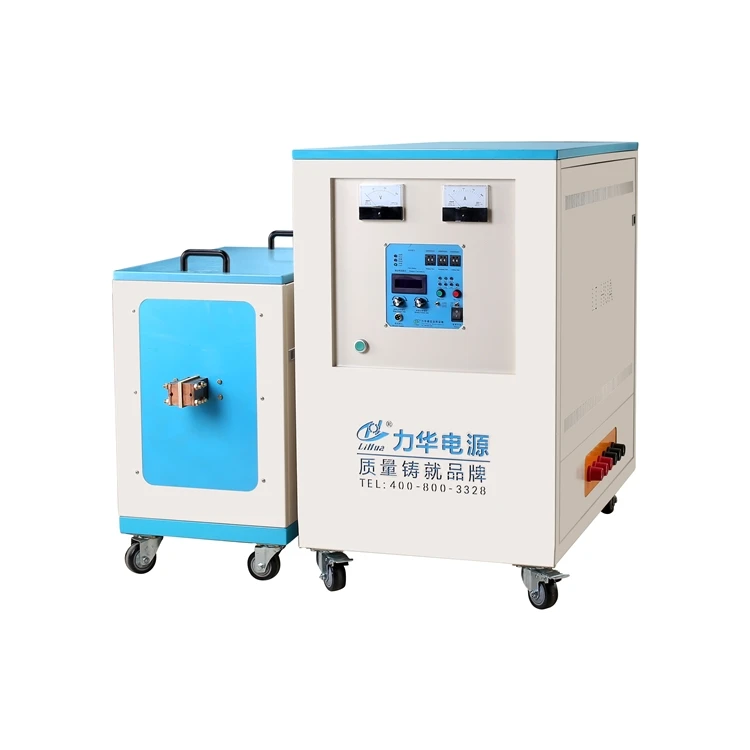

Front Side

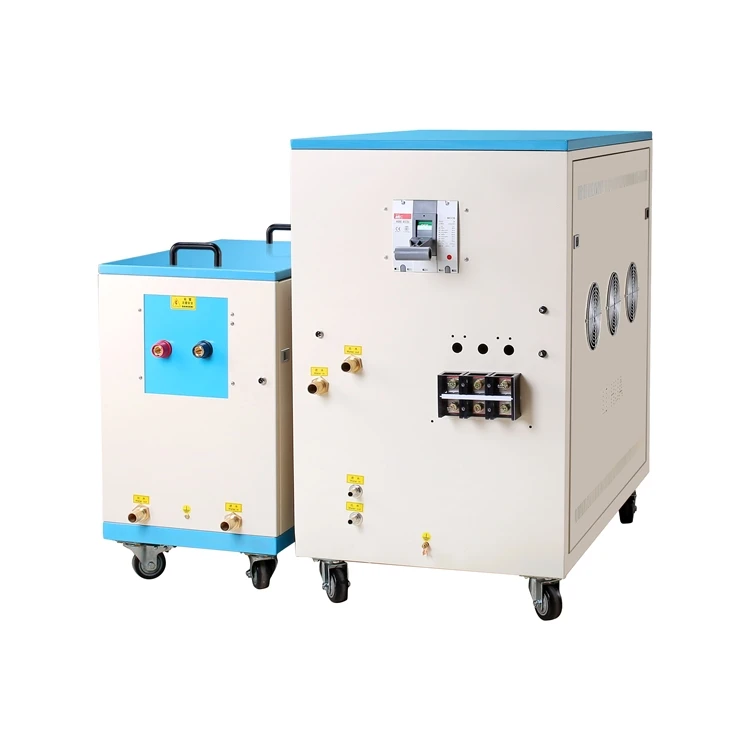

Back Side
Product Paramenters
Ultrahigh Frequency Induction Heating System | ||||||||
Model | LHG-03/06AC | LHG-06A | LHG-10A | LHG-20A | ||||
Input voltage | 100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V | |||||||
Output power | 3/6kw | 6kw | 10kw | 20kw | ||||
Frequency | 200-500Khz | 200-500Khz | 50-400Khz | 50-400Khz | ||||
Output current | 3-12A | 5-20A | 3-20A | 3-35A | ||||
Duty cycle | 80% | 80% | 80% | 80% | ||||
Generator weight | 20kg | 23kg | 30kg | 30kg | ||||
Transformer weight | / | / | / | / | ||||
Generator dimension (mm) | 285*287*146.5 | 632*260*550 | 630*260*550 | 630*260*550 | ||||
Transformer dimension (mm) | / | / | / | / | ||||
Model | LHG-20AB | LHG-30AB | LHG-40AB | LHG-60AB | |||
Input voltage | 100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V | ||||||
Output power | 20kw | 30kw | 40kw | 60kw | |||
Frequency | 50-400Khz | 50-400Khz | 50-400Khz | 50-400Khz | |||
Output current | 3-35A | 10-45A | 10-60A | 12-100A | |||
Duty cycle | 80% | 80% | 80% | 80% | |||
Generator weight | 30kg | 35kg | 50kg | 50kg | |||
Transformer weight | 20kg | 24kg | 27kg | 27kg | |||
Generator dimension (mm) | 600*260*530 | 630*280*535 | 680*350*600 | 750*400*880 | |||
Transformer dimension (mm) | 400*250*380 | 500*260*450 | 500*300*480 | 500*300*480 | |||

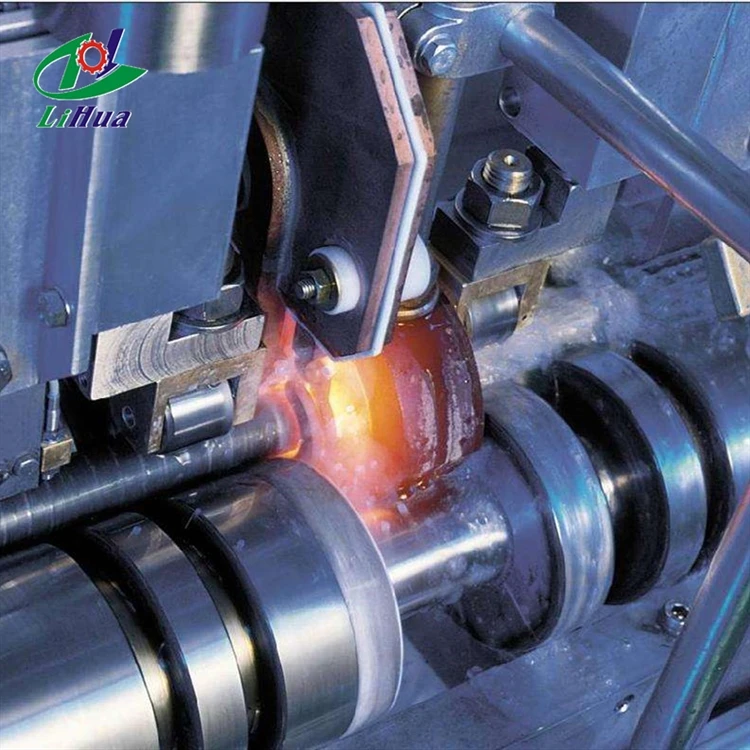

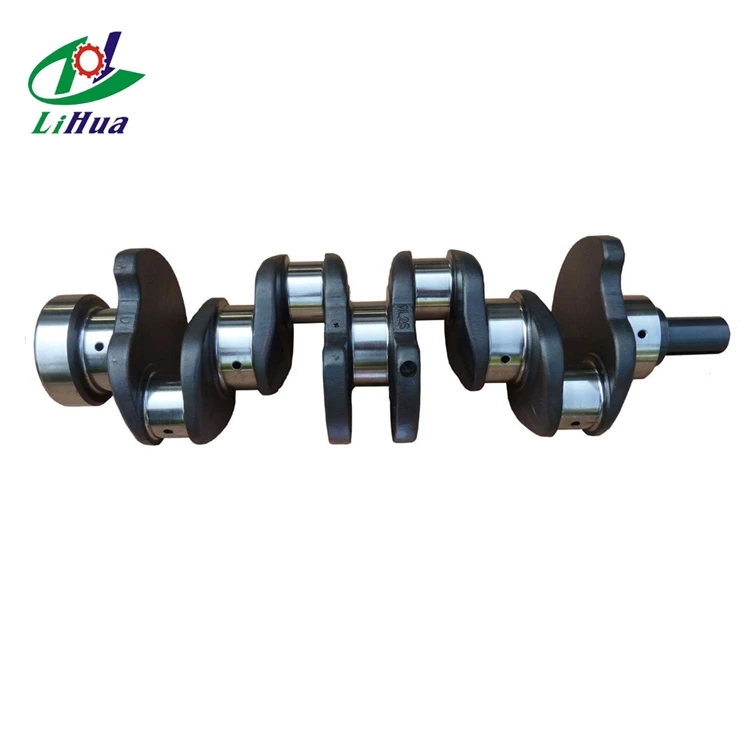

Application
Recommend Products
Production Process
Company Profile
LIHUA company has been committed to the development, production as well as the sales of induction heating equipments since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!
Customer Photos
FAQ
Q: Why use induction heating?
A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment
Q: How to choose a suitable induction heater?
A: Induction heaters have many different modles with different power and frequency.
1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater.
2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater.
3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.
A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment
Q: How to choose a suitable induction heater?
A: Induction heaters have many different modles with different power and frequency.
1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater.
2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater.
3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.
