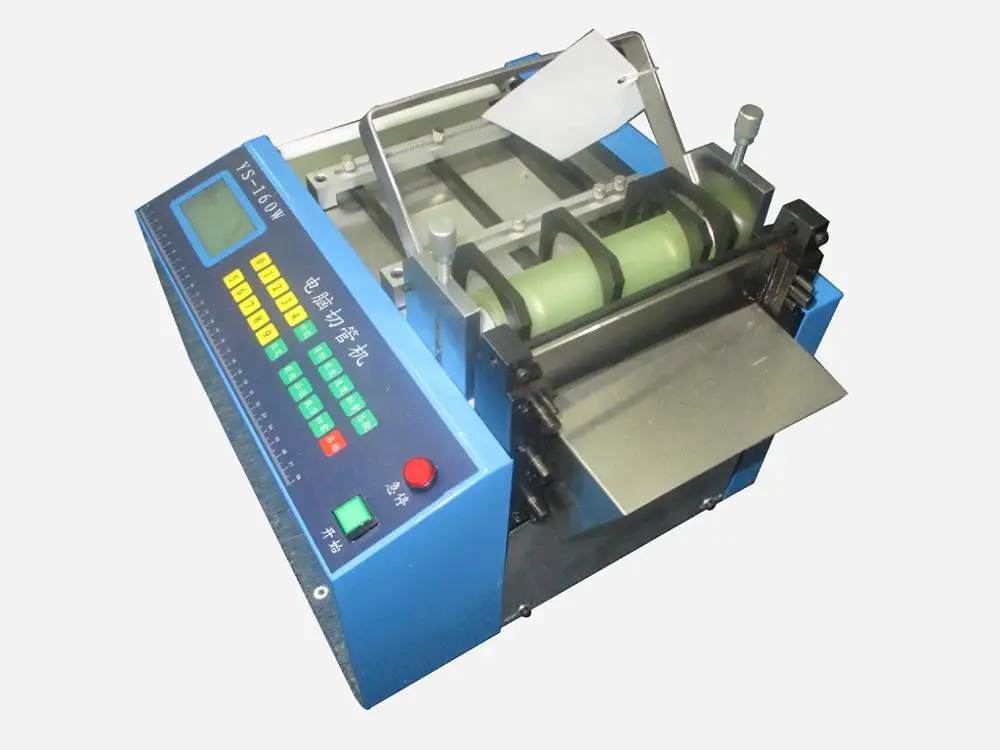

Машина для резки ПВХ пленки

Описание и отзывы

Характеристики

Application:

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc.

Tape: nickel strap, cotton tape, elastic band, plastic tape, zipper, conductive tape, foam, etc.

Sheet: battery separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet, etc.

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper, etc.

one machine suitable for cutting various kinds of materials

Features:

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-QTY & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.

Specification:

Model: YS-100

1. Voltage: AC220V/50Hz & AC110V/60Hz

2. Power : 250W

3. Cut Length : 0.1-9999.9mm

4. Cut Width : 0-100mm

5. Cutting Thickness : 0-12mm

6. Dimension : L360*W300*H350MM

7. Net Weight : 28kg

How to choose a suitable machine?

The only difference between different models is the blade length.

According to the width of the material that you want to cut, you can choose suitable machine model.

YS-100(Blade width 100mm): Cut materials less than 100mm in width

YS-120(Blade width 120mm): Cut materials less than 120mm in width

YS-160(Blade width 160mm): Cut materials less than 160mm in width

YS-200(Blade width 200mm): Cut materials less than 200mm in width

YS-250(Blade width 250mm): Cut materials less than 250mm in width

YS-300(Blade width 300mm): Cut materials less than 300mm in width

We believe in quality, best after-sale service, looking forward to cooperate with you.
