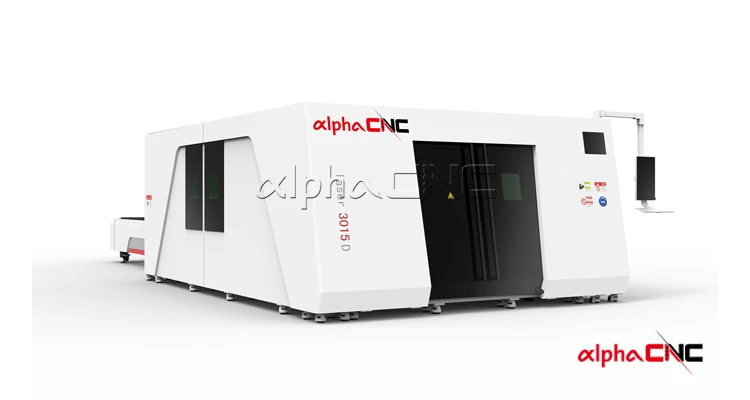

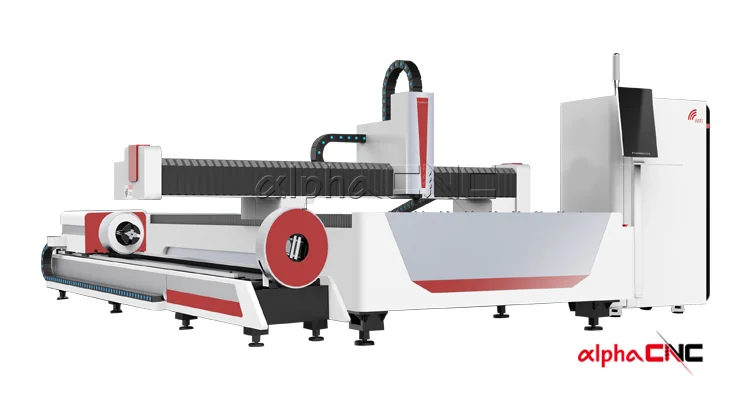

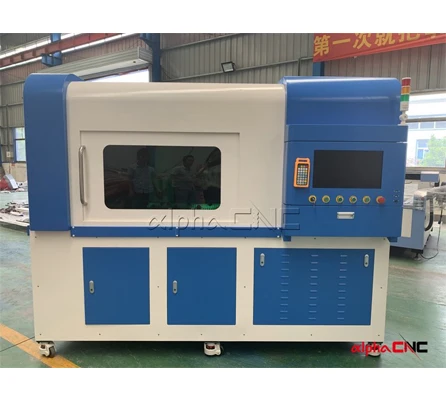

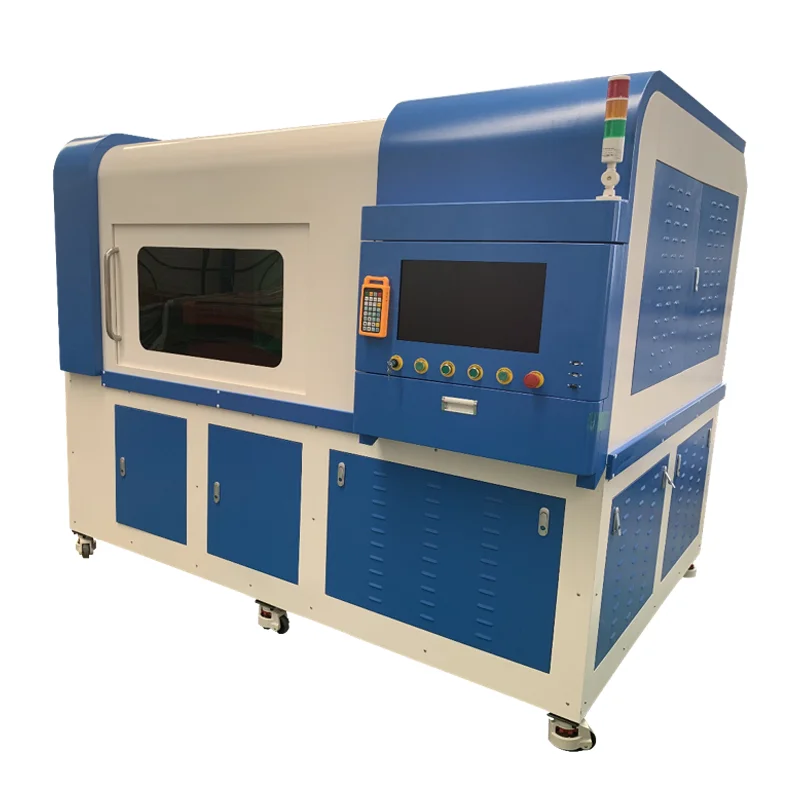

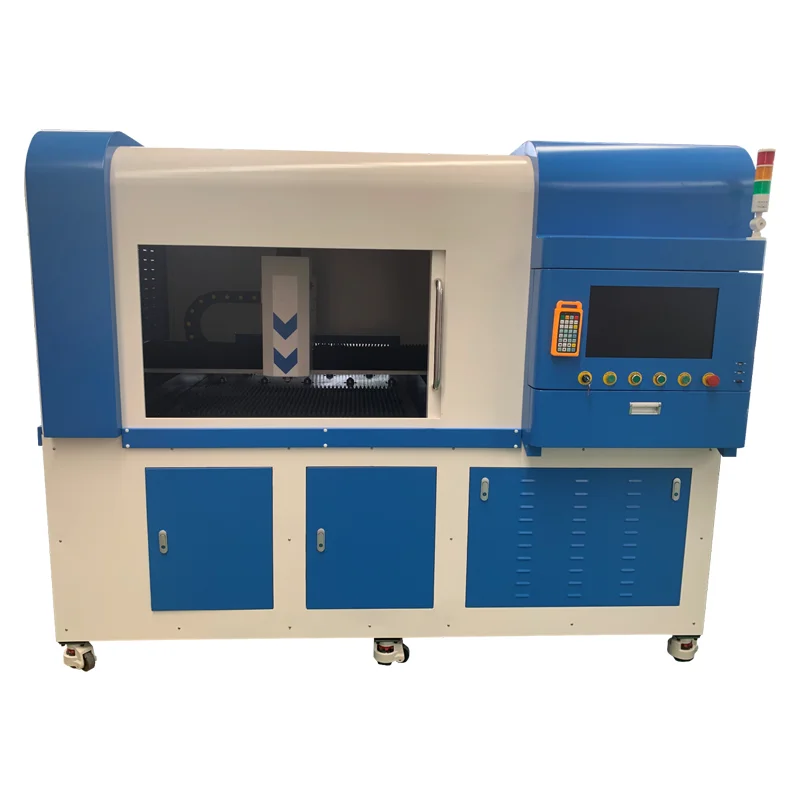

American GW Brand Fiber Laser Generator Cosmo Laser Equipment - Fiber Laser Cutting Machine

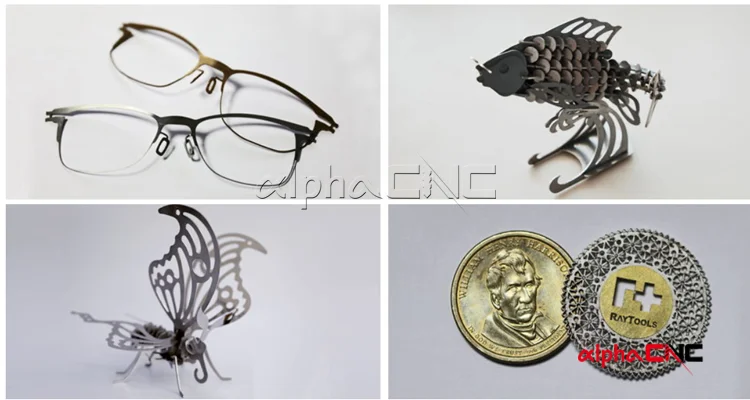

Application Industries:

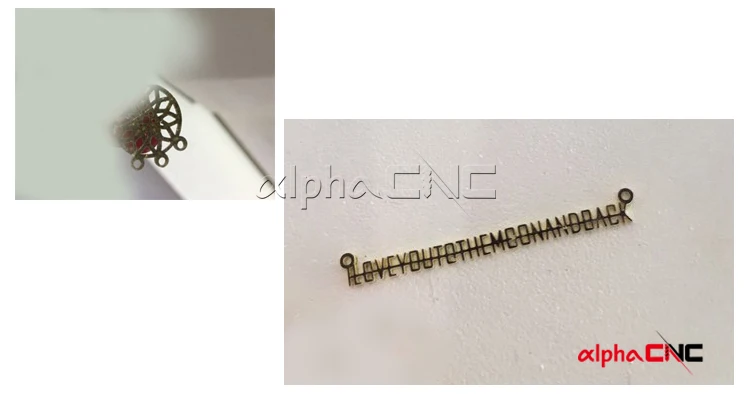

Widely used in precision electronics, hardware, watches, glasses and other industries, can be more accurate of seven aluminum alloy, non-ferrous metals, stainless steel and other metal sheets and high reflective materials.

Laser power 500-2000w (optional), intended for cutting 0.5-9mm carbon steel plate, 0.5-6mm stainless steel plate, galvanized plate, electrolytic plate, 0.5-3mm aluminum alloy, 0.5-3mm brass and copper and other non-ferrous materials .

The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

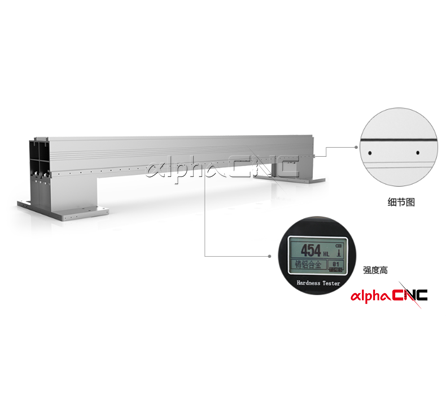

Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

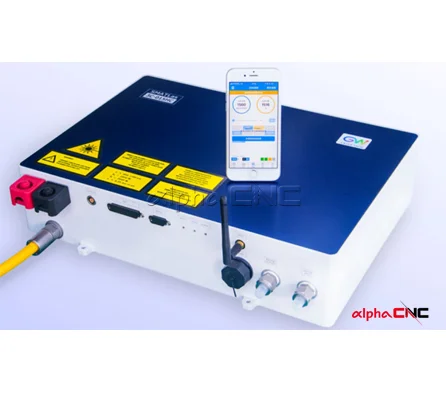

American GW Laser Generator

The SMATLas 3C series of single-module continuous fiber lasers feature a unique optical structure. Targeted optimization of harsh industrial applications. The one-piece design of the 3C series of fiber lasers has a maximum output of 1500 watts. The full range of 3C lasers comes standard with a 20um diameter output cable and GW's patented intelligent cloud service platform. The world's leading energy-to-mass ratio (~10g/W) gives the 3C Series lasers unparalleled integration convenience and versatility.

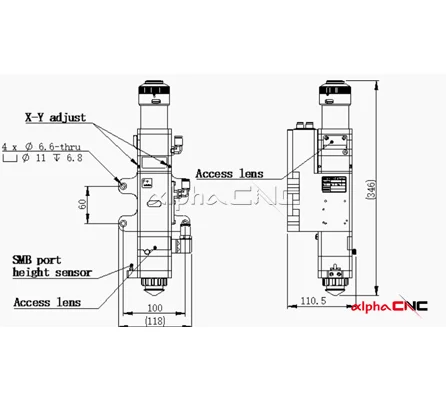

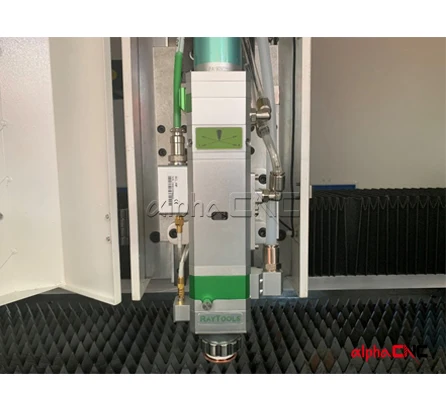

Switzerland Raytools laser head

The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

Switzerland Raytools laser head

The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

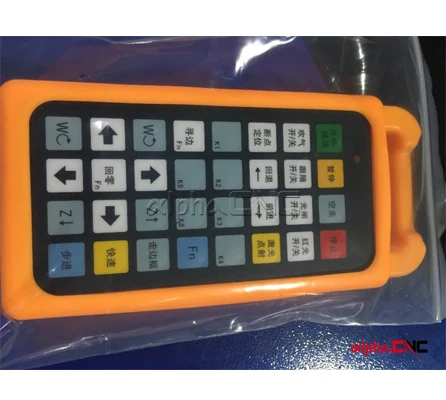

CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench Trajectory accuracy 0.05mm, positioning accuracy 0.01mm Cutting speed 30m/min Maximum air movement speed 80m/min Maximum acceleration 0.8G

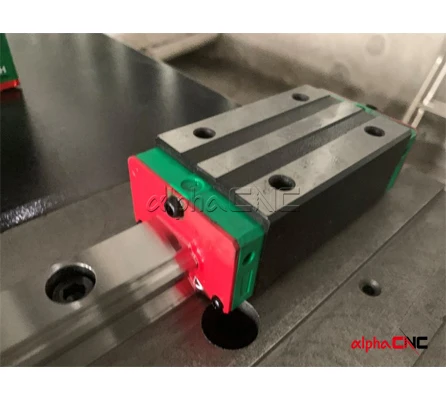

XYZ Axis Taiwan Hiwin Square Rail

The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.

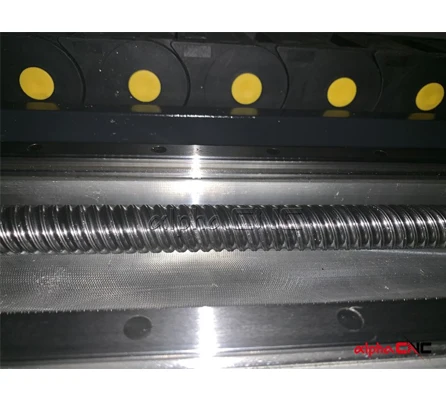

Taiwan TBI ball screw on XYZ axis

As the top brand of the ball screw, TBI ballscrew is famous for the high precision, and long service life.

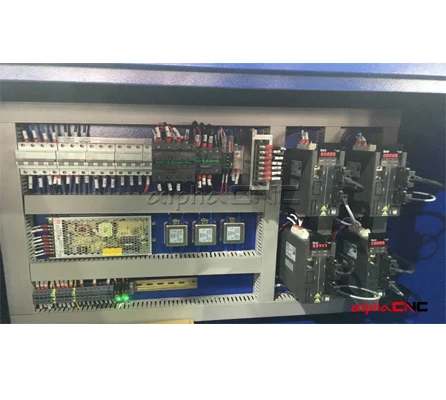

Control Cabinet

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

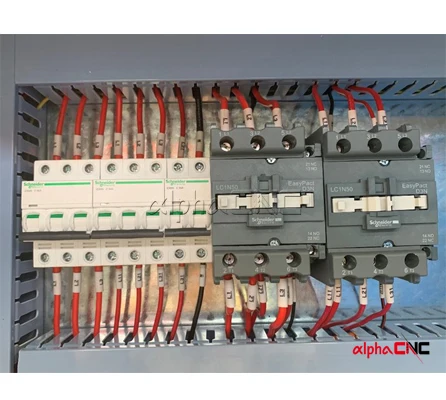

France Schneider low-voltage electrical parts

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

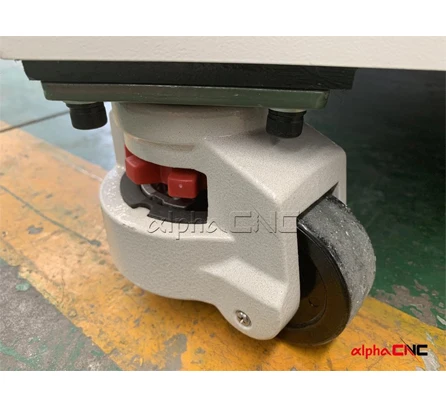

Moving roller

The machine comes with the moving roller, which will help you to move the machine easily.

Back and forth feeding

The back and forth feeding is necessary if your material is very long.

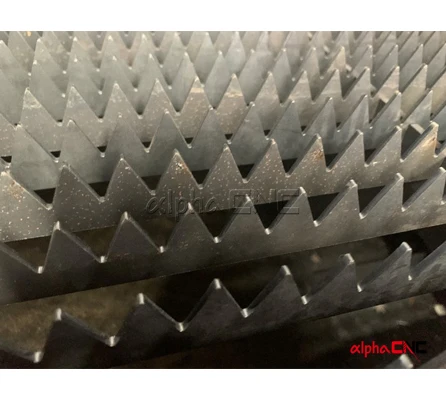

Serrate working platform

The steel serrated table can withstand heavier work pieces and has only a small area to touch the workpiece when cutting, maximizing the melting of the table surface by the heat of the laser.
Each piece is independent for easy replacement and maintenance.

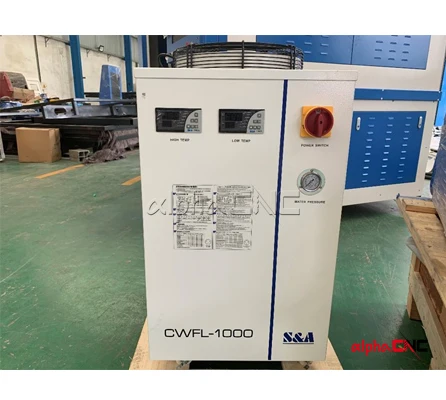

Water chiller
