Products Description

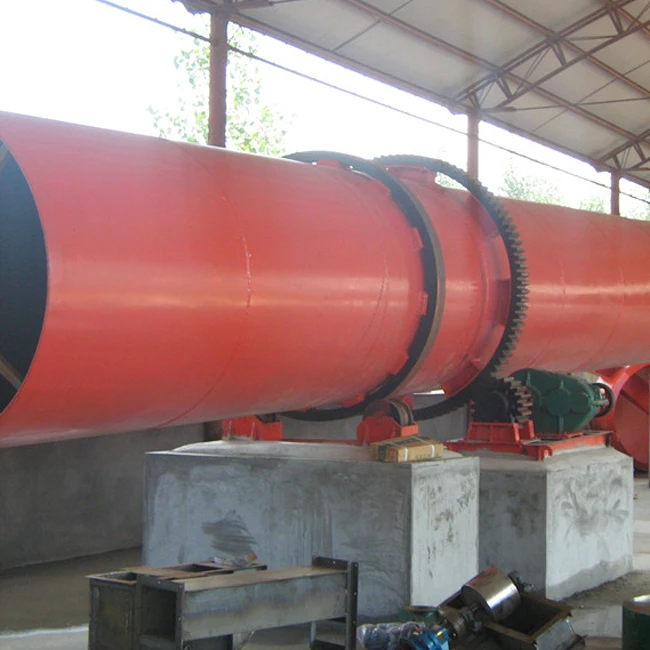

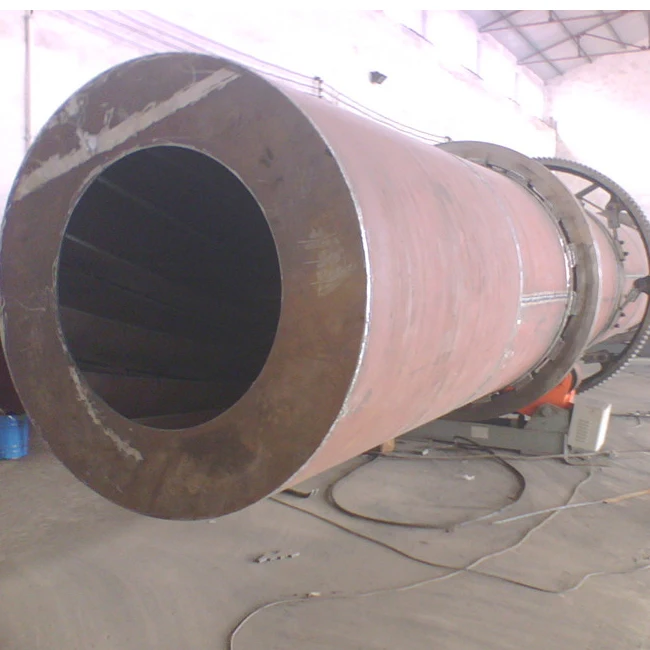

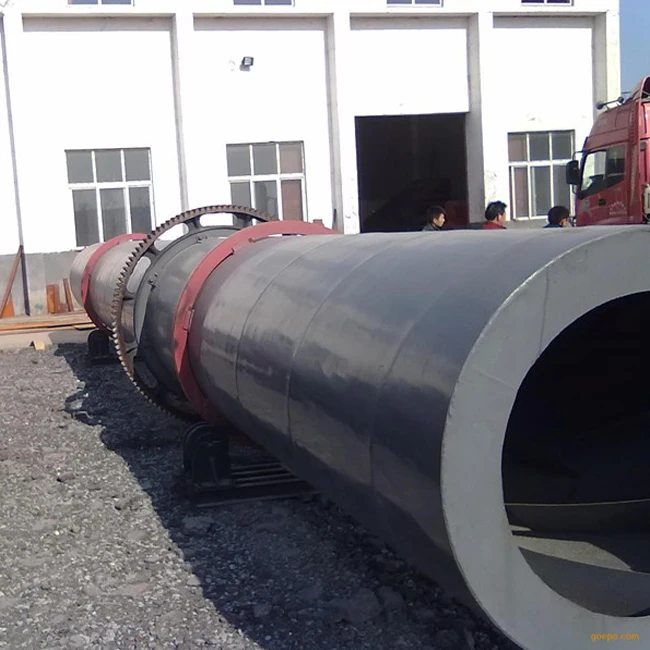

Sawdust sand rotary drum dryer (also called rotary dryer) is used for disposing a wide variety of materials. It enjoys features of reliable operation, high operation flexibility, good adapt ability, good adaptability, large treatment volume and is widely used to dry materials with humidity or granularity in the industries of metallurgy, building material, foodstuff, light industries, coal and chemical,etc.

Features

1. Strong ability of anti-overloading, large capacity, low fuel consumption, low drying cost.

2. Indirect-heating, no material contamination.

3. Retention time can be adjusted, low energy consumption.

4. Reasonable structure, fine workmanship, convenient operation and easy maintenance.

5. Low energy consumption, stable and reliable running of dryer body.

Working Principle

The wet materials are sent into silo by belt conveyor and bucket conveyor, then, the material pass through the feeding tube into the feed end. The gradient of feeding tube must be greater than the natural angle of materials, So that the material can enter into desiccators. The desiccators’ cylinder is an oblique rotating drum. Heat-carrier that enters into the dryer froe, the low-end can form reflux with the material added from the upper end. With the rotating of cylinder materials are carried to the bottom end by gravity. In the moving process, wet materials obtain the heat input of heat carrier directly and indirectly to be dried. Then,the finished materials are sent out by belt conveyor and screw conveyor.

Technical Parameters

Model	Inclination (%)	Speed (r/min)	Inter air temperature ( ℃)	Power (kw)	Capacity (t/h)	Weight (t)
φ600*6000	3-5	3-8	≤700	3	0.5-1.5	2.9
φ800*8000	3-5	3-8	≤700	4	0.8-2.0	3.5
φ800*10000	3-5	3-8	≤700	4	0.8-2.5	4.5
φ1000*10000	3-5	3-8	≤700	5.5	2-5	5.6
φ1200*12000	3-5	3-8	≤700	11	4-10	14.8
φ1500*12000	3-5	2-6	≤800	18.5	8-15	17.8
φ1800*18000	3-5	2-6	≤800	22	10-23	31
φ2000*18000	3-5	1.5-6	≤800	30	15-26	43
φ2200*18000	3-5	1.5-6	≤800	37	20-32	52
φ2400*20000	3-5	1.5-5	≤800	55	25-38	60
φ2800*20000	3-5	1.5-5	≤800	75	35-30	72
φ3000*25000	3-5	1.5-5	≤800	90	40-65	104.9
φ3200*25000	3-5	1.5-6	≤800	132	75-105	166
φ3600*25000	3-5	1.5-6	≤800	155	95-160	188

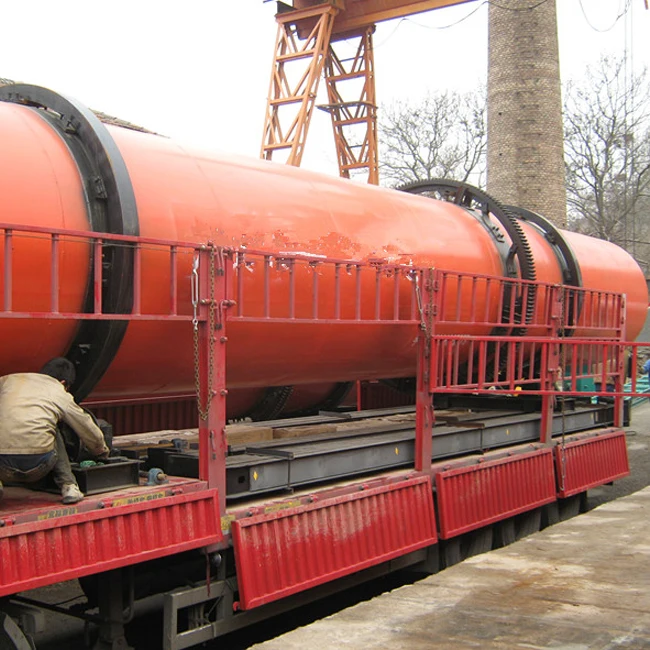

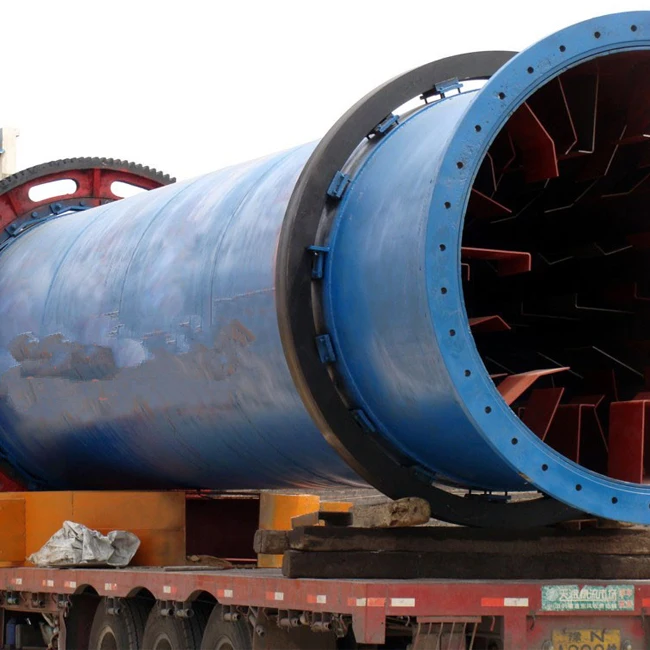

Product packaging

Packaging Details

1.International export standard packing of Sawdust sand rotary drum dryer

2.small parts are woodened box package

3.main engine nude,container,or customer'requirement

Port:

Qingdao or the nearest port

Lead Time:

Shipped in 20 days after payment

Company Profile

Company profile

Henan Zhongjiao Mining Machinery Manufacturing Co. Ltd. is a joint-stock enterprise that focuses on the production of large and medium-sized mining machinery and equipment, and integrates design and development, production and processing, sales and technical services.The company mainly produces crushing equipment, sand production equipment, mineral processing equipment, grinding equipment, building materials equipment, metallurgical equipment and related technical service support.Believe in the quality of products for the life of the company, always adhere to the quality of brand building, service to enhance the brand, and strive to provide customers with innovative and high-quality products and services.

FAQ

FAQ

Q1.How long is the warrenty of your equipments?
The warranty period of our equipments is one year.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.

Why Choose Us

Why Choose Us?

1.We are online 24 hours on working days.
2.Our team of engineers for solutiongs of products.
3.Punctual shipment time and perfect after-sales services will be guaranteed.
4.Stock of spare parts.
5.Strict inspection before delivery.

Inquiry Service

Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.

We are the professional machine manufacturer in China.

I need to ask you some details for sending you the more suitable quotation,

What is theraw material do you want to process?
What is thecapacity per hour do you need?
What is theraw material input size?
What is theoutput size of your product?

I hope you can tell me these details, i will give you the best quotation ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
