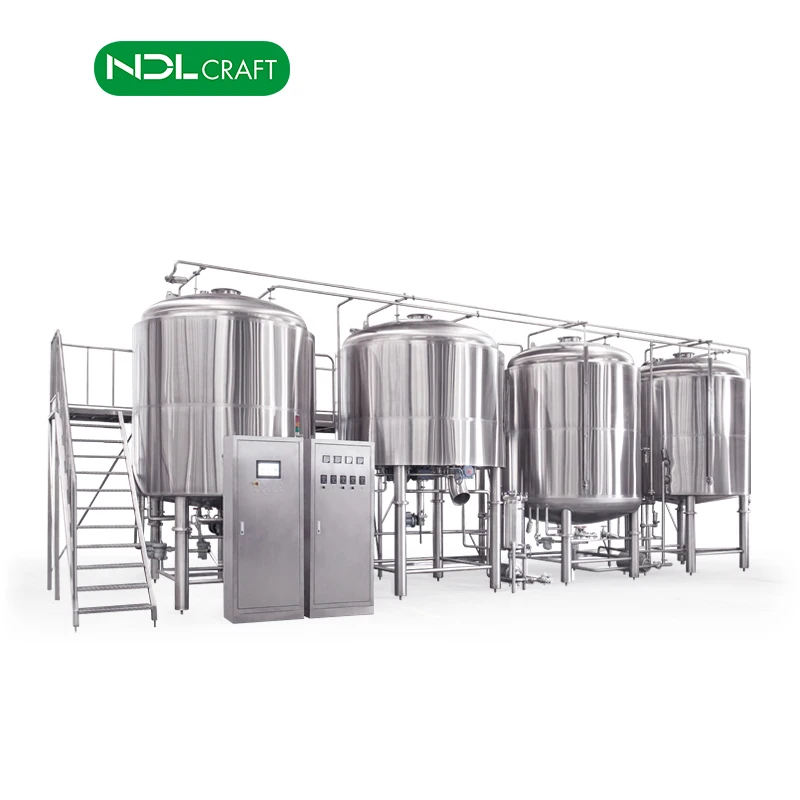

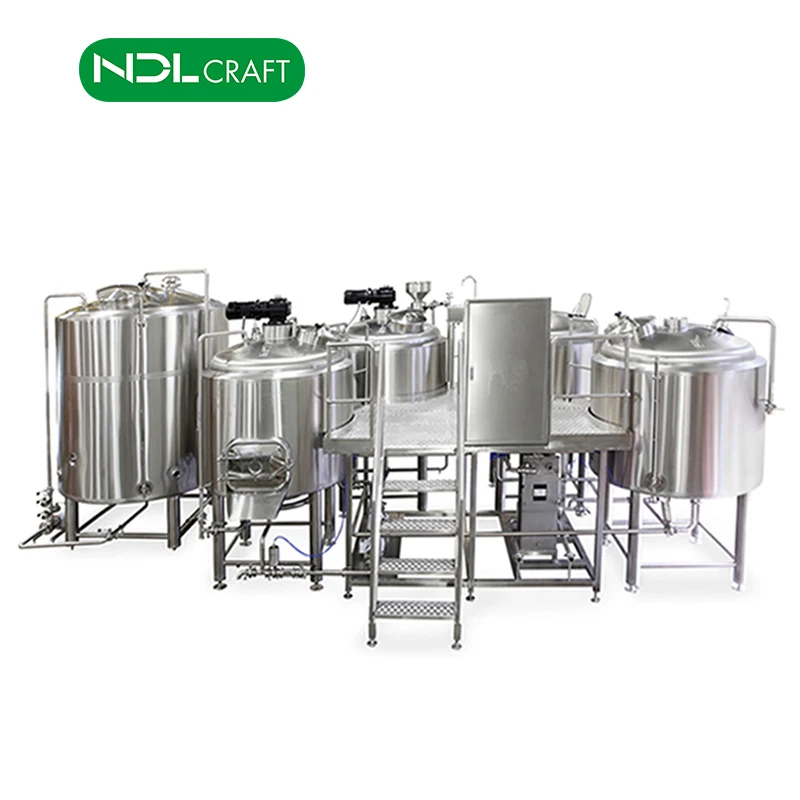

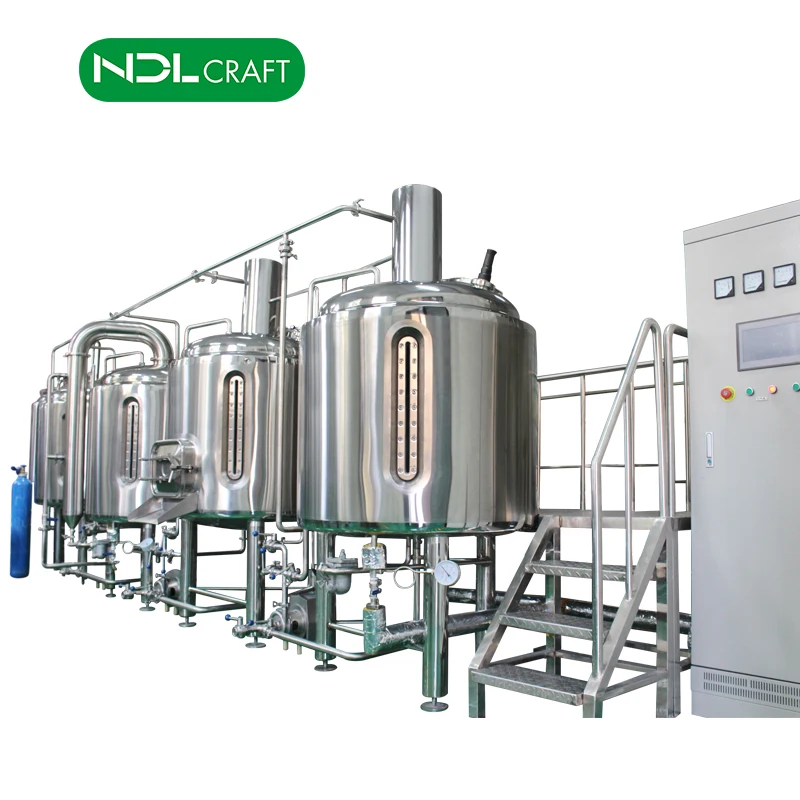

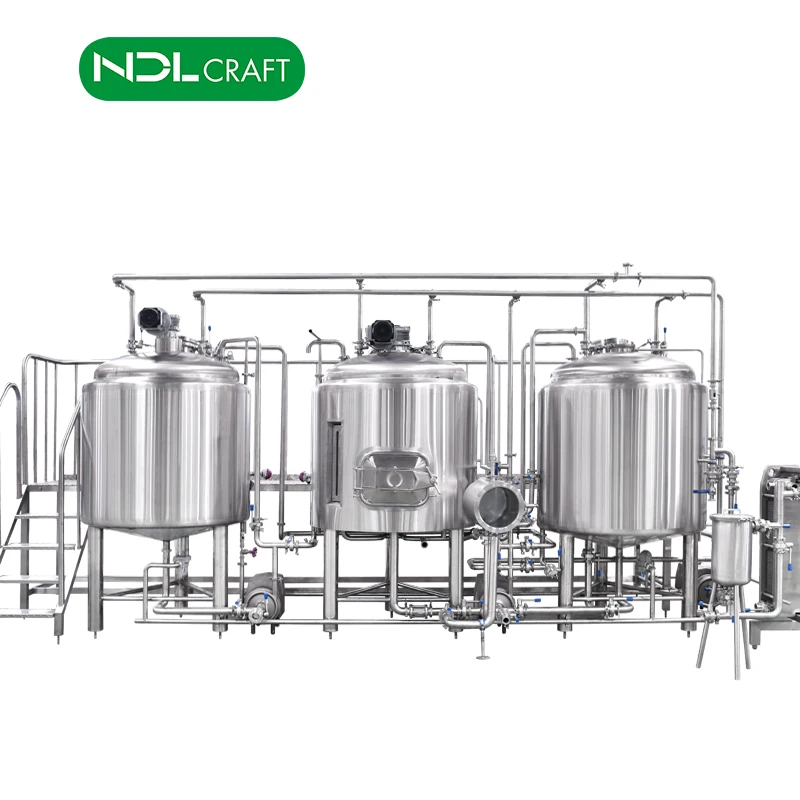

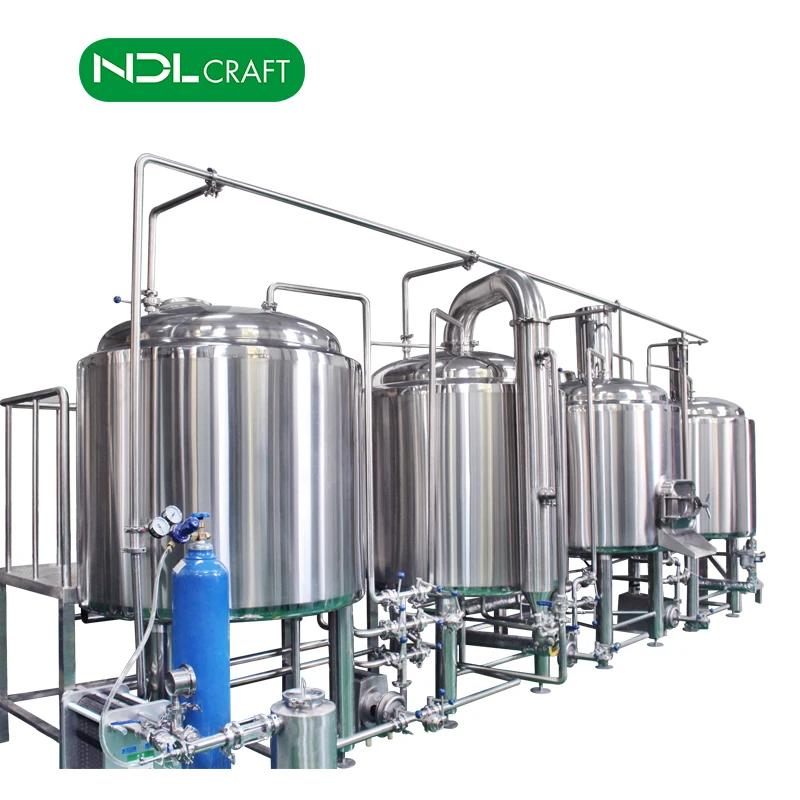

Оборудование для пивоварни под ключ 30 bbl полностью оборудованная Пивоваренная система

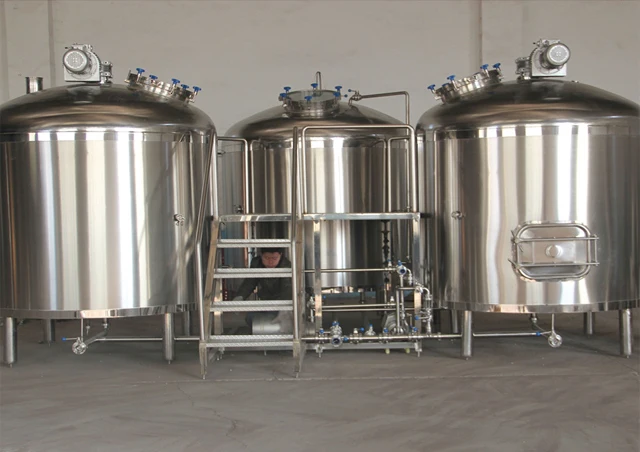

1. 30BBL Brewhouse
Function: Use for wort mashing, wort filtration, boiling, and whirlpool.
Component: It is consisted of mash tank, lauter tank,kettle, whirlpool, hops back, plate heat exchanger , wort pump and so on. This component are the most important part of beer brewing equipment.
Types:Two/Three/Four Vessels brewhouse
Heating method: Electric heating,  Steam heating, Direct fire heating.

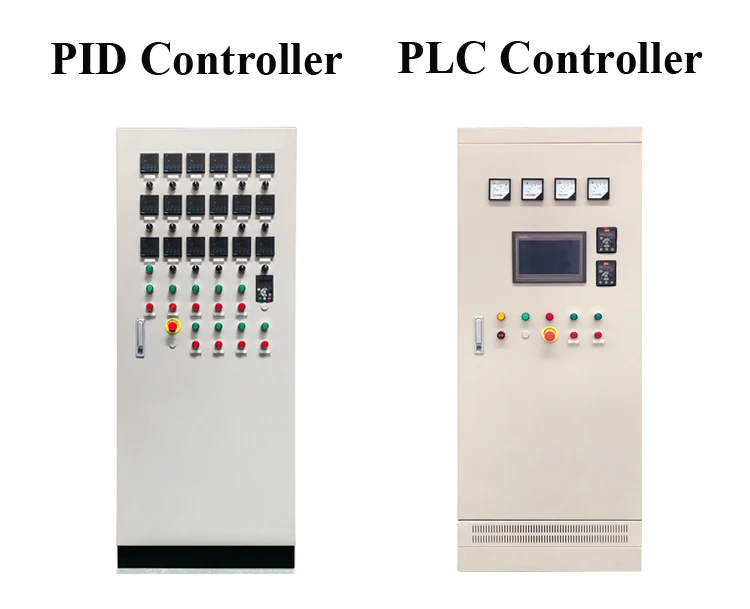

Control method: PLC/PID controller cabinet.
Material: SUS304/316/316L.

2. 30BBL Fermentation System

Fermenting system is the very important part of beer brewing equipment.

Insulation: Polyurethane, thickness=100mm;

Stainless steel dimple cooling jacket on cone and side;

CIP arm and 360degree sprayball;

Full sanitary pressure valve, relief valve, sample valve;

Shockproof pressure gauge on CIP arm;

Coolant inlet and outlet;

Side/top manway, dish top, 60degree cone bottom(adjustable);

Interior and exterior finish polished to a sanitary finish;

Inner tank finish pickled and passivated;

Tri clamp discharge arm with butterfly valve;

Carbonation port and stone;

Thermowell for high accuracy temperature sensor;

Stringent tank leakage test by water and pressured gas;

Stringent jacket leakage teat by water and pressured gas;

3. Cooling system
01.Glycol Chiller
02.Chiller

4 CIP Tanks
01.Disinfection Tank
02.Alkali Tank

5. Control Cabinet
01.Schneider low voltage electrical components; Danfoss VFD;
02.Wiring diagram will be provided with the panel;
03. wiring diagram and English nameplate.
04.All motors must have fuse and overload protection.

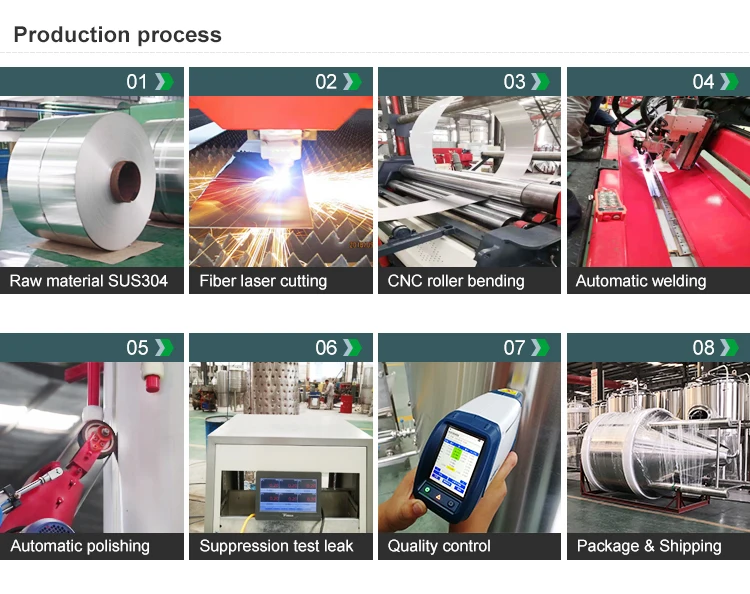

Raw Material

SUS304/316/316L SS from TISCO, The tested parameters comply with the requirements stated in the Council of Europe Resolution CM/Res(2013)9 and Regulation (EC) No 1935/2004 on materials in contact with foodstuffs of the European Parliament and of the Council of 27 October 2004.

Plasma Cutting

Plasma cutting made by our professional technician, the data for the stainless steel do not have any error, Which is the only one advanced technology in our city.

100% TIG Welding

Argon arc welding is the use of argon as a protective gas welding technology. Also known as argon gas shielded welding. That is, around the arc welding through the argon gas protection, the air outside the welding area, to prevent the oxidation of the welding area.

Mirror Polishing

Inside Polishing: Overall polishing to 0.2-0.4μm without dead corner .
Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
Purpose: The tank itself has high precision and small details of the tanks have to be observed by a telescope.
Function: To make tanks become tidy and smooth, beautiful and durable.

Finished Product

All the finished product will be inspected by X-ray testing, to find out whether there have something defect.

Quality Control

When the equipment is finished, our company quality control department will inspect the equipment to ensues its quality before delivery. After that, the customers or the third party can come here to inspect the equipment again if available.

We are a professional home beer brewery equipment manufacturer in China with years of experience in exporting and producing. All our products had been certified by CE/ISO, you can spend very little money to achieve your brewingdream, For we are wholesale beer supplies, Our products include all kinds of large,medium,micro and mini beer brewery equipment, range from 50L to 50bbl, beer main and accessories, raw material for beer,beer canning vending machine,beer dispenser equipment etc, One-stop serve, high quality small your scheme to gain more money.
Now we design from 50L per day to 2000L special for hotel, pub, restaurant and roast
The most practical and stable beer equipment made in China!
More details ,feel free to contact us!

Sale cases:

We have been sold a large great number of beer brewing equipment to Euro, and USA, and other countries. The beer brewing equipment are adopted stainless steel 304/316L, and have passed the ISO CE PED Certificate, and other pressure certificate. In order to make you believe our company, now, enclosed our certificate to lessen your worries.

1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame.

2. All accessories and spare parts will be packaged with separate box.

3. After loaded into containers, all equipments will be well fixed to the containers.

4. Delivery time: 35 working days after deposit.

1.Pre-sales:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.

2.After-sale
-We can provide weekly production report to let you clear of production progrss and production details;
-We will do equipment test and test report available for you;
-Providing piping connection drawing and English operation manuals;
-Providing equipment installation, debugging, and personnel training service;
-We can help you to arrange transportation till to your location;
-Main machine guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

1. Q: Which countries does your products exported to?
A: Our equipments have been exported to 80 Countries and regions, such as Australia,USA,Canada,Russia,South Amercia,South Africa,India ,European Countries including Germany,Italy,Romania,UK and so on.
2. Q: How any years does your warranty ?
A: The main beer machine for 3 years, auxiliary ones for 1 year.
3. Q: How to use your beer machine?
A: We have paper instructions in English, and we will teach till you do it well.
4. Q: Is it possible to supply installation in my country?
A: Yes, our engineers can go to your place and teach your person installation and brewing.
5. Q: How to do temperature control?
A: The PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

We are grateful that you are interested in our product and thanks for your time .
For any query regarding our Beer Brewery Equipment, please feel free to contact us.
We will be more than happy to support you !
