Product Description

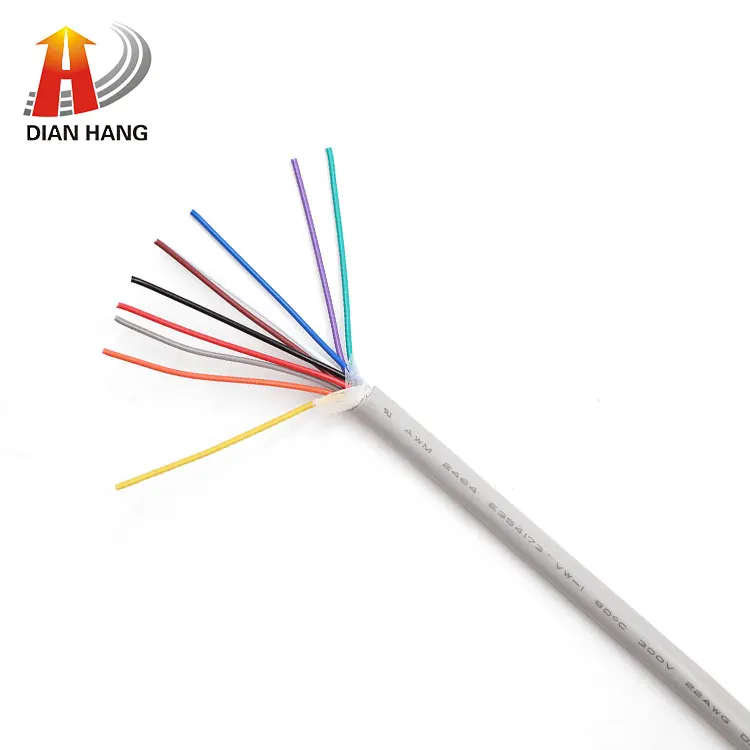

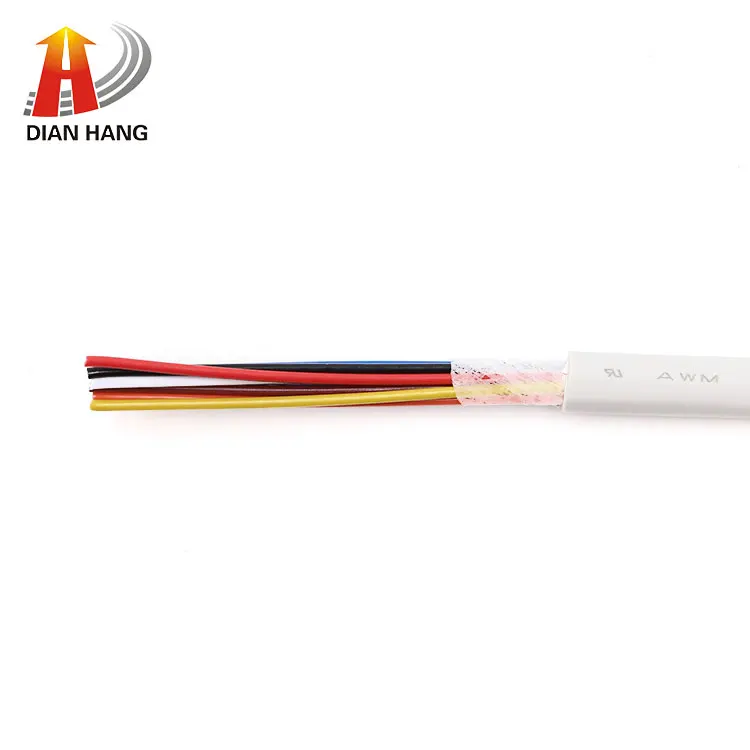

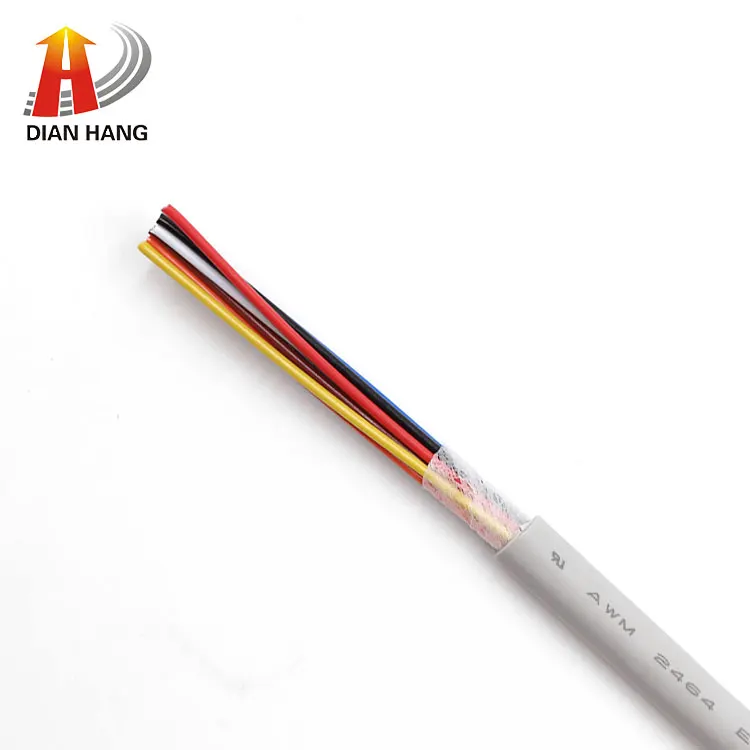

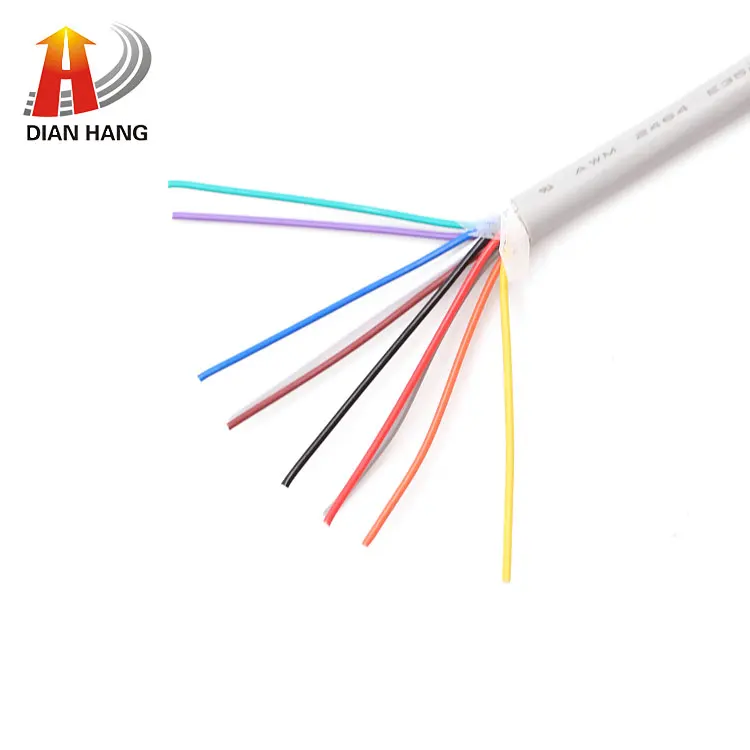

awm 2464 computer cable Anti-jamming wire high quality


Rated temperature:80℃


Rated voltage:300V


Reference standard:UL758,UL1581,CSA C22.2No.210.2

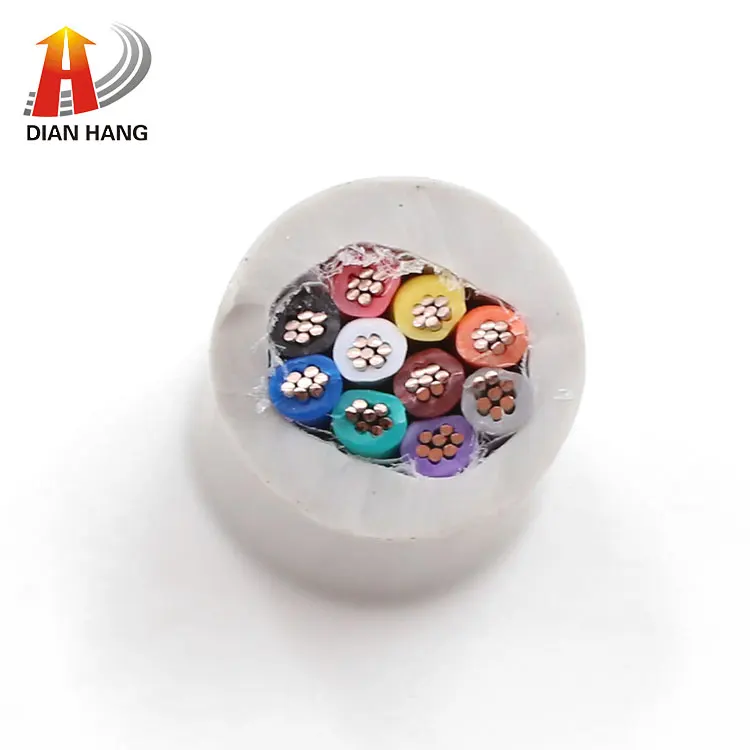

Solid or stranded, tinned or bare copper conductor 32~16AWG


SR-PVC insulation, comply with ROHS, REACH environmental standard


Tinned or bare copper wire braid shield


PVC jacket, comply with ROHS, REACH environmental standard


Passes UL VW-1, CSA FT1 and JQA F-Mark flame test


Uniform insulation thickness to ensure easy stripping and cutting


Application:


Internal wiring or external interconnection of electronic equipment






















































































 UL TYPE



  Conductor



   Insulation



Shielded



Jacket



Dielectric Strength



2464



Specification


(AWG)



Construction


(No./mm)



Cores.No






Thickness


(mm)



OD


(mm)



Construction



 (OD)






(Vac,1min)






30



7/0.10





















Core2and above






0.25



above0.80


















With or Non






above3.80



2000



28



7/0.127



0.26



above0.90



above4.00



2000



26



7/0.16



0.26



above1.00



above4.50



2000



24



11/0.16



0.25



above1.10



above4.50



2000



22



17/0.16



0.27



above1.30



above4.80



2000



20



26/0.16



0.28



above1.50



above4.80



2000



18



41/0.16



0.31



above1.80



above5.50



2000



Note: the specific chip number and shielding can be customized according to customer needs. Please contact customer service personnel






 Anti-jamming wire


Anti-jamming wireAnti-jamming wire


Anti-jamming wire


Anti-jamming wire






























































































































































































Table of Recognized Styles
Single-conductor,thermoplastic insulation
1007109513321430158116721006410446
1015118513331017158916741027210584
10281330135415691617169110316
10611331142915711631169710368
Multi-conductor,thermoplastic insulation
2095246825472651273329192027620642
2405250925762661283529602034620647
2464251725862725285429742042721016
Single-conductor,thermoset insulation
317332663289332133853398
326532713302336833863443
Multiple-conductor,thermoset insulation
43844411441244134478
Automotive Wires
German Standard
FLRY-AFLRY-BFLR9YFLR13Y

China Standard
QVR
America Standard
GPTGXLHDTSXLTWPTXL
Janpan Standard
AVAVSAVSS
