Автоматическая машина для плазменной резки CNC с подачей материала труб

Structure of CUT 4-2 CNC Pipe Cutting Machine

1. Product Application

CUT 4-2 is a new pattern of CNC Pipe cutting machine, it can cut round pipes and square pipes of different materials, like carbon steel, stainless and other materials, are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

2. Machine outlook

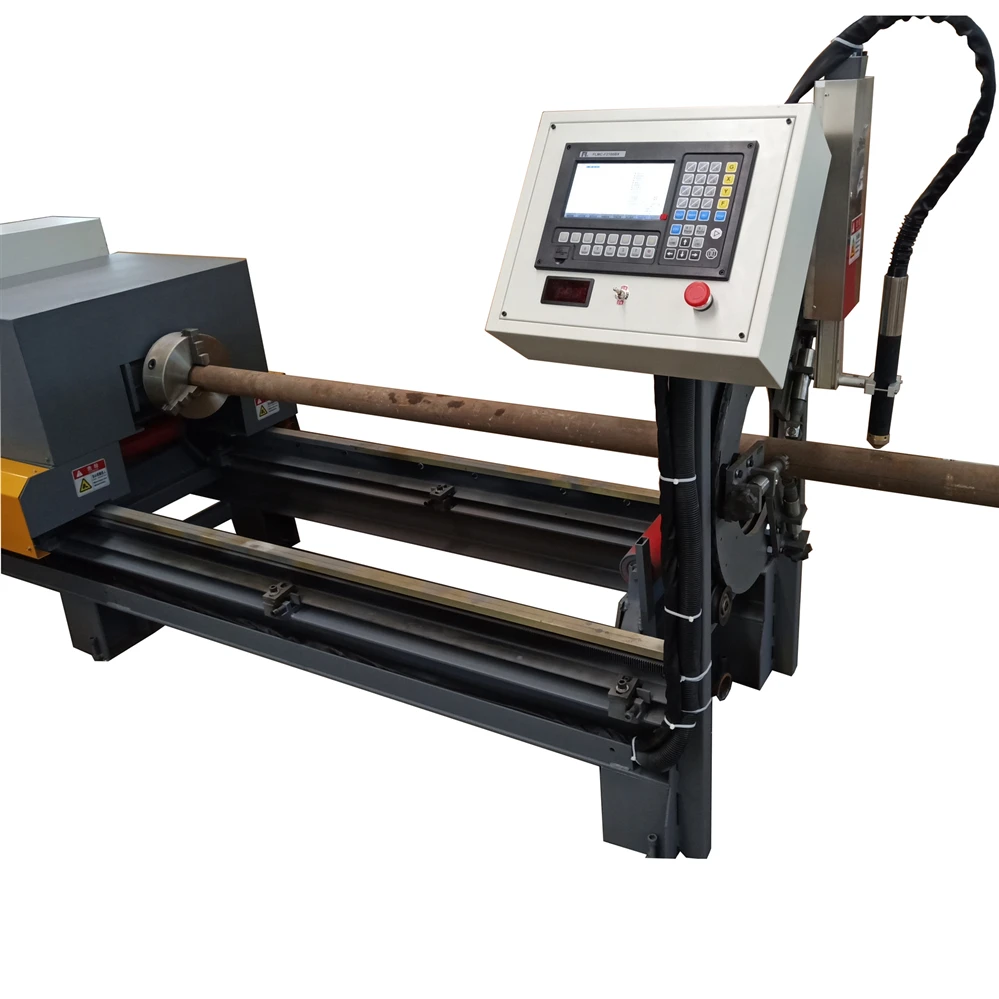

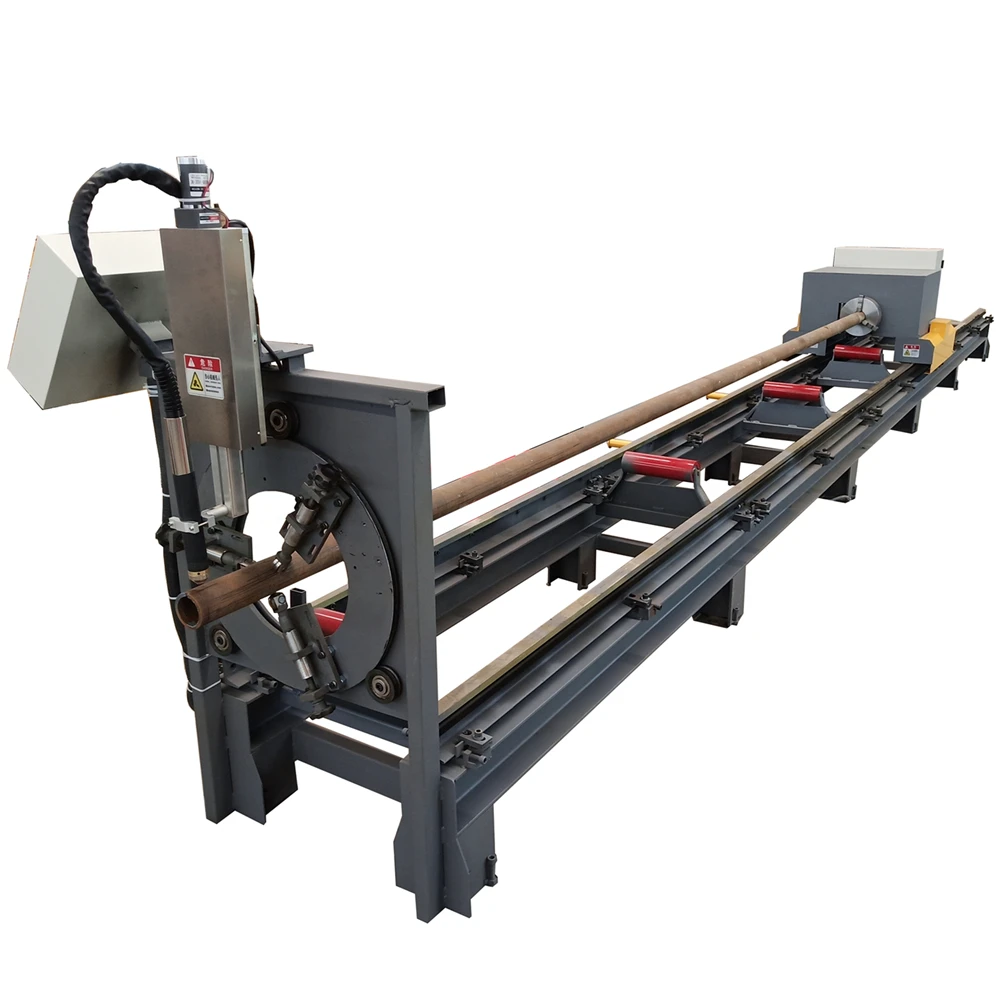

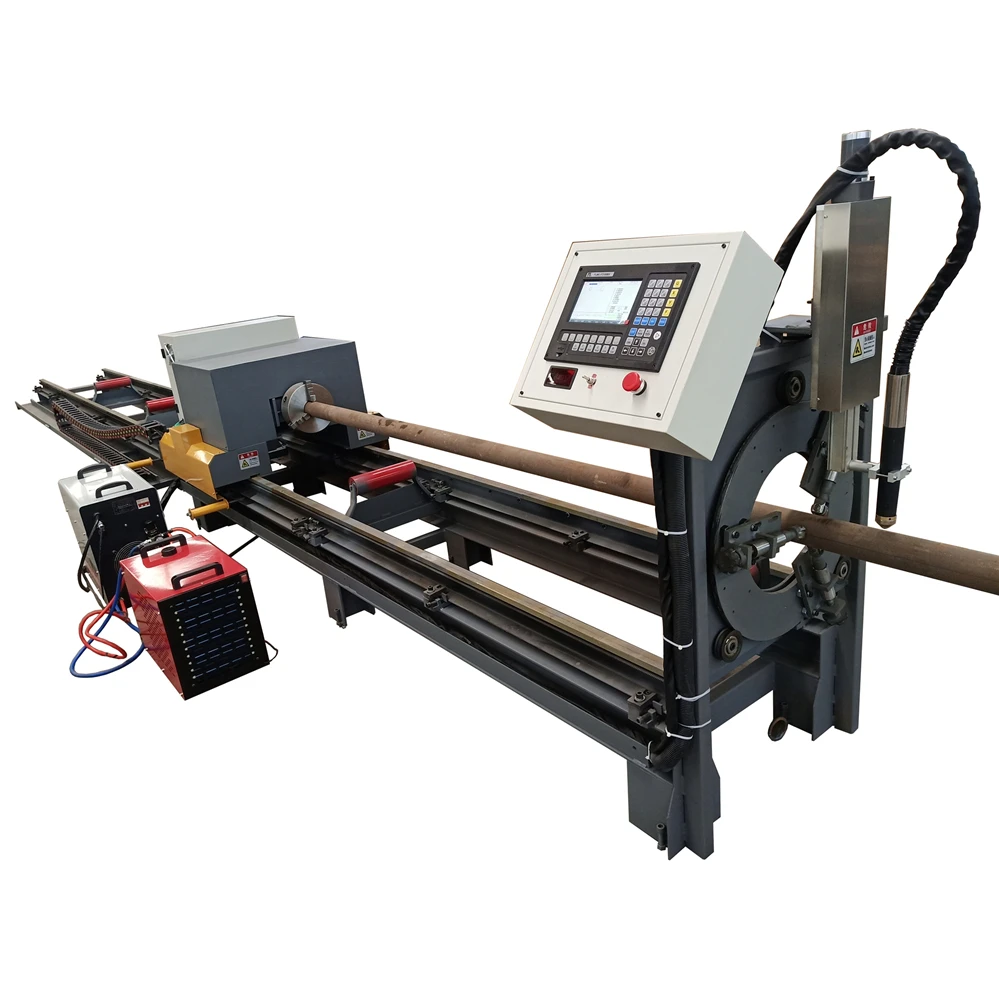

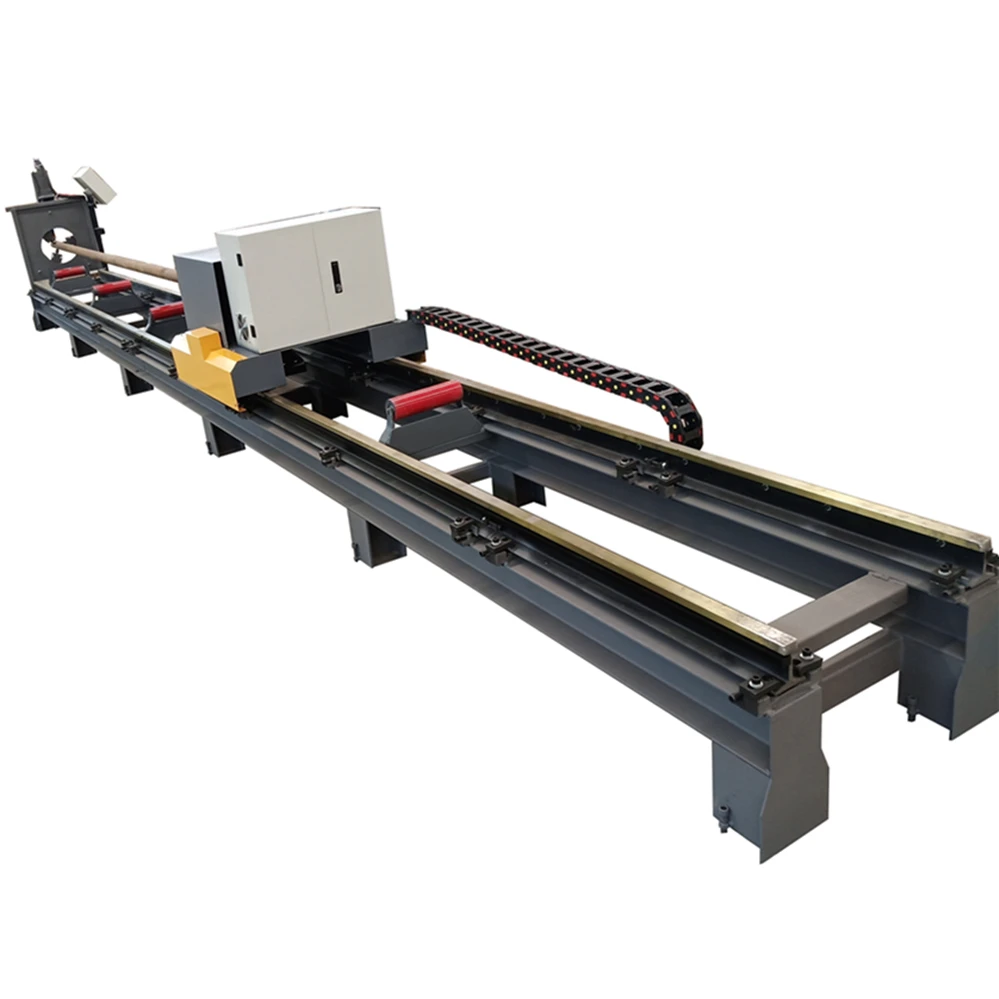

whole machine

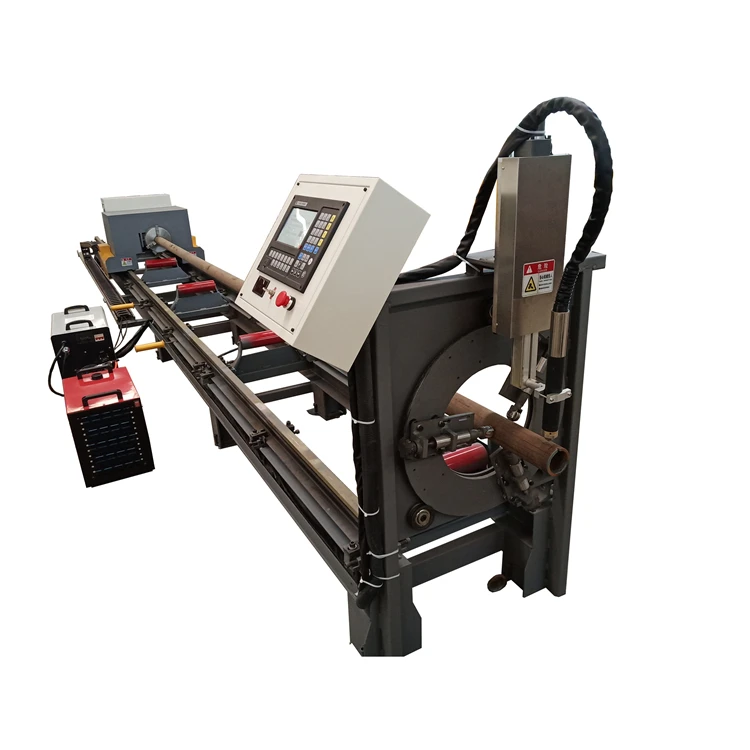

side view

side view

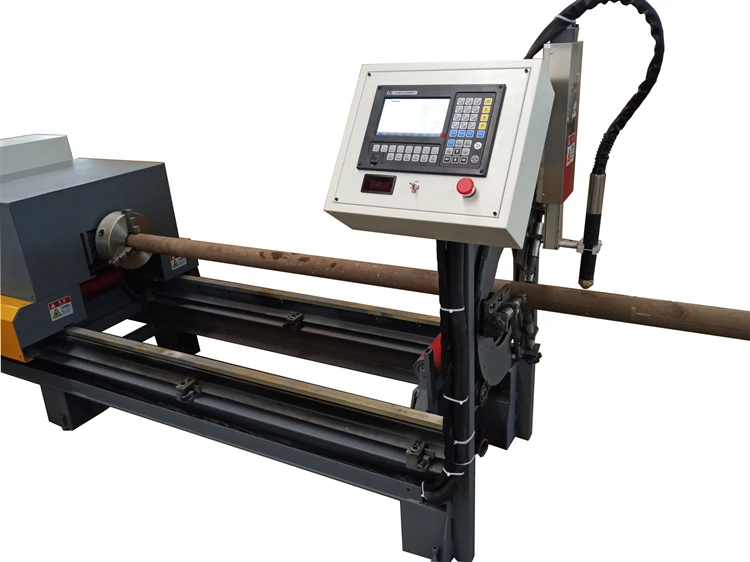

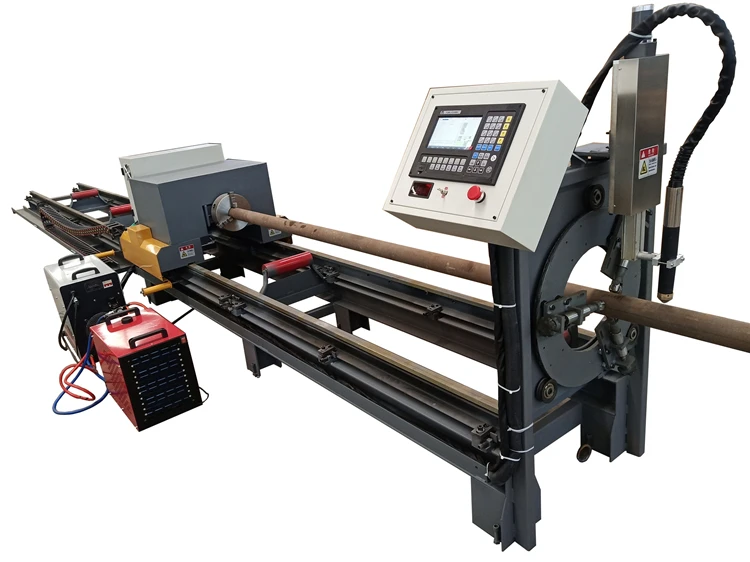

front view

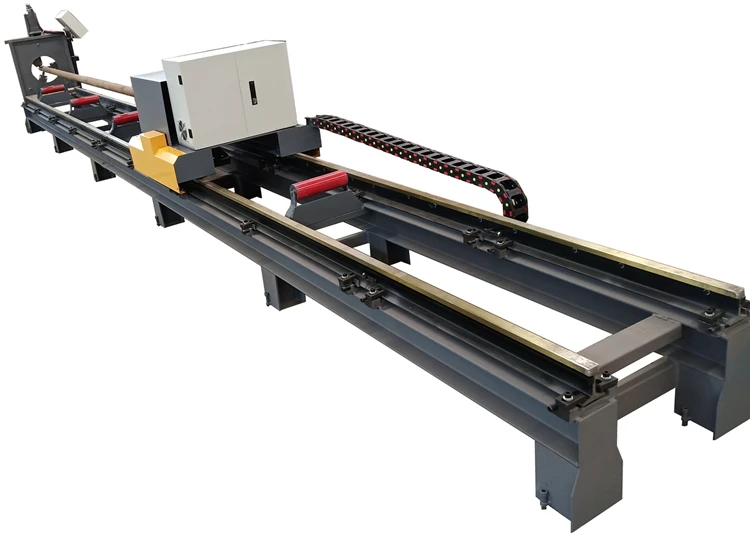

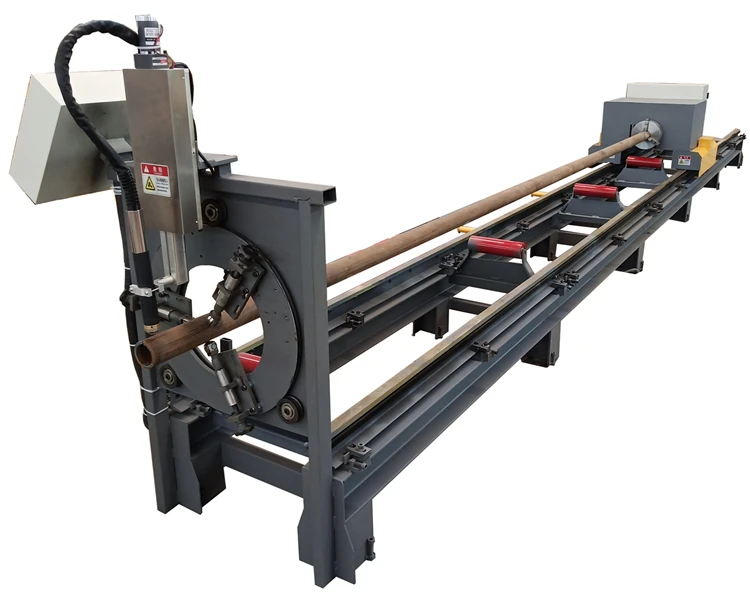

back view

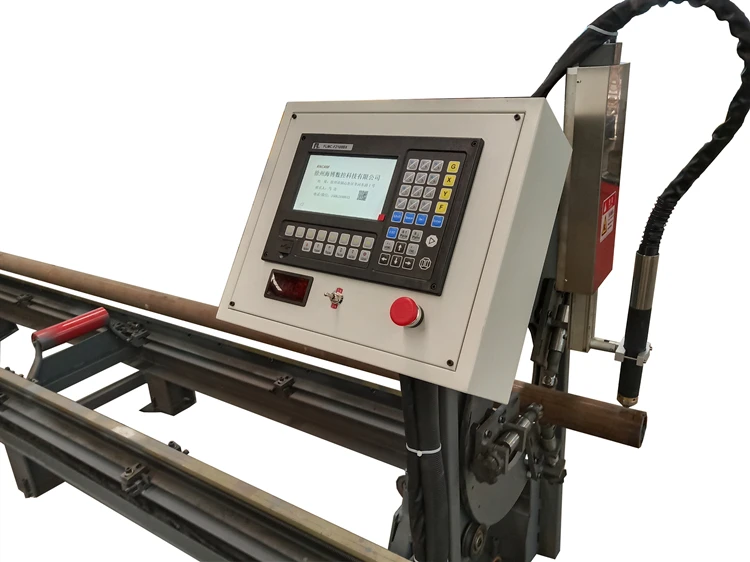

CNC control system

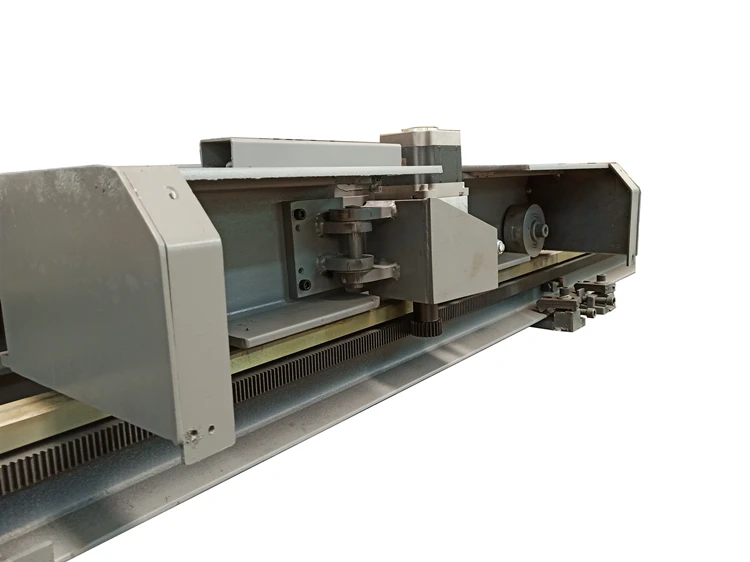

Gear rack transmission system

3. Unique functions

(1).       Feeding pipes automatically

(2).       Continuous quick massive cutting

(3).       Graphic display function

(4).       English interface and other 5 languages

(5).       Excellent graph library , 48 graphic

(6).       Cutting can continue when power fails

(7).       Continuous return can be done

(8).       Positioning and cutting can be done randomly

(9).       Off-line cutting can be done

(10).    Online upgrading function

4. Technical parameters

5. Product features

(1). Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.

(2). Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs

(3). Taiwan’s Advantch industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, etc

(4). High pressure double crank to control the die opening and closing.

(5). Simple structure in linear type, easy in installation and maintenance

(6). High pressure double crank to control the die opening and closing.

(7). Running in a high automatization and Intellectualization, no pollution

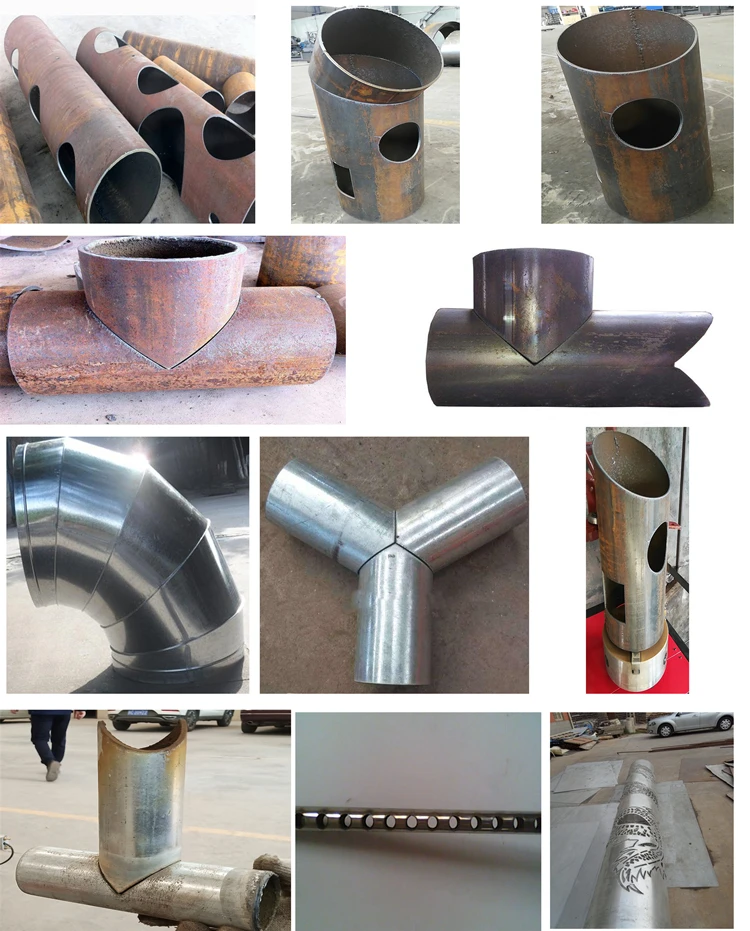

6. Cutting samples

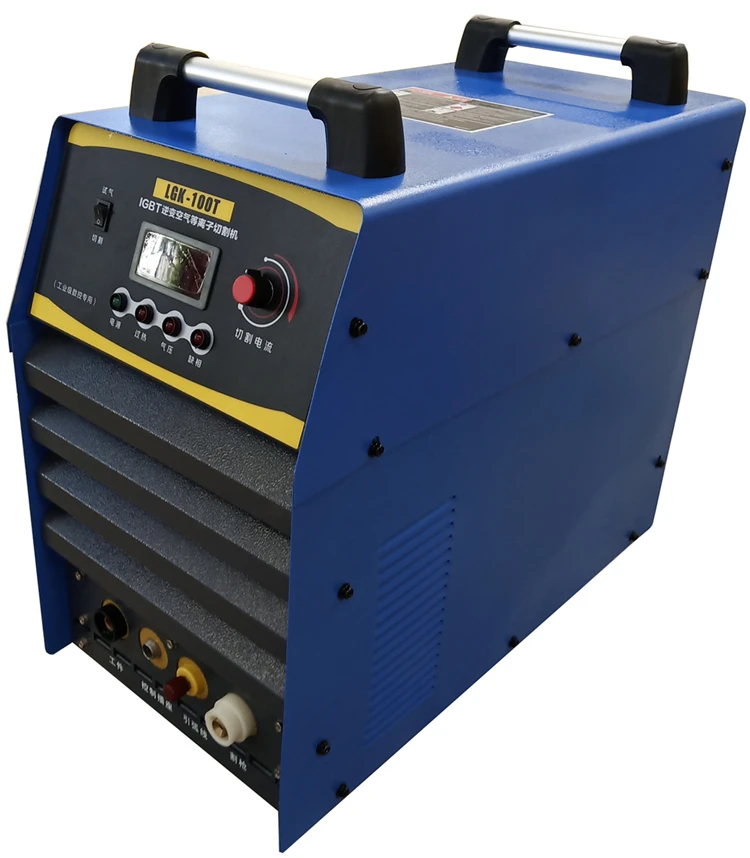

7. Plasma power source

8. Packing

9. Our services

(1) 1 year's warrnty

(2) on-line service

(3) video technical support

(4) trouble-shooting

(5) supplying spare parts

 Xuzhou Haibo CNC Technology Co.,Ltd is a company integrating R&D, production and sales. The company started from year 2000 when we developed software of engraving machines. The company was incorporated in 2003, producing CNC engraving machines. In 2005 we started developing software of CNC cutting machines. In 2007 we started producing CNC cutting machines. Currently our products are various CNC Plasma Cutting Machines, CNC Flame Cutting Machines, Fiber Laser Cutting Machines, etc. The company has its own patented controlling system, products have been exported to Poland, Russia, Ukraine, India, Egypt, Thailand, etc.
