Одномодульный непрерывный волоконный лазер MFSC 700 Вт 1500 Вт
- Категория: Laser Equipment Parts >>>
- Поставщик: Shandong Leapion Machinery Co. Ltd.
Сохранить в закладки 62308968478:
Описание и отзывы
Характеристики
Product Description

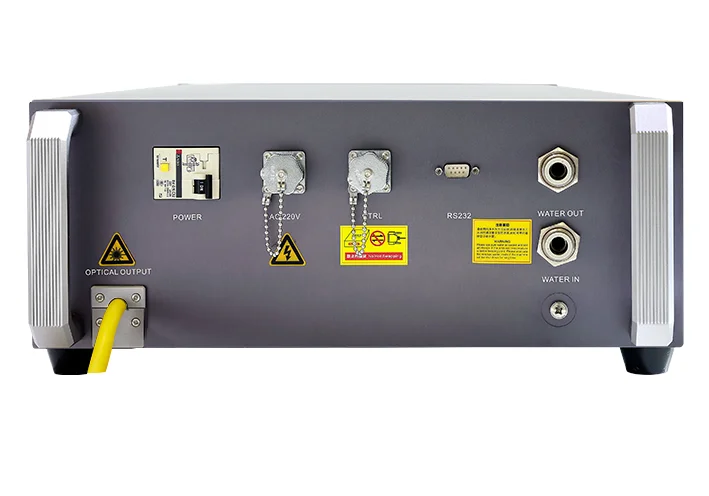

MFSC1200W-1500W Single-mode continuous fiber laser using adopt water-cooled, it has high power, perfect beam quality and high electro-optical conversion efficiency, and can realize optical fiber transmission. This kind of laser system has extraordinary high reliability to other solid lasers and gas lasers. It is the best choice for cutting , welding and drilling on stainless steel, carbon steel, aluminum, copper and other metal materials,widely used for sheet metal cutting, metal processing, home appliances manufacturing, automotive manufaturing and other industrial field.
Product features：
1. High photoelectric conversion efficiency
2. Excellent beam quality
3. Super reliability
Product parameters：
Optical Characteristic Parameters |
| ||||||
No. | Characteristics | Test conditions | Min. | Nom. | Max. | Unit |
|
1 | Operation mode | CW/Modulated |
| ||||
2 | Polarization | Random |
| ||||
3 | Output power 700W | 100% CW |
| 700 |
| W |
|
Output power 800W | 100% CW |
| 800 |
| |||
Output power 1000W | 100% CW |
| 1000 |
| |||
Output power 1200W | 100% CW |
| 1200 |
| |||
Output power 1300W | 100% CW |
| 1300 |
| |||
Output power 1500W | 100%CW |
| 1500 |
| |||
4 | Tuning range of output power |
| 10 |
| 100 | % |
|
5 | Emission wavelength | 100% CW | 1070 | 1080 | 1090 | nm |
|
6 | Spectrum width(3dB) | 100% CW |
| 3 | 4 | nm |
|
7 | Short-term power instability | 100% CW>1h |
| 1 | 3 | % |
|
8 | Long-term power instability | 100% CW>24h |
| 3 | 5 | % |
|
9 | Beam quality M2 | 100%CW（20u-QBH) |
|
| 1.3 |
|
|
100%CW（50u-QBH) |
|
| 2.8 |
|
| ||
10 | Laser switching ON time （700W-1000W)
| 10% → 90%Output |
| 50 | 100 | us |
|
Laser switching ON time （1200W-1500W) | 10% → 90%Output |
| 50 | 80 | |||
11 | Laser switching OFF time （700W-1000W) | 90% → 10%Output |
| 50 | 100 | us |
|
Laser switching OFF time （1200W-1500W) | 90% → 10%Output |
| 30 | 50 | |||
12 | Modulation rate （700W-1000W) | 100% Output |
|
| 20 | KHz |
|
Modulation rate （1200W-1500W) | 100% Output |
| 20 | 50 | |||
13 | Red guide laser power | 100% Output | 150 |
|
| uw |
|
14 | Feeding fiber cable length |
|
| 15 |
| m | |
15 | Feeding fiber core size | 50（30、100 optional） | um |
| |||
16 | Feeding fiber cable bending radius |
| 200 |
|
| mm |
|
17 | Output form | Standard QBH（LOC） |
| ||||
General Characteristic Parameters |
| ||||||
No. | Characteristics | Test conditions | Min. | Nom. | Max. | Unit |
|
1 | Operating voltage |
| 180 | 220 | 240 | VAC |
|
2 | Nominal power consumption MFSC-700W | 100% Output |
|
| 2.5 | kw |
|
Nominal power consumption MFSC-800W
| 100% Output |
|
| 2.8 | |||
Nominal power consumption MFSC-1000W | 100% Output |
|
| 3.5 | |||
Nominal power consumption MFSC-1200W | 100% Output |
|
| 4.8 | |||
Nominal power consumption MFSC-1300W | 100% Output |
|
| 5.2 | |||
Nominal power consumption MFSC-1500W | 100% Output |
|
| 6 | |||
3 | Operating ambient temperature |
| 10 |
| 40 | ℃ |
|
4 | Operating ambient relative humidity |
| 10 |
| 85 | % |
|
5 | Cooling method | Water-cooling |
| ||||
6 | Storage temperature |
| -10 |
| 60 | ℃ |
|
7 | Dimensions | 800*482.6*193.2 | mm |
| |||
8 | Weight | 50±3 | kg |
| |||
For reference only. Other beam diameter avai lable by order。 |
| ||||||
6mm / 8mm / 10mm / 12mm carbon steel cut.
4mm / 6mm / 8mm / 304 stainless steel cutting
CERTIFICATIONS
The certifications of Leapion company.
SERVICE
___________________________
2 years guarantee of the whole machine and we give lifetime maintenance free of charge.
___________________________
Free training to make sure you master the operating of machine at our factory.
___________________________
24 hours online services through Whatsapp, Skype, Email or on the phone.
___________________________
Engineers available for overseas training and after-sale services.
___________________________
Contact me at any time if you have any questions about the machine.
___________________________
Friendly English version manual and operation video CD disk.
OUR COMPANY
>>>>>>
Leapion in laser machine business since 2007, we are a global manufacturing company producing
Laser engravers, laser markers,
>>>>>>
CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.
Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.
>>>>>>
We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.
Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.
Games
Leapion is the big family，we uphold the principle of freedom and equality upward,
Welcome to this warm family！
Want To Tell You
We are the reliable manufacture and have been in this field since 2007,you will get the best quality and after-sale service if you choose us,cause long time cooperation and business are what we want,we won't leave any customer who bought machine from us.INTEGRITY&QUALITY&RESPONSIBILITY are our company rule),and you will know about our quality,after-sale service after you build the cooperation with us)
It's our honor that you can choose our products！
FAQ
How to operate the machine ? | We will deliver English manual and video with the machine to you. If you still need our help, please contact us. | ||||
How can I get the sample to check you quality ? | If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided. | ||||
Does the machine can be customized according to my requirements ? | Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied. | ||||
Can you arrange the shipment for me ? | We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available. | ||||
