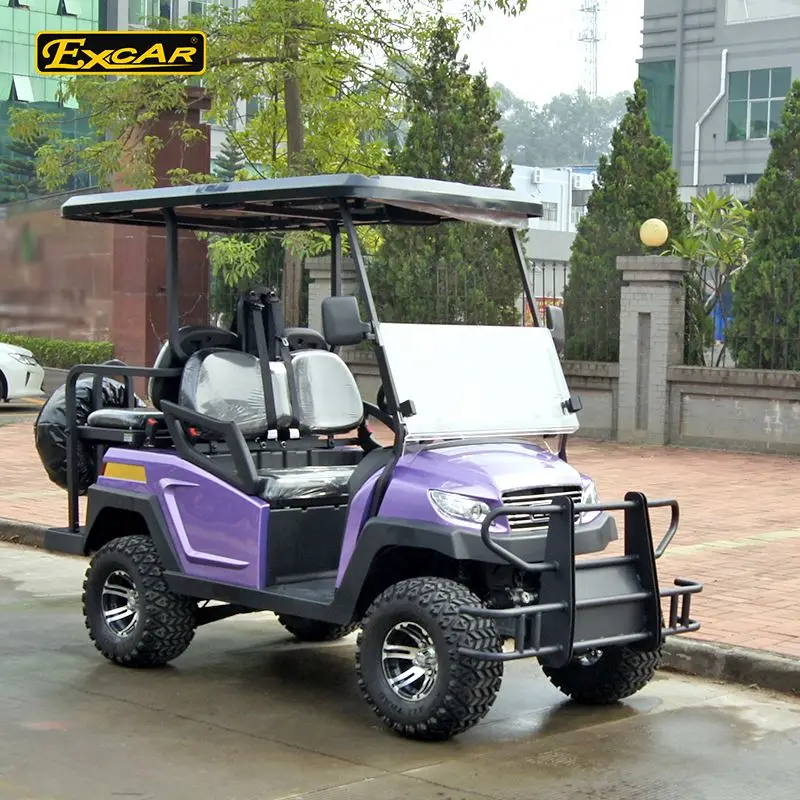

Китайские тележки для гольфа на 4 сиденья мини клубный автомобиль электрическая тележка Пляжная

Китайские тележки для гольфа на 4 сиденья мини клубный автомобиль электрическая тележка Пляжная

Категория: >>>
Поставщик: Dongguan Zhuoyue Electric Car Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

4 Seat chinese golf carts mini club car electric golf cart battery beach golf buggy car

Product Description

Standard Configration :with 48V 3.7KW AC system

Item	Description
System	DC system	AC system
Controller	Curtis controller 1266A-5201, 275A, imported from USA directly	Curtis controller 1234E-5221, 275A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 3kw
Battery	Trojan battery, T875,8V*6pcs, imported from USA directly	Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle	Italian GRAZIANO axle with gear ration 1:12	Italian GRAZIANO axle with gear ration 1:16
Charger	High Frequency onboard charger 48V/17A regulator	High Frequency onboard charger 48V/17A regulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	4	4
Climbing capacity(full load)	30%	35%
Max. forward speed	23km/h	45km/h
Endurance mileage	70-90km	80-90km
Charging time	8-10 hours	8-10 hours
Max. loading weight	360kgs	360kgs
Min. turning radius	2.9m	2.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
* 2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (L x W x H)	3100x1200x2100mm
Ground clearance	170mm
Wheelbase	1670mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Service

1.For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.

3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.

Application

Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.

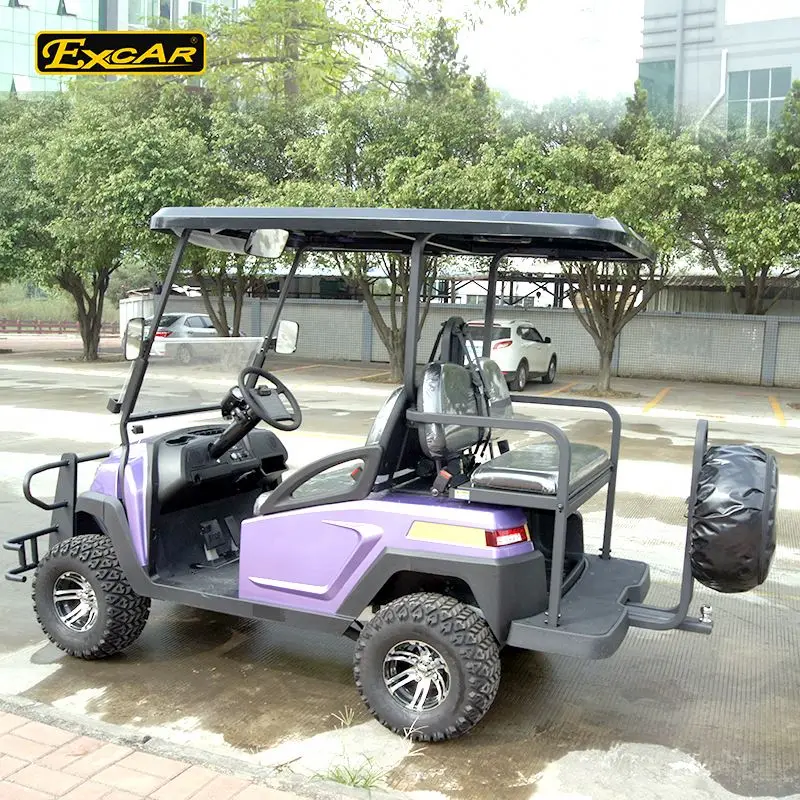

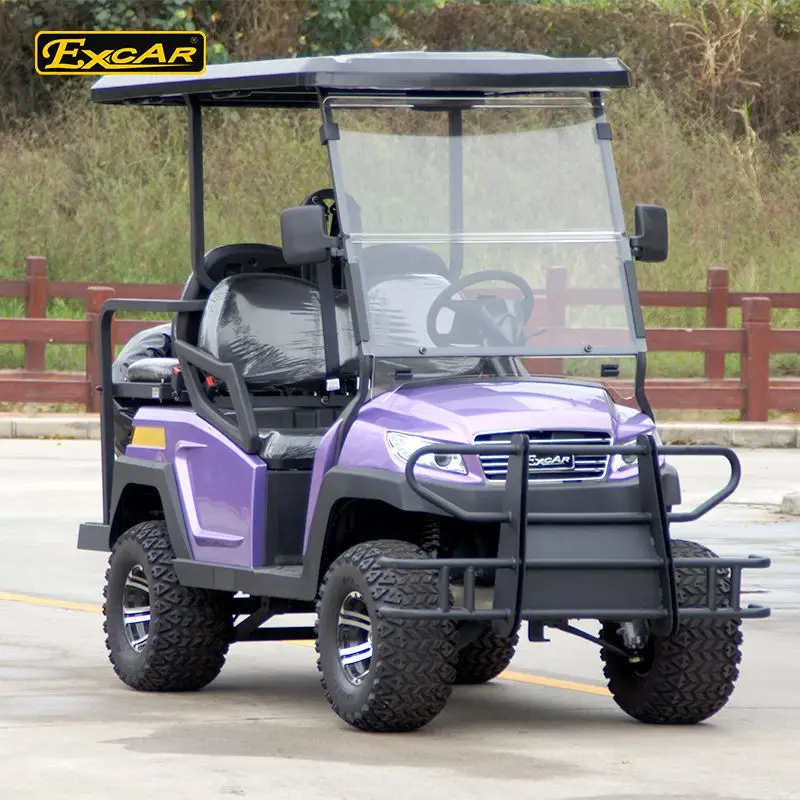

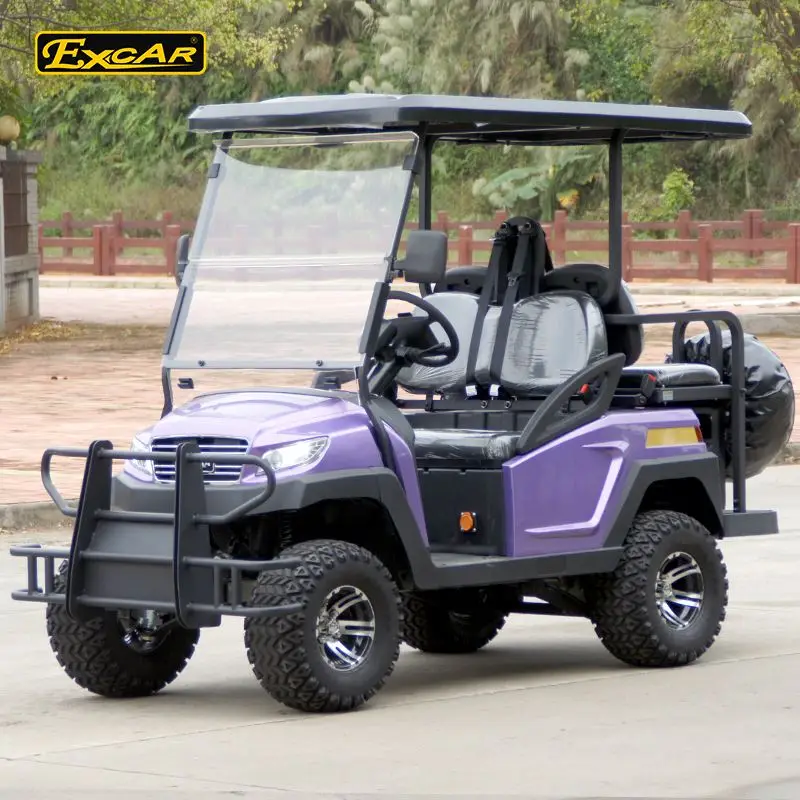

Product Show

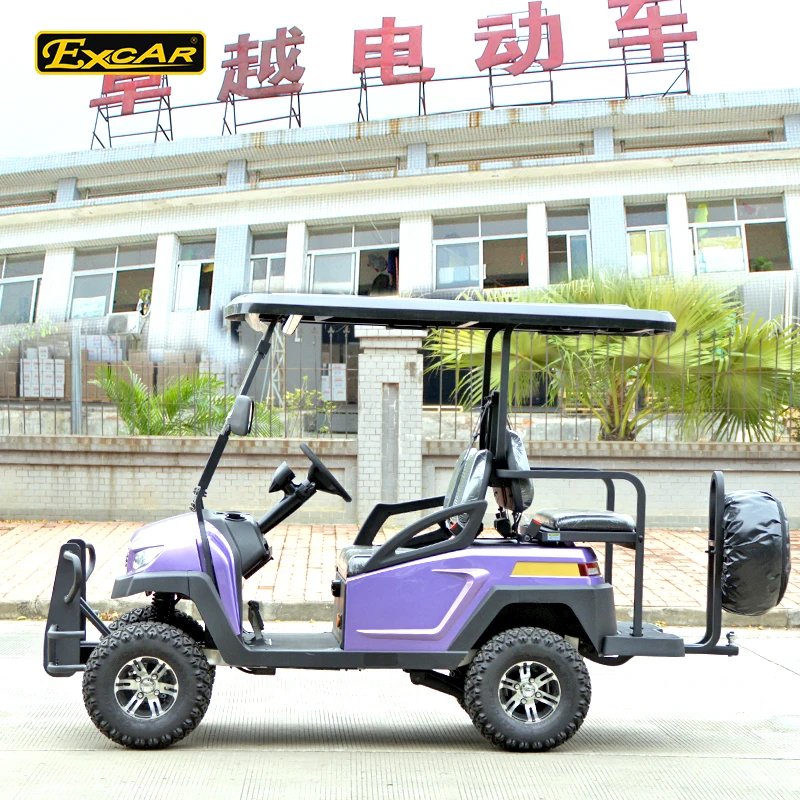

M1S2+2FF002.jpg M1S2+2FF006.jpg

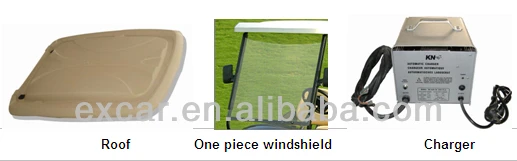

Standard Accessories: Roof/One piece windshield/Charger

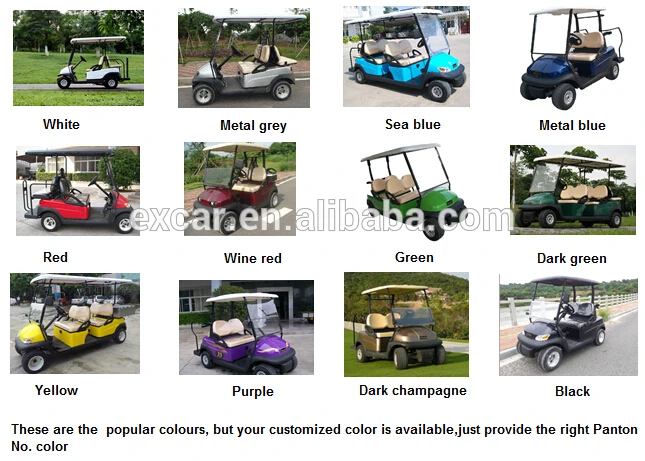

Optional Colours:

golf cart colours.jpg

Packing & Shipping

1,LCL Shipment Packing :roof move-off packing, steel frame , cartoon paper cover.

LCL Packing.jpg

2,FCL Shipment Packing : packed by plastic foam & plastic film

FCL Packing.jpg

Our services

Warranty : 1 year fully Warranty , offer FREE components under EXW shipped term.
