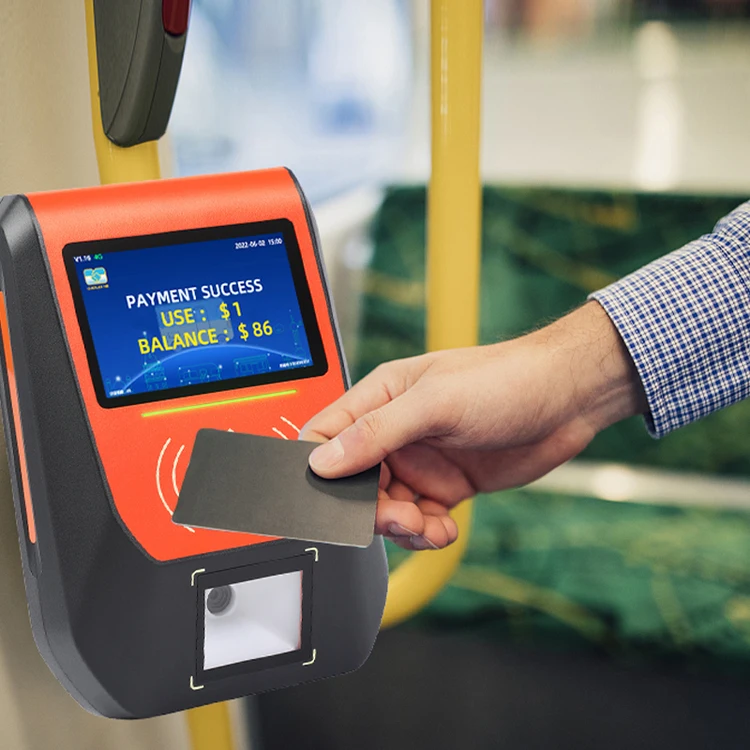

RFID шины валидатор/автобус POS системы для бортовой транспортная развязка и микросхемой чипом микропроцессорные карты в автономном режиме оплаты

1. Made of ABS, Fully adapt to special circumstances on bus

2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference

3. Dedicated stable power supply, voltage overload protection
4. With the most advanced Linux system, high-definition LCD display

5. WIFI Communication + USB data acquisition, support remote upgrading

6. Contactless smart card, read/write capability, light display for reading card 7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";

8. Support Mifare1 card, CPU card
9. With Thermal printing module, can connect to POS58 slip printer

10. Optional GPS positioning module, for global positioning satellite positioning;

 11. Great stability of data storage, data kept as long as 10 years even with power outage
12. Card Capacity: 91,880,000 pcs;
13. Can check the nearest 20 records, to prevent ticket payment dispute.
14. Certification: ISO9001, CCC, CE, IP65

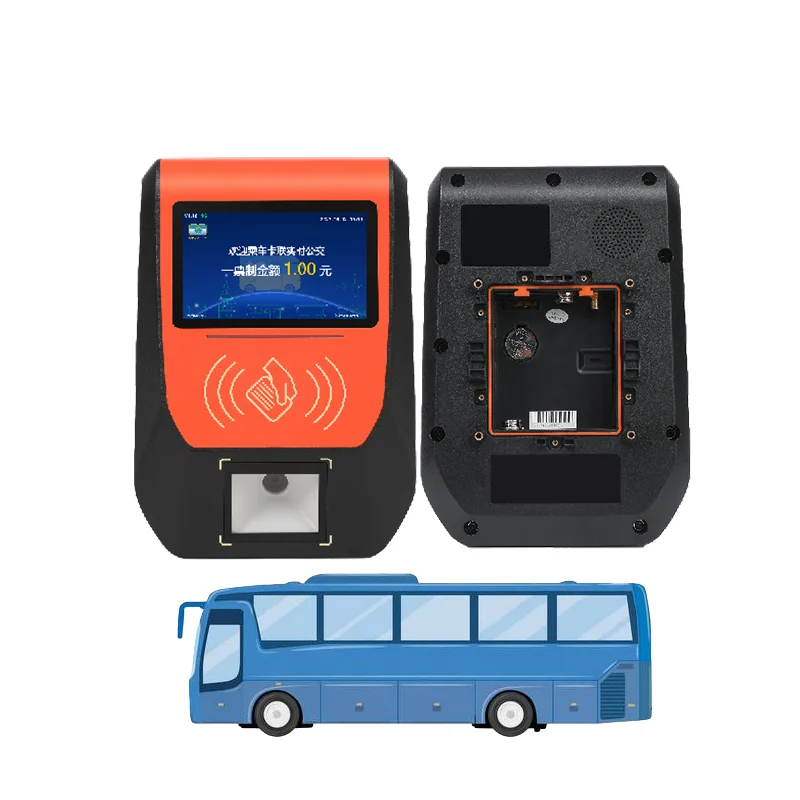

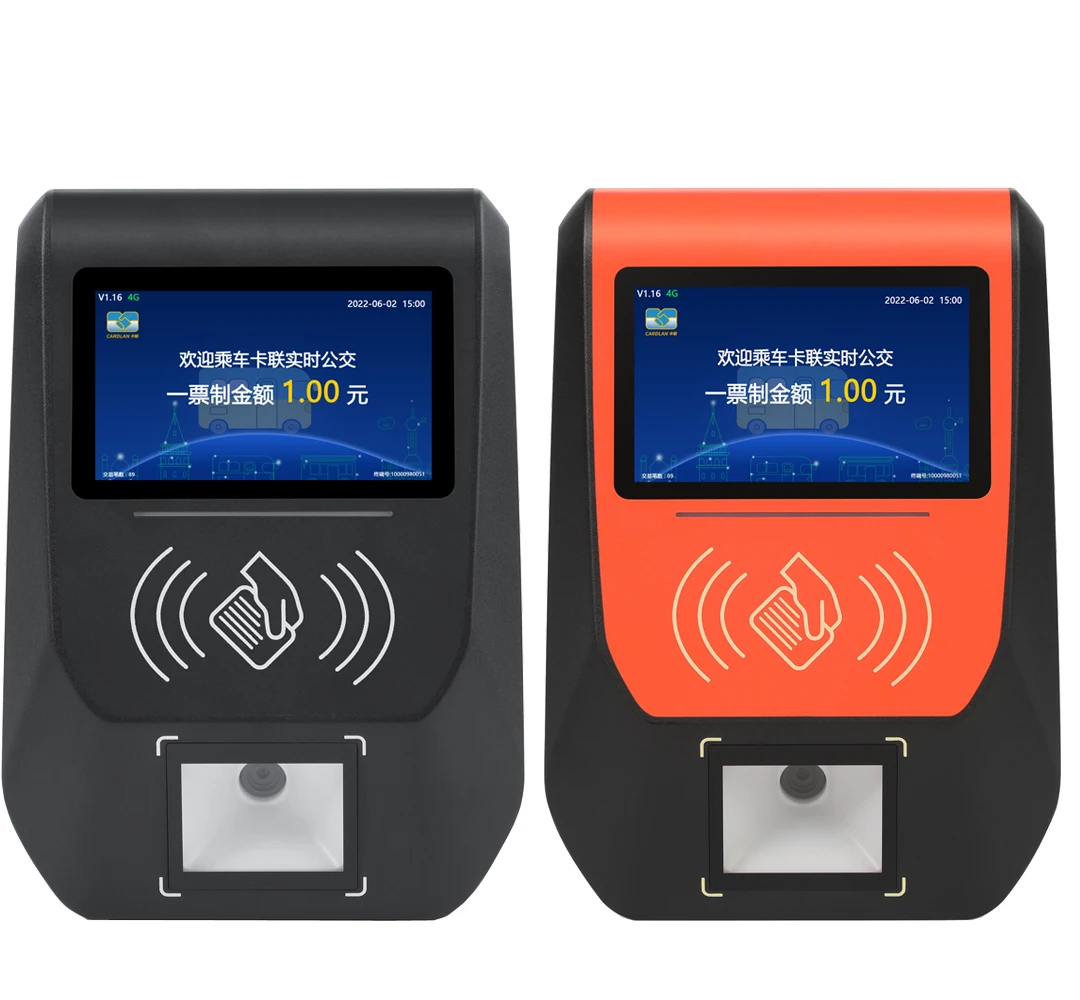

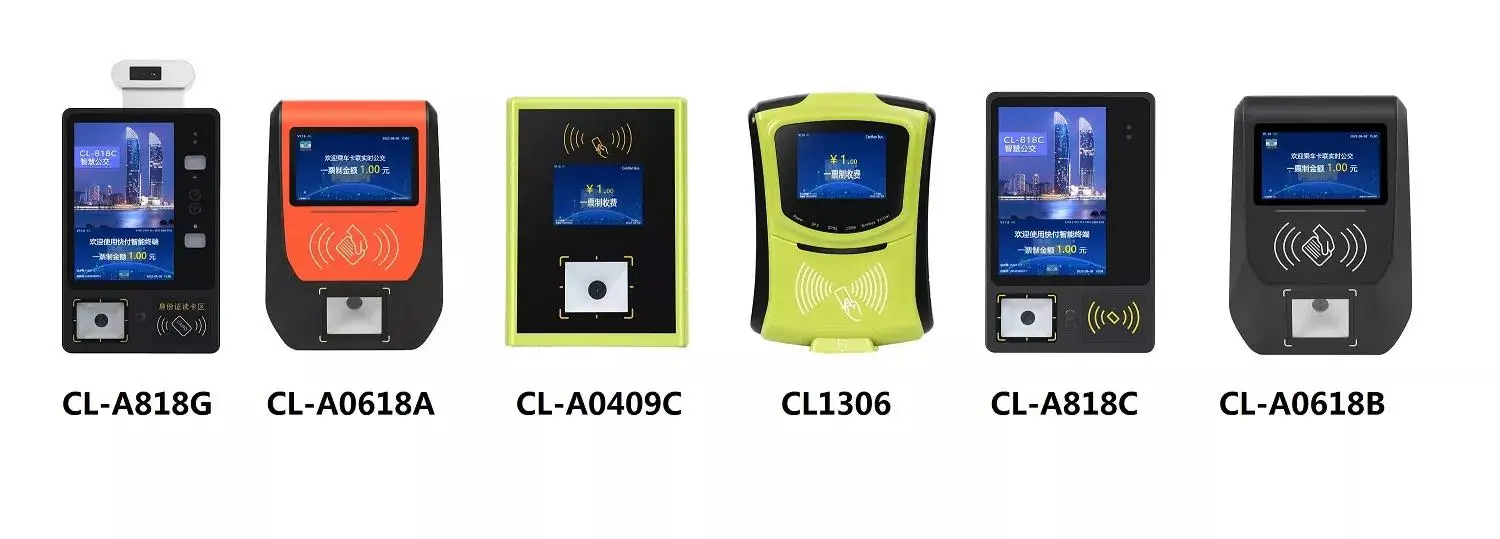

Model:CL-A0618 bus pos terminal
Dimension: 240x170x83mm
Material:Engineering Plastics, Anti static electricity coating design, be protected from high-frequency
interference

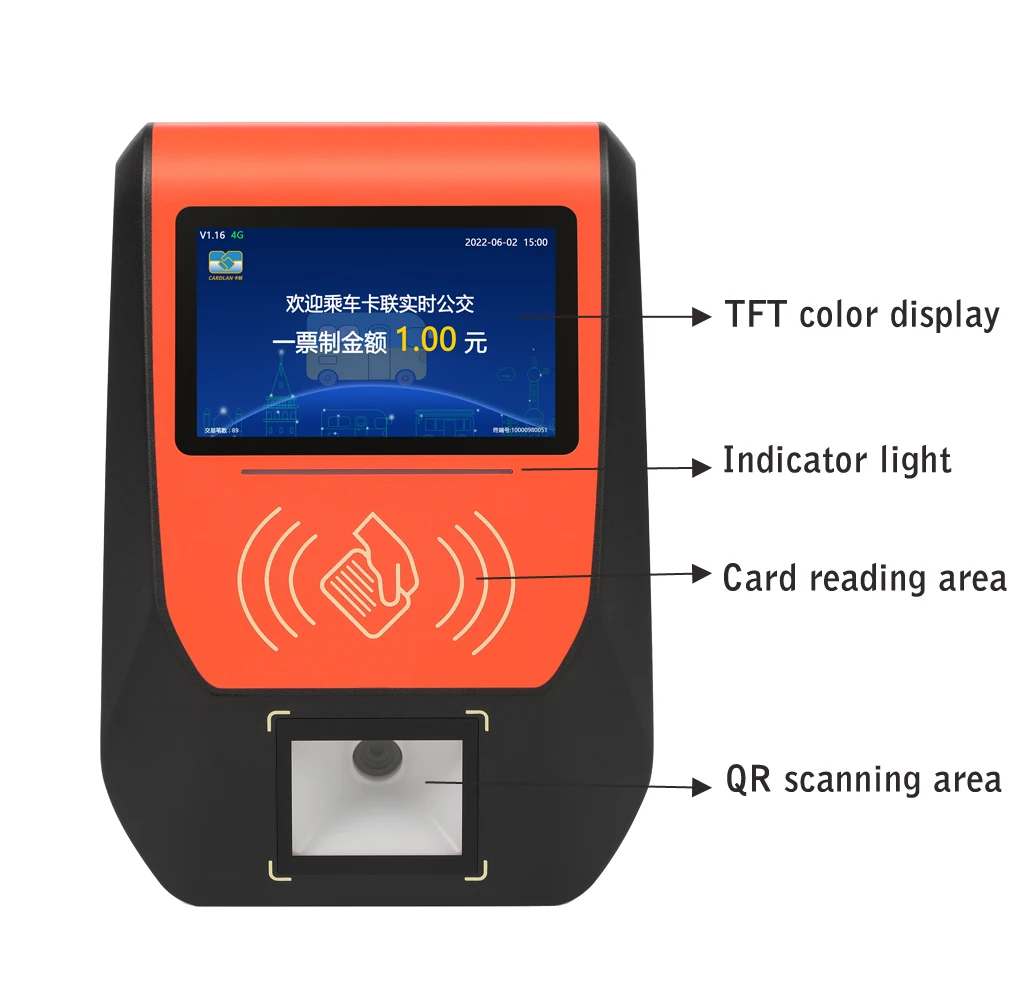

Display:5 inch LCD display,800*480
Operating system:Android 13 system
CPU: Quad-core 64-bit Cortex-A53 processor, main frequency up to 2.0GHz
Memory: 2GB LPDDR4X RAM, 16GB eMMC Flash (default)、、Max support 128G TF card
Data capacity: More than 2 million detailed data for console storage, extensible
Card capacity: 99999999 pcs
Black list:91,880,000 pcs (download thru PC with USB)
Working Voltage:DC 8V-50V
Operating temperature:-25℃~65℃
Storage temperature:-40℃~85℃
Humidity:0-95% RH non condensing
Keypad:4 command buttons
RFID:Can read and write ISO14443 TYPE A\\B Electronic tag (Incl. Combi-Card )

Read card distance:0~50mm
Supporting card:Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
Frequency:13.56MHz

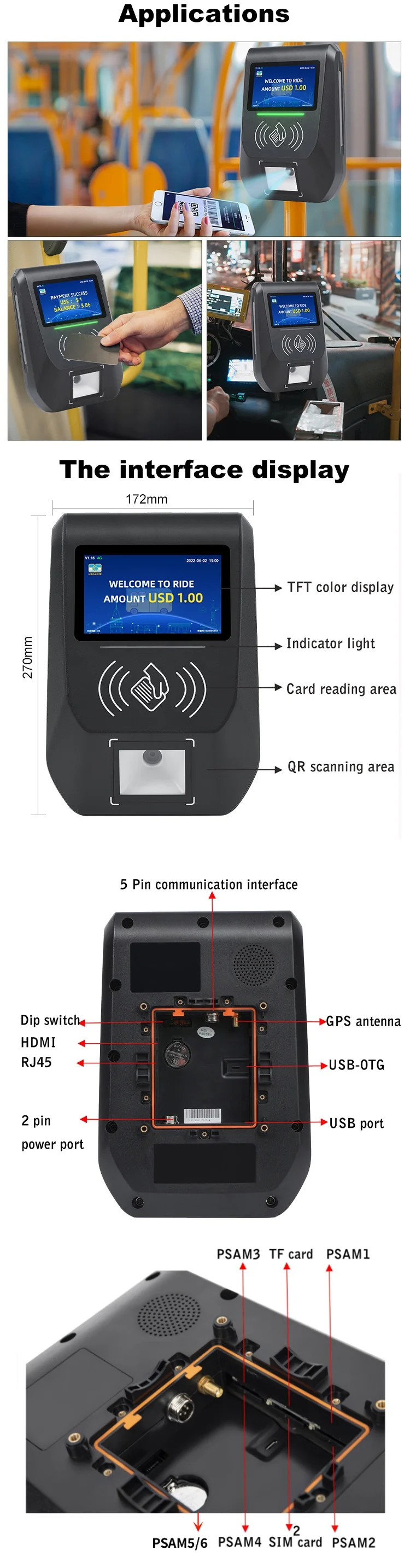

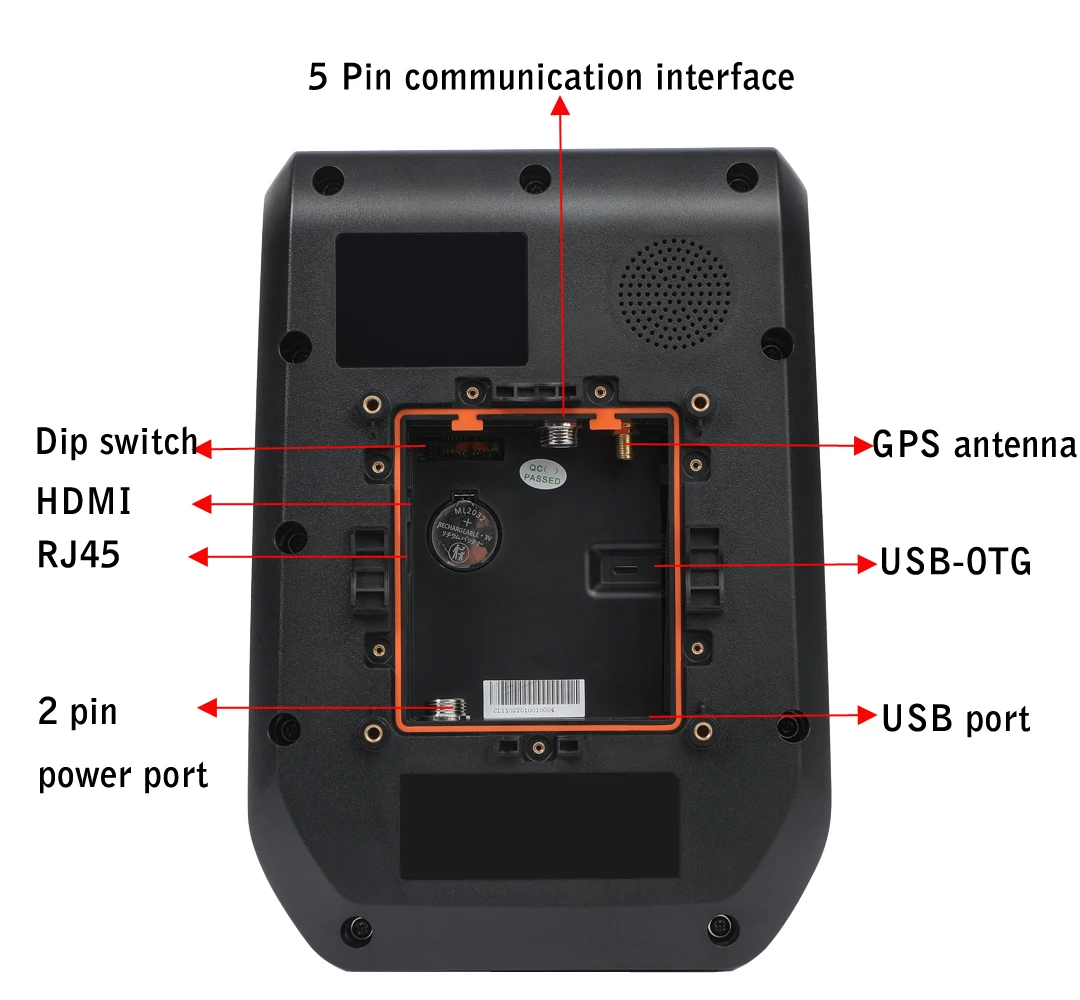

Interfaces/Connectors:RS232, RS485, USB
Printer modules:Can be connected to slip printer-POS58
Width of receipt:Based on printer configuration
Positioning mode:GPS
Power consumption:≤10W
Communication Modules:GPRS(900Mhz/1800Mhz), or CDMA(800Mhz), or different country frequency
WIFI:Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
Upgrading:Connect USB to PC, upgrade with 4G
Data collection:WIFI, GSM, 4G,USB

Lighting:Red, Green light
Sound prompt:Buzzer, single channel speaker (voice report)
Voice report prompt:16KHz,16bit single channel voice report prompt

Hardware

We are not only provided the system ,but also provided the pos machine.

Software

In order to provide good service ,we also provide customers the management system.

High quality

Passed the ISO9001:2008 quality system authentication and CE authentication.

Company

Workshop

Our Workshop

Testing

Our Testing room

Showroom

Our Showroom

A: We can sell them together ,but you also can only buy machine or system.

A: We'll provide you the whole set instruction book of machine and the system,you can do as the instruction .We also can send engineers to your country to setup the machine and system for you.

A: Yes, we could offer the sample for you inspection. and offer SDK for development.
