Лучшая цена, звуконепроницаемый Водонепроницаемый Тип AOSIF по заводской цене! 20kva 30kva 50kva 3 фазы генератора молчание дизель-генераторная установка
2 400,00 $ - 3 000,00 $

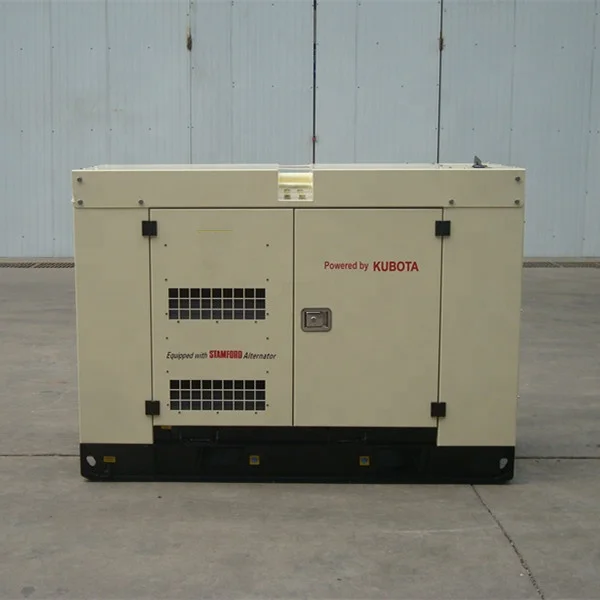

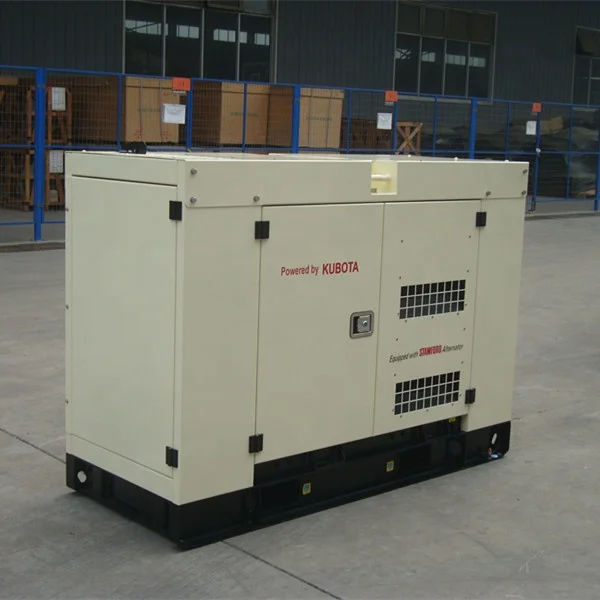

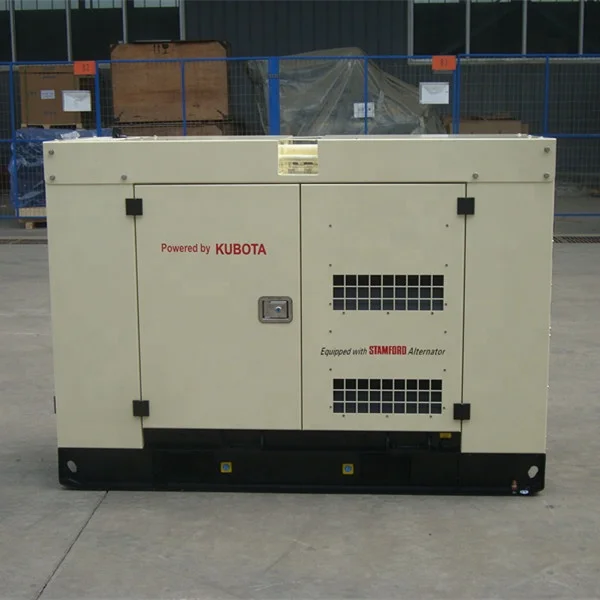

Звукоизоляционный дизельный генератор kubota SWT 20 кВА
- Категория: Diesel Generators >>>
- Поставщик: Shandong Superwatt Power Equipment Co. Ltd.
Сохранить в закладки 62318225396:
Описание и отзывы
Характеристики
Product Overview

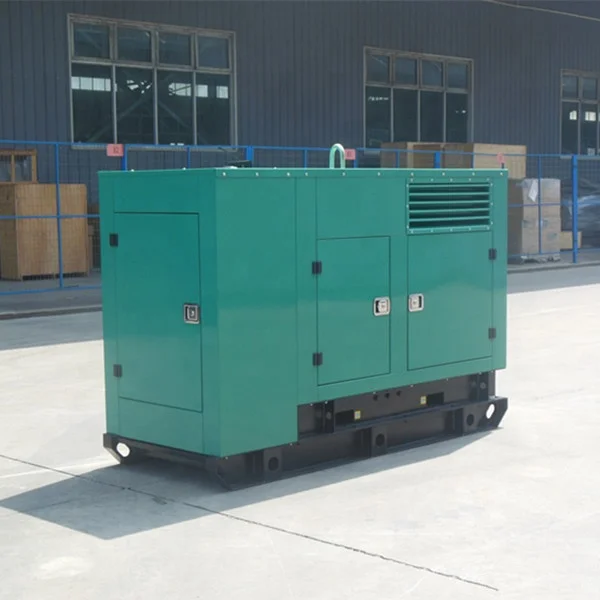

20KVA Silent Type Diesel Generator Set Powered by Kubota Engine
SWT silent type diesel generator set powered by Kubota engine, with reliable performance and strong power. Available for
Stamford, Meccalte, Faraday and other brands brushless self-excited alternator, with Class H insulation, IP23 protection level, efficient and reliable..
Stamford, Meccalte, Faraday and other brands brushless self-excited alternator, with Class H insulation, IP23 protection level, efficient and reliable..
FEATURES AT A GLANCE
Genset controller is Deep-sea brand DSE6120 model imported from the UK, simple operation and stable performance. Com-Ap, Smart-gen and other well-known brands can be used as alternatives;
Genset main switch is LG brand in South Korea, ABB, Schneider, Chint and other brands for optional;
The silent cover is independently manufactured by the sheet-metal processing workshop of SWT company. The overall detachablestructure design and the two side doors are convenient for inspection and maintenance;
Each genset is equipped with the bottom fuel tank of 8 hours, after strict leakage test, to ensure no leakage
Genset main switch is LG brand in South Korea, ABB, Schneider, Chint and other brands for optional;
The silent cover is independently manufactured by the sheet-metal processing workshop of SWT company. The overall detachablestructure design and the two side doors are convenient for inspection and maintenance;
Each genset is equipped with the bottom fuel tank of 8 hours, after strict leakage test, to ensure no leakage
The canopy color can be customized, according to customer requirements can be selected with different colors
PRODUCT SPECIFICATIONS
General | Prime power | 16kW/20KVA |
Standby power | 18kW/22.5kVA | |
Frequency | 50Hz/60HZ | |
Rated speed | 1500r/1800r/min | |
Rated Voltage | 380/400/415V | |
Factor | 0.8 | |
Dimension | Length | 1950mm |
Dimension | Width | 800mm |
2 | Height | 1350mm |
5 | Gross Weight | 950kg |
Engine | Model | V2203-E2BG-CHN-1 |
Manufacturer | Kubota | |
Number of cylinders | 4 | |
Aspiration | Naturally Aspirated | |
Cooling | Water-cooling | |
Displacement | 2.197L | |
Bore & Stroke | 87mm X 92.4mm | |
Compression Ratio | 23:1 | |
Prime/standby power | 20.1kW/27.3kW | |
Dry weight | 180kg | |
Engine | Governor | Mechanical |
7 | 100% standby power fuel consumption | 7.9L/h |
8 | 100% prime power fuel consumption | 5.8L/h |
75% prime power fuel consumption | 4.4L/h | |
50% prime power fuel consumption | 2.9L/h | |
Alternator | Model | S0L2-G1 |
Manufacturer | Stamford | |
Rated power | 16kW/20kVA | |
Insulation class | H | |
Alternator | Protection | IP23 |
Ambient temperature | 40℃ | |
Altitude | ≤1000m | |
Overspeed | ≤2250rpm | |
Phases | 3 | |
Winding pitch | 2/3 | |
No. of Bearing | 1 | |
Poles | 4 |
PRODUCT CONFIGURATION
Kubota engine
Stamford alternator
Deep Sea controller
SALES AND SERVICE NETWORK
Successful Project
Hospital
Bank
Data Center
SIMILAR PRODUCTS
Company Profile
About us
SWT, the pioneer of power equipment manufacturer in China, was established in 1993. After continued developing for more than 25
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include open-type and silent type diesel generator set, gas generator set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe.
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include open-type and silent type diesel generator set, gas generator set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe.
Customer Photos
Diesel Power Station In Yemen
This is a turn-key project and it took us less than 6 months to finish the entire project after we got the order, The design capacity of this power station is 15MW, 10.5KV, equipped with 26 sets diesel generators which rated power is 800KW, parallel operation system and high voltage distribution system.
South Africa Power Station Project
This project is 4X1500KW stackable container power station (10.5kV, 50Hz), used for the gold mining in Sudan. The running conditions is harsh and horrible due to the frequent dust storms at site, so the generator sets is easy to get damaged and failed to work. But SWT offered the creative stackable containerized solution and eventually solved the anti-dust issue, over 5 years have passed, the generators have still worked well.
Huawei Cloud Computing Data Center
HUAWEI is a leading global information and communications technology (ICT), and this project is the 5th big data center in China and SWT is the exclusive supplier of backup power systems for this project which equipped with 6sets 1800kW, 50Hz, 10.5kV, Perkins engine and Mecc Alte alternator, 40HC containerized high voltage diesel generator set.
Certificates & Awards
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).
Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).
2. What is your payment term?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C at sight irrevocable for regular customer.
3. What is your delivery time?
Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.
Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.
4. Can the generators be customized?
Yes. Our advantage is to provide customized power products, especially for large projects.
Yes. Our advantage is to provide customized power products, especially for large projects.
5. Can you OEM with our brand?
Yes. For mass orders, we can offer OEM use customer's logo instead of ours,
For more questions, Please feel free to contact us.
Yes. For mass orders, we can offer OEM use customer's logo instead of ours,
For more questions, Please feel free to contact us.
Tel: +86 15263703985 (Wechat/Whatsapp)
E-mail: wyf@swt.cn
Website: //www.swt.cn/
Address: No.7 Industry Park, Ji'ning High-Tech Zone, Ji'ning City, Shandong, China.
