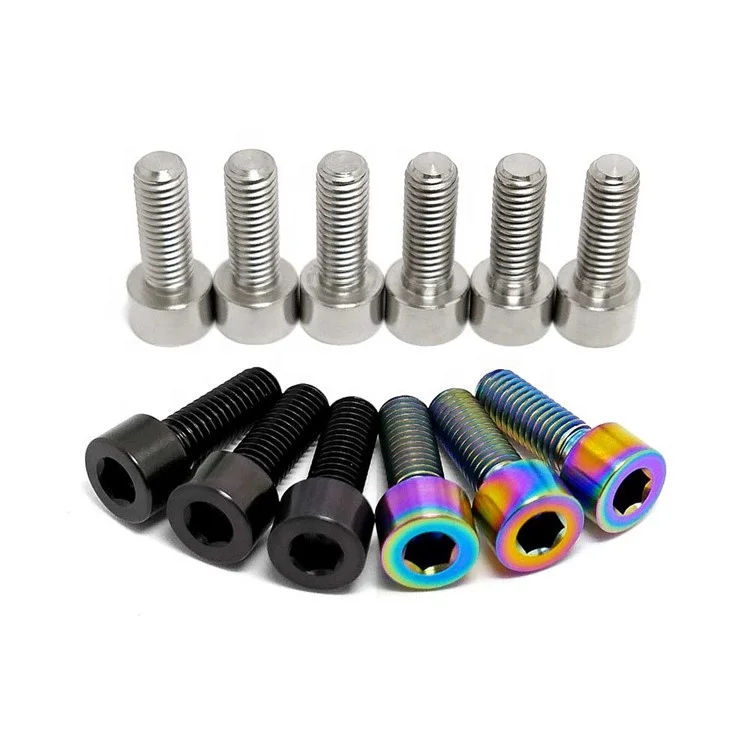

Цветные алюминиевые болты с анодированным al7075 al6063 3 мм m2m3m4
- Категория: >>>
- Поставщик: Chengdu Jingbang Technology Co. Ltd.Chengdu Ltd.
Сохранить в закладки 62322314734:
Описание и отзывы
Характеристики
Product Description

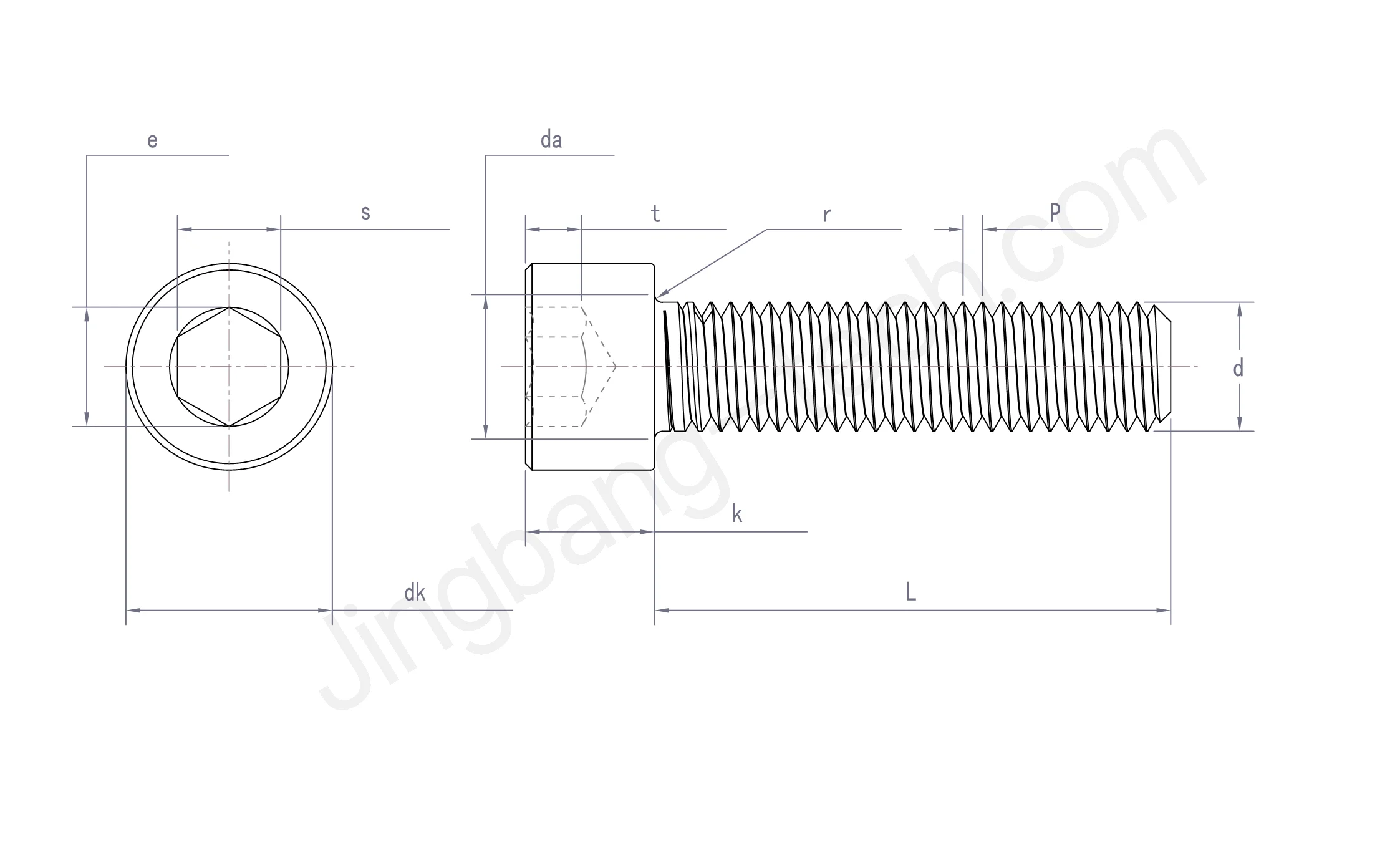

(mm) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
da max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 17.7 |
dk max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
dk min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 |
e min | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.14 | 11.42 |
k max | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
k min | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 |
r min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 |
s max | 2.08 | 2.58 | 3.08 | 4.09 | 5.14 | 6.14 | 8.17 | 10.17 |
s min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.02 | 10.02 |
t min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
For more specifications and drawings, please contact Customer Service.
Size | m3-m36. or non-standard according to your requirements. |
Materials | Aluminum 6061,6063.7075,Titanium GR5/TC4,or Carbon steel ,SUS 303/304/316,Nylon,POM, Brass/Bronze, etc. |
Type | Aluminum screw/bolts(cap head/socket head/hex head/round head/headless/taper head/shoulder head.etc) |
Service | 1,Free samples will be sent to you after confirming the order. 2,Material test report,Hardness test report,Quality Inspection Report as your require. 3,video and photos with details freely during. 4,Drawing formation: PDF, CAD/DWG/DXF, IGS/STP etc.If you don't have a professional drawing, you can contact us and we will customize it for you according to your requirements. |
Euipment | CNC Turning, CNC Milling, CNC 5-axis Turning-milling Compound, CNC Gear Hobbing Machine, CNC Gear Shaping Machine, Manual Milling Machine, Grinding Machine, and Laser Engraving Machine. |
Quality | Two-dimensional Imager, CCD Image Detection Equipment, Rockwell Hardness Tester, Vickers Hardness Tester, Electron Microscope,Salt Spray Tester,etc. |
Packing | We generally packing fasteners to prevent them from colliding with each other during transportation to produce scratches and surface plating, also accept customization. |
Precision | TIR ≤ .002" (0.02mm-5mm) |
Moq | In stock:50pcs Custom-made:500pcs |

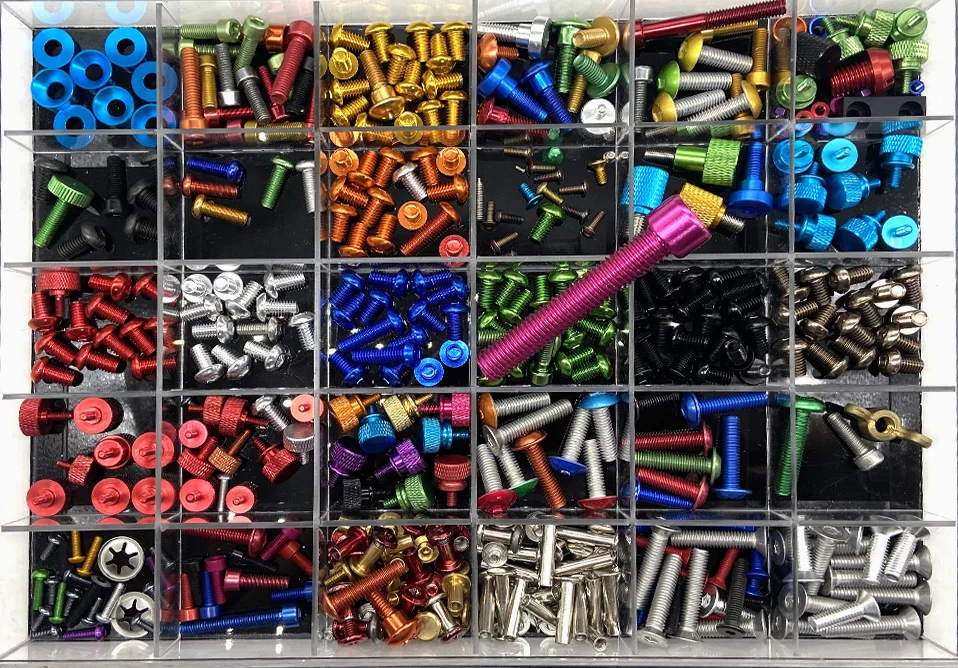

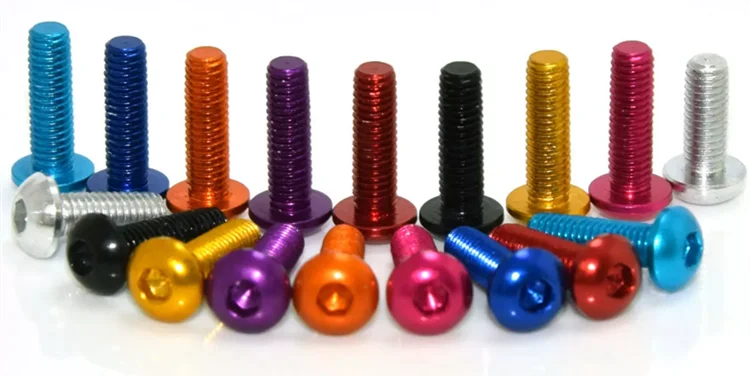

Color | Silver, black, red, yellow, green, blue, color, customized according to your requirements |
Delivery time | In stock : Sample 3days,Bulk goods 7-15days. Custom : Sample 7-10 working days, Bulk goods 15-20 working days. |
Customer Feedback
Company Profile
Chengdu Jingbang Technology Co., Ltd.
We are the largest manufacturer of security nuts/bolts/screws in China. Our anti-theft nut is manufactured with CNC precision. We can also produce them in other materials like stainless steel, titanium alloy, aluminum alloy, mid-steel, and carbon steel to match your requirements. We offer types of products, including one-way safety screws, 2-hole antitheft bolts, 3-hole anti-theft nuts，4-hole anti-theft nuts, 3-point anti-theft nuts, 5-point anti-theft nuts, flower anti-theft nuts, torx with pin bolt, triangular head bolt, torx security bolt, security wheel nut, etc.

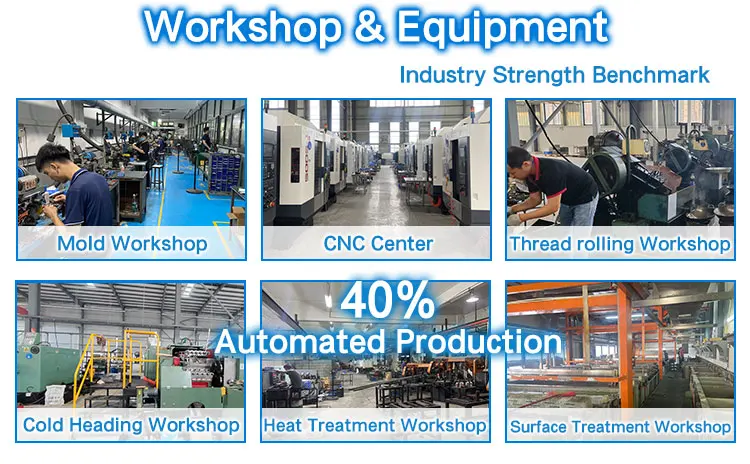

Benchmarking of Industry Capabilities
Jingbang has more than 500 sets of high precision equipment for stamping parts, stamping molds, CNC milling parts, CNC turning parts, automatic turning parts, springs, screws, rivets, shafts, etc. The factory covers an area of 45,000 square meters. As well as processing and surface treatment of various customized hardware parts.
Partial equipment information | Brand |
5-Axis Milling Center | DMG Mori |
Automatic Lathes | Tsugami |
5-Axis Multi-Tasking Machine | MAZAK |
CNC Machine | HAAS |
Gear Hobbing Machine | HAMA |
Grinding Machine | KELLENB ERGER |
Automatic Tapping Machine | KANETEC |
Cold Heading Machine | NIBE |
Heat Treatment Equipment | SECOWARWICK |
Packing&Shipping
FAQ
1. What is the typical lead time for custom parts?
Our lead time for custom-machined parts typically ranges from 7 to 15 days for the most part, depending on the complexity and quantities of your order. We take pride in our 99% on-time delivery rate, ensuring that your parts arrive when you need them.
2. What materials are supported ？
We specialize in machining a wide range of materials, including aluminum, steel, stainless steel, brass, titanium, and various plastics. Whether it’s for precision machining, sheet metal fabrication, or custom fasteners, we can accommodate your material needs to ensure high-quality, durable components.
Our lead time for custom-machined parts typically ranges from 7 to 15 days for the most part, depending on the complexity and quantities of your order. We take pride in our 99% on-time delivery rate, ensuring that your parts arrive when you need them.
2. What materials are supported ？
We specialize in machining a wide range of materials, including aluminum, steel, stainless steel, brass, titanium, and various plastics. Whether it’s for precision machining, sheet metal fabrication, or custom fasteners, we can accommodate your material needs to ensure high-quality, durable components.
3.Can you handle both small and large production runs?
Yes, we are fully equipped to handle both small and large production runs. Whether you need a one-off prototype or a high-volume production, our flexible production capabilities allow us to adapt to your specific project needs while maintaining quick turnaround times and cost efficiency.
4. How do you ensure the quality?
We maintain strict quality control throughout the manufacturing process. All materials are inspected upon arrival to meet customer specifications, followed by in-process inspections of semi-finished products. Once production is complete, finished products undergo a thorough inspection to ensure high precision. Finally, we perform a quality inspection before packaging. Our commitment to quality helps us deliver reliable, high-performance parts that meet or exceed industry standards.
5. Do you offer design support or assistance with product development?
Absolutely! Our experienced team provides design support and product development assistance to ensure your parts meet exact specifications. From initial conceptualization to final production, we collaborate with you to optimize designs for manufacturability and cost-effectiveness.
4. How do you ensure the quality?
We maintain strict quality control throughout the manufacturing process. All materials are inspected upon arrival to meet customer specifications, followed by in-process inspections of semi-finished products. Once production is complete, finished products undergo a thorough inspection to ensure high precision. Finally, we perform a quality inspection before packaging. Our commitment to quality helps us deliver reliable, high-performance parts that meet or exceed industry standards.
5. Do you offer design support or assistance with product development?
Absolutely! Our experienced team provides design support and product development assistance to ensure your parts meet exact specifications. From initial conceptualization to final production, we collaborate with you to optimize designs for manufacturability and cost-effectiveness.
