Автоматический вращающийся проигрыватель для бутылок JS 1 устройство сбора разборка стеклянных из ПЭ и
- Категория: >>>
- Поставщик: Guangdong Huiji Pharmaceutical Equipment Co. ltd.
Сохранить в закладки 62323142437:
Описание и отзывы
Характеристики
Product Description
Rotary Bottle feeding machine bottle sorting arranging turntable unscrambler
Used for bottle regularly into single line arrangement, continuous conveying to the continuity of the special equipment for bottle device. According to the production capacity of special equipment for stepless speed regulation, and make it match on production capacity, the equipment is reliable in performance and aesthetically pleasing, running stability.
Feature:
1 .It is suitable for automatic transmission of round and square bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, automatic feeding, improving efficiency; can be applied to the intermediate connection of the assembly line, as a buffer platform, minus Short conveyor belt length.
2. The applicable bottle range can be adjusted freely. The bottle conveying speed is 20~100 bottles/min. The speed can be adjusted steplessly to facilitate production arrangement.
3. Putting on, collecting and sorting products, reducing labor intensity and improving efficiency.
4 .The structure is relatively simple, stable and reliable.
2. The applicable bottle range can be adjusted freely. The bottle conveying speed is 20~100 bottles/min. The speed can be adjusted steplessly to facilitate production arrangement.
3. Putting on, collecting and sorting products, reducing labor intensity and improving efficiency.
4 .The structure is relatively simple, stable and reliable.
Detailed Images
Automatic can unscrambler / bottle sorting arranging turntable | ||||||||
No . | Item | Parameter | ||||||
1 | Model No. | JS-1-650 | JS-1-850 | JS-1-1200 | ||||
2 | Material | SUS 304 | SUS 304 | SUS 304 | ||||
3 | Turntable diameter | 650mm | 850mm | 1200mm | ||||
4 | Capacity | 20-80 bottles/min | 30-100 bottles/min | 30-120 bottles/min | ||||
4 | Power Supply | 110V/220 V 50 ~ 60 Hz | 110V/220 V 50 ~ 60 Hz | 110V/220 V 50 ~ 60 Hz | ||||
5 | Applicable bottle | 10~500ml bottle (Can be customizable ) | ||||||
6 | Body of the bottle | 20~100 mm (customized) | 20~100 mm(customized) | 20~100 mm(customized) | ||||
7 | Height of the bottle | 30~250 mm (customized) | 30~250 mm (customized) | 30~250 mm (customized) | ||||
8 | Dimension | 750*750*1000mm | 950*950*1000mm | 1300*1300*1000mm | ||||
9 | Weight | 80KG | 95kg | 100kg | ||||
11 | Certification | CE | ||||||
12 | Remark | We also provide OEM ,750mm ,900mm ,1000mm ,1300mm available . | ||||||
Adjustment frame
Make changes base on different bottles .
Bottle outlet
Can be use with assembly line .
Motor
High quality motor guarantees service life .
OEM 850mm turntable

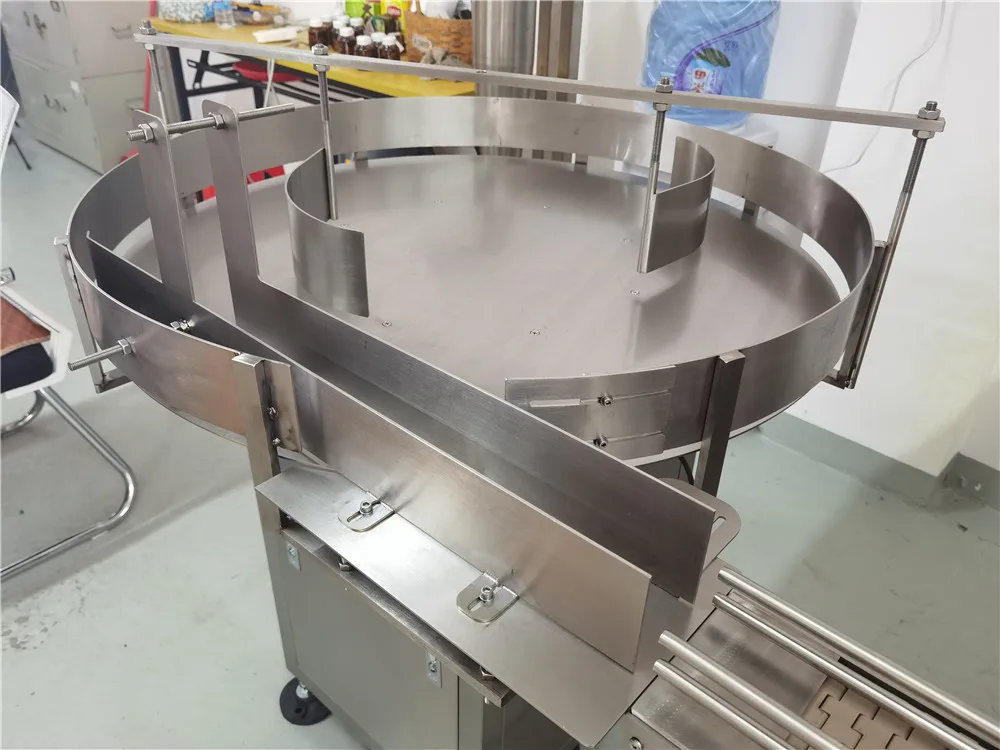

850mm turntable with widely inlet
OEM 1200mm turntable

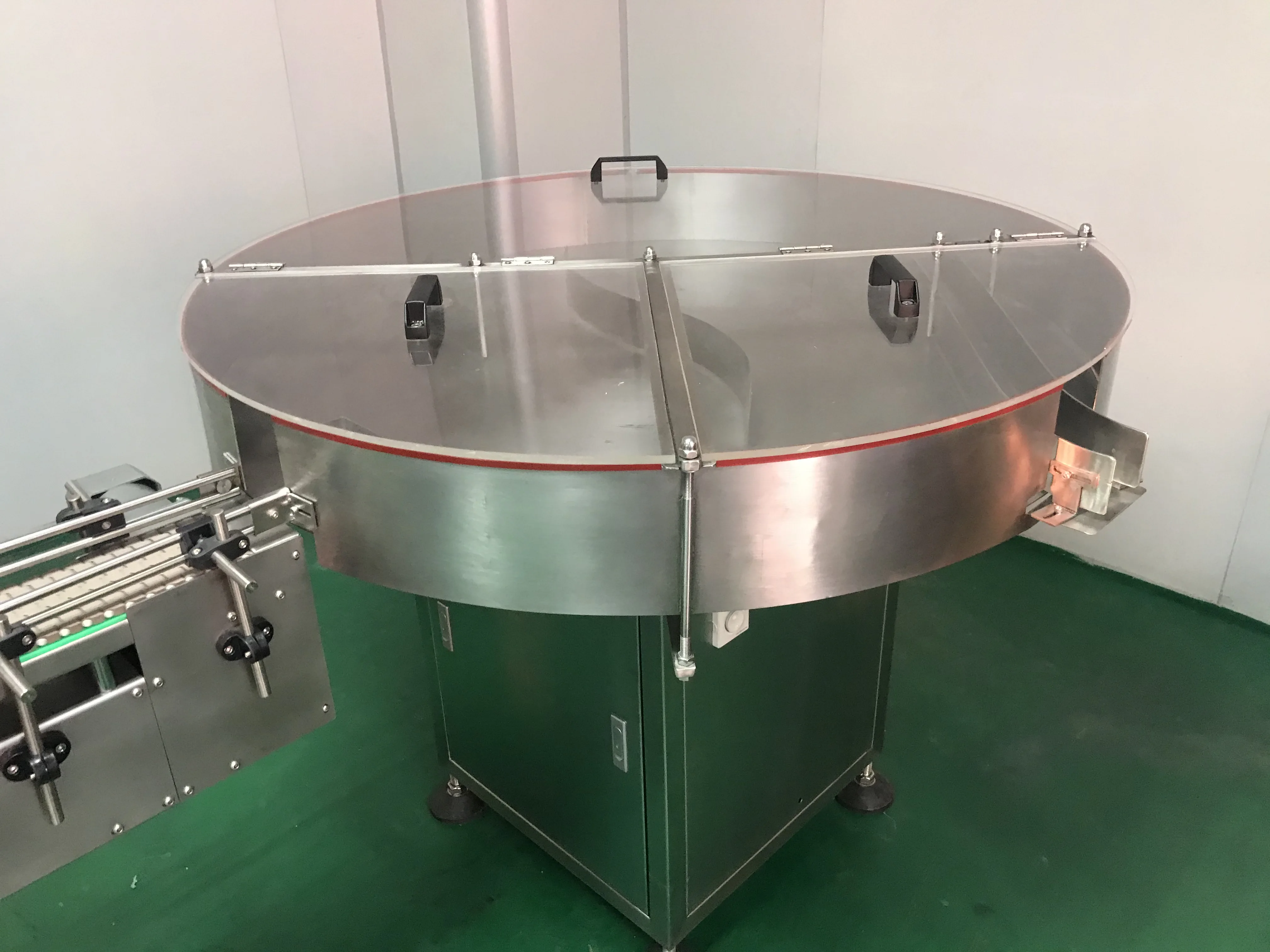

1200mm turntable with Plexiglas cover .

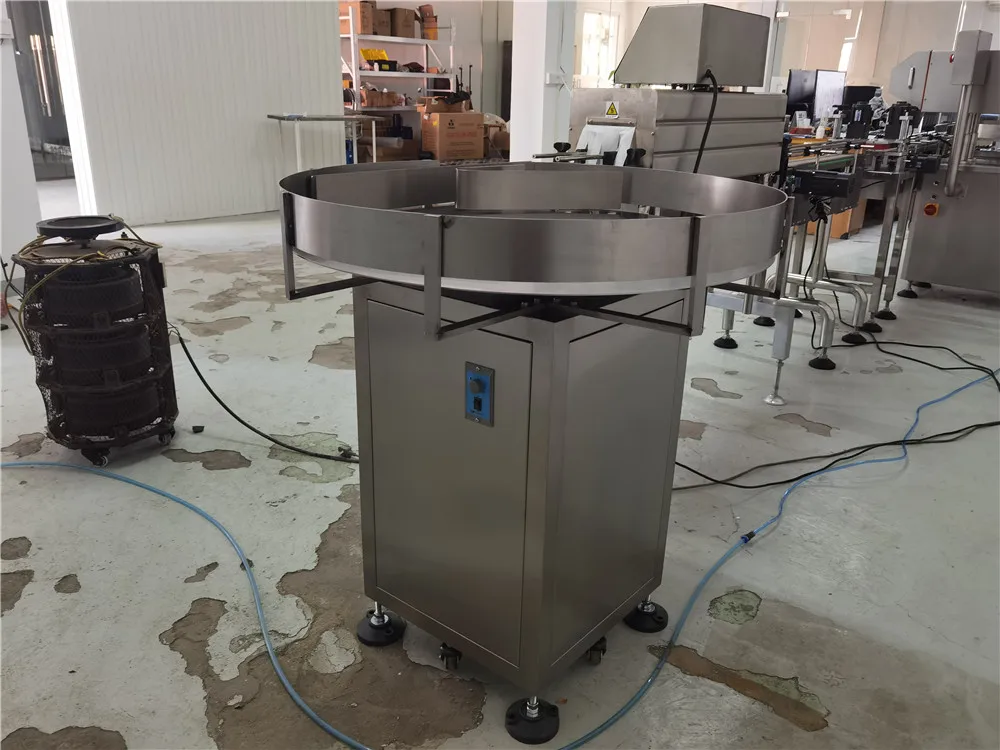

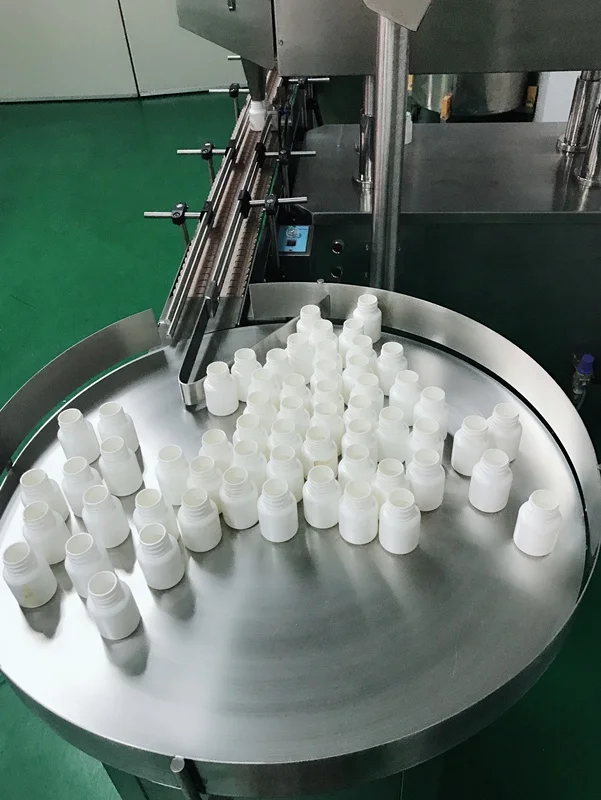

Turntable for bottle collection
This turntable is Dia 650mm

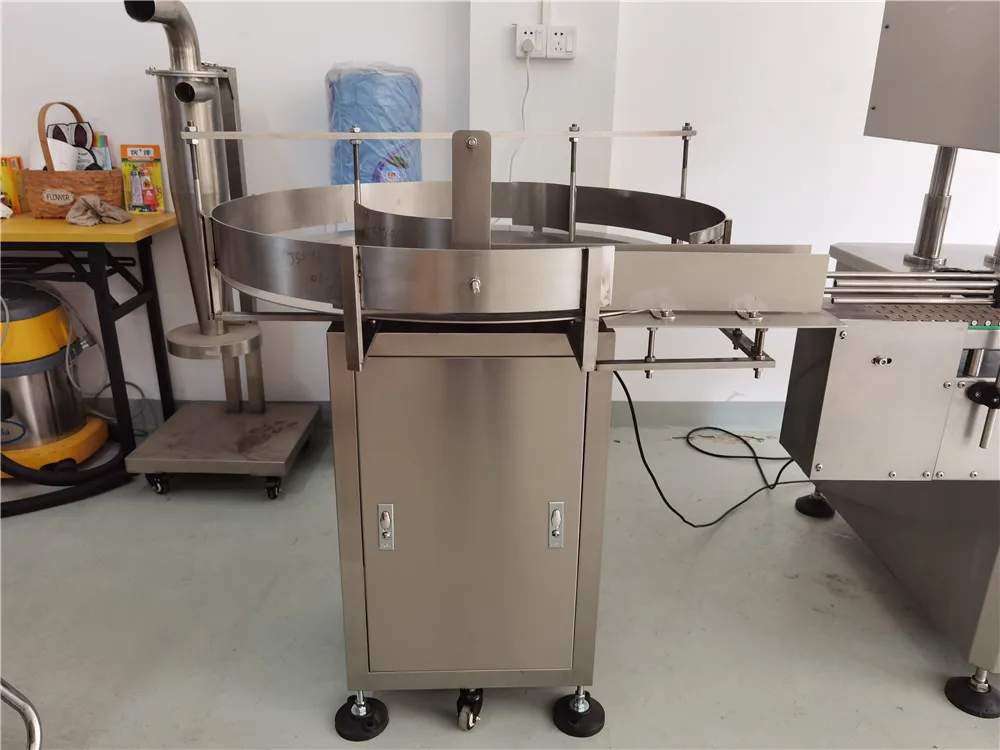

Turntable for bottle feeding
This turntble is Dia 850mm.

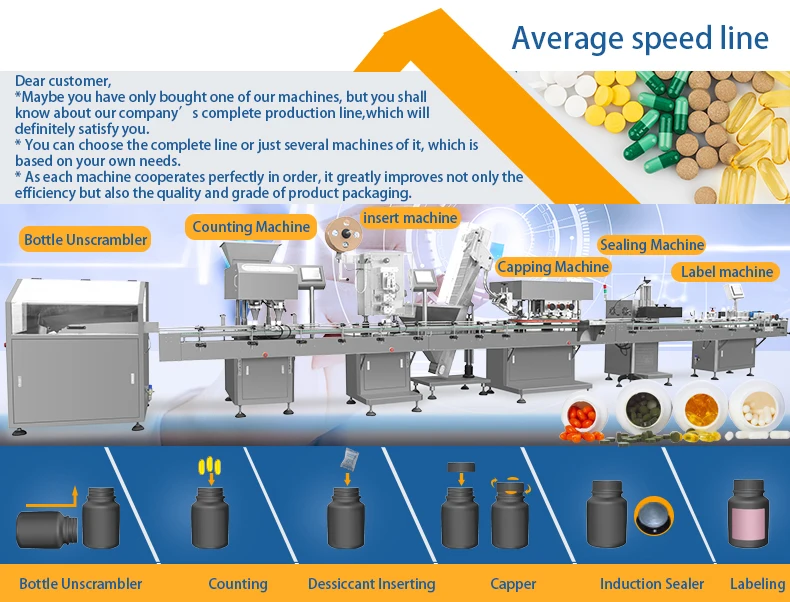

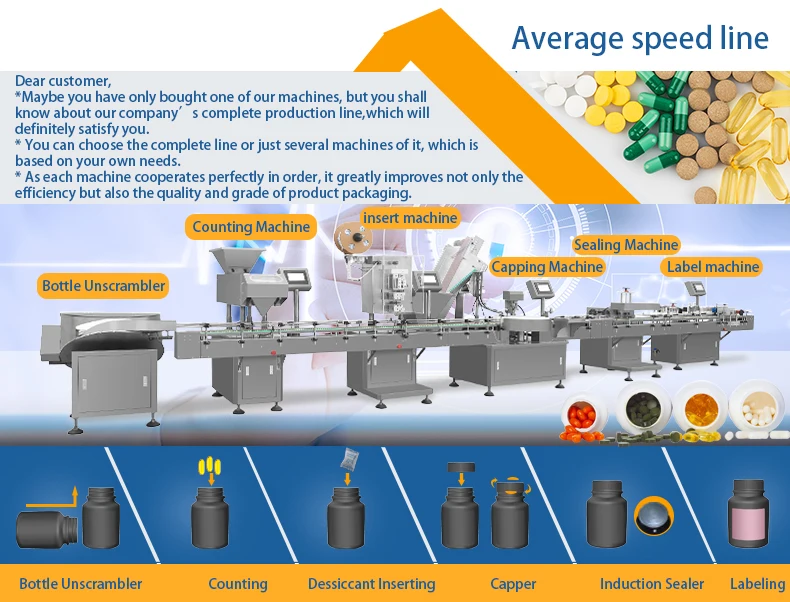

Turntable connect capping machine and induction sealer for transfer bottle .

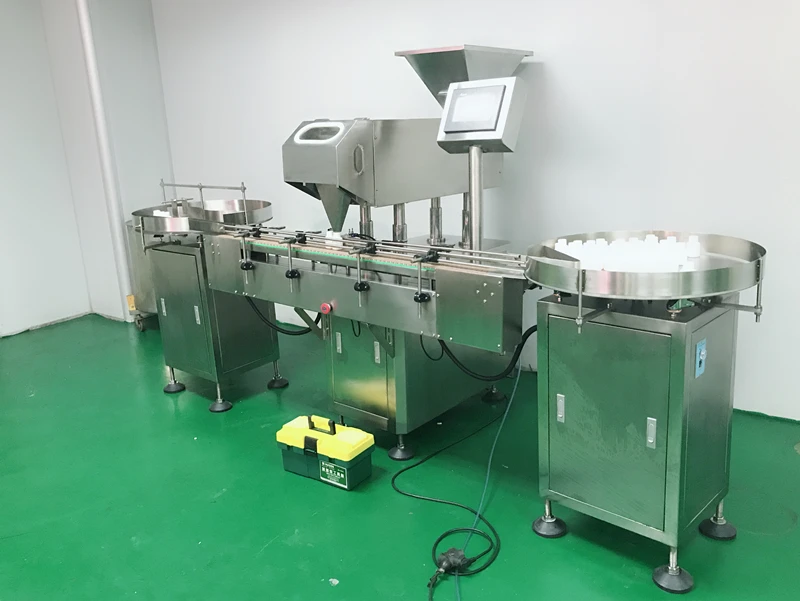

Turntable connect with capsule counting machine to be a simply capsule counting line .
Turntable connect with tablet capsule counting machine to be multifunctional counting line .
Turntable connect with packing line for bottle collection .
Application
Any 10-500ML bottles ,such as milk powder bottle ,glass bottle ,plastic square bottle ,beak bottle ,cosmetic bottle,medicine bottle ,milk bottle etc..Can be customizable according to your bottle size .
Related Product
Transactions & Reviews From Customers
Our Company 1
GUANGDONG HUIJI PHARMACEUTICAL EQUIPMENT CO ., LTD
(Formerly GUANGDONG HUIYANG MACHINERY FACTORY)
Guangdong Huiji Pharmacy Equipment Co., Ltd.(Formerly Guangdong Huiyang machine factory) with more than 30 years manufacture experience in pharmaceutical machinery .
It is a non state-owned high-tech enterprise which undertakes the successive development, improvement and optimization of the series of products such as capsule filling machines ,counting machine ,pills inspection machine etc.
Our factory selling by the hundreds of machines, such as capsule filling machines, capsule counting filling machine ,pills inspection machine series, pill making machines, Capsule pharmaceutical Production lines,counting and packing lines so on . Exporting North america ,South america ,Europe ,Southeast Asia, Middle East ,Asia .
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1.Q: Where is your factory located? How can I visit there?
A: Our factory is located in HuiZhou City, China. It's 30 minutes from ShenZhen International airport by subway.Welcome to visit our factoryand test our machine with your samples.
2.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE.
3. Q: How long is your guarantee?
A: One full year warranty from us starting from the day you got our goods.In most cases when item got problems we shall send you necessary parts for your own replacement so you needn't return the machine to us for repairing. And we shall provide online technical guide for you to replace the parts.
4. Q: Will you send engineers to install the plant and train our workers?
A: Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: What about the shipping cost?
A: We have long cooperation relationship forwarder and most competitive price in the maket.
6. Q: How should I order? What payment method do you accept?
A: Choose the products what you like, and send inquiry to us for more details (or you can call us, chat with us by online chat software such as TradeManager,Skype; Mobile chat software such as Whatsapp,Line,Viber,Wechat,etc.). After confirming all details and signing the contract, you can make a prepayment, then we produce machines after receiving prepayment. We deliver these machines by ship according to our agreement. We send the documents to you for picking out the machines when they arrive your country.
7.Q: Do you have some foreign customers using your equipment?
A: yes, we have. Our factory has established business relationships with customers in Africa, Asia, Europe, Middle East, South American etc. And we have many positive feed back from our customers.
Похожие товары
Smiths медицинский BCI совместимый с прямым подключением SpO2 датчик для взрослых ушной зажим производитель
18,00 $ - 24,00 $
Гидрогелевый полиакрилат калия, суперабсорбирующий полимер калия и воды, срок службы 16 лет, прямые продажи с завода
Прозрачные ПВХ-гранулы для обуви, твердость 55, ароматические ПВХ-соединения, мягкие ПВХ-гранулы для обуви, подошвы
Трапециевидный свинцовый винт Резьбовая гайка 8 мм 650 длина шагового двигателя
3,90 $ - 7,70 $

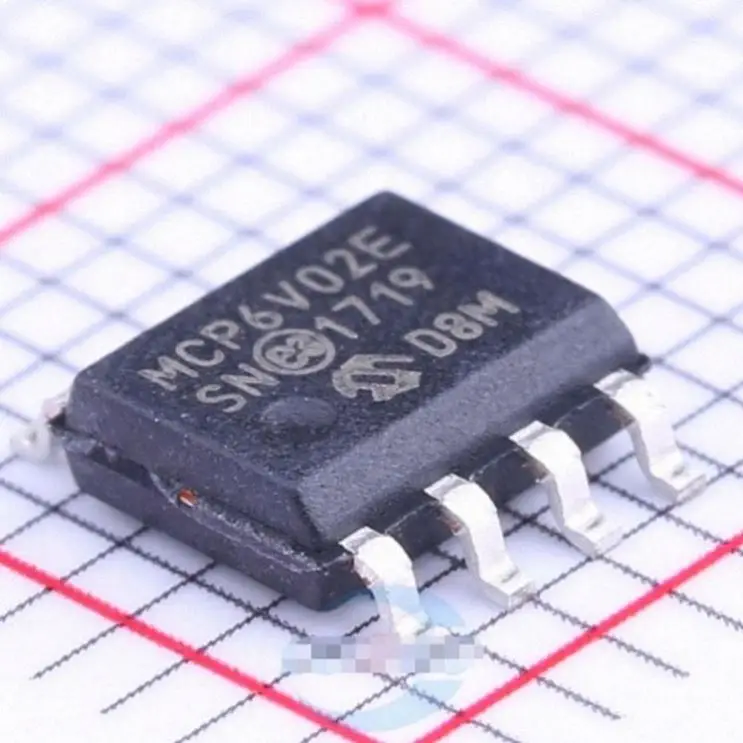

Оригинальный IC MCP6V02-E/SN пакет SOIC-8 доставка Оригинального товара точный операционный усилитель
