Медицинский УФ стерилизатор для дезинфекции воды

Сохранить в закладки 623285576:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики




Principle of UV Sterilizer Disinfection

Ultraviolet Sterilizer uses the energy of the germicidal ultraviolet light to destroy the DNA of varies kinds of viruses,bacteria and other pathogenic.Ultraviolet light penetrates the cell membrane and nucleus of micro-organisms to destroy the molecular of nucleic acid,which can deactive the viruses. The ultraviolet disinfection's waveband is between 200 to 300nm,it becomes the strongest of 253.7nm.



Product Description:

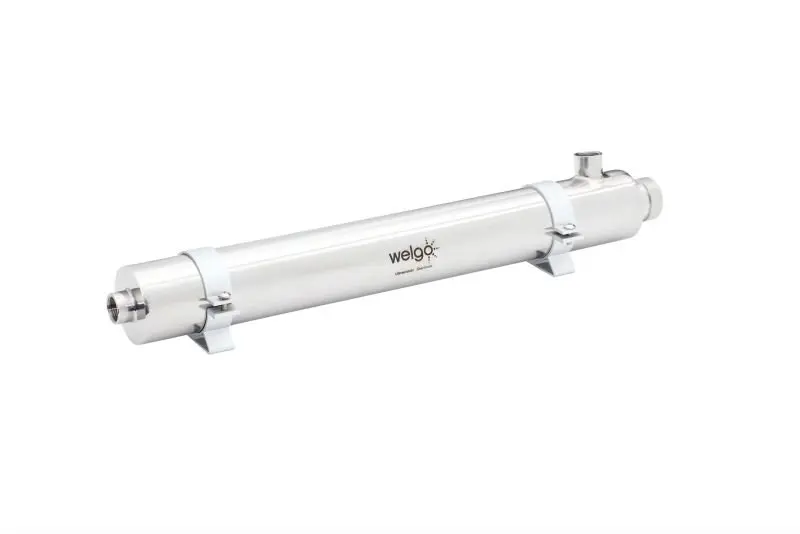

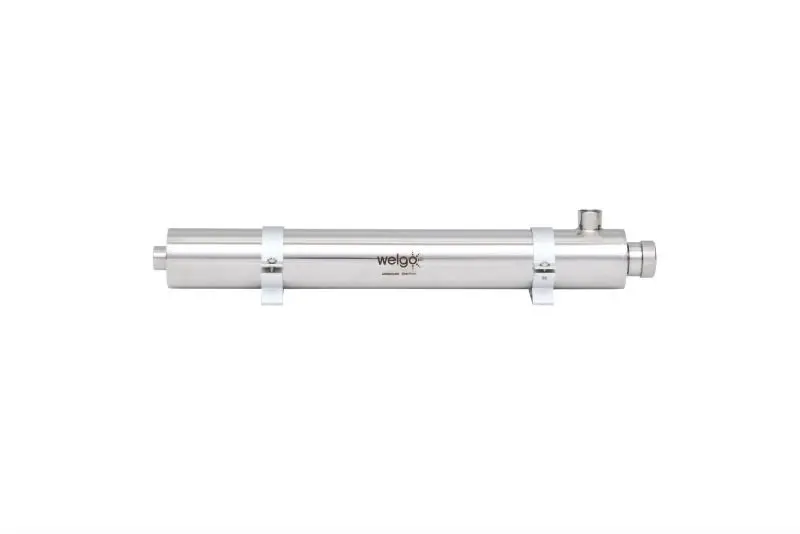

1.The single open end design for L series can be installed vertically.Water flow into the chamber from the open end,and out from the other side outlet.

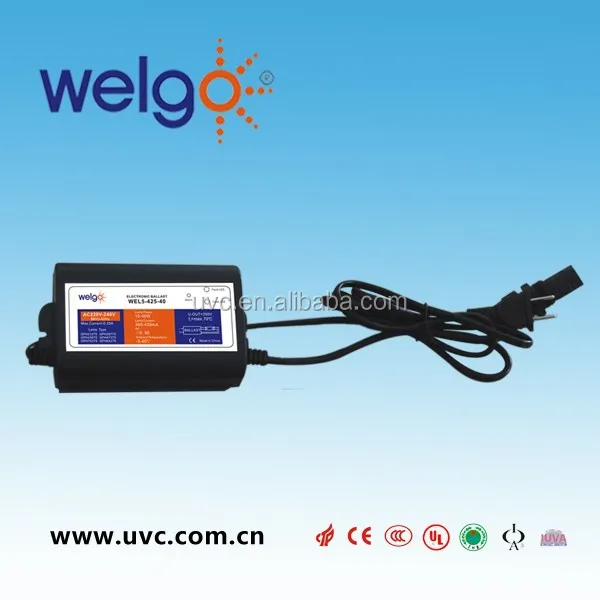

2.The ballast is displayed with lamp operation status indicating light and fault alarm .Its power supply should be 230VAC,50HZ. /CE,Rohs,UL approval as option.

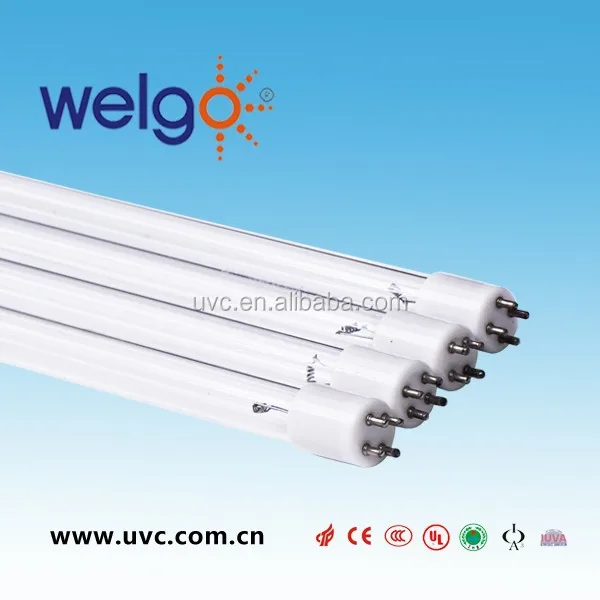

3.The germicidal UV lamp with 8000-12000 hours life span is imported from USA or Europe.



4. As standard material,stainless steel SS304 is used for chamber design and 316L as for option.The chamber pressure resistance meets the standard specification of 0.7Mpa.



5.Mechanical polishing or,as the option,the anti-rust electropolishing is applied to chamber surface processing.



6.UV monitor for UVC dosage is an option.



 Specification:



Model

Flow Rate

Lamp Power

Inlet/Outlet

Housing including end nutL*W*H

NPT

WGUV-L24

24GPM

80W

1-1/4



39.49"×Φ3"×4.15"(1003×Φ76.2×105.5mm)







Advantage of UV Dinsinfection:

1) High effcient disinfection



2) Without secondary pollution



3) Great volume of disinfection continuously



4)Lower maintenance costs



5) Safe and reliable operation



6) Wide application
