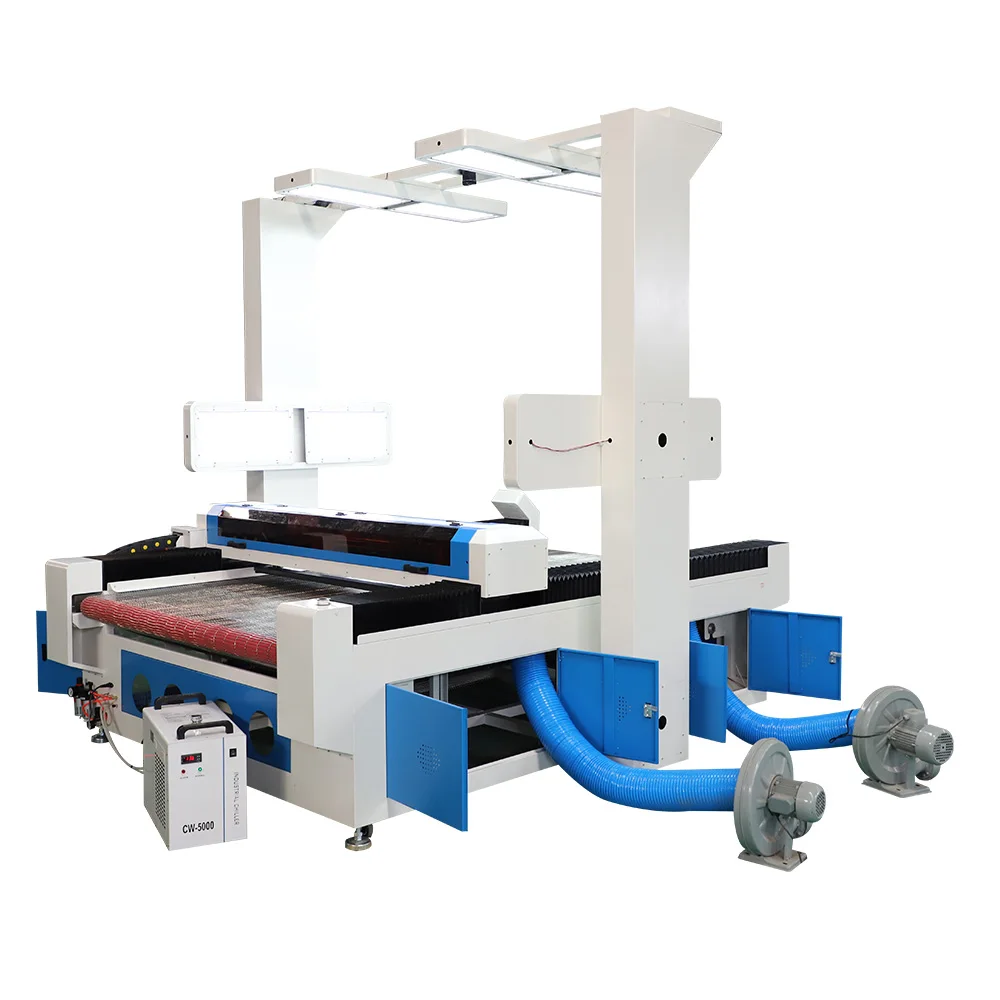

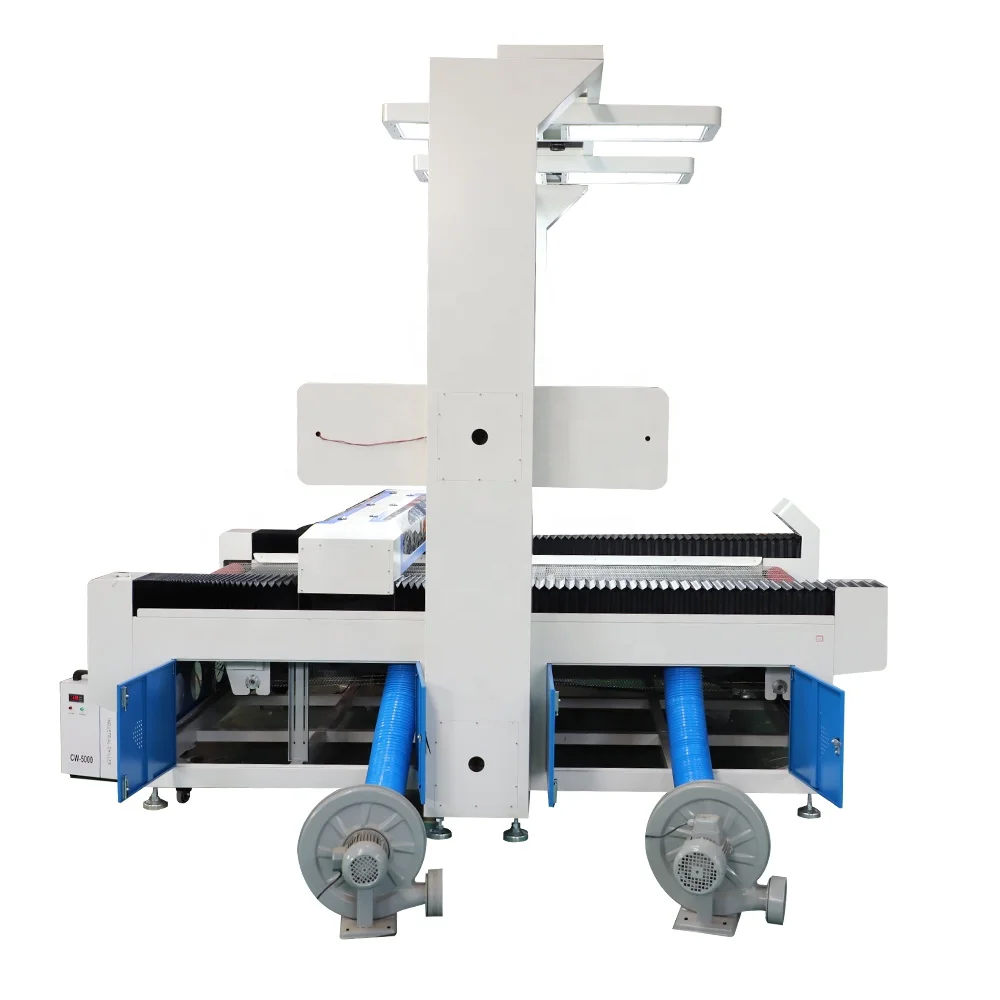

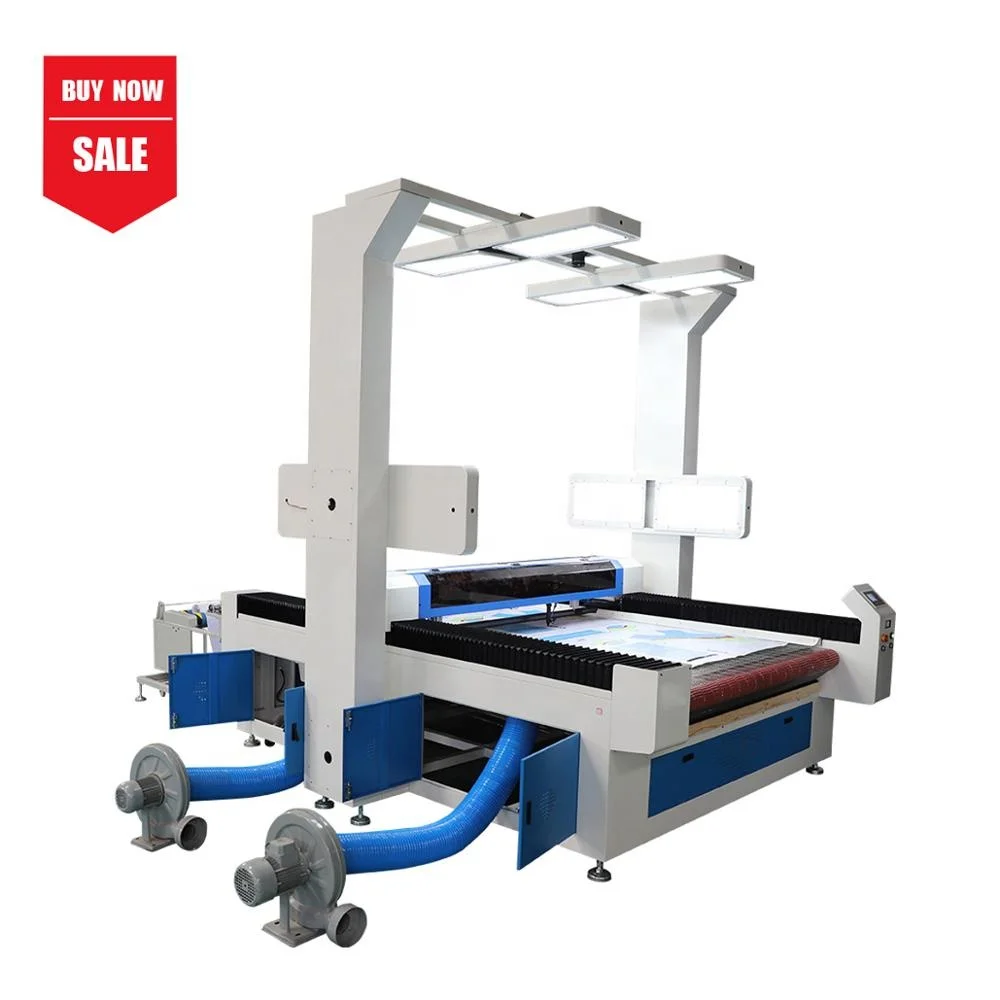

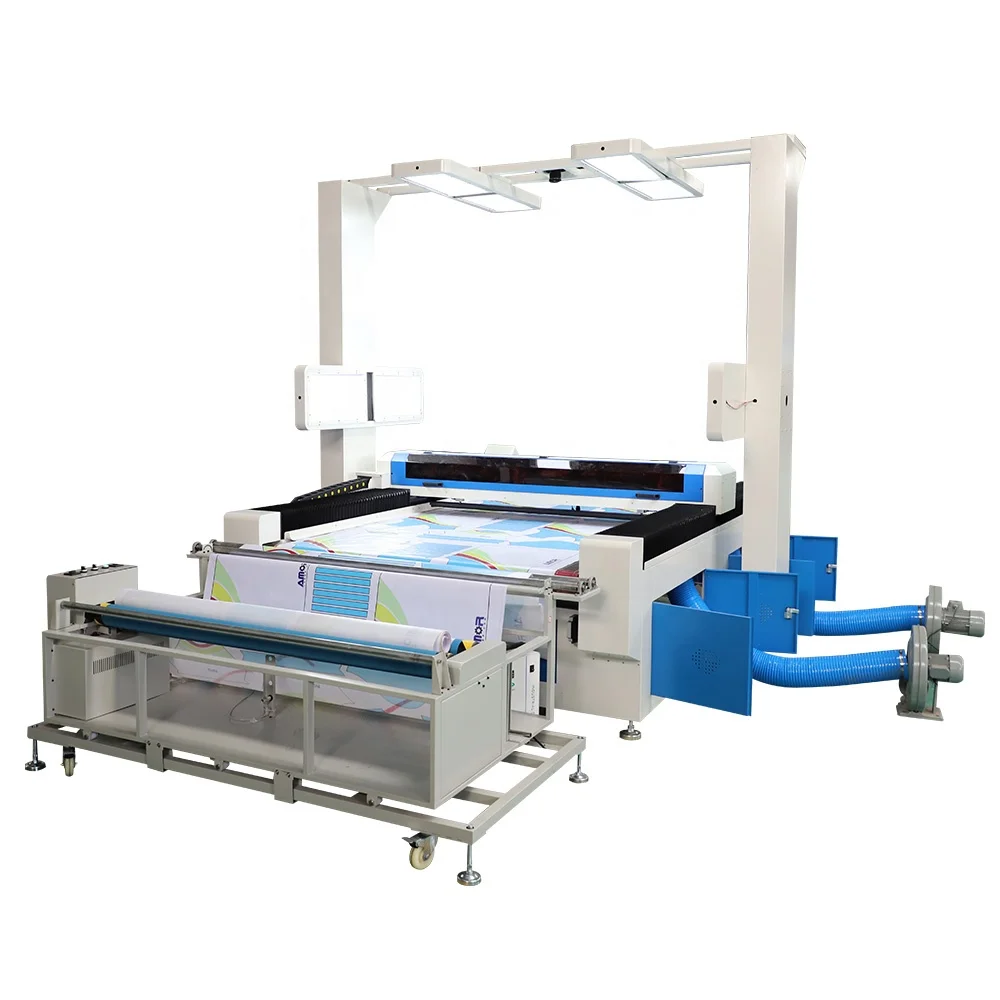

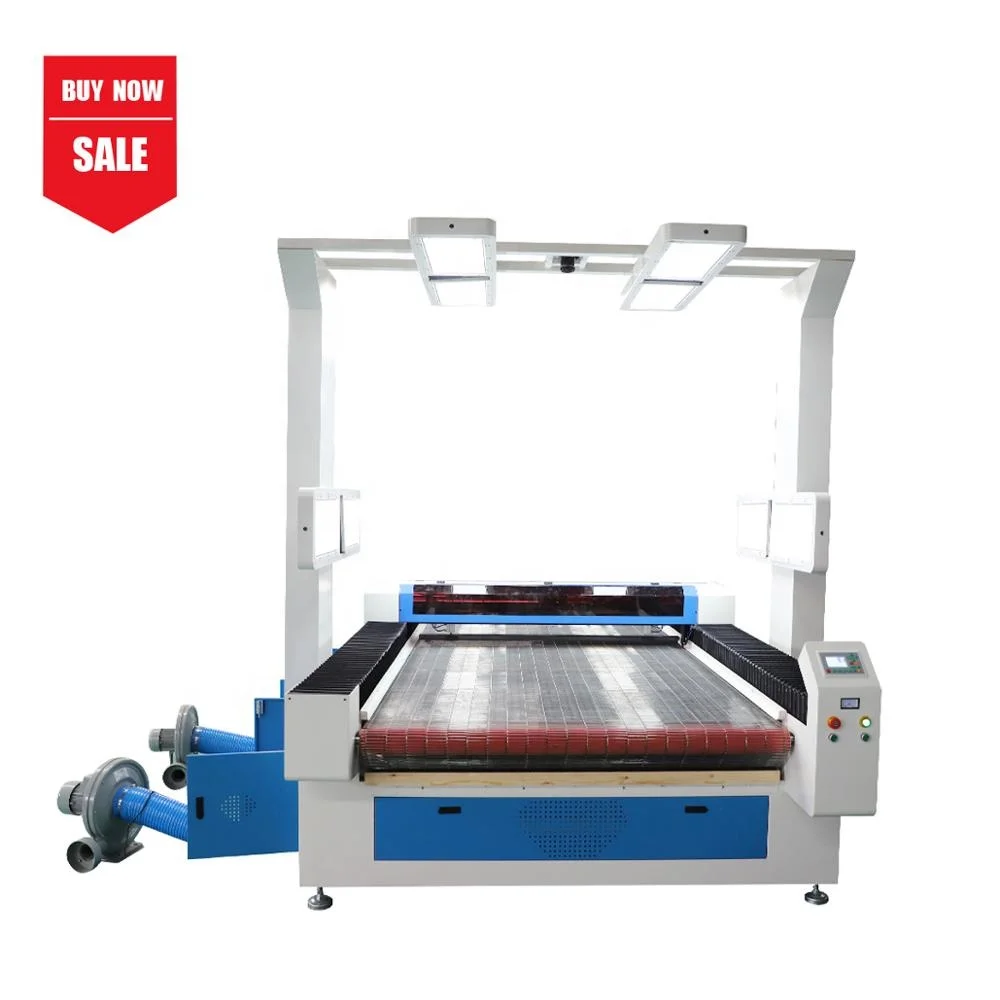

CCD камера автоматическая контурная лазерная резка гравировальная машина для текстиля
- Категория: >>>
- Поставщик: Shandong Maichuang Smart Equipment Group Co. Ltd.
Сохранить в закладки 62329121336:
Описание и отзывы
Характеристики
sample
CCD Camera Automatic Contour Laser Cutting Engraving Machine For Textile
Applicable industries:
It is used in the industries, such as large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.
Applicable materials:
Non-metallic materials, such as wooden ware, paper, leather, cloth, organic glass, epoxy resin, acrylic, woolens, plastic, etc.
It is used in the industries, such as large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.
Applicable materials:
Non-metallic materials, such as wooden ware, paper, leather, cloth, organic glass, epoxy resin, acrylic, woolens, plastic, etc.
Product Description
Model | MC1620 CCD |
Working size | 1600mm*2000mm |
Laser tube | 150W RECI laser tube |
Big CCD camera | 1 complete |
Laser type | Sealed CO2 laser tube |
Driving system | Servo motor |
Transmission | High precision FULO belt system |
Work platform | Net worktable |
Controlling software | Off-computer controlling system |
Compatible software | Coreldraw AutoCAD Photoshop |
Cooling mode | Water cooling |
Auxiliary equipment | Exhaust-fan, air pump,CW5200Chiller. |
Minimum shaping character | English 1*1mm |
Cutting speed | 0-400mm/s due to different material |
Engraving speed | 0-600mm/s |
Position accuracy | ±0.03mm |
Operating temperature | 0-45 degree |
Working voltage | AC110-220V ±10%/10A,50-60HZ |
Power | 3500W |
Details
1. Adopt advanced recognition systems, through visual identification system putting the images into computer, identify automatically and located cutting correctly and fast, greatly reduces the material and the waste of time.
2. Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology, professional camera recognition software, and the coordination between precision mechanical components, guaranteed the procision, high speed cutting.
3. Fast curvilinear cutting function, it can cut via any curve fast continuous cutting, the laser heads move in beautiful arc just evoke industry needs.
4. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.
2. Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology, professional camera recognition software, and the coordination between precision mechanical components, guaranteed the procision, high speed cutting.
3. Fast curvilinear cutting function, it can cut via any curve fast continuous cutting, the laser heads move in beautiful arc just evoke industry needs.
4. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.
company information
Shandong Maichuang Smart Equipment Group Co., LTD is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises. With professional R&D team, and always promoting high-tech products, we continually devote to manufacturing and selling CO2 Laser Machine, CNC Knife Cutting Machine, Laser Marking Machine, Fiber Laser Cutting Machine, CNC Router and Plasma Cutting Machine, etc.
Since its inception, the company has been adhering to the sales concept of "Toward to Success and Create the Future" with customer, providing professional & high-quality products and excellent Pre-sales & After-sales service for user. The company's products are not only distributed throughout the country, but also exported to Europe, America, Russia, the Middle East, parts of Asia, 120 countries and regions, thus forming a worldwide sales and service network system.
Since its inception, the company has been adhering to the sales concept of "Toward to Success and Create the Future" with customer, providing professional & high-quality products and excellent Pre-sales & After-sales service for user. The company's products are not only distributed throughout the country, but also exported to Europe, America, Russia, the Middle East, parts of Asia, 120 countries and regions, thus forming a worldwide sales and service network system.
Warranty and after-service
PRE-SALES SERVICE
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
* Every machine must be tested before delivery, all of them are absolutely qualified.
* Every machine must be tested before delivery, all of them are absolutely qualified.
AFTER-SALES SERVICE
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.
Product packaging
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
1)Your materials.
2)The size of your material:___mm*___mm
3)You want to engrave or cut? If cut, what's the cutting thickness?
Q2: How long is the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 workdays.
Q3. Are you a Factory or Trading company?
We're a professional manufacturer with export license.
Q4. Where is your company located?
Factory: Hongyuan Industrial Park No.8, Xiaoqinghe South Road, Licheng District, Jinan City, Shandong Province, China.
Office: 512 Room, J Building, Hengda City, Wangsheren Street, Industrial North Road, Licheng District.
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
1)Your materials.
2)The size of your material:___mm*___mm
3)You want to engrave or cut? If cut, what's the cutting thickness?
Q2: How long is the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 workdays.
Q3. Are you a Factory or Trading company?
We're a professional manufacturer with export license.
Q4. Where is your company located?
Factory: Hongyuan Industrial Park No.8, Xiaoqinghe South Road, Licheng District, Jinan City, Shandong Province, China.
Office: 512 Room, J Building, Hengda City, Wangsheren Street, Industrial North Road, Licheng District.
Warmly welcome at any time to visit!
