Products Description

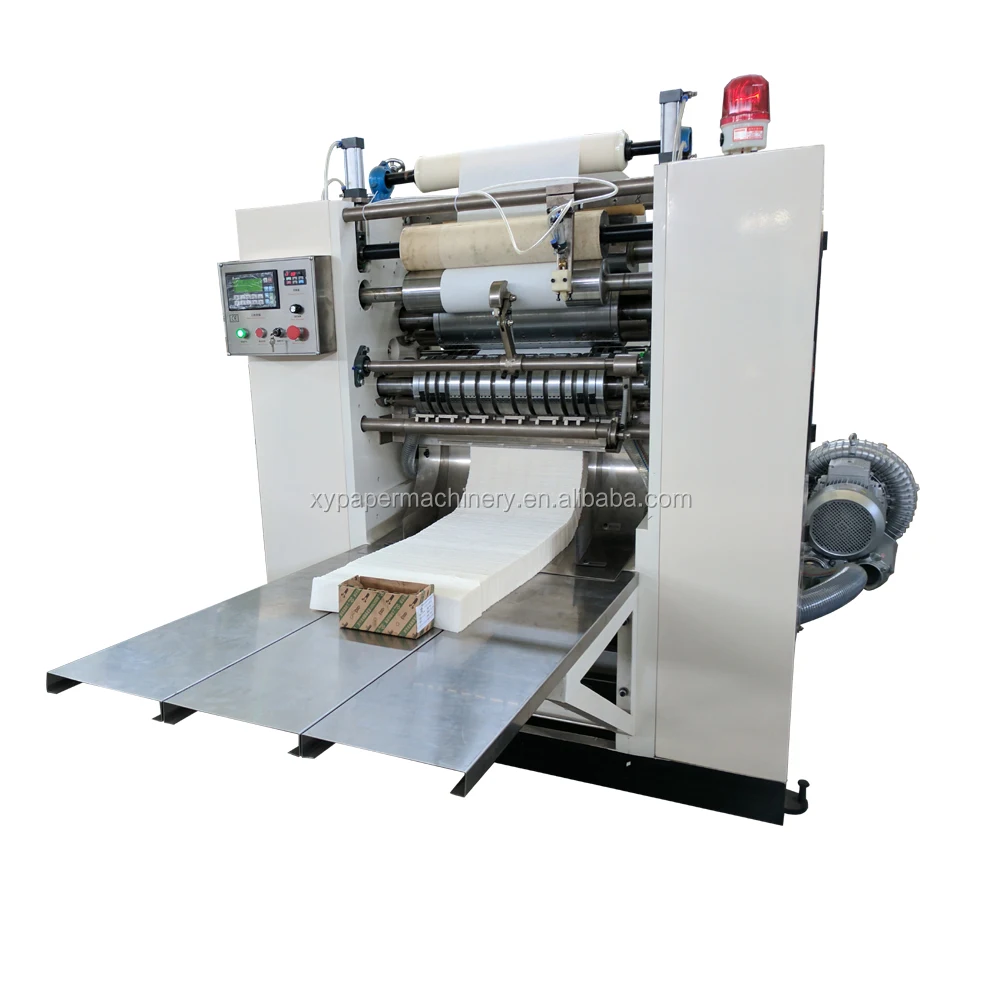

XY-BT-288 N Folding Hand Towel Machine
Outline:

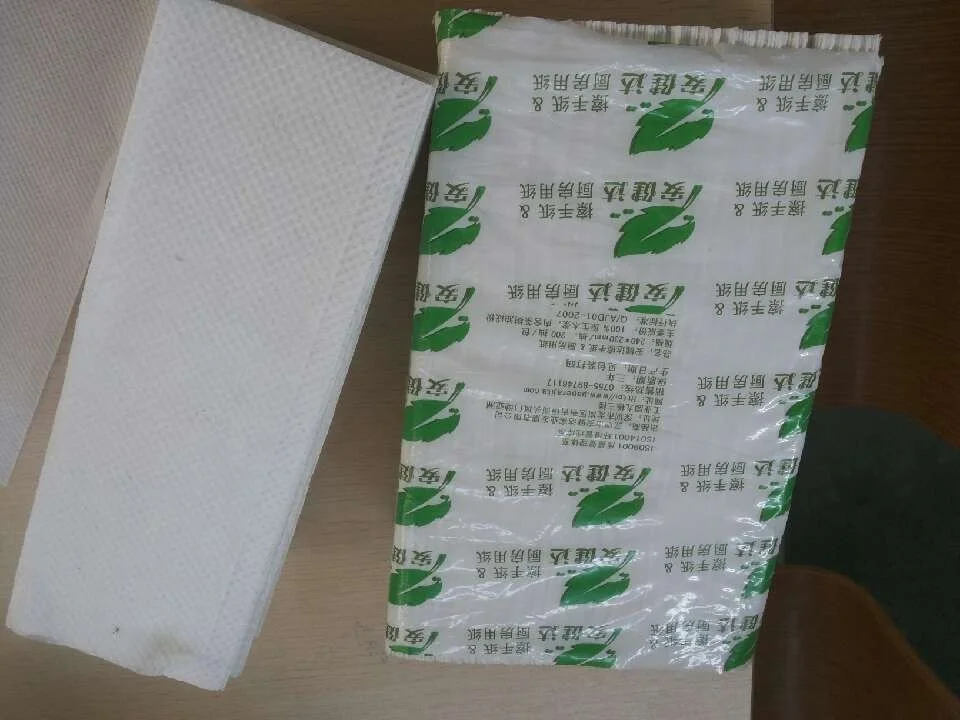

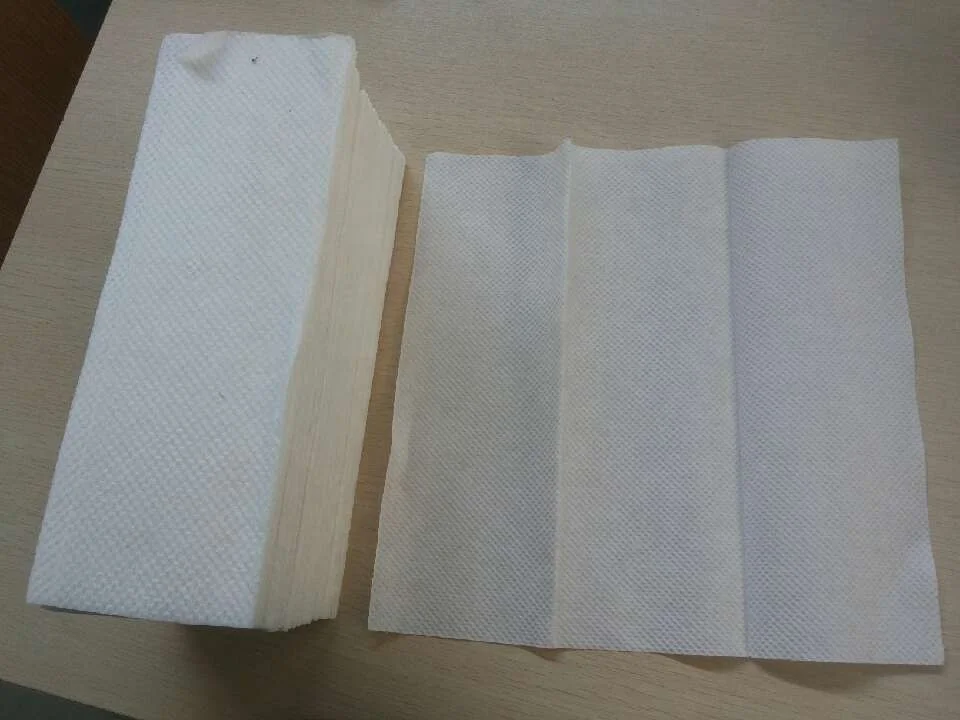

N folding hand towel machine process paper material after embossing, cuting off, interfold become N fold, the products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
Function and characteristics
1. This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed
2. Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.
3. Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.
4. 610 mm diameter disc knife high speed revolving rapidly. ( cut two roll paper at one time).Without knife mark and rough edges while cutting.
5. Equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other advanced products.
6. Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.
2. Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.
3. Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.
4. 610 mm diameter disc knife high speed revolving rapidly. ( cut two roll paper at one time).Without knife mark and rough edges while cutting.
5. Equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other advanced products.
6. Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.
Video Link: https://youtu.be/_CYTx3xkwqM

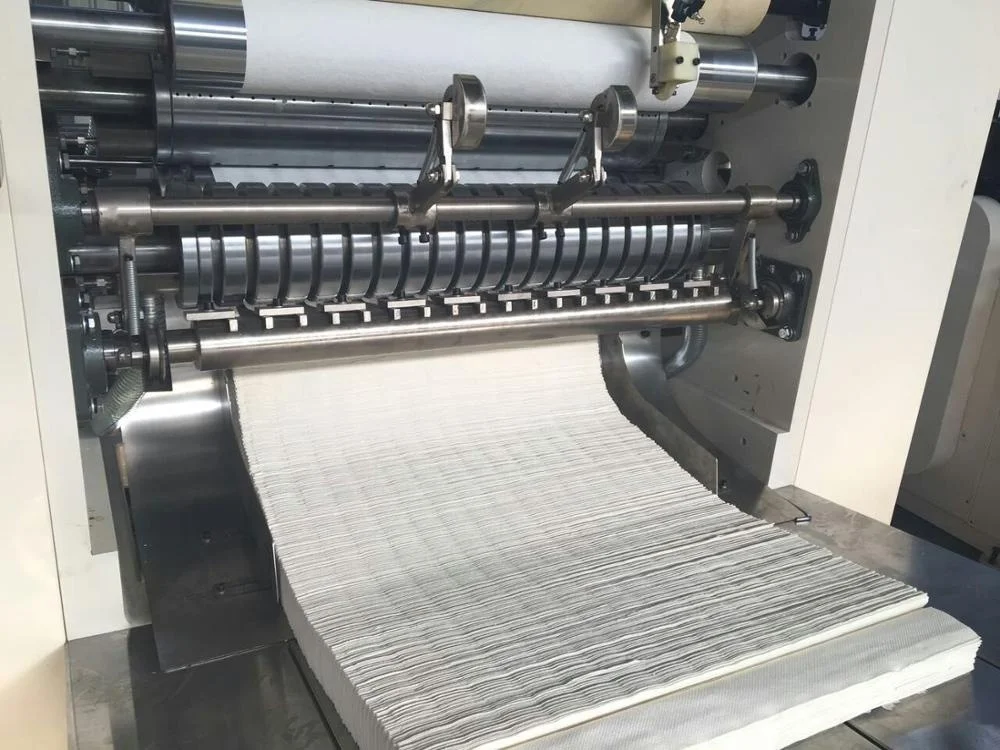

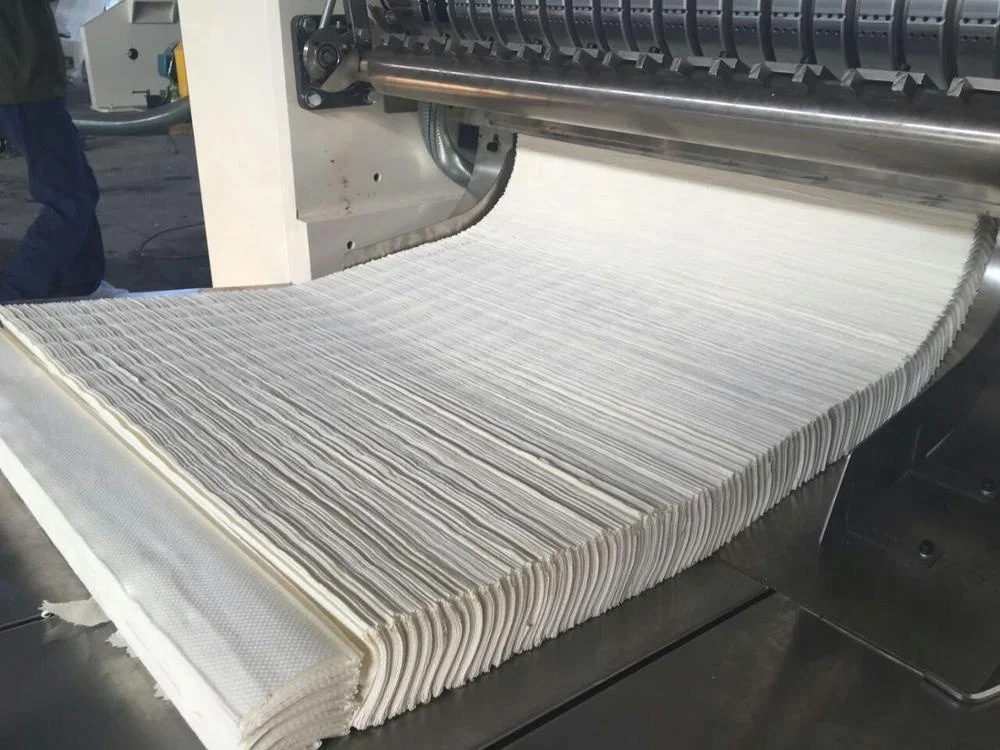

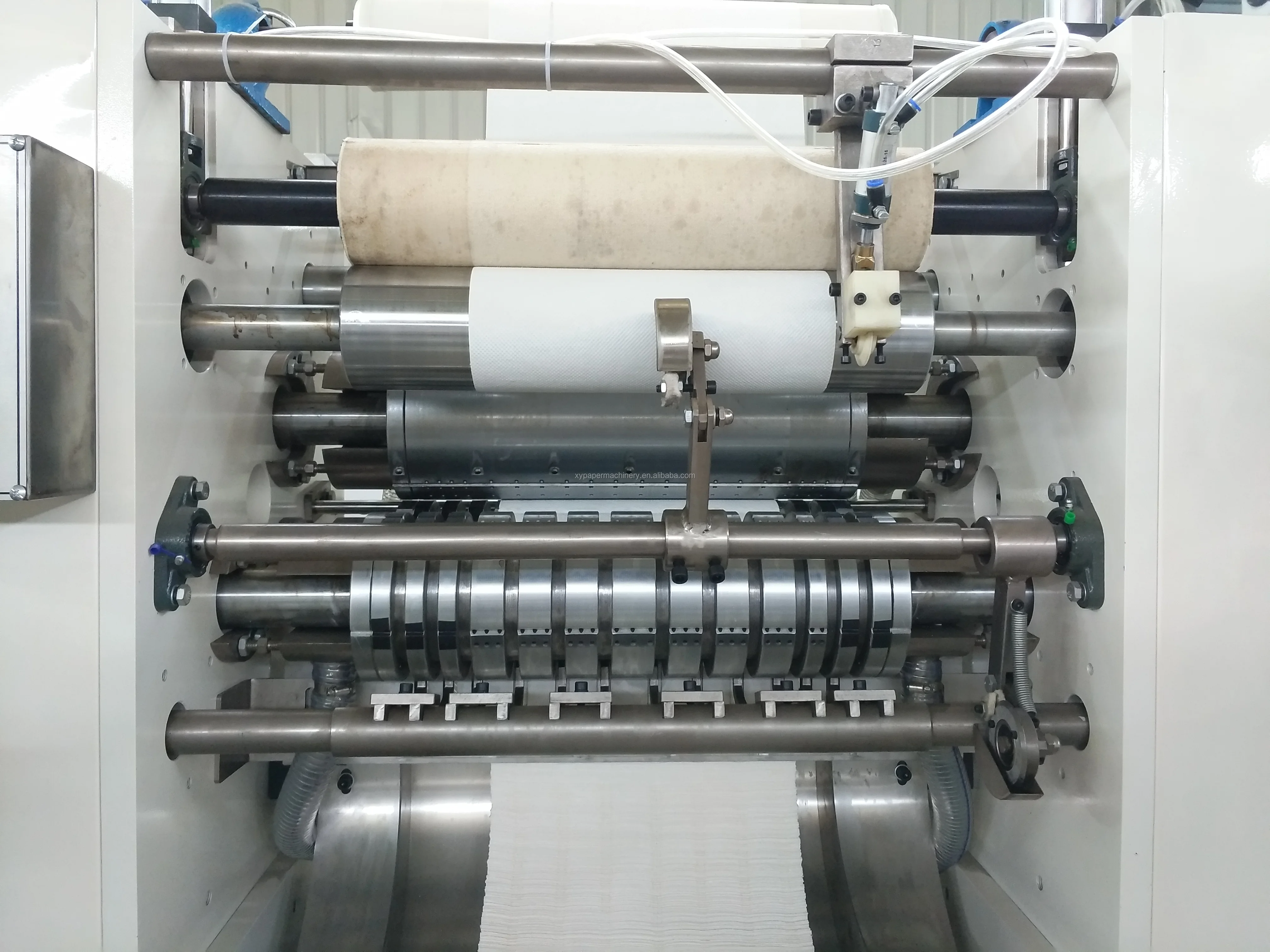

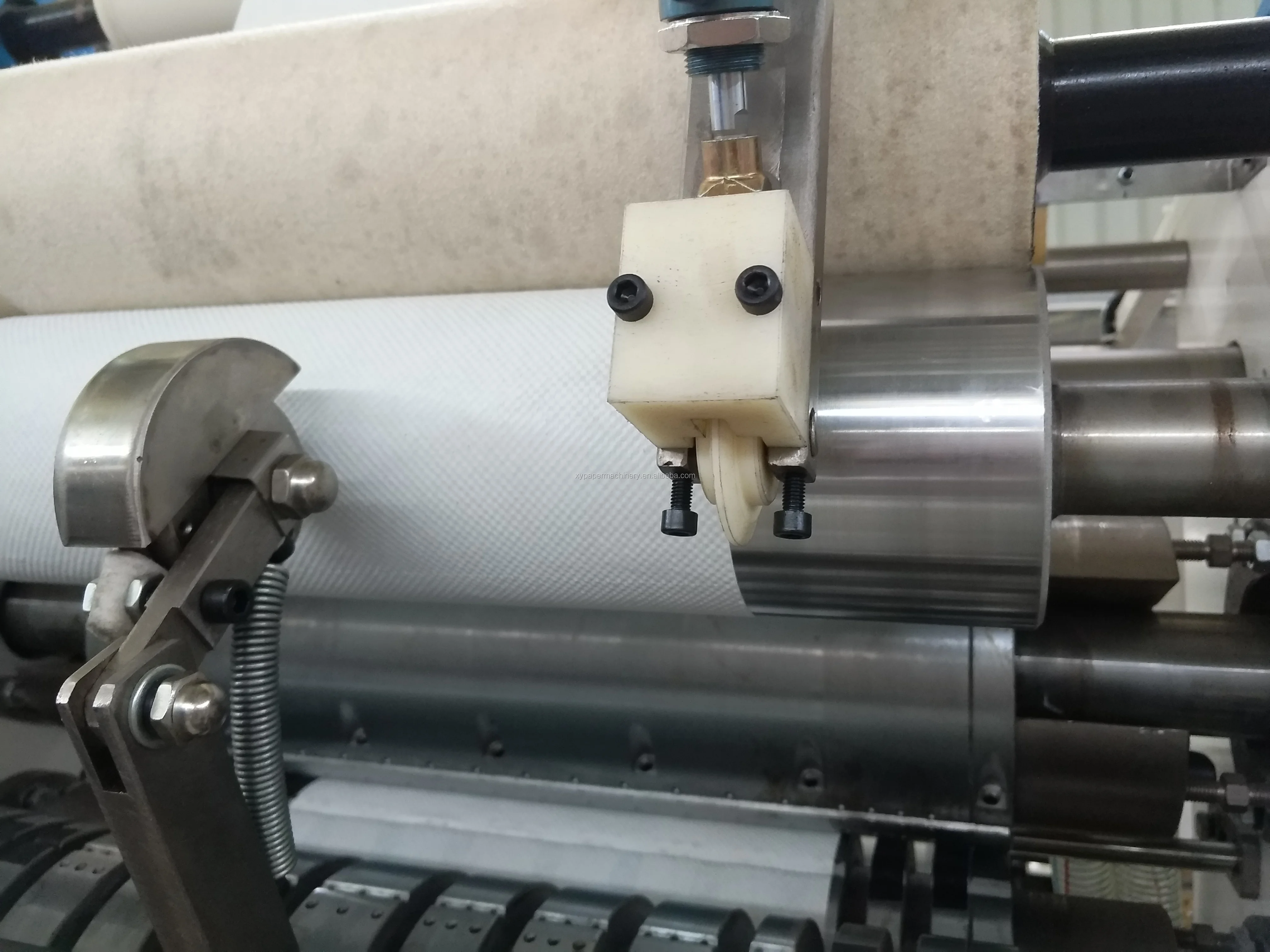

Details Images
Machine Specification
XY-BT-288 (230)2L/3L/4L/5L | ||
Unfold size of finished products (L*W) | 230*230±2mm (Other sizes are available) | |
Folded size of finished products (L*W) | 76.6*230mm±2mm (Other sizes are available) | |
Width of jumbo roll paper | 460mm /690mm /920mm /1150mm | |
Diameter of jumbo roll inner core | 76.2mm (Other sizes are available) | |
Production speed | 0-100m/min (Depending on the machine model ) | |
Power | Frequency conversion speed regulator | |
Programmable controller | PLC computer controller | |
Folding type | Vacuum suction “ N” fold | |
Transmission unit | Timing belt and flat belt | |
Counter | Ink marked | |
Embossing unit | Steel to steel | |
Slitting unit | Pneumatic dot slitting | |
Pneumatic system | 3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer) | |
Total power | 14KW /18KW /19KW /24KW | |
Overall dimension | Depends on Machine Model | |
Weight | Depend on the size and configure | |
Related Products

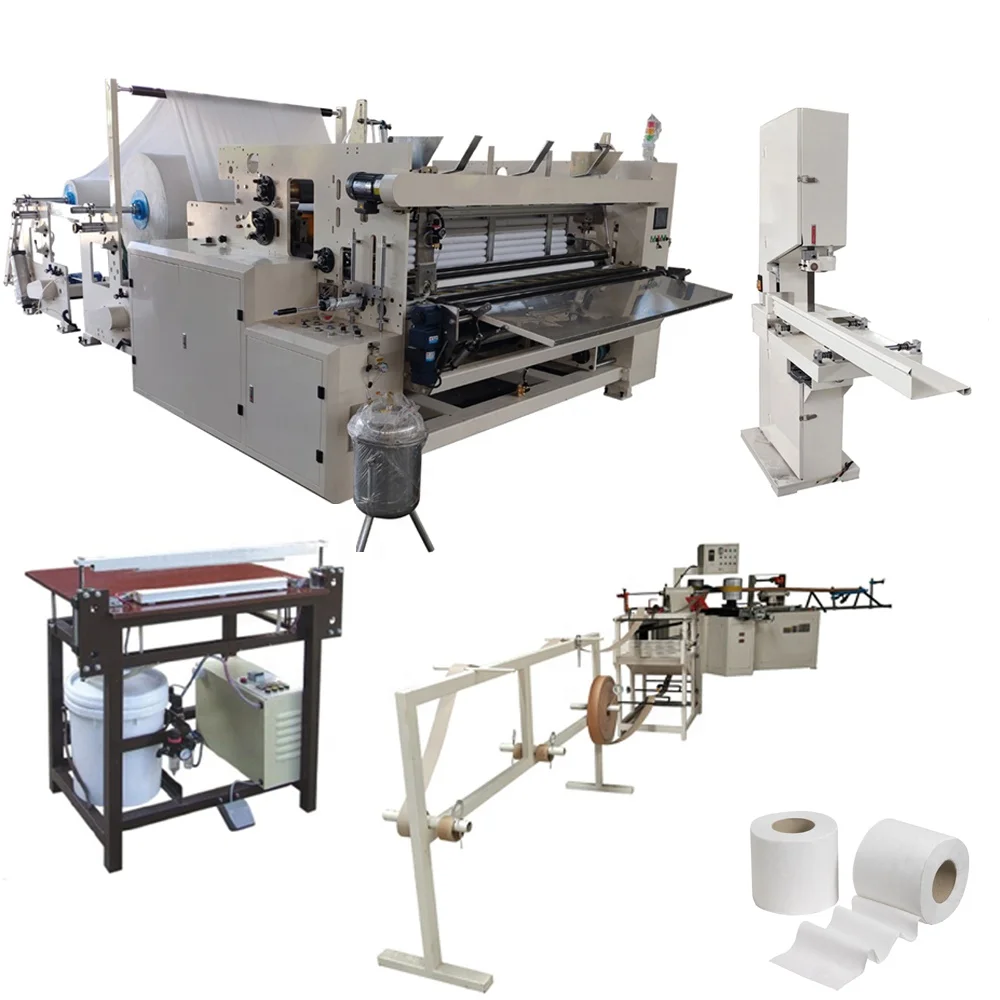

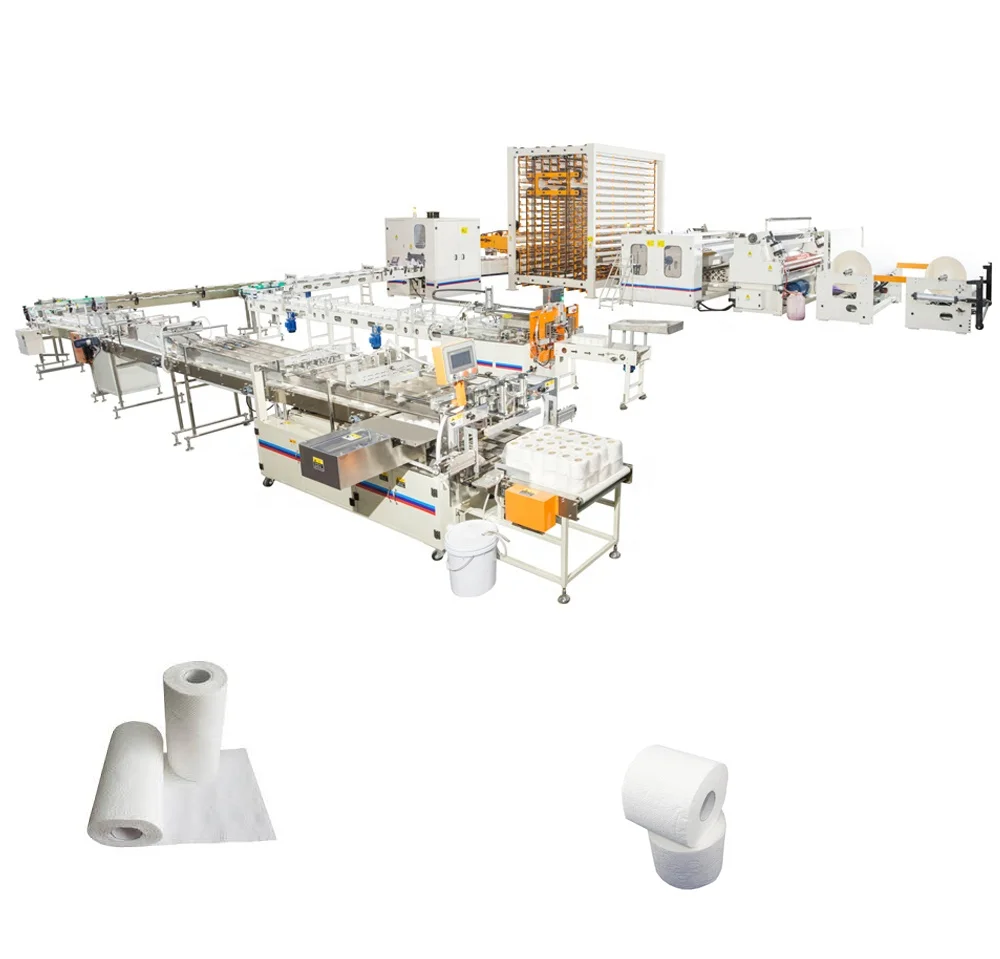

XY-TQ-A-D
Automatic Toilet Paper /Kitchen Paper Production Line with easy packing machine
This production line consists of Automatic Color Printing Toilet Paper Roll Rewinding Machine, Double Channel Log Saw Machine and Semi-Automatic Multiple Rolls Packing Machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable, saving the labor cost and reducing the labor strength, it’s best choice for the producing hygienic paper
products.
products.

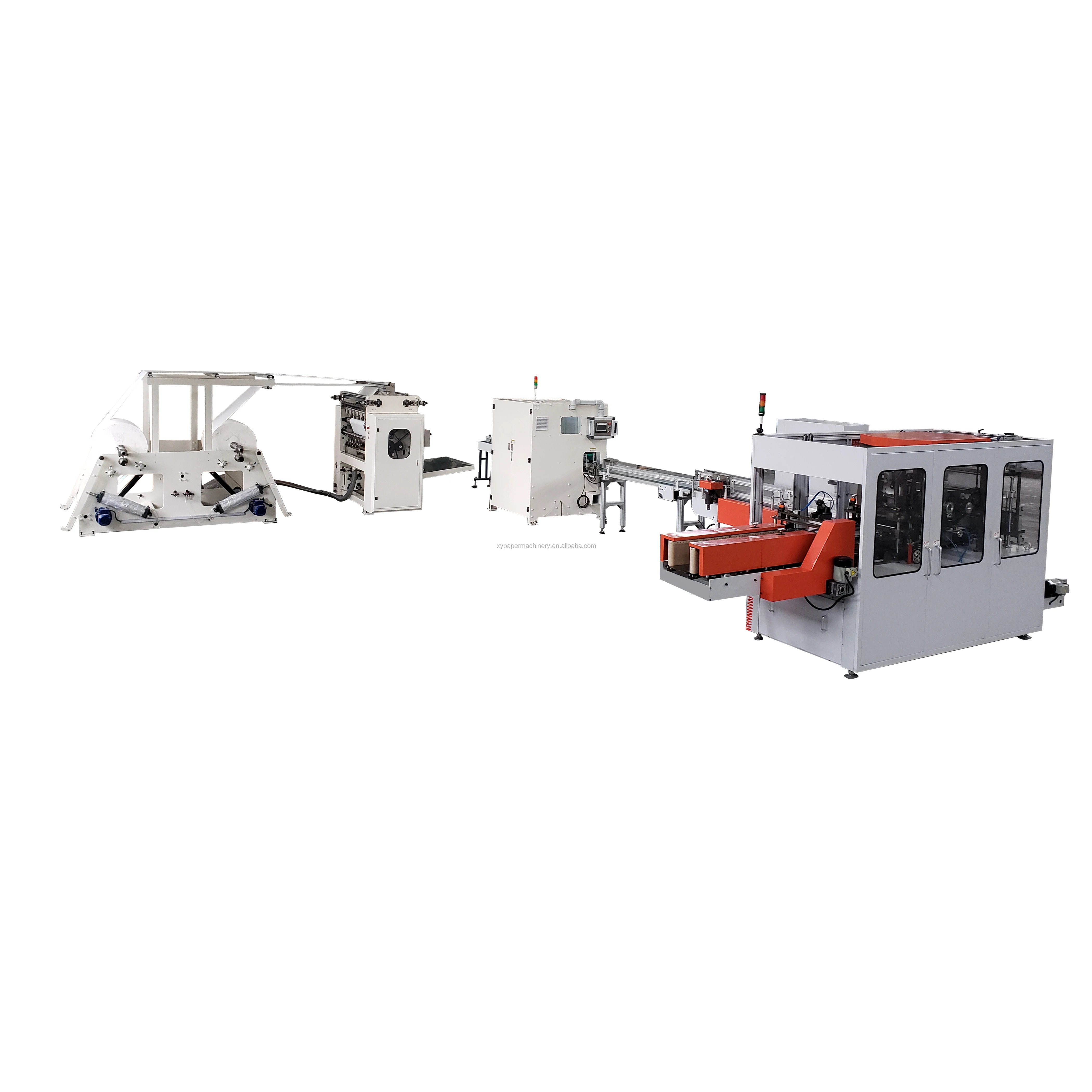

XY-GU-A-B Facial Tissue Production Line(Plastic Drawing Type)
XY-GU-A-B Facial tissue production line, this production line composed of one set of XY-GU-20A full-automatic box-drawing facial tissue machine( 5-8 output lanes), one set of XY-GU -281 Facial tissue cutting machine, one set of XY-BT-298 Full-automatic Soft Paper Towel Three Dimensional Packing Machine and convey belt.
XY-TQ-A-C
Automatic Single-particle Toilet Roll Paper Packing Production Line
Automatic Wrapper-type High Speed Toilet Paper/ Maxi Roll Rewinding Machine, 1 set of XY-AI-300 manual toilet paper cutting machine
,1 set of XY-AI-398B Plastic Bag Sealing Cutting Machine,1 set of XY-SD-A paper core making machine and convey belts.
XY-TQ-A-G Fully Automatic Toilet Paper Production Line
This production line consists of Fully Automatic Rewinding Machine, Accumulator and automatic band saw machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength.It’s best choice for the producing hygienic paper products.
Packing&Delivery
FAQ
1.What can i get during I buy the N folding hand towel machine from your coropration?
First of all,we will provide best serves sincerelly to our customer ,then we'll offer the good quality N folding hand towel machine with resonable prices to you.Second the prices are clearly and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.
2.How long dose it take freight transport to finaly destination from city ?
Reguarlly !The freight transport it would takes time about 1-60 days.
3.Is there have any engineers to instruct me to how to operate machine ?
Of cause! I'll send a professional engineer to instruct your wokers how to operate and maintain the machine in your local factory!
4.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
First of all,we will provide best serves sincerelly to our customer ,then we'll offer the good quality N folding hand towel machine with resonable prices to you.Second the prices are clearly and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.
2.How long dose it take freight transport to finaly destination from city ?
Reguarlly !The freight transport it would takes time about 1-60 days.
3.Is there have any engineers to instruct me to how to operate machine ?
Of cause! I'll send a professional engineer to instruct your wokers how to operate and maintain the machine in your local factory!
4.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
