Product Description

Principle of operation:

The TH-2020 γ-ray density gauge is a nuclear gauge that receives a narrow beam of radiation, through the process material, from the source holder. The amount of radiation that the detector senses is

in proportion to the amount of the materials mass. Since the radiation source and detector are always the same distance apart and the volume of process liquid is constant, the only possible change in mass is the density of the process. The lighter the density of material, the more radiation passes through to the detector. The heavier the density of material; the less radiation passes through to the detector.

Calibration of the TH-2020 associates the detector readings, known as counts, with the density of the material in engineering units. The output range of the TH-2020 is a 4-20mA current loop signal.
Typical applications:

The TH-2020 γ-ray density gauges accurately indicate:

Density of liquids or slurries through a pipe or vessel wall without contact to the material

Percent of solids in a carrier

Interface between liquids flowing in a pipe, when the liquids differ in density

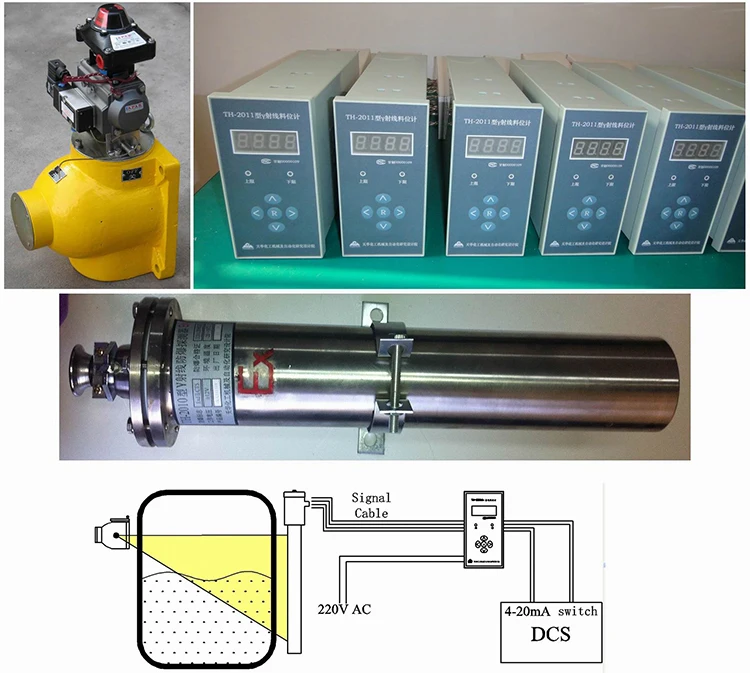

System overview:
TH-2011 γ-ray level gauges support 4-20mA(Current loop).The density measurement system consists of three main components:
1.Source holder
2.Scintillation Detector
3.Transmitter

Measurement range	0.3~3g/cm³
System Accuracy	±1% of full range
Output signal (current loop)	(0~10)mA, output load1KΩ or (4~20)mA, output load700Ω
Output signal (power)	source (active) mode
Output signal (load of relay)	AC220V,5A(SPDT)
Time constant	1-120seconds (adjustable)
Repeatability	±1 % of full range
Stability	±1.5 % full range/48 hours
Anti-hazard classification (detector)	Ex d IIC T5 (IEC60079/GB3836)
Enclosure rating	IP-66 (IEC60529/GB4208)
Ambient temperature	Detector (-20—60)°C, Converter (5—45)°C
Relative humidity	Detector(< 95%), Converter(< 85%)
Power supply	AC(220±22)V at 50HZ,Wiring (Per local code)
Signal Cable	Maximum length (1,000 m),4-wire hookup with DC
Dimensions of converter	80×160×310(mm)
Opening size for panel-mounted converter	Width 76⁺¹mm;Height 152⁺¹mm
Dimensions of detector	Φ104x474
Typical Sources	Cesium-137(0.66 MeV gamma radiation emitter;30.2 year half life)
Real-time clock	Maintains time, date, source decay compensation
Diagnostics	LED indication

Product Display

(1) (3)

Other Product

Product Uses

About Us

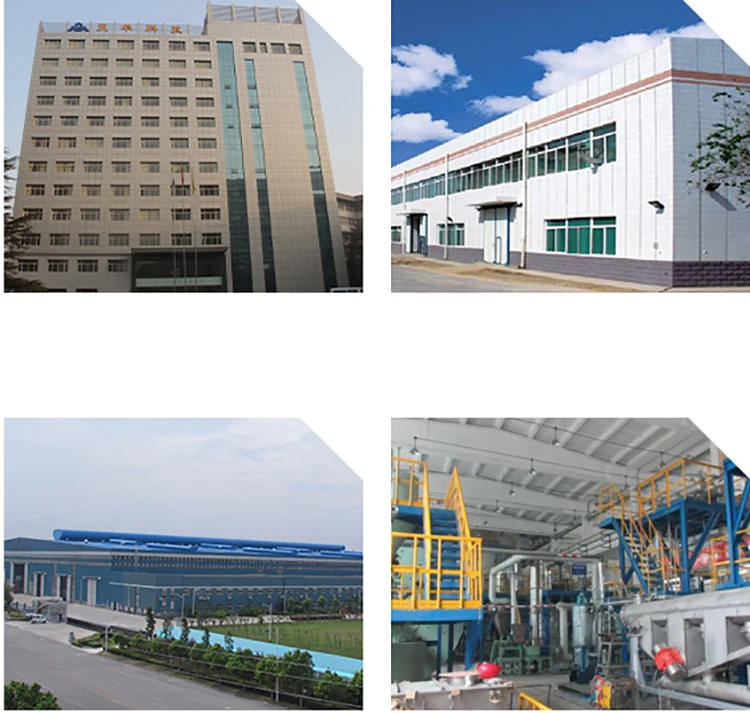

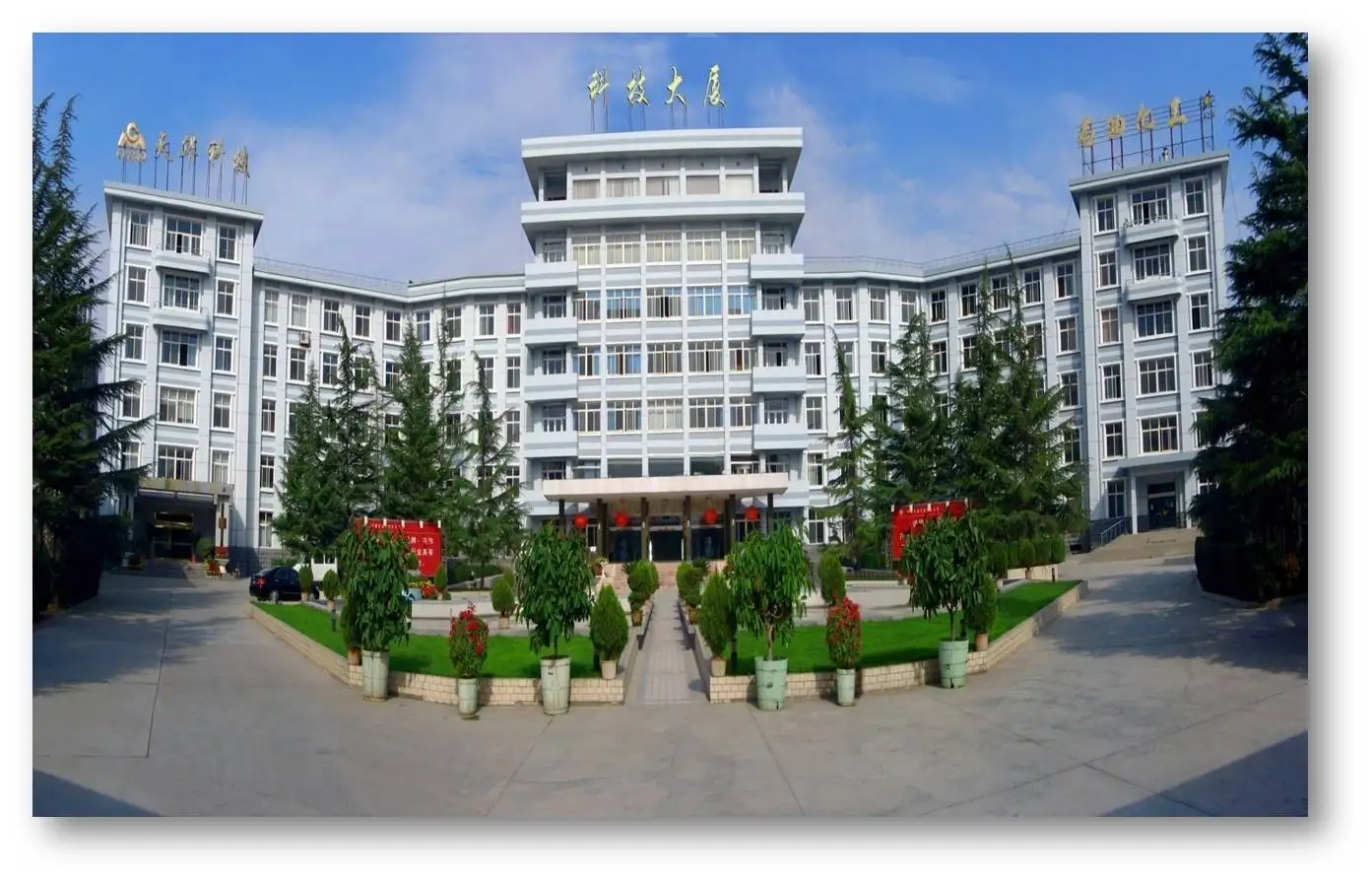

Tian Hua Institute of Chemical Machinery & Automation Limited Company, established in 1958, is a professional manufacturer engaged in the research, development, production, sale and service of chemical machinery and control systems. We have our general headquarter in Lanzhou our production bases in Nanjing with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including plastic machines, waste heat boilers, dryer technology and devices, regenerative thermal oxidizer,chromatogram online analyses system. In addition, we have obtained ISO Certificate of conformity of health safety and environmental management system certifications. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as North America, the European region, Southeast Asia, India, Mideast region, South America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
