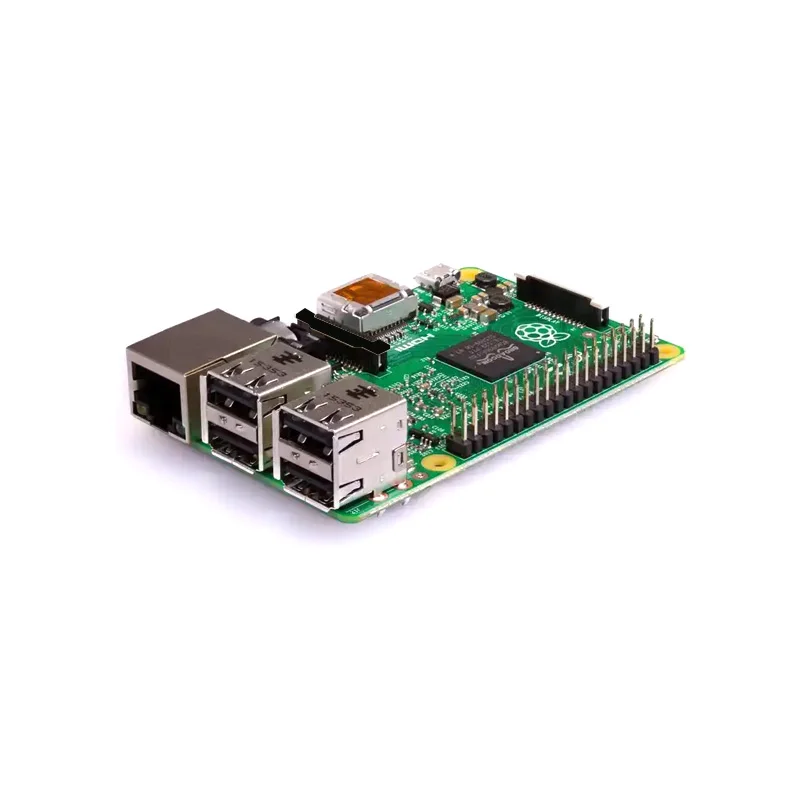

1GB RAM Raspberry Pi 2 model B Development Board Internet of Things Raspberry Pi

Without original pack

Raspberry Pi is known as the world's cheapest computer.
Now, it ushered in the second generation of products.
Specific configuration, Raspberry Pi 2nd generation equipped with a frequency of 900MHz quad-core Cortex-A7 processor architecture,
Specific models
BCM2836,
Built-in 1GB LPDDR2 memory,
Provide two full-size USB interface (for power).
A Micro USB port,
A HDMI port,
A 3.5mm audio interface
A RJ45 Ethernet interface.
Compared to previous generations, the official known as single-threaded CPU performance 1.5 times,
Sunspider run points increase by 4 times,
Up to 20 times based NEON multi-core video decoding rate,
SysBench enhance the overall multi-threaded CPU score six times.

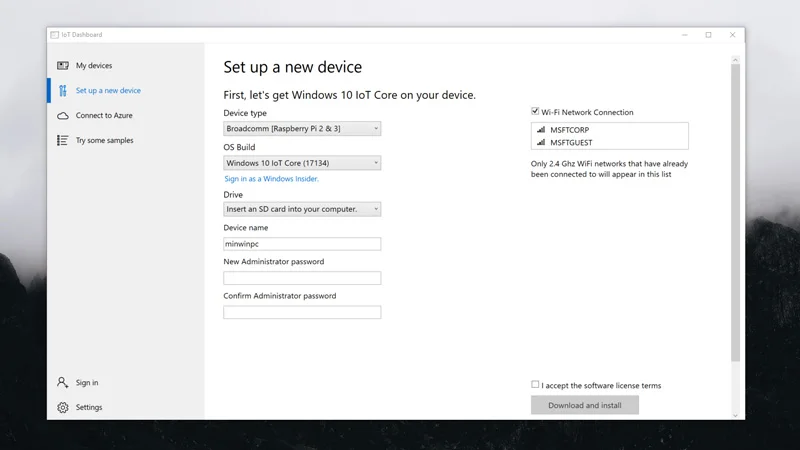

Raspberry Pi 2 will be equipped with windows 10 operating system (temporarily did not come out, is expected to be in mid-year)
Broadcom BCM2836 800MHz ARM Cortex-A7 quad-core processor, dual-core GPU with VideoCore IV
GPU provides Open GL ES 2.0, OpenVG and 1080p30 H.264 hardware accelerated decoding high
GPU can achieve 1Gpixel / s, 1.5Gtexel / s or 24GFLOP, and provide texture filtering and DMA Infrastructure
1GB LPDDR2 SDRAM
HD 1080p video output
Composite video (PAL / NTSC) Output
Stereo audio output
10/100 BaseT RJ45 Ethernet socket
HDMI 1.3 and 1.4 video / audio jack
3.5mm 4-pole audio / composite video output jack socket
Four USB 2.0 sockets
15 road MPI CSI-2 connector for Raspberry Pi HD camcorder
15-channel display serial interface connector
MicroSD card socket
Boot from MicroSD card, run Linux version of the new operating system
And 40 GPIO pin header serial bus (compatible with Raspberry Pi 126 pin header)
Power: + 5V @ 2A, via MicroUSB socket
Dimensions: 86 x 56 x 20mm
