 Product Application:

x ray gold testing analyzer

Specific application:
x ray gold testing analyzer
1) Defect inspection in IC encapsulation, e.g.: layer separation, cracking, void, and line integrity.

2) Measuring chip size, measuring line curvature, measuring the proportion of solder area of components.
x ray gold testing analyzer
3) Possible defects in PCB manufacturing processes, e.g.: misalignment, solder bridge and open.

4) SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

5) Defect inspection of open, short or abnormal connections that may occur in automotive wiring harnesses and connectors.

6) Inner rupture or hollow inspection in plastic or metal.

7) Battery stacking uniformity, electrode welding inspection.

Standard Configuration

Full Automatic BGA Testing Procedures:

1. A simple mouse click programming without the need for operator intervention on the component can detects each BGA automatically.x ray gold testing analyzer
2. Automatic BGA test, accurately check the bridge, Welding, cold welding and void ratio of BGA.
3. Automatic BGA test repeatable test results in order to process controlx ray gold testing analyzer
4. The test results will be displayed on the screen and can be output to Excel to facilitate review and archiving

x ray gold testing analyzer
NC Programming:
1.A simple mouse clicks operation write test procedures x ray gold testing analyzer
2.The stage can be X, Y director positioning--- X-ray tube and detector Z positioning.
3.Software setting voltage and currentX-RAY machine manufacturer
4.Image settings --brightness, contrast, auto gain and exposure
5.The user can set the program switch pause timeX-RAY machine manufacturer
6.Anti-collision system can meet the maximum tilt and observe object

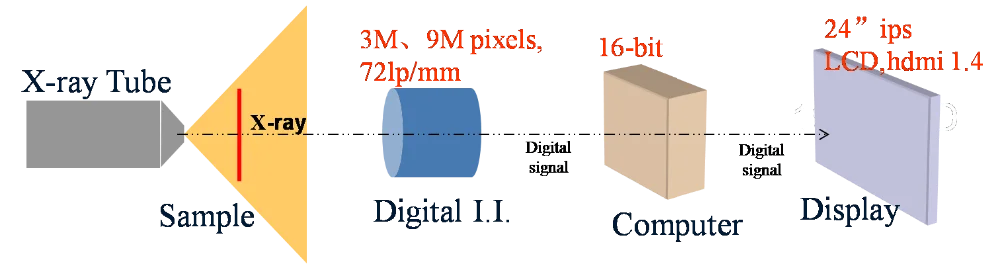

Principle Diagram:

Main Features:

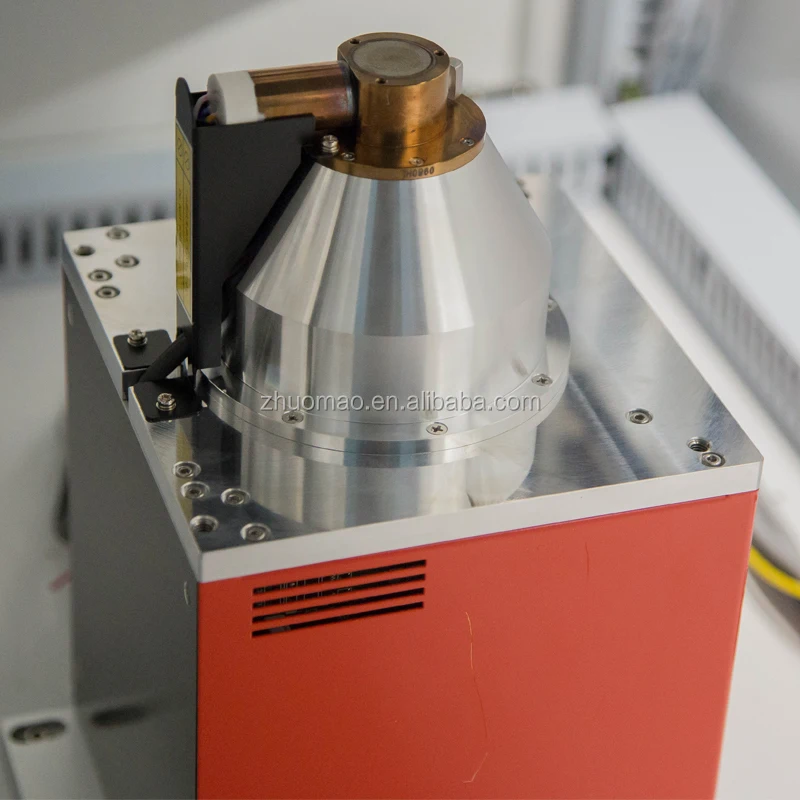

--Fully integrated, 130 kV high power closed X-ray tube
--Micro-focus x ray gold testing analyzer
--Spot size down to 5µx ray gold testing analyzer
--5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
--60° camera tilt for oblique angle viewingx ray gold testing analyzer
--22″ x 18″ Inspection Stage with 350° RotationX-x ray gold testing analyzer
--Color mapping camera with zoom window provides easy location and identification of faults
--Z axis movement of the x-ray tube and detector
--Computer controlled kV and mA settingsX-RAY machine manufacturer
--Computer controlled variable speed X-Y stage (and rotate)
--Simple point and click, intuitive GUI provides access to create advanced inspection routines
--All s/w tools standard including (but not limited to)
--BGA Void detection and automatic calculationsX-RAY machine manufacturer
--Mobile Flex Cable FPC x-ray inspectionX-RAY machine manufacturer
--SMT Mounting and PCB X-ray inspection
--Easy macro recording for intuitive step and repeat programming
--Various measuring tools for TH, radius, area, perimeter, etc
--Industrial PC with Windows 7 PRO, 23″ LCD flat panel display

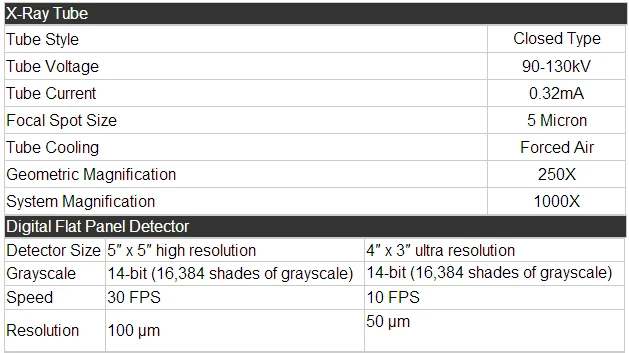

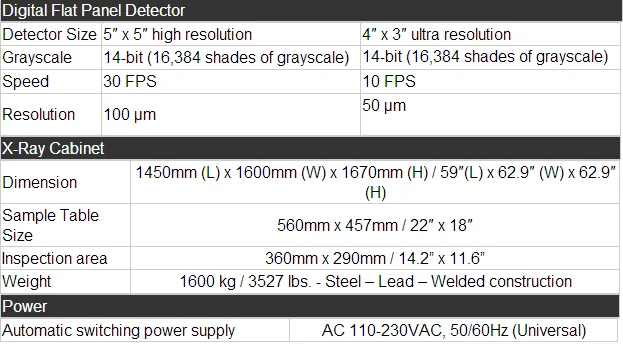

Specification:

Product Testing Images

Full Automatic BGA Testing Procedures
1. A simple mouse click programming without the need for operator intervention on the component can detects each BGA automatically.X-x ray gold testing analyzer
2. Automatic BGA test, accurately check the bridge, Welding, cold welding and void ratio of BGA.
3. Automatic BGA test repeatable test results in order to process controlX-RAY x ray gold testing analyzer
4. The test results will be displayed on the screen and can be output to Excel to facilitate review and archiving

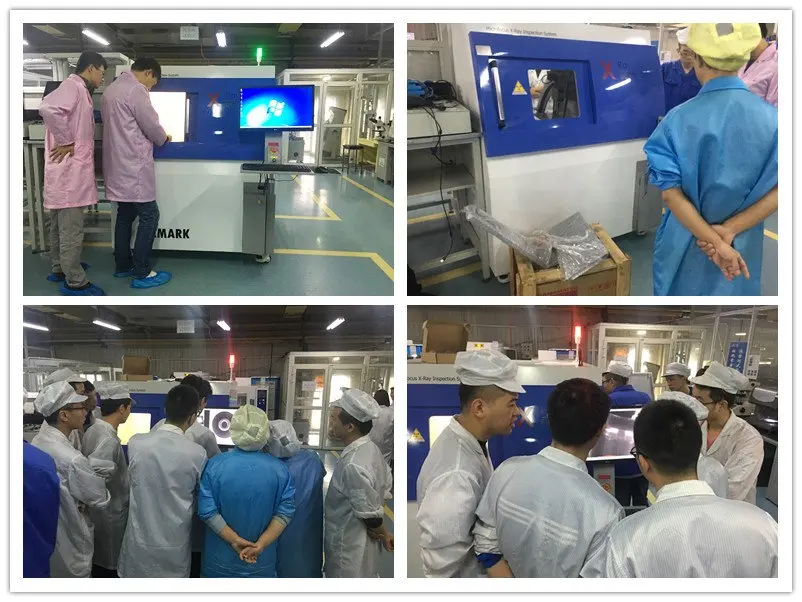

 Nearly every day some customers from home and abroad come to visit our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory !

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to        use the machine.
* Engineers available to service machinery overseas.

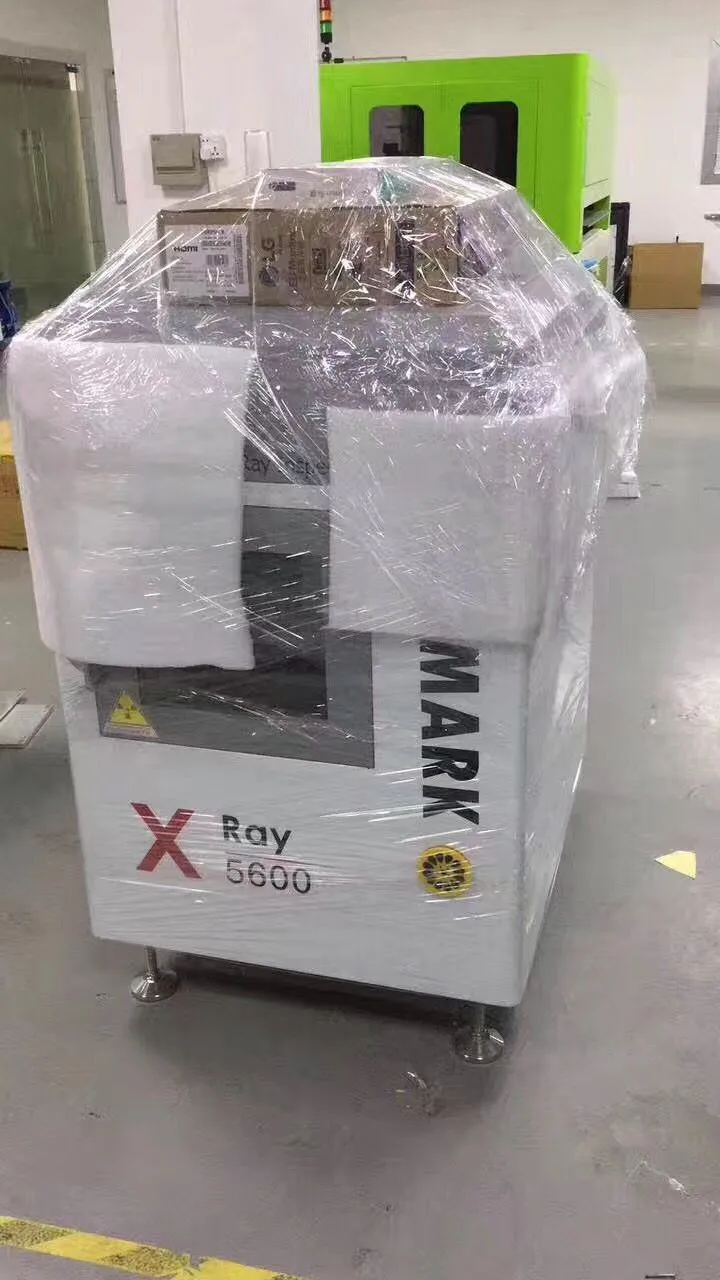

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request x ray gold testing analyzer
