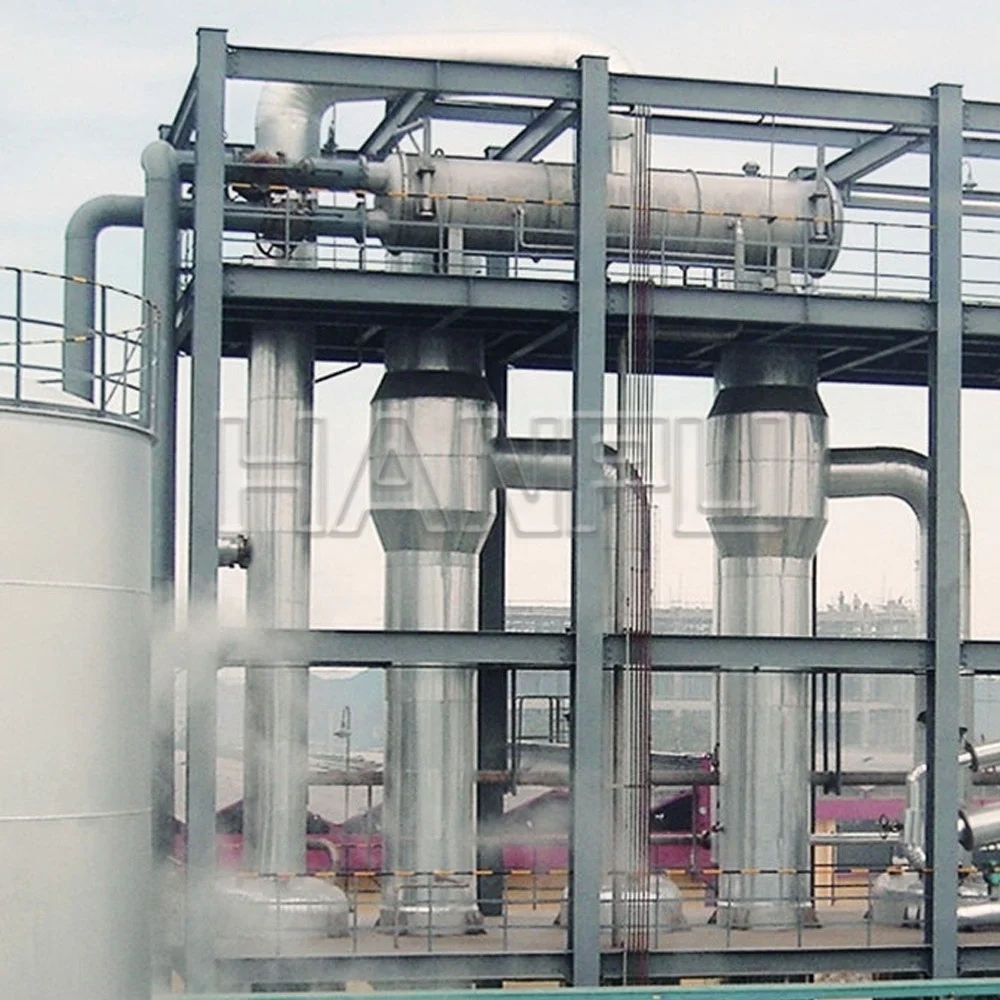

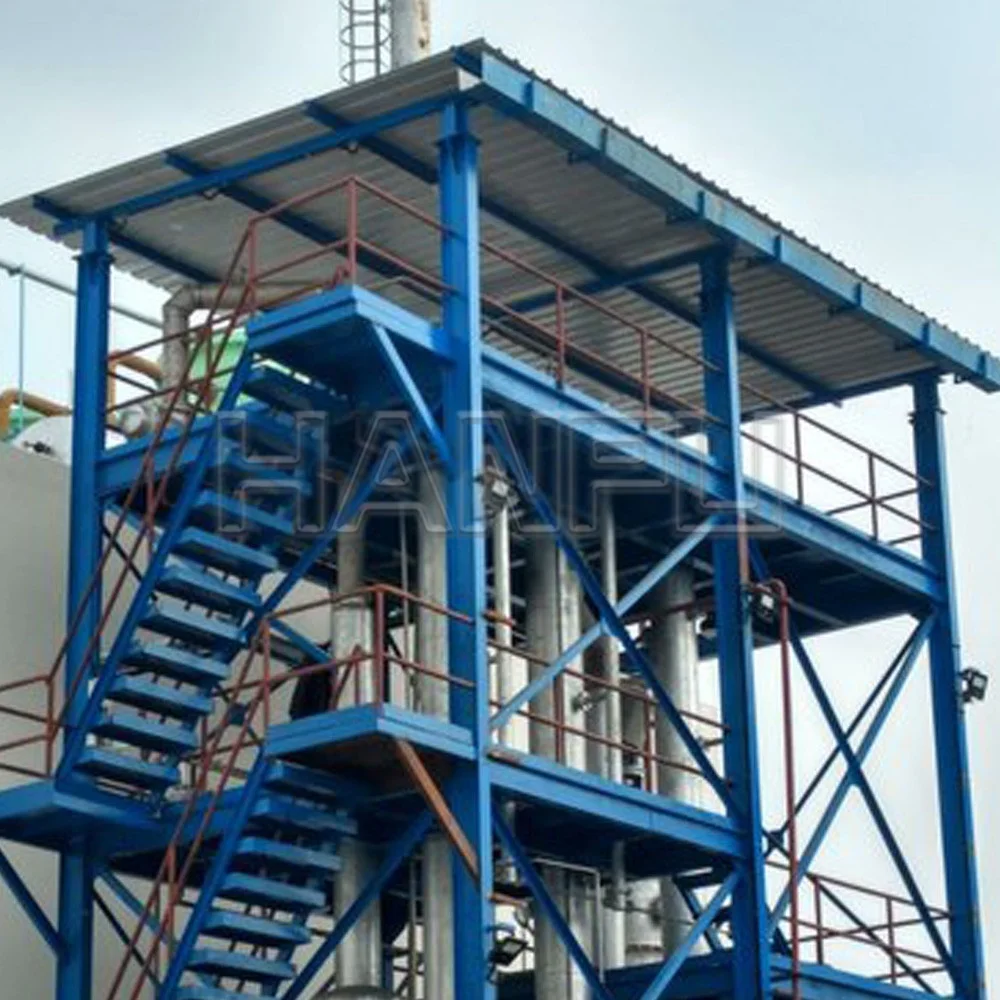

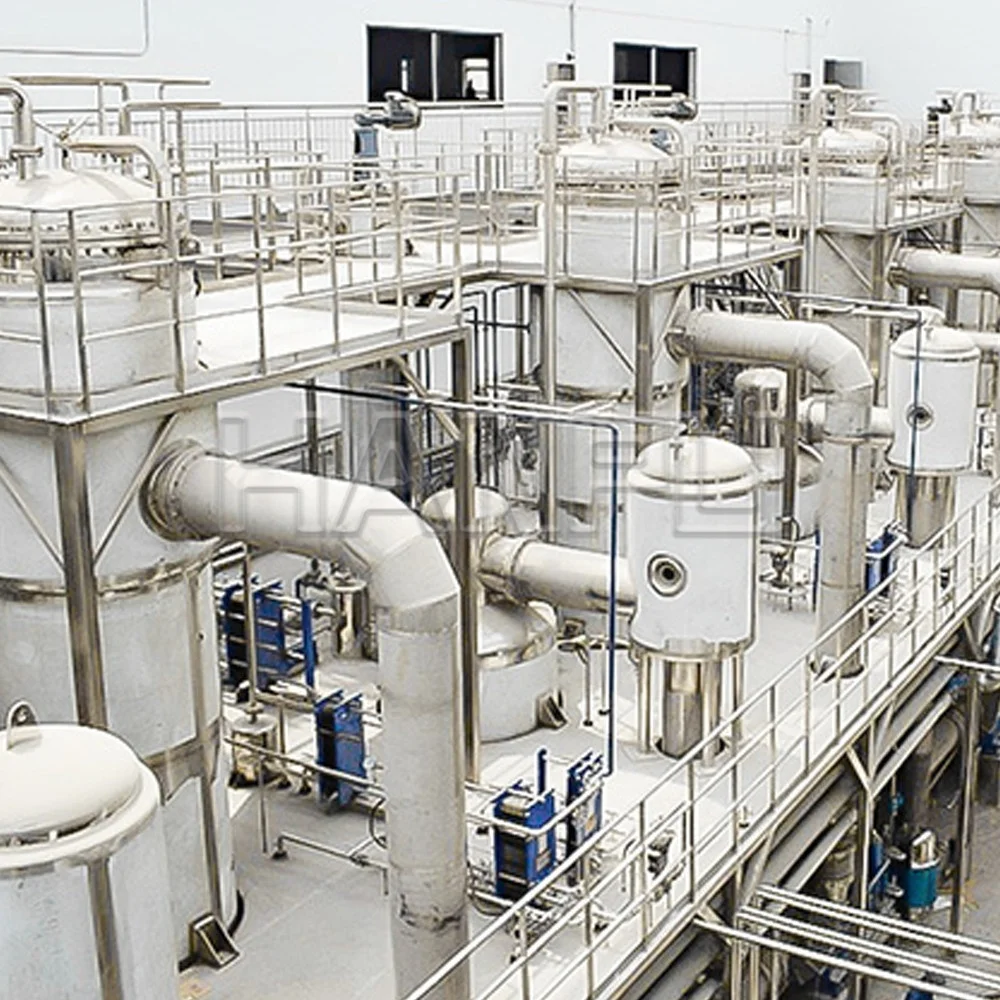

Многофункциональный Mvr испаритель сточных вод MVR падающая пленка вакуумный для дистилляции термоэлектрический
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Jiangsu Hanpu Mechanical Technology Co. Ltd
Сохранить в закладки 62333561004:
Описание и отзывы
Характеристики
Products Description
Mechanical vaporization re-compression system, which is called MVR which principle is to compress the second steam generated by evaporator by high efficiency steam compressor; this process transfers electric energy to heating energy and higher the pressure and temperature of second steam. The second steam with higher temperature will be sent to evaporation room to heat the product for evaporation. So the latent heat of vaporization of the second steam can be circularly used. Making use of less energy which is the mechanical energy of compressor blade wheel as the compression heat pump, energy is added into the heating medium and is circularly used in heating process. Under this circumstance, no need to add first steam as heating medium.
Main Characteristics | ||||||||
◆ Main driven power of MVR evaporation system is electric energy. Electric energy transfer to mechanical energy and improve the quality of second steam which is more economic than produce or purchase fresh steam. ◆ Under most of the evaporation process, system no need fresh steam during operation. Only need some steam compensation for pre-heating the raw material when heat energy from product discharged or mother liquid cannot be recycled due to process requirement. ◆ No need independent condenser for second steam condensation, so no need circulating cooling water. Water resource and electric energy will be saved. ◆ Compared with traditional evaporators, MVR evaporator temperature difference is much smaller, can achieve moderate evaporation, greatly improve product quality and reduce fouling. ◆ Evaporation temperature of system can be controlled and very suitable for evaporation an concentration of thermal sensitive product. ◆ Lowest energy consumption and operation cost,electricity consumption of one ton water's evaporation is 2.2ks/C. | ||||||||
Evaporation Tech
TVR Evaporation
TVR(Thermal Vapor Re Compression) evaporation,that is the recompression evaporation of thermal steam,uses the principle of steam jet pump and uses high/medium pressure steam as power to compress and mix part of the secondary steam and then enter the heating chamber as heating steam
Waste heat evaporation
Generally used the heat recycling evaporation
Strictly requirements to waste gas quality, especially to the solid contents.
Used for material pre concentration.
With low run cost
Strictly requirements to waste gas quality, especially to the solid contents.
Used for material pre concentration.
With low run cost

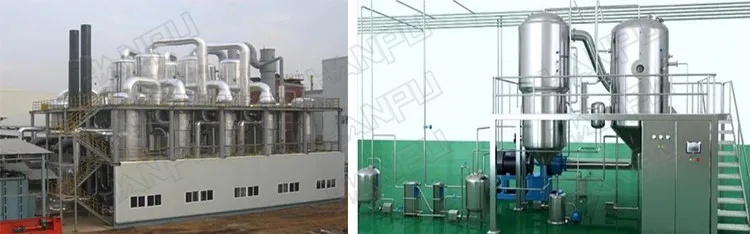

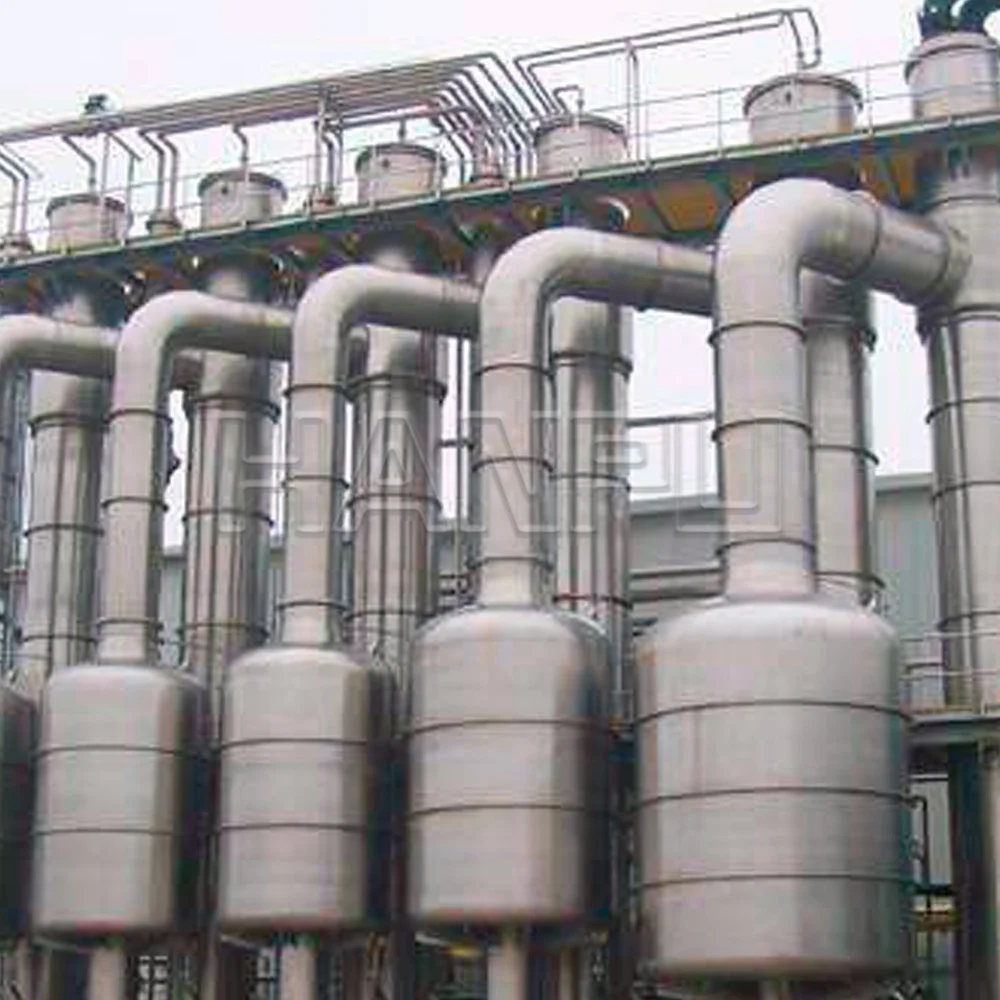

Multiple effect evaporation
It is a system that connects multiple evaporators. Only fresh steam is added to the first effect, and the generated secondary steam is used as the heating steam of latter effet, that is,the heating chamber of the latter effect becomes the condenser of the former seconday steam.
By analogy, the last effect is often operated with colling medium. Therefore, multi-effect evaporation not only significantly reduces the consumption of heating steam, but also significantly reduces the consumption of cooling medium.
By analogy, the last effect is often operated with colling medium. Therefore, multi-effect evaporation not only significantly reduces the consumption of heating steam, but also significantly reduces the consumption of cooling medium.
Application
"zero release" solution for industrial waste water
1)Ammonia and chloride waster water, multiple inorganic salt waster water
2)electroplating waste water
3)printing and dyeing waste water
4)food industry waste water
5)paper waste water
6)petrochemical, metallurgy waste water
Evaporation and concentration for process industry
1)food fermentation (aginomoto, citric acid, starch and sugar)
2)pharmacy (traditional Chinesemedicine preparation, low temperature concentration of western medicine)
3)fine chemical (pesticide, synthetic dyes, organic pigments, paints, spice and essence, cosmetic)
4)chlorine chemical (salt water concentration)
5)seawater desalt
6)metallurgical in
Recommend Products
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd.
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

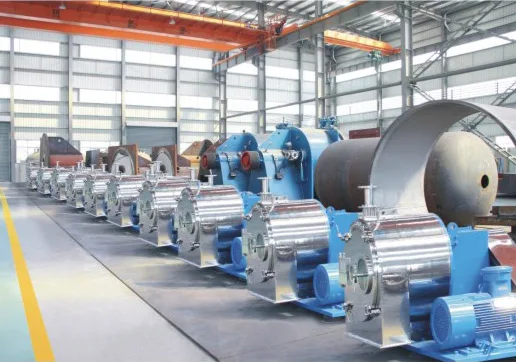

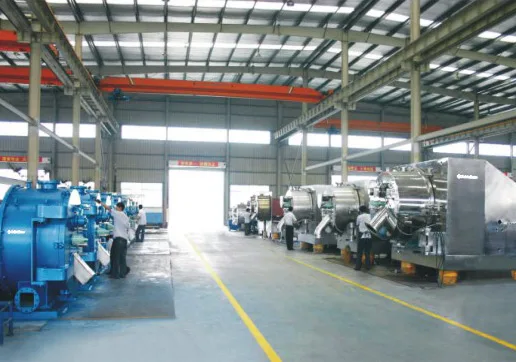

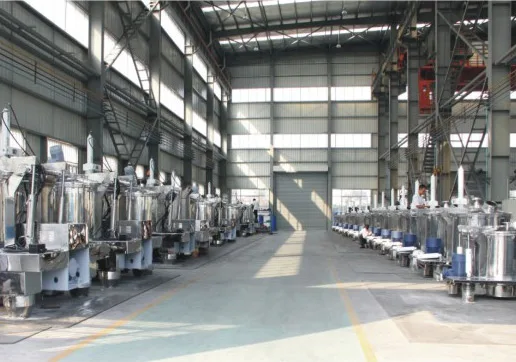

The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.

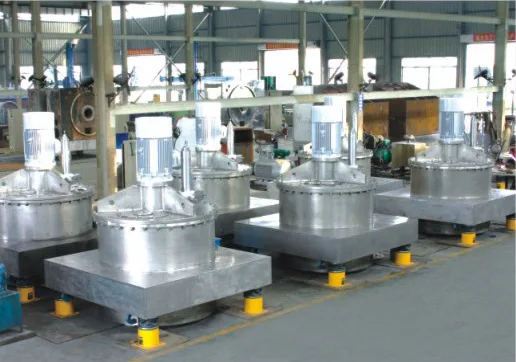

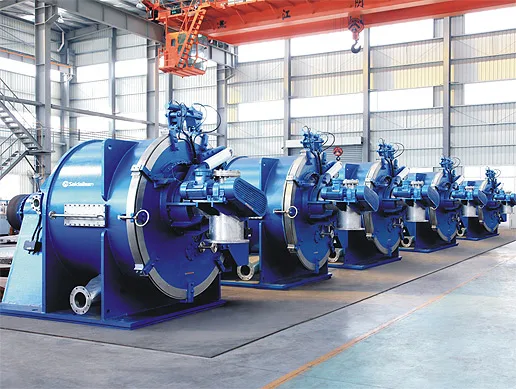

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.
Certifications

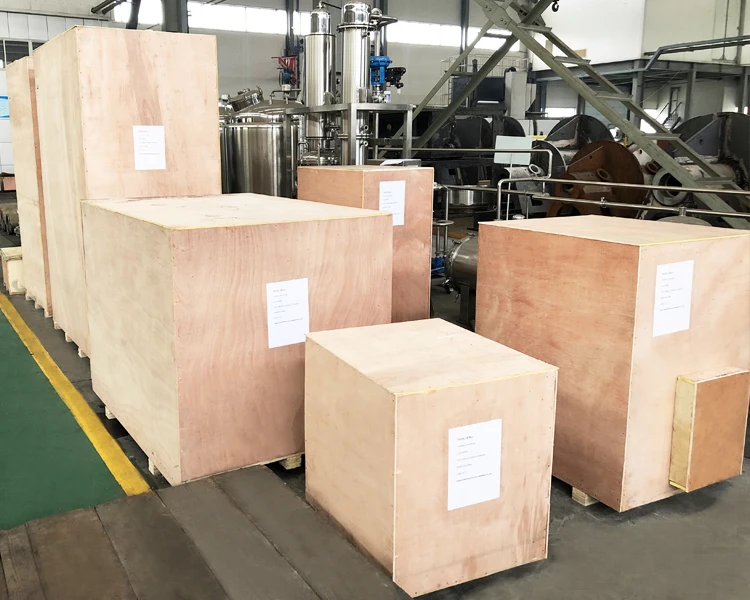

Packing & Delivery

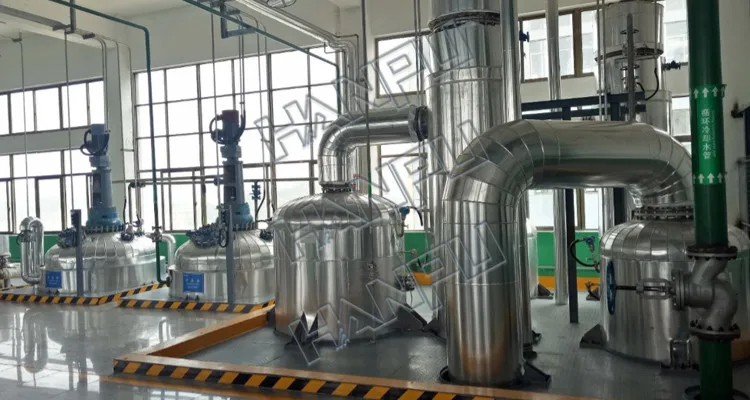

Customer Photos
