Популярный протокол GPS-трекера JT808 Cat1 Бесплатная платформа
1 118,65 ₽ - 1 329,15 ₽
Автомобиль Грузовик Мотоцикл Велосипед gps трекер с мощность отрезать и АКК обнаружения Y18 модуль
- Категория: >>>
- Поставщик: Shenzhen Xiyuan Electronic Technology Co. Ltd.
Сохранить в закладки 62335214617:
Описание и отзывы
Характеристики
Skype/Wechat: sallycailx Whatsapp: +8613556860568

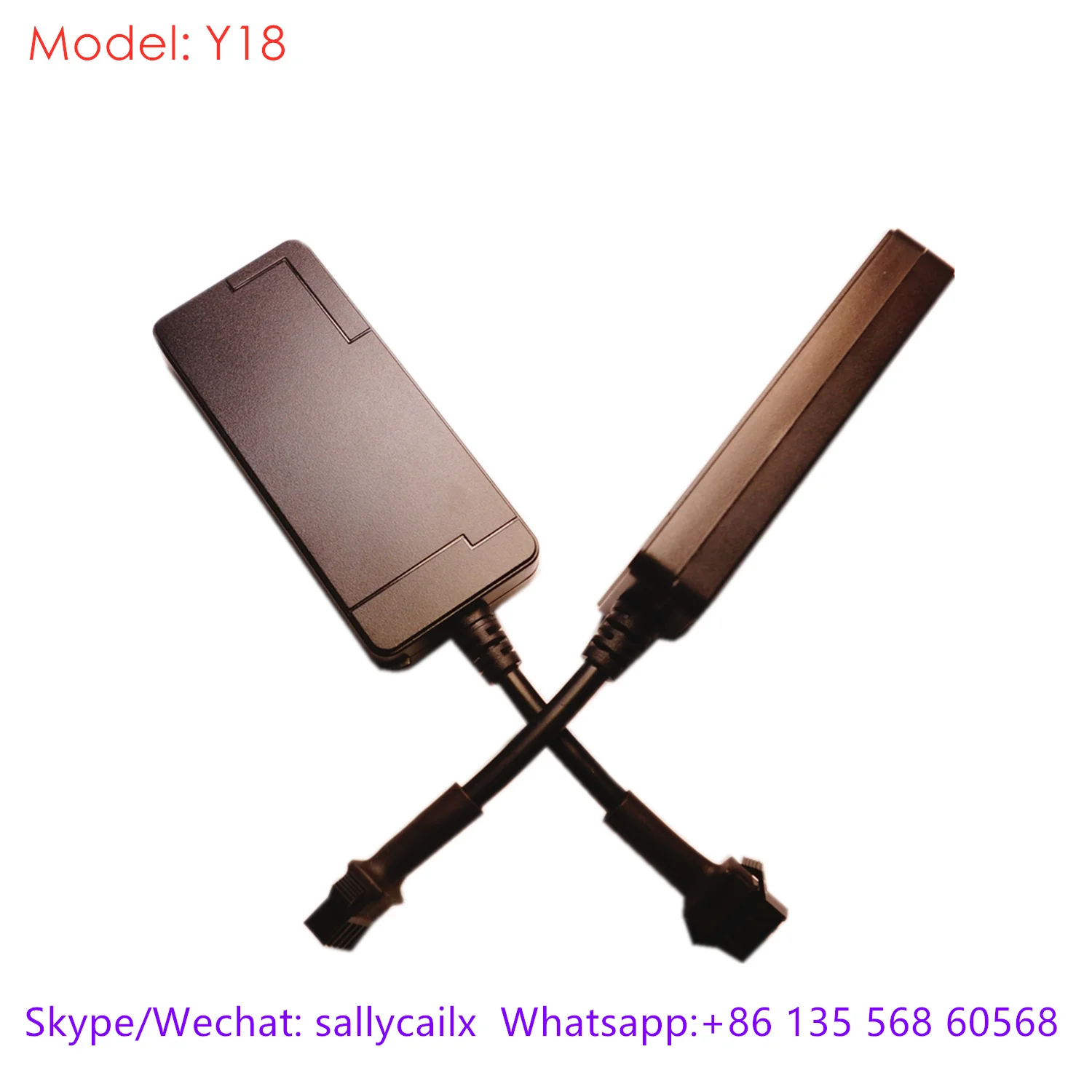

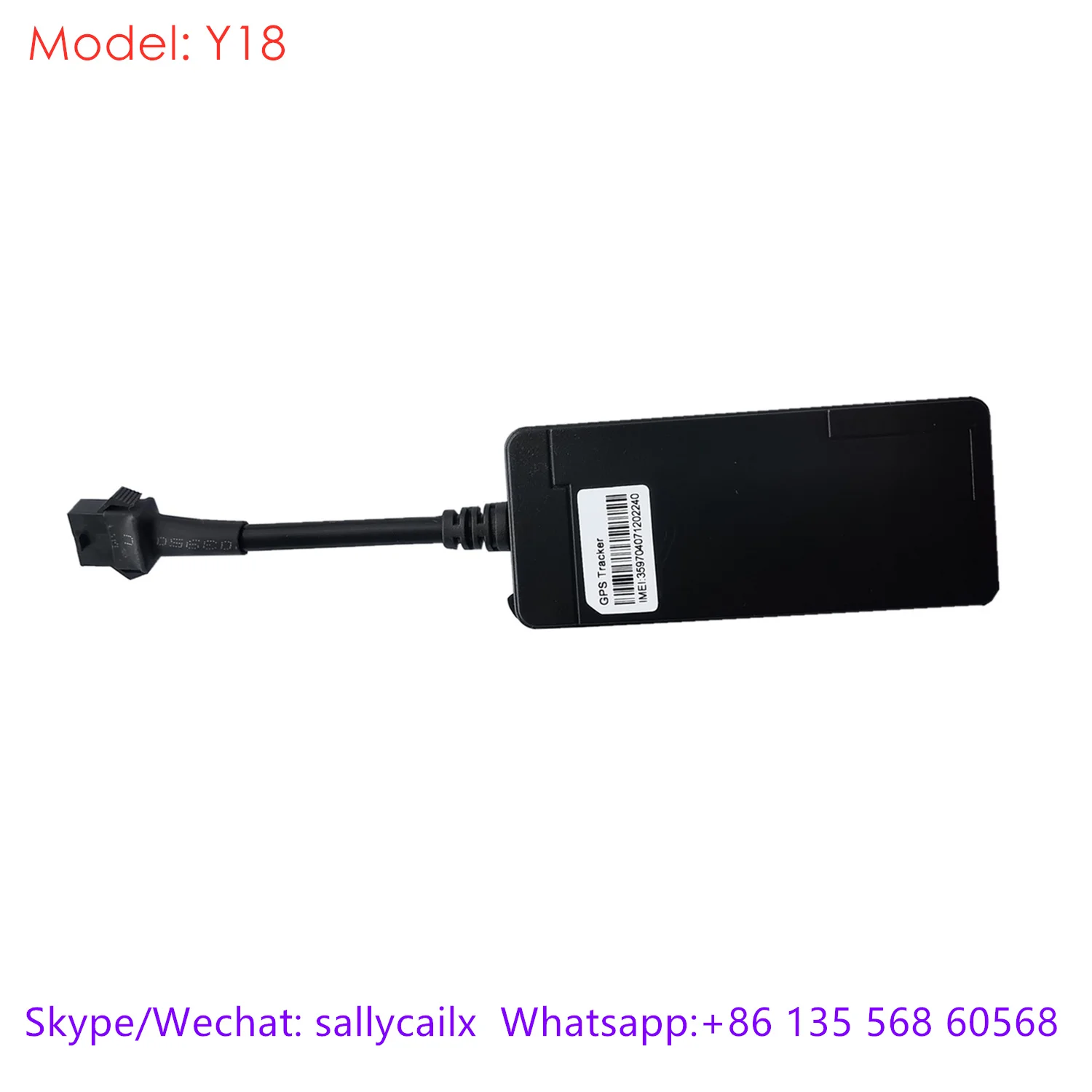

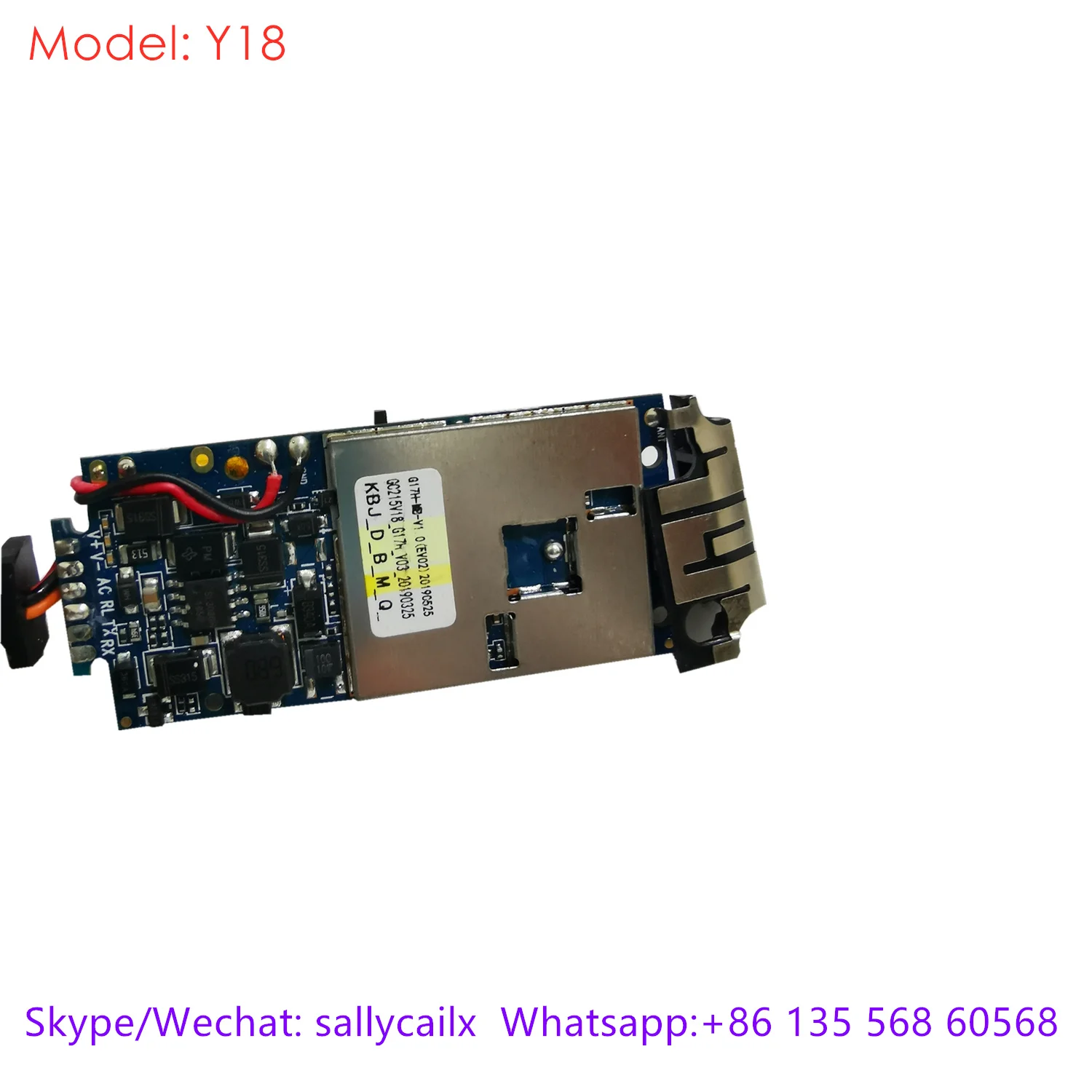

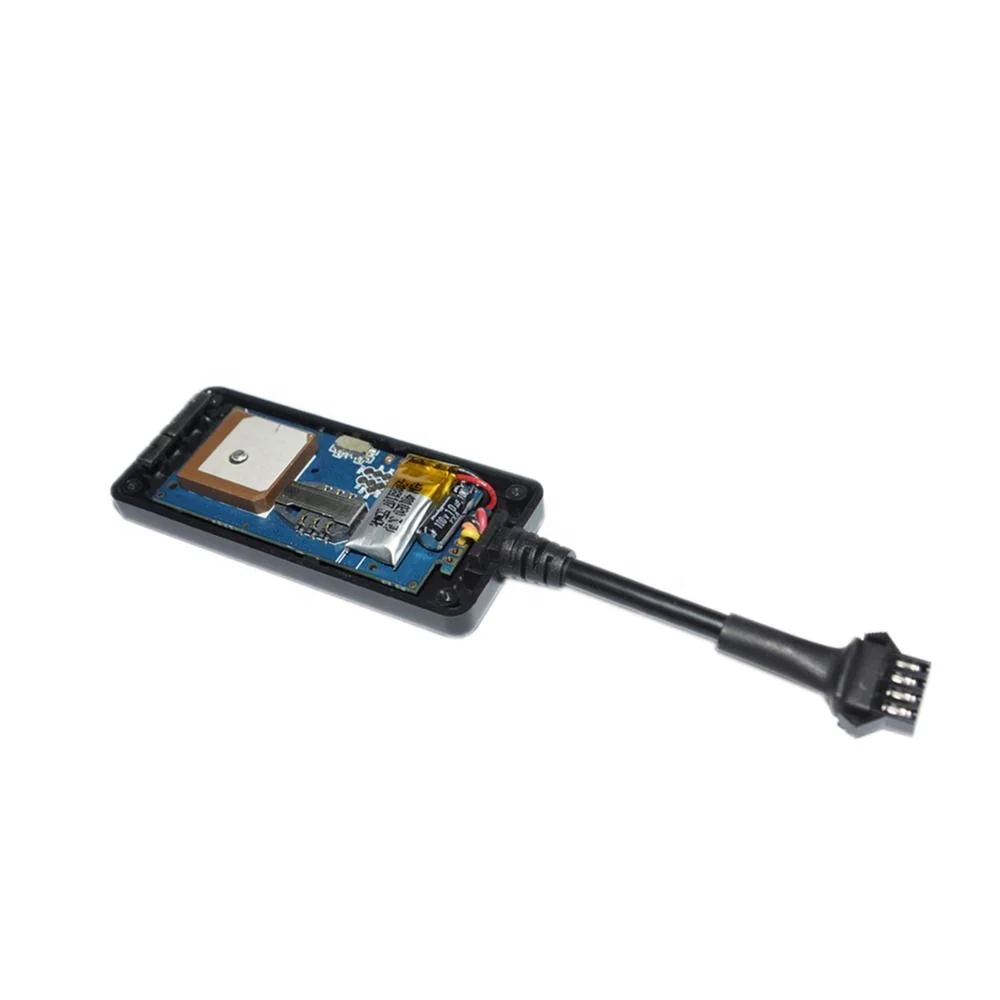

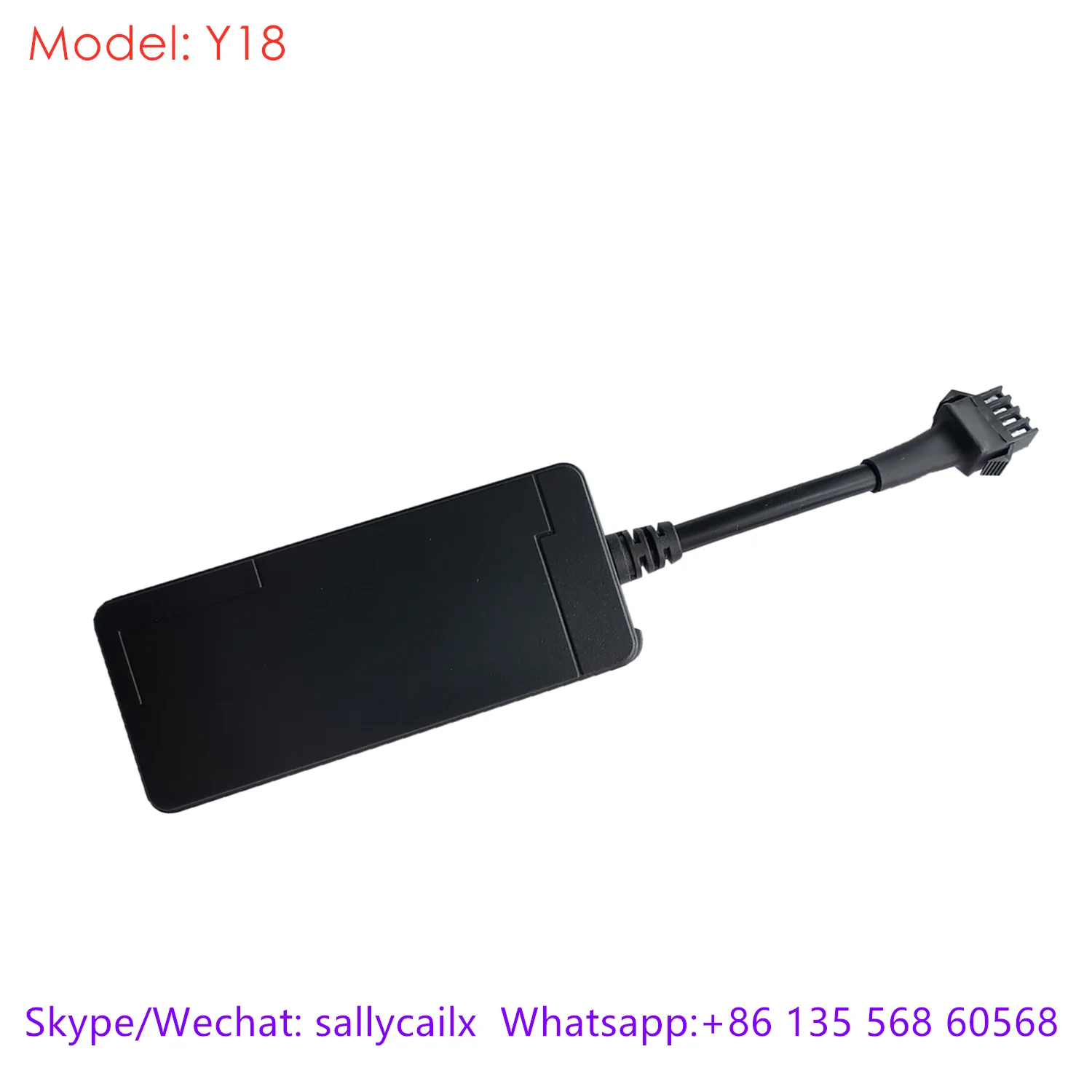

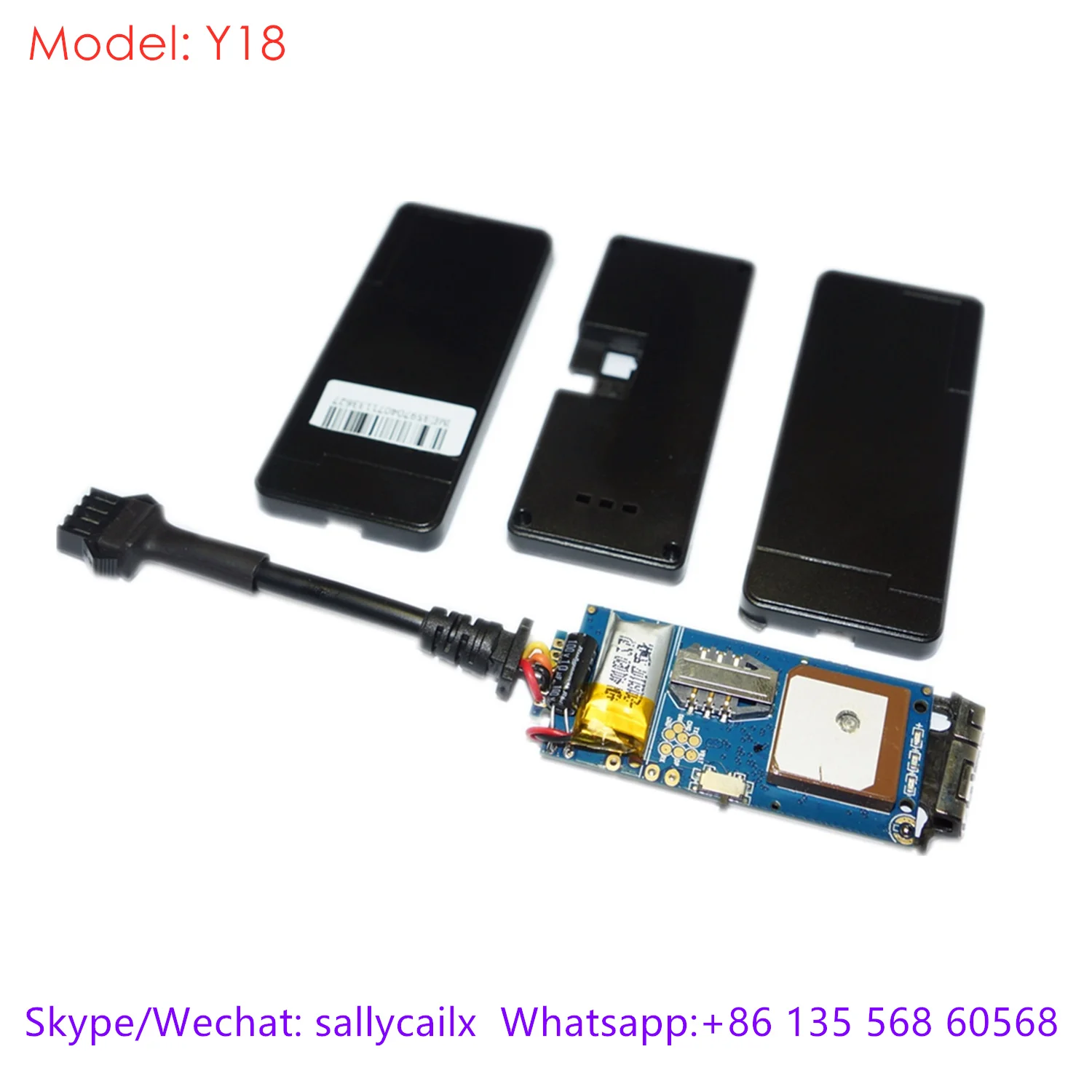

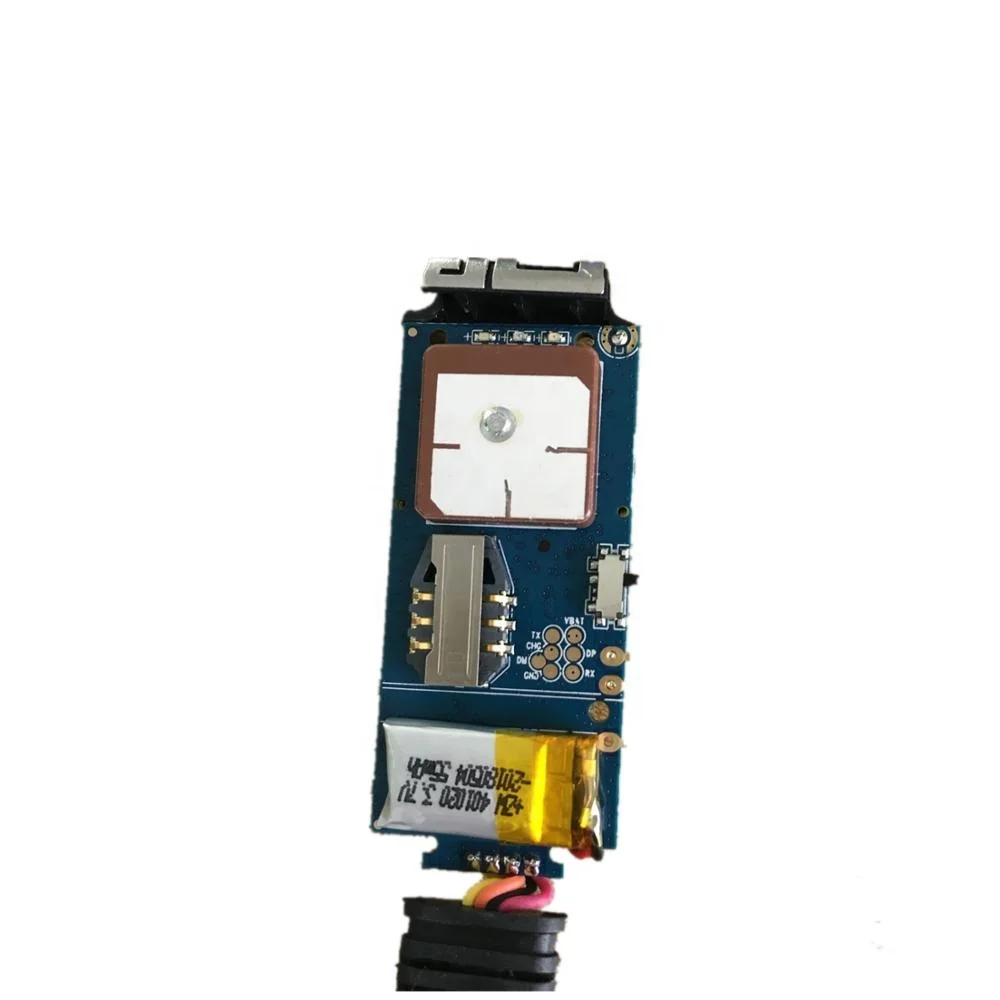

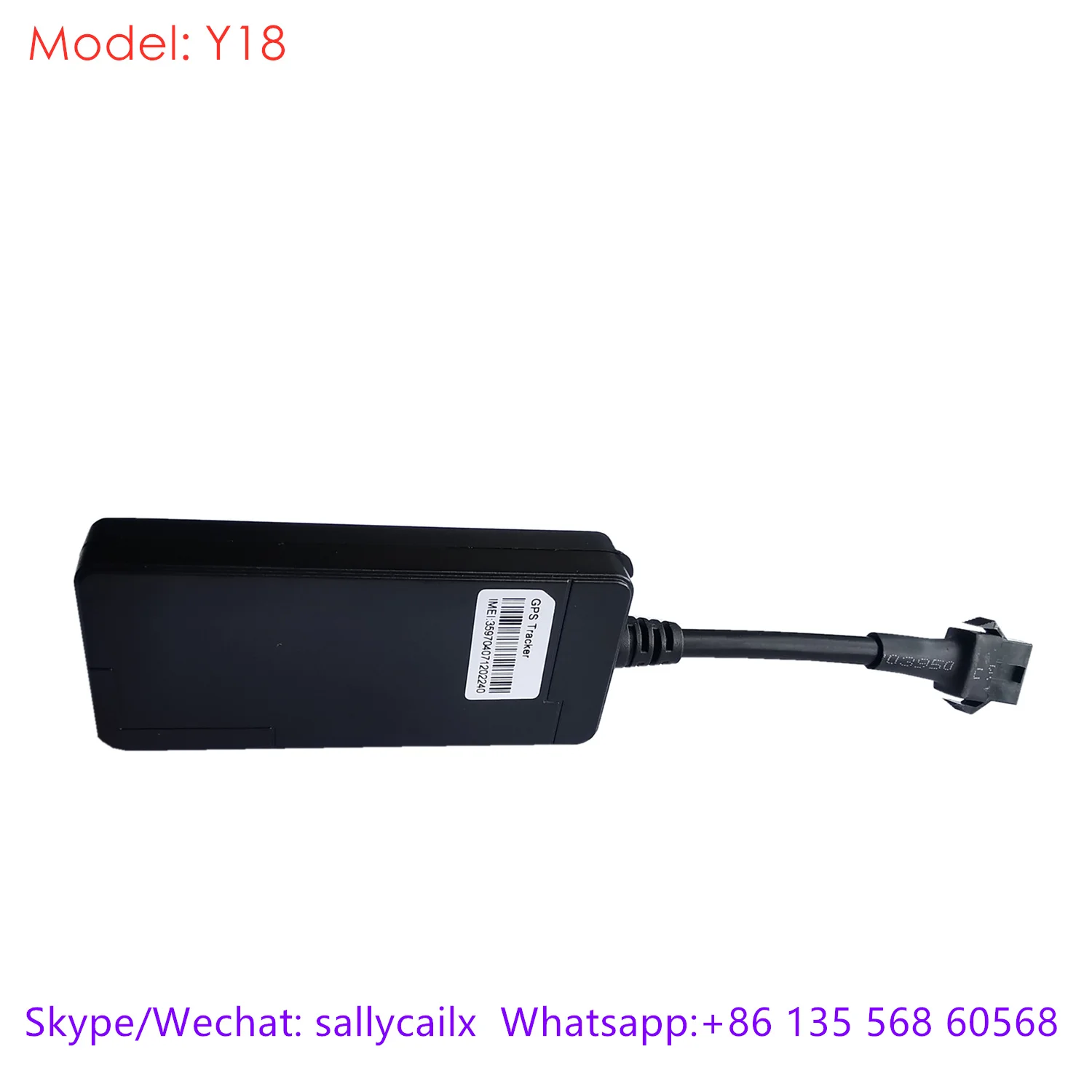

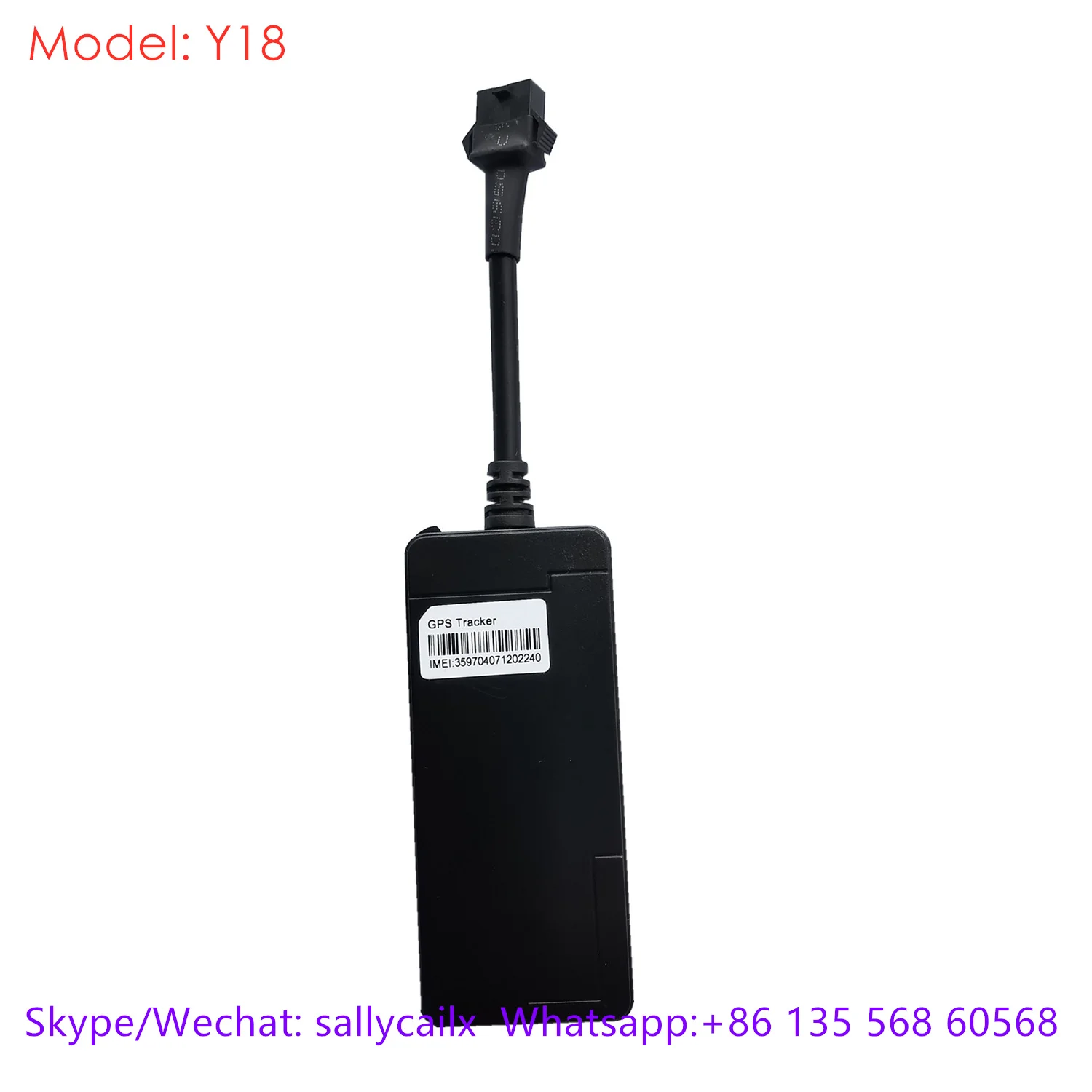

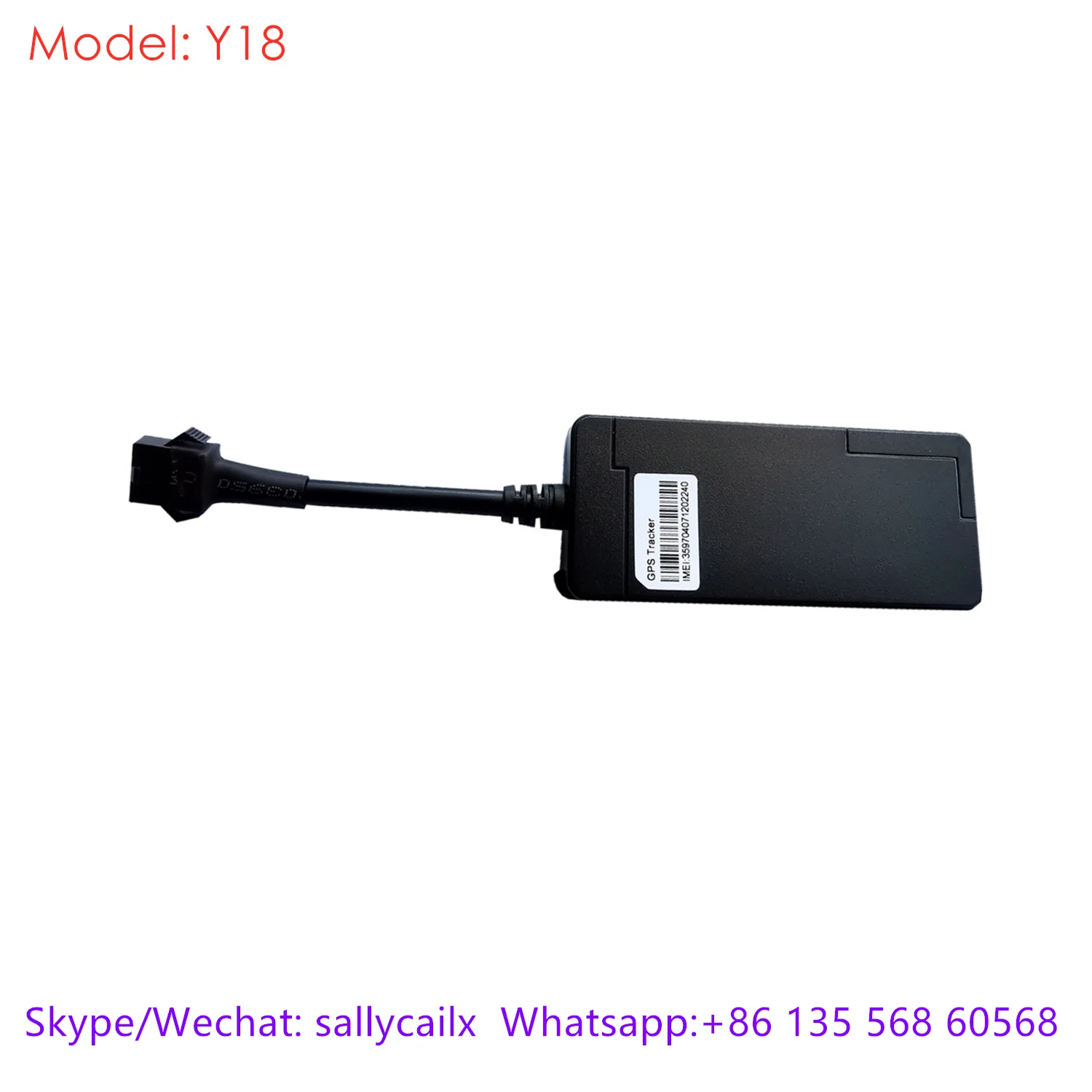

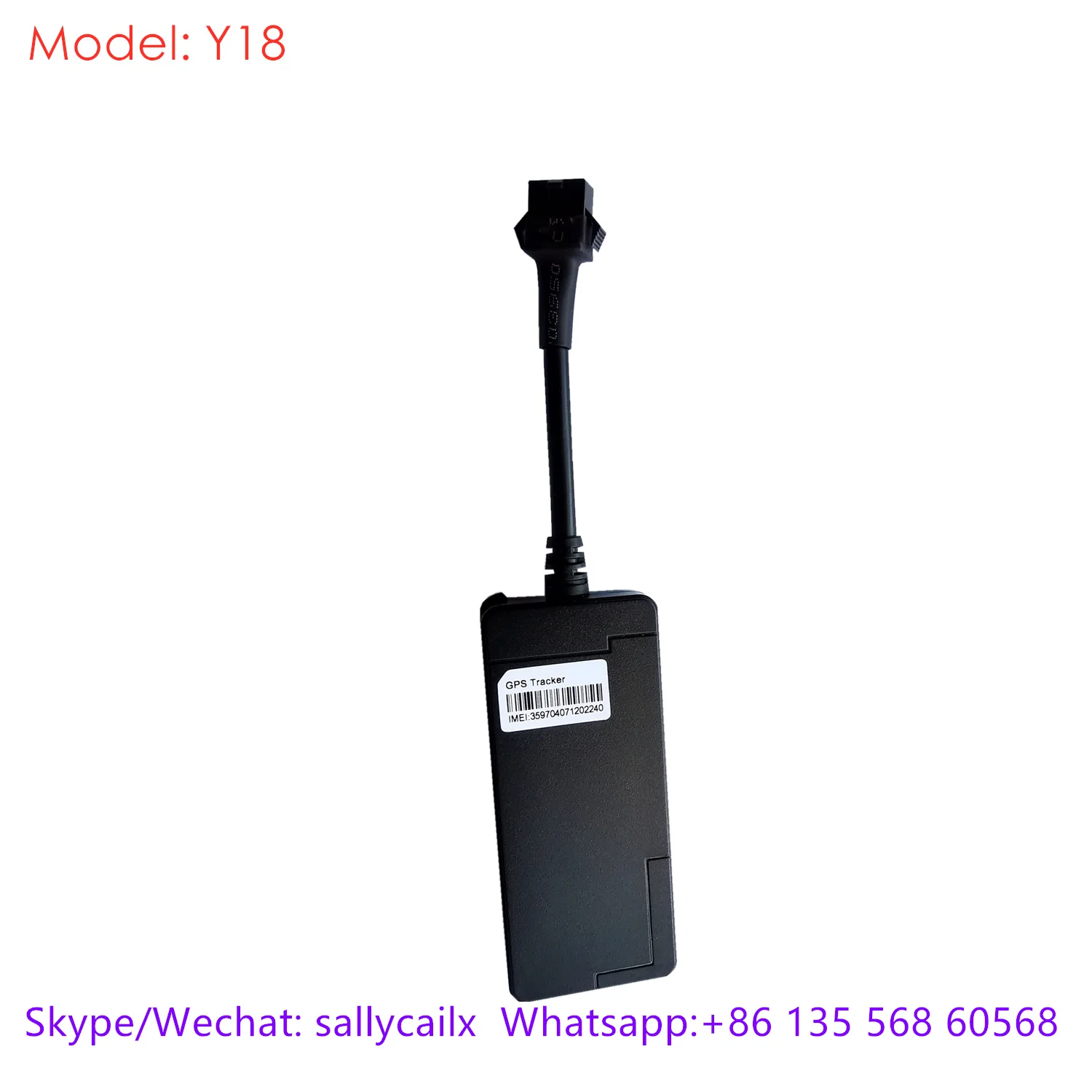

car Truck Vehicle Motorcycle bike gps tracker with power cut off and acc detection Y18 gps module
Y18---gps vehicle tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-90v voltage range, suitable for trucks, cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of ACC detection. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.
Product Features:
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-90V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Environment for use :
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
6.Battery: 70MAh battery
Basic Specifications:
| Working Voltage: | 12VDC/24VDC |
| Standby Current | <3mA |
| Work current : | <120mA |
| GPS positioning accuracy | 15M |
| GSM positioning accuracy | 100M |
| GPS Frequency | 1575MHz |
| GSM Frequency : | 850/900/1800/1900MHz |
| Hot/warm/cold start time : | <3S,<1S,<60S |
| Dimensions (mm) : | 74*32*13mm |
| Weight : | 30g |
Tracking System:
Demo 1
www.xytracking.net
User name: 2q
Password: 123456
Demo 2
//www.easyroadgps.com/Skins/DefaultIndex/?locale=en&back=true
user name: 2Q
Password: 123456

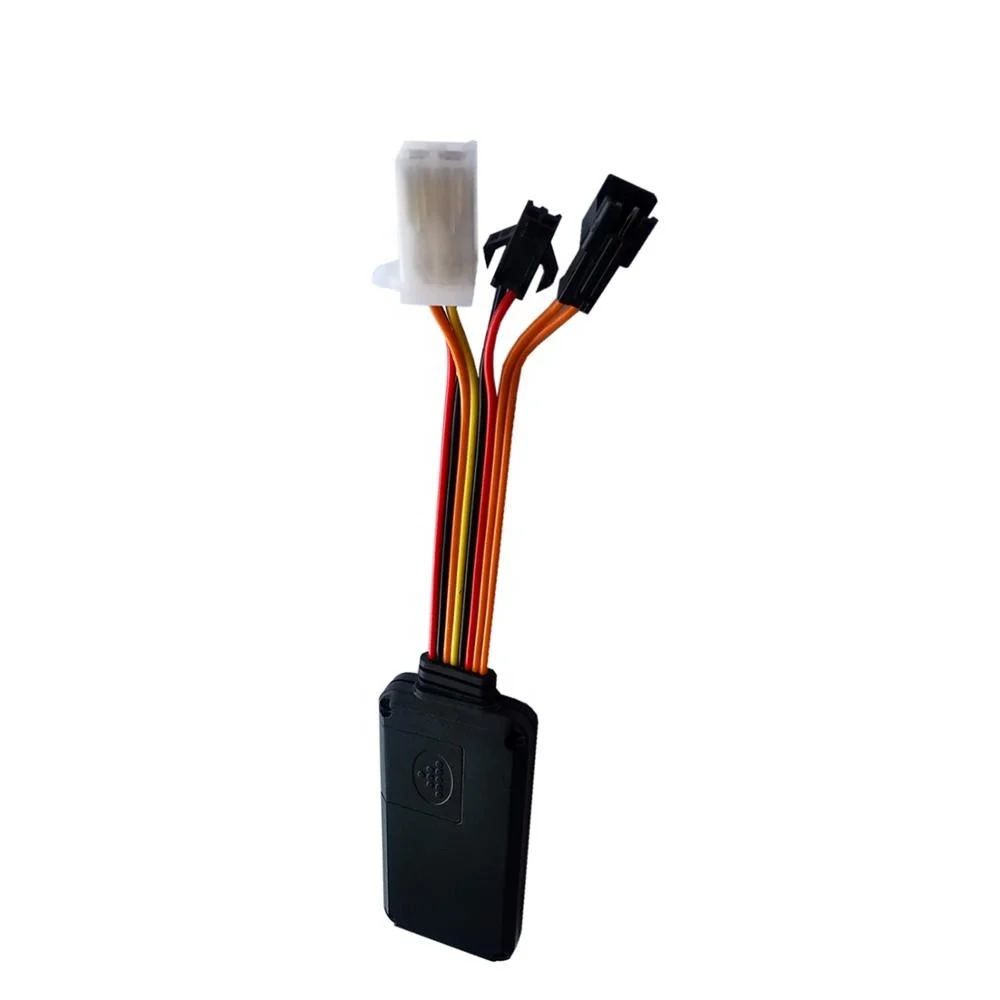

Versions Optional
Connect Cable Optional
1) 2pins cable
Power supply only

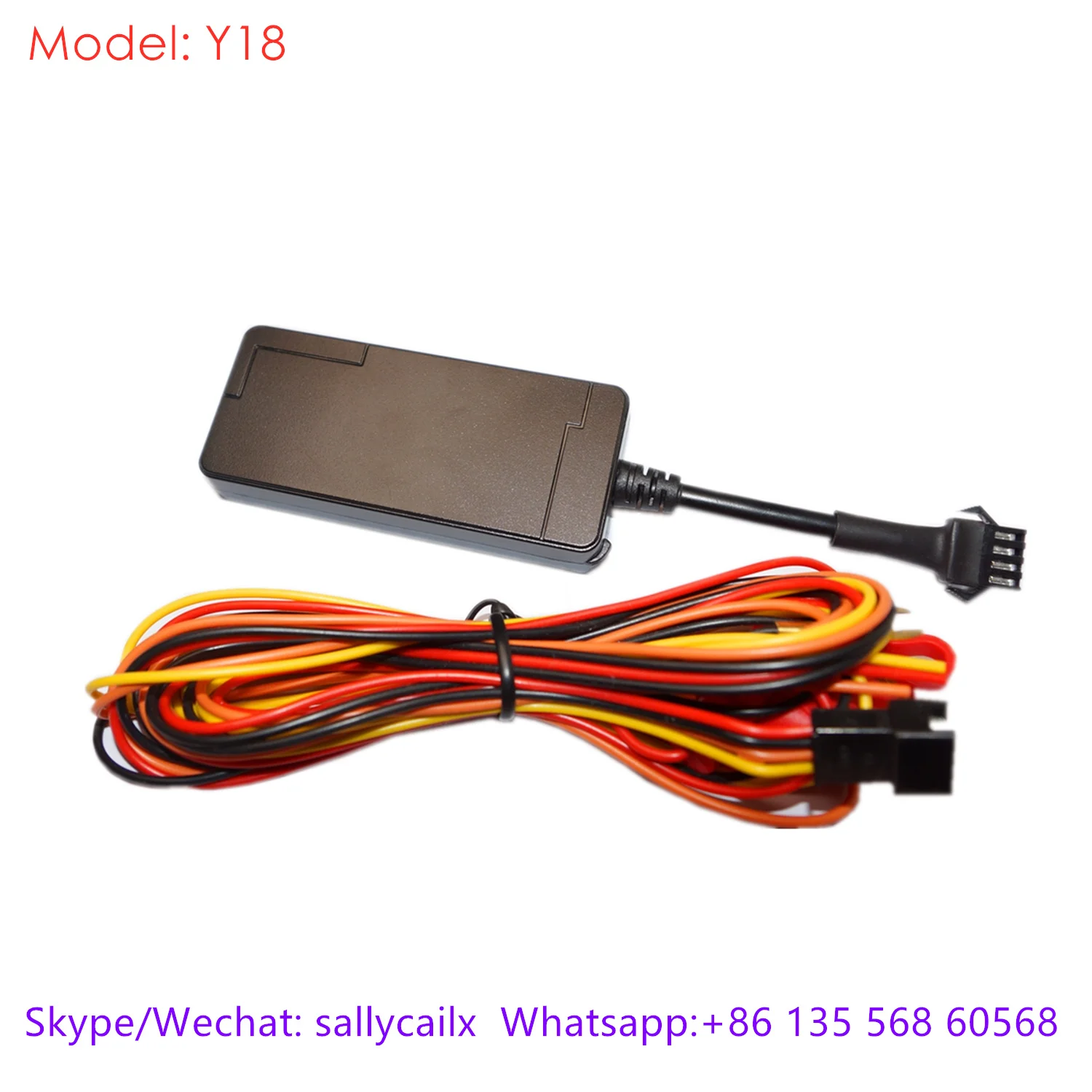

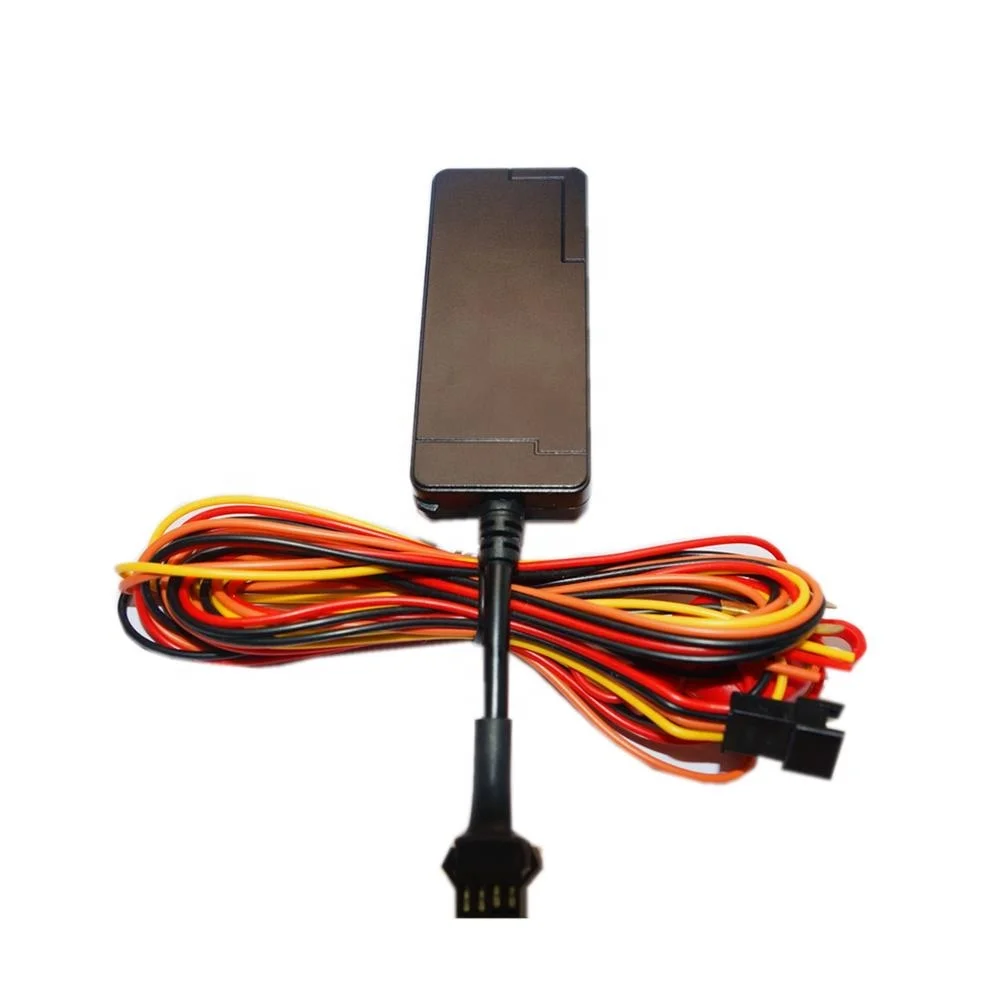

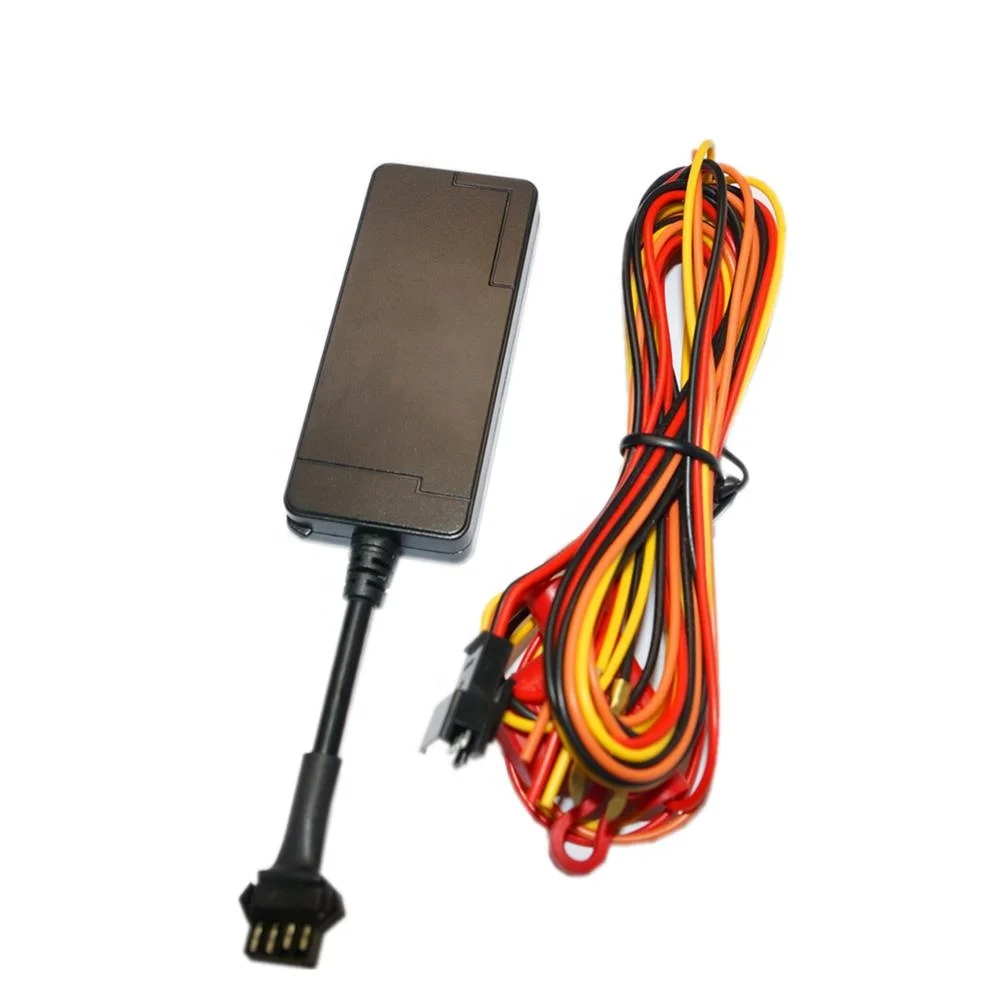

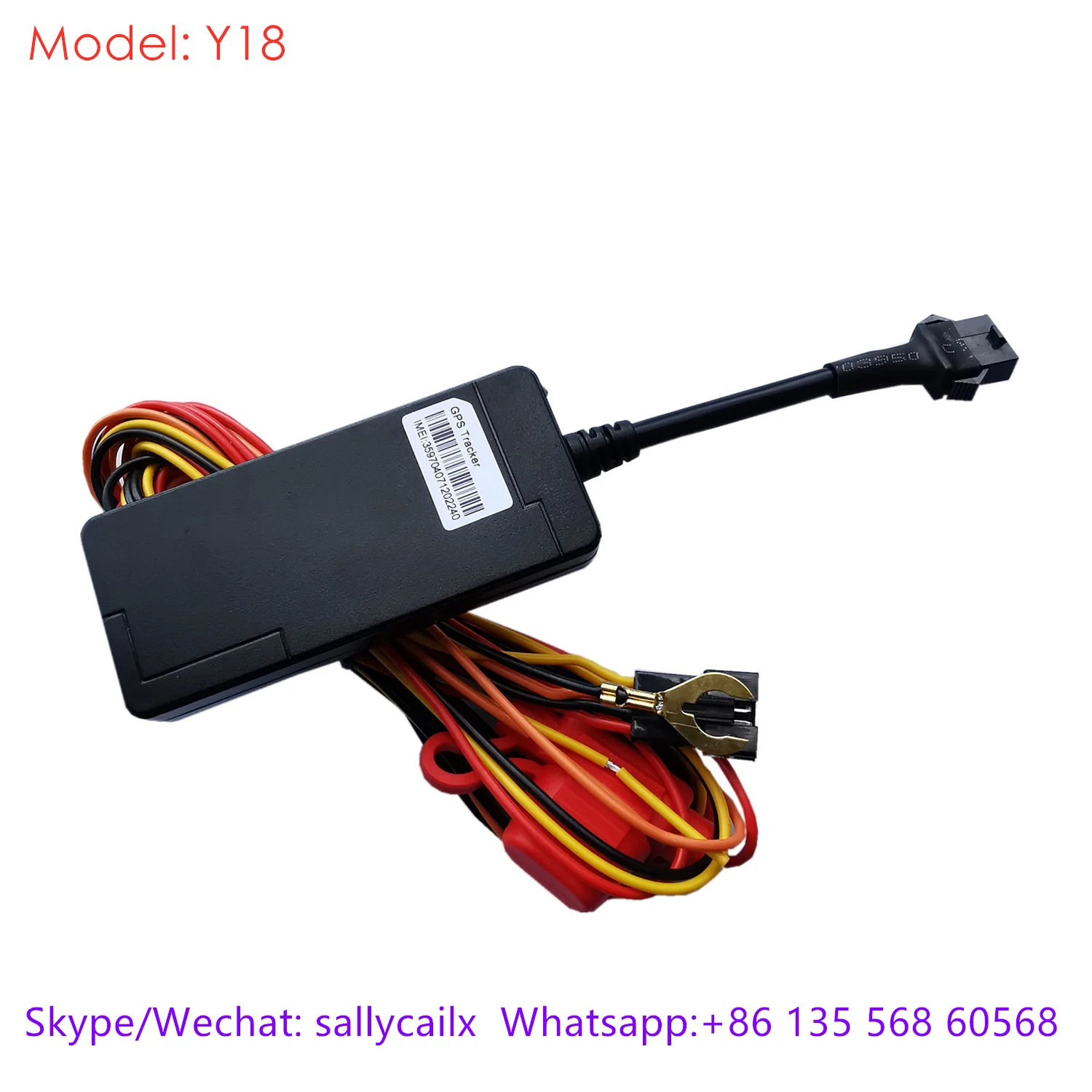

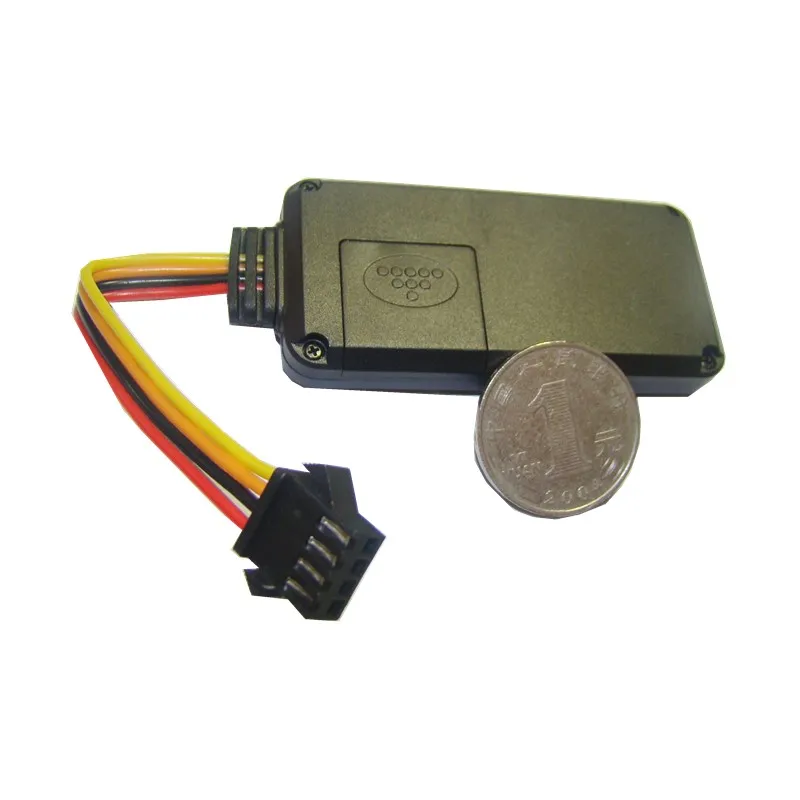

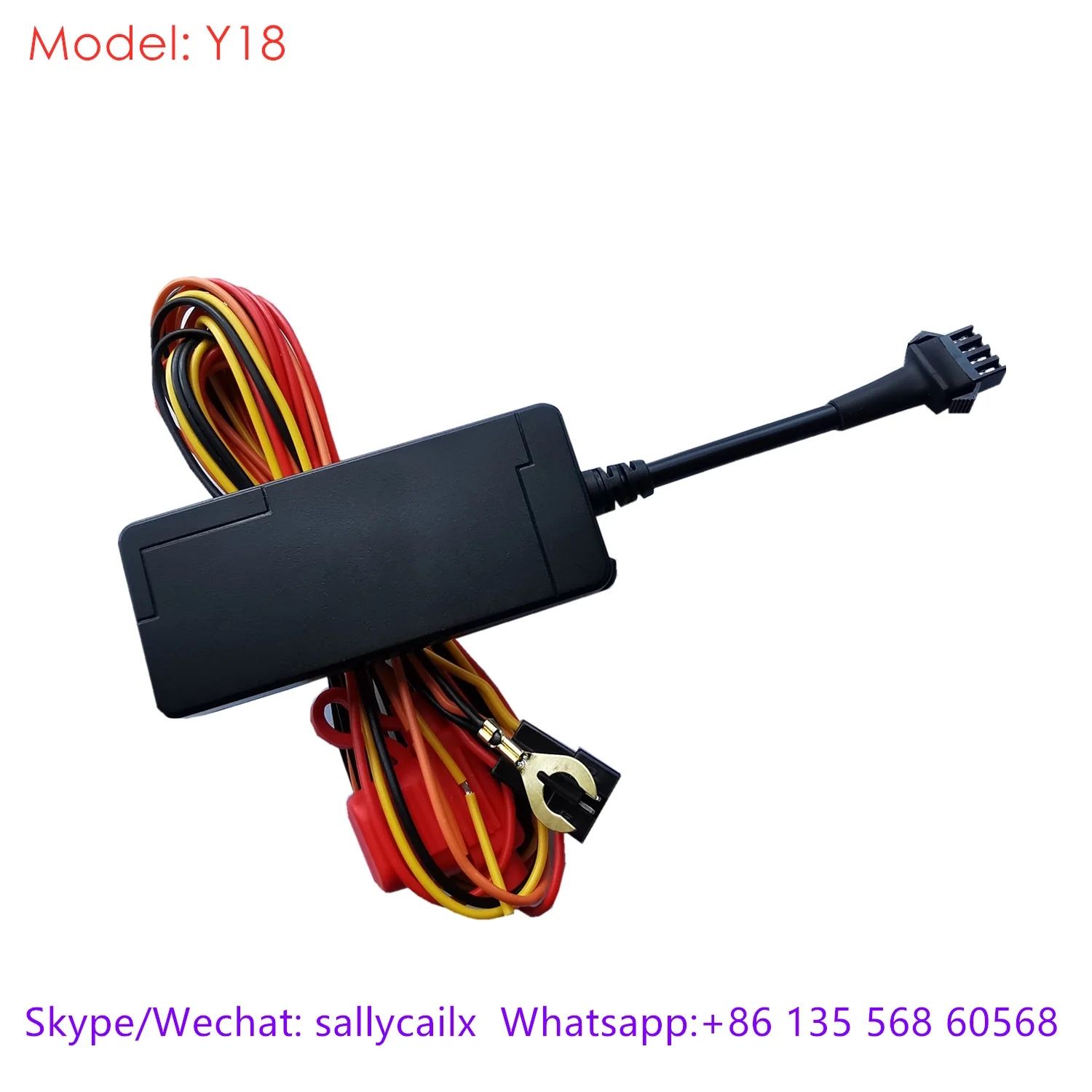

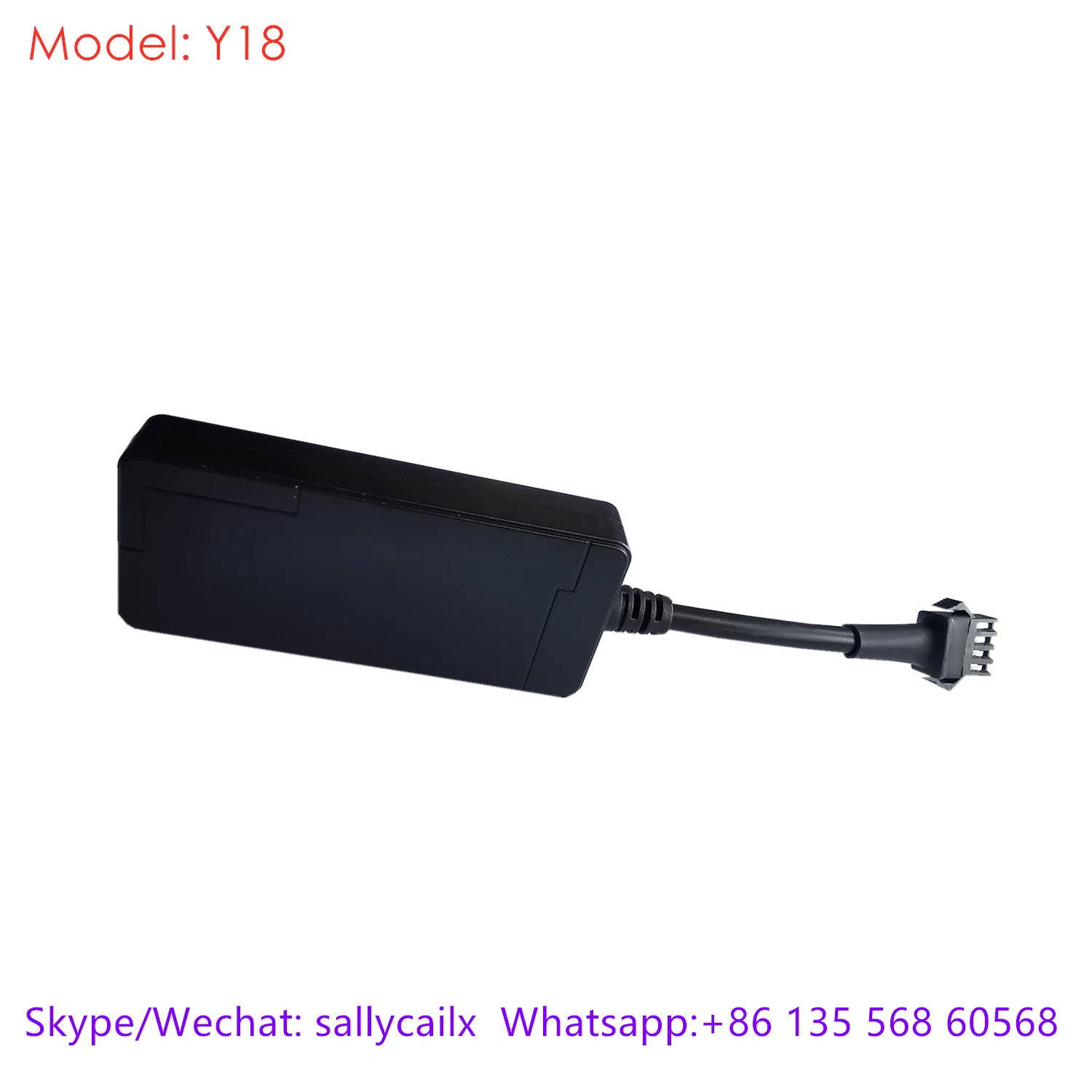

2) 4pins cable (Picture showed is 4 pin cable)
Connect Power cable, relay, ACC
Shenzhen Xiyuan Electronic Technology Co., Ltd is a Solution Provider of GPS Tracking System, have strong engineering team and ODM experience, can develop products in every potential form ,For lots of overseas companies make the Customized product which from Russia, UK ,USA ,Malaysia and so on. Customized color, logo and box accepted.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 6 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
