PH7-800-95 балласт для лампы UV Лидер продаж 75 Вт 87 95 ультрафиолетовое освещение
2 136,17 ₽ - 3 560,28 ₽

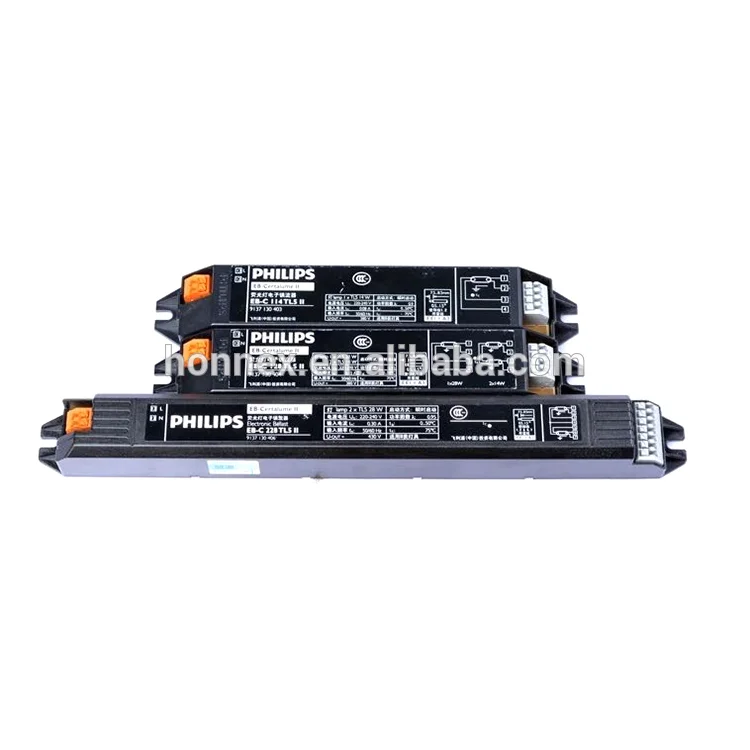

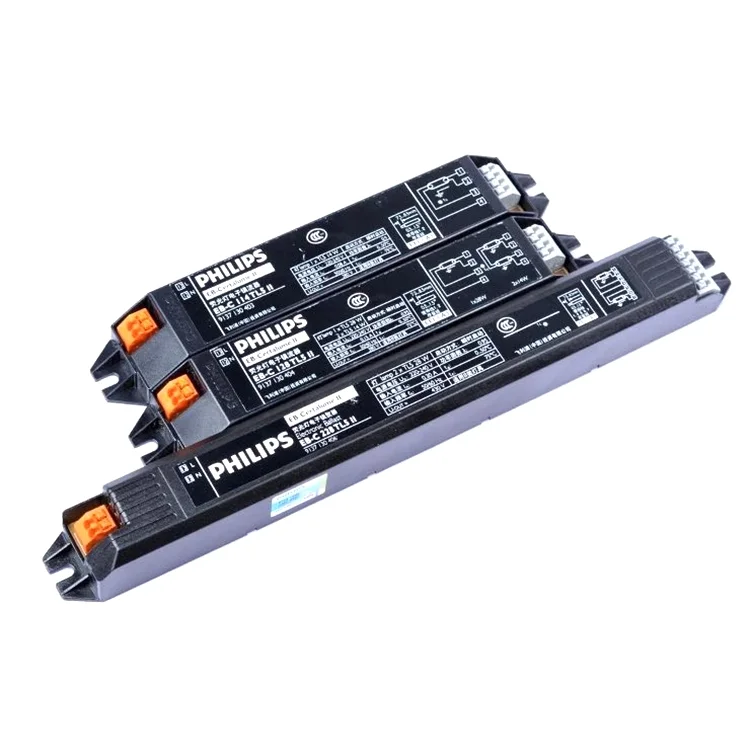

PHILIPS EB certalume для TLD лампы EB C 118 TL D 220 240V 50/60Hz 913713199015
- Категория: >>>
- Поставщик: Wenzhou Honnex Trading Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 62336433872:
Описание и отзывы
Характеристики
PHILIPS EB-C 118 TL-D 220-240V 50/60Hz
PHILIPS EB-C 136 TL-D 220-240V 50/60Hz
Affordable, reliable, high-frequency electronic ballast for TL-D fluorescent lamps, ideal alternative to electromagnetic fluorescent systemsThe cost-saving and reliable EB-C has energy efficiency class A2, and its robust design meets all necessary international standards for safety and EMC. The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application. Don’t use this driver if lamp is exposed to temperature below 0 deg C.
Product data
General Information
Type Version mk1
Lamp Type TL-D
Number Of Lamps 1 piece/unit
Number Of Products On MCB (16A Type B)
(Nom)
25
Automatic Restart No
Operating and Electrical
Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz
Operating Frequency (Nom) 42-60 kHz
Power Factor 100% Load (Nom) 0.96
Mains Voltage Safety (AC) -25%-+15%
Earth Leakage Current (Nom) 0.5 mA
Power Losses (Nom) 2.8 W
Wiring
Connector Type Input Terminals 250 manual connector [ Suitable for manual
wiring and easy release button]
Cable Capacity Output Wires Mutual (Max) 120 pF
Color Input Terminals Orange
Color Output Terminals Grey
Connector Type Output Terminals 250 manual connector [ Suitable for manual
wiring and easy release button]
Cable Length Hot Wiring 0.75 m
Wire Striplength 9.0-10.0 mm
Dual Fixture Master/Slave Possible, lamp wires 2m max. length [ Master/
Slave operation possible]
Input Terminal Cross Section 0.50-1.50 mm²
Output Terminal Cross Section 0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Max) 120 pF
System characteristics
Rated Ballast-Lamp Power 18 W
Rated Lamp Power On TL-D 18 W
General Information
Type Version mk1
Lamp Type TL-D
Number Of Lamps 1 piece/unit
Number Of Products On MCB (16A Type B)
(Nom)
25
Automatic Restart No
Operating and Electrical
Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz
Operating Frequency (Nom) 42-60 kHz
Power Factor 100% Load (Nom) 0.96
Mains Voltage Safety (AC) -25%-+15%
Earth Leakage Current (Nom) 0.5 mA
Power Losses (Nom) 2.8 W
Wiring
Connector Type Input Terminals 250 manual connector [ Suitable for manual
wiring and easy release button]
Cable Capacity Output Wires Mutual (Max) 120 pF
Color Input Terminals Orange
Color Output Terminals Grey
Connector Type Output Terminals 250 manual connector [ Suitable for manual
wiring and easy release button]
Cable Length Hot Wiring 0.75 m
Wire Striplength 9.0-10.0 mm
Dual Fixture Master/Slave Possible, lamp wires 2m max. length [ Master/
Slave operation possible]
Input Terminal Cross Section 0.50-1.50 mm²
Output Terminal Cross Section 0.50-1.50 mm²
Cable Capacity Output Wires To Earth (Max) 120 pF
System characteristics
Rated Ballast-Lamp Power 18 W
Rated Lamp Power On TL-D 18 W
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: No. It's all PHILIPS logo.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Send back the goods then check by PHILIPS.After check send the new to you.
Contact
If you have any question or more requirement,feel free to contact me, I will reply you ASAP
CTN:Jack Hong
TEL:86-577-89887719 MOB:86-15067810392
Wechat 8615067810392
WhatsAPP:+86 15067810392
E:jackhong(at)honnex-go.com
Похожие товары
Высококачественный электронный балласт с мгновенным запуском RL8-1000-155 100-155 Вт Универсальный
5 001,00 ₽ - 5 933,79 ₽
CWA балласт для натриевых ламп высокого давления 400 Вт 120 В 208 240 277 60 Гц
2 966,90 ₽ - 4 509,68 ₽
45 Вт 103w 100w 150w УФ-лампы балласт со светодиодным цифровым показать Срок службы лампы AC100-240v цифровой электронный
354,85 ₽

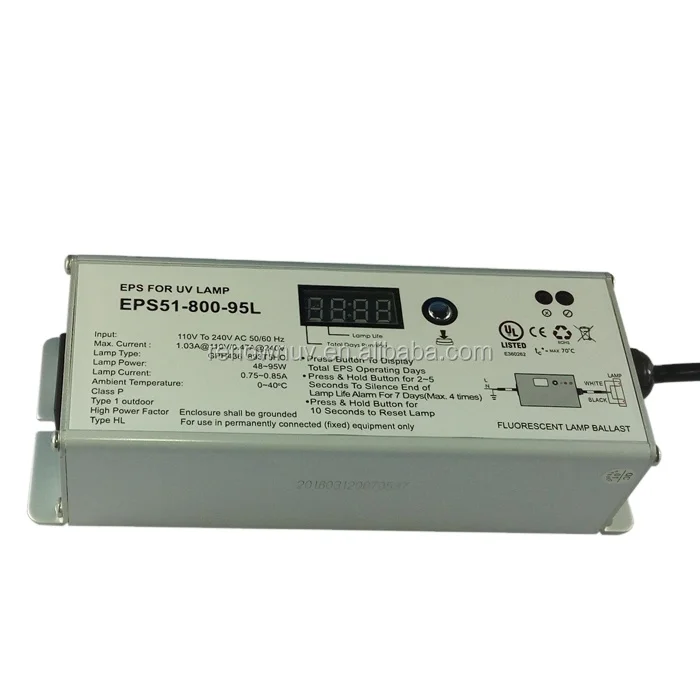

EPS51-800-95L электронный балласт с расширенным таймером обратного отсчета для освещения УФ-лампы
