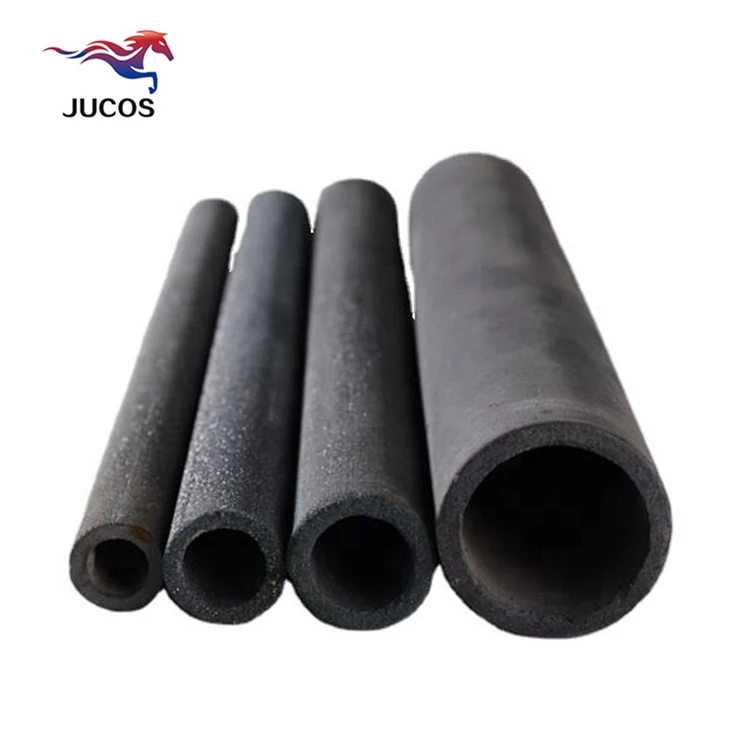

Высокотемпературная устойчивая тугоплавкая труба/труба из карбида кремния Sic для промышленной печи
25,00 $ - 33,00 $
Огнеупорный керамический RSiC перекристализованный кремниевый Карбид sic тигель для печи
- Категория: Refractory >>>
- Поставщик: Henan Gurdoo Industry Co. Ltd.
Сохранить в закладки 62336872839:
Описание и отзывы
Характеристики
Product Description

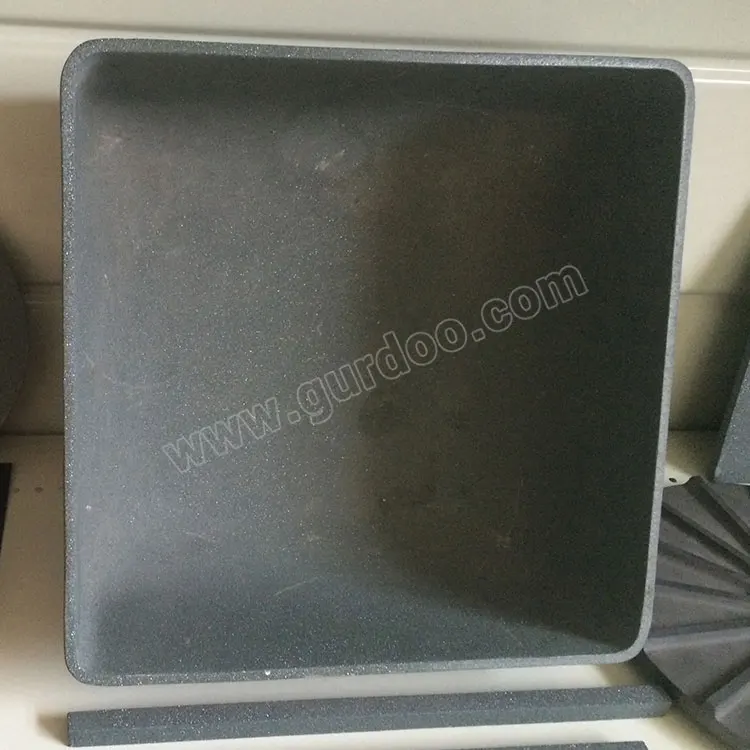

Refractory ceramic RSiC recrystallized silicon carbide crucible for furnace with competitive price
Types of silicon carbide crucible | ||
1. Recrystallized silicon carbide (RSIC) --- max temperature 1650℃ | 10~150mm | |
2. Silicon nitride bonded silicon carbide (NSiC, Si3N4) --- max temperature 1450℃ | 2500mm | |
3. Reaction sintered silicon carbide (SiSiC / RBSiC) --- max temperature 1380℃ | ||
4. Pressureless sintered silicon carbide (SSiC) --- max temperature 1600℃ | ||
Application and use
Silicon carbide crucible is widely used in ceramic high temperature kiln, steel mill quenching furnace, mine material classification cyclone, large boiler and power plant desulfurization and dust removal equipment, coal slag pneumatic conveying equipment, high-tech and military equipment.
Applied in machinery, metallurgy, electronics, chemical industry, iron and steel, ceramics, paper making, mineral processing, nuclear industry, national defense and so on.
Applied in machinery, metallurgy, electronics, chemical industry, iron and steel, ceramics, paper making, mineral processing, nuclear industry, national defense and so on.

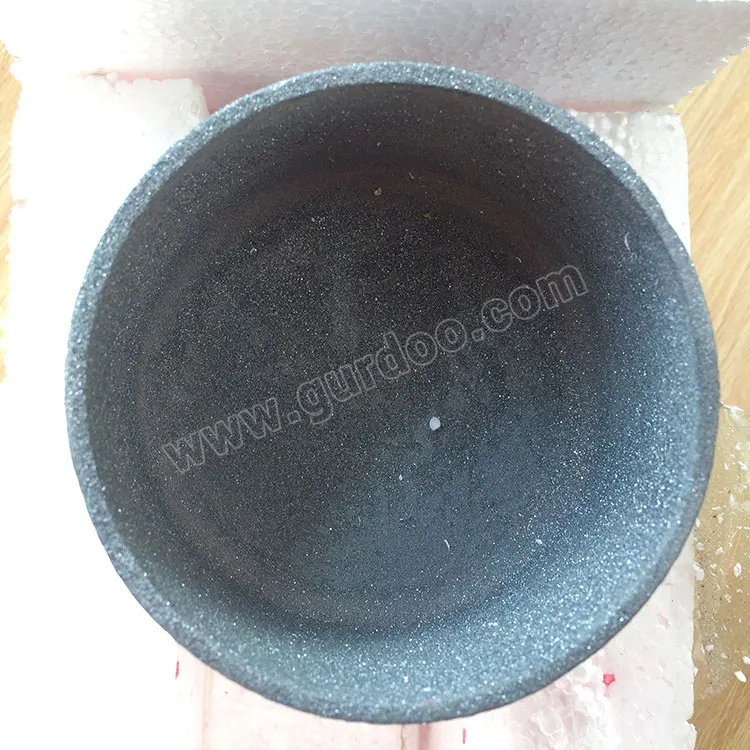

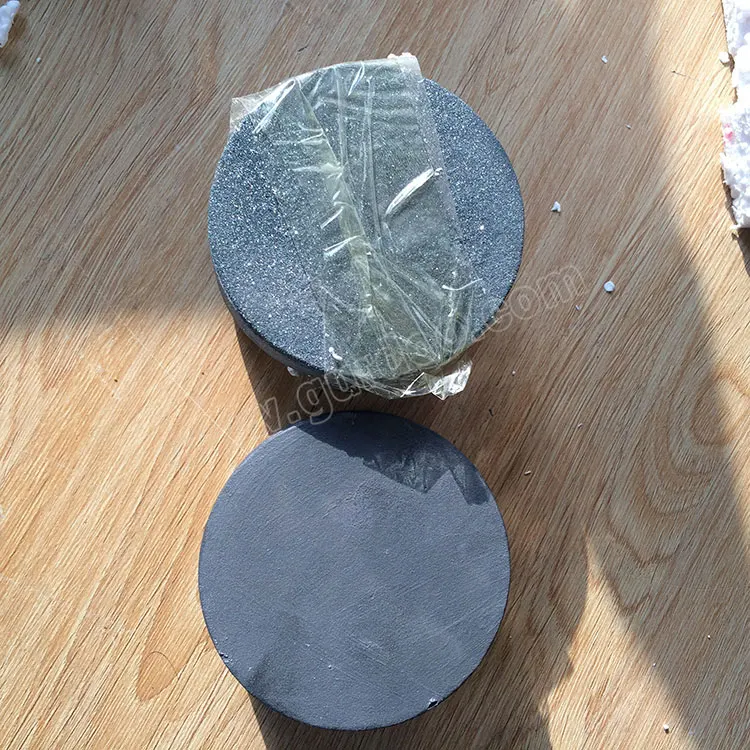

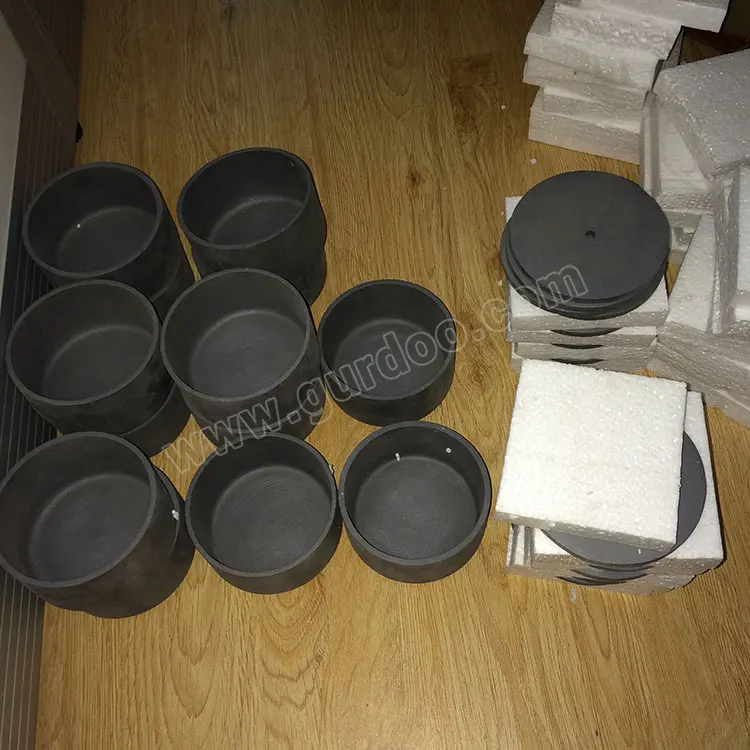

Detailed Images
Silicon carbide products contain tube, beam, thermocouple protection sheath, riser pipe, roller, bushing, shield, burner nozzle, loading plate (shelf board), ignitor, crucible, sealing ring, wafer, rod, beads, ball and other irregular shapes.
Size Information
Silicon carbide crucible | ||||||
Item | Unit | SiSiC | SSiC | |||
Bulk density | (g/cm3) | ≥3.03 | 3.10--3.15 | |||
Hardness | HRA | 91--93 | 92--94 | |||
Compressive strength | Mpa | ≥2000 | ≥2200 | |||
Bending strength | Mpa | ≥350 | ≥400 | |||
Modulus of elasticity | GPa | 350 | 400 | |||
Thermal conductivity | W/m.k (20 ℃) | 50~110 | 120--150 | |||
Thermal expansion | 10 -6.1/℃ | 4 | 4 | |||
Maximum service temperature | ℃ | 1300 | 1600 | |||
Related Products
Packing&Shipping

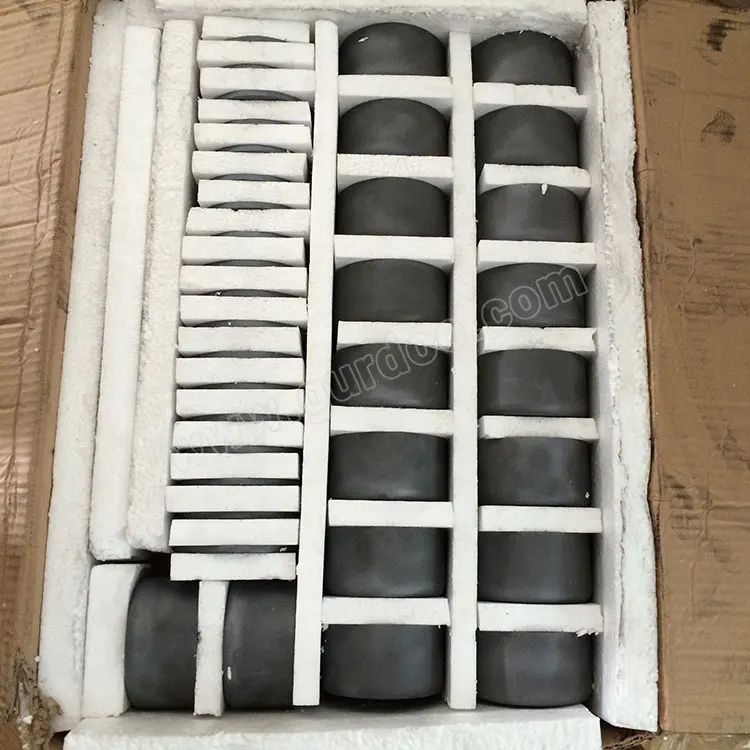

Silicon carbide crucible is packed in export standard plywood case outside, lined with sponge and foam inside.
The goods will be shipped by air, by sea, by railway or by express delivery/courier like DHL, FedEx, TNT, UPS, EMS and so on.
Company Introduction
Henan Gurdoo Industry Co.,Ltd. is founded by engineers who have more than 20 years’ experience in research and production.
Focusing on professional high temperature working field with 100% quality check and durable testing before shipment.
We have a well team-conscious. Assist you to gain competitive advantages are our major focus.
Focusing on professional high temperature working field with 100% quality check and durable testing before shipment.
We have a well team-conscious. Assist you to gain competitive advantages are our major focus.
After Sales Service
Our advantages
1. Any inquiries will be replied professionally within 24hours.
2. Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4. Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.
2. Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4. Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of silicon carbide crucible, such as dimension or drawing, quantity, application etc.
Q2. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.
Q3. What do you do on quality control?
Q4. How can we get the sample?
Free samples can be supplied after communication, but freight is for your account.
Q5. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
Please offer the specification of silicon carbide crucible, such as dimension or drawing, quantity, application etc.
Q2. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.
Q3. What do you do on quality control?
For every batch, each step and finished products will be inspected when producing by QC department.
Q4. How can we get the sample?
Free samples can be supplied after communication, but freight is for your account.
Q5. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
Let’s light up your business now!
Skype: zhdebbie426
Email: debbie@gurdoo.com
Website: www.gurdoo.com
Похожие товары

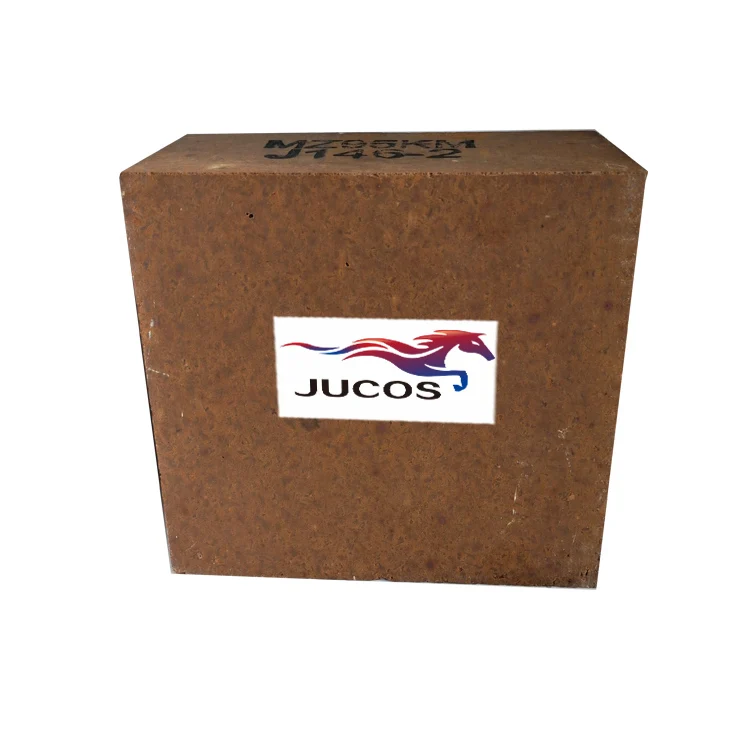

Заводская цена термостойкий химический высокопрочный магнезиальный кирпич md92 для различных высокотемпературных печей
0,22 $ - 0,23 $
Высокое качество кислоты устойчив к атмосферным воздействиям и термостойкие

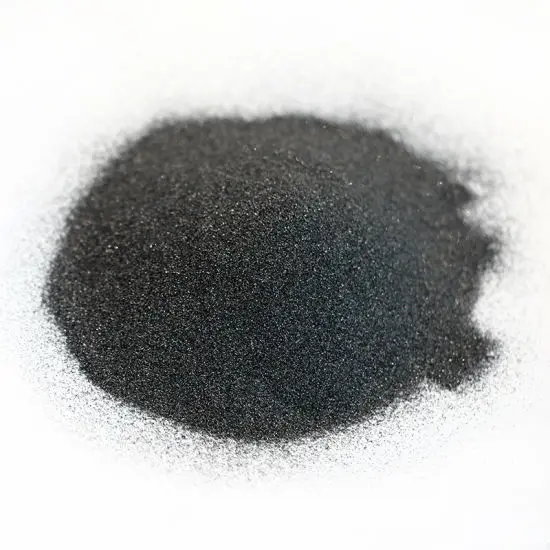

Заводская зернистость из карбида кремния sic
1,45 $ - 2,00 $

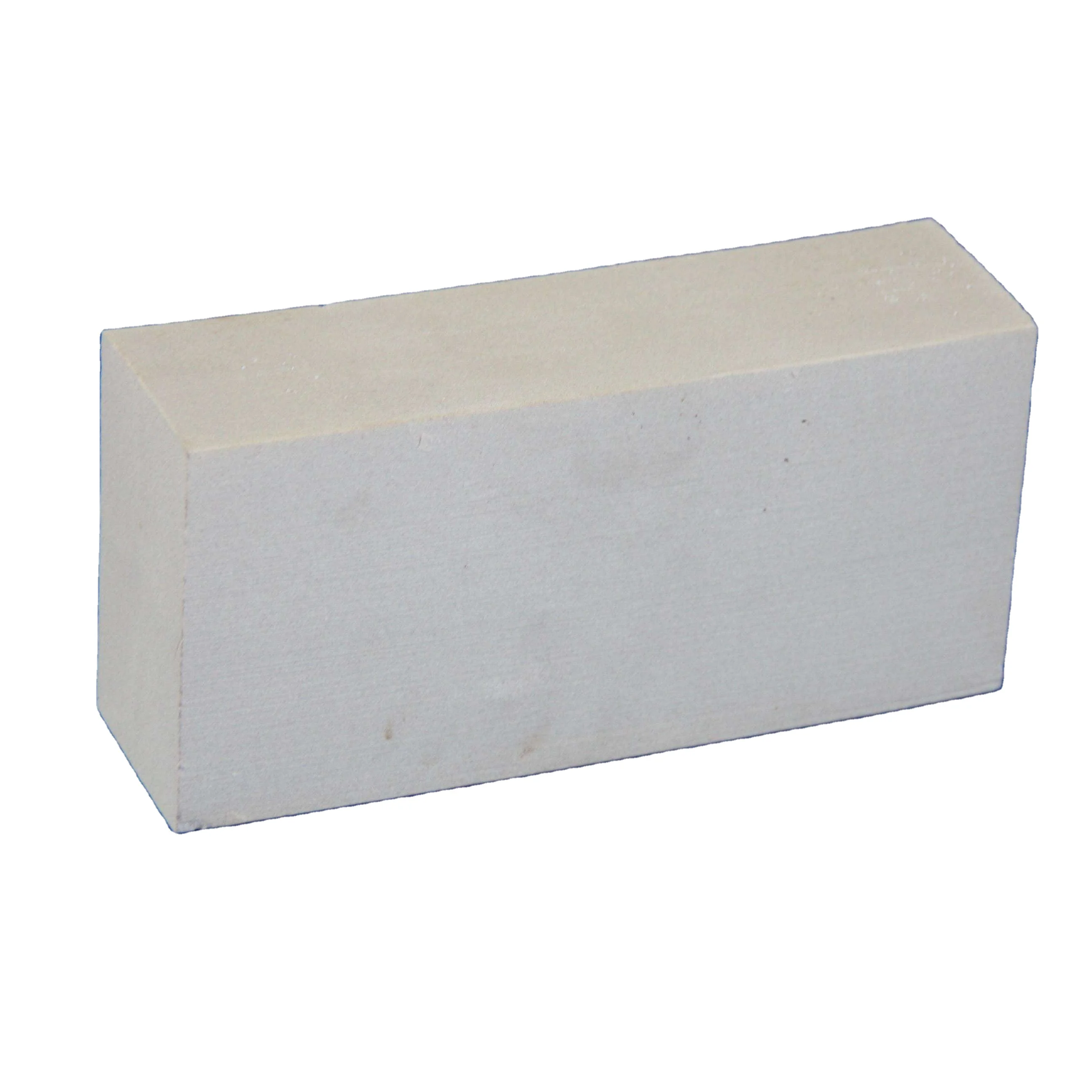

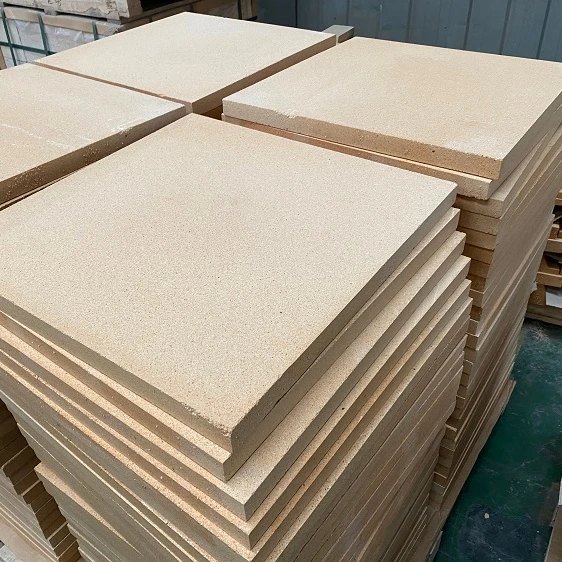

Глиняная доска высокого качества для печи

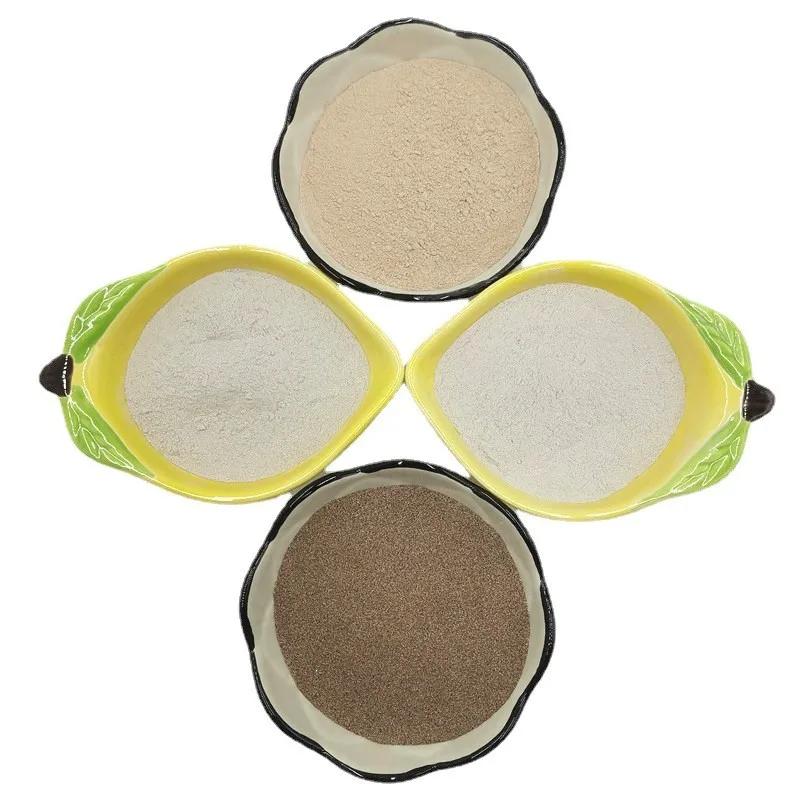

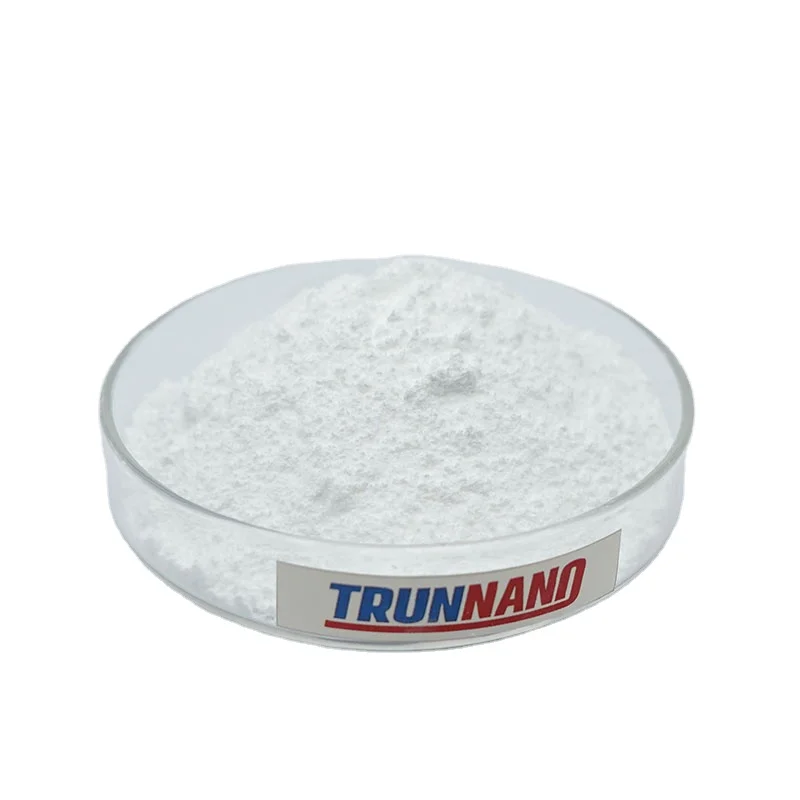

Лидер продаж поставщик керамических материалов пустотелый стеклянный порошок
