Weather Station Data Logger environmental monitoring system






Product Description

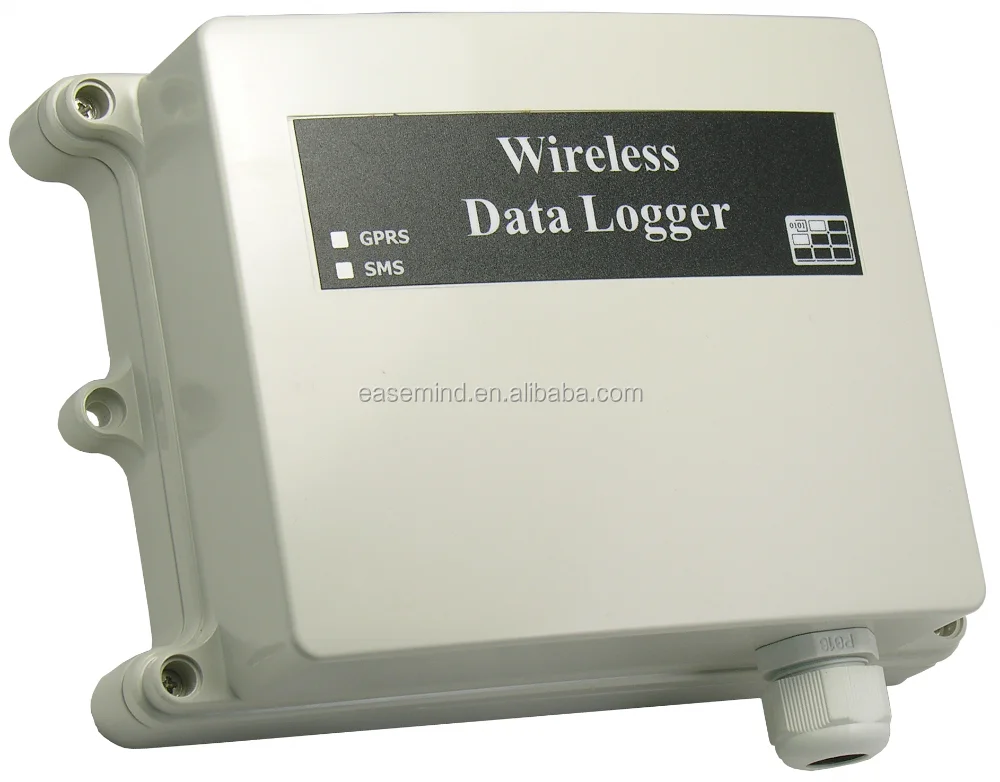

 GSX8-LV is a temperature humidity Data Logger providing GPRS reporting.




It uploads data on schedule via SMS or GPRS.








[detail]

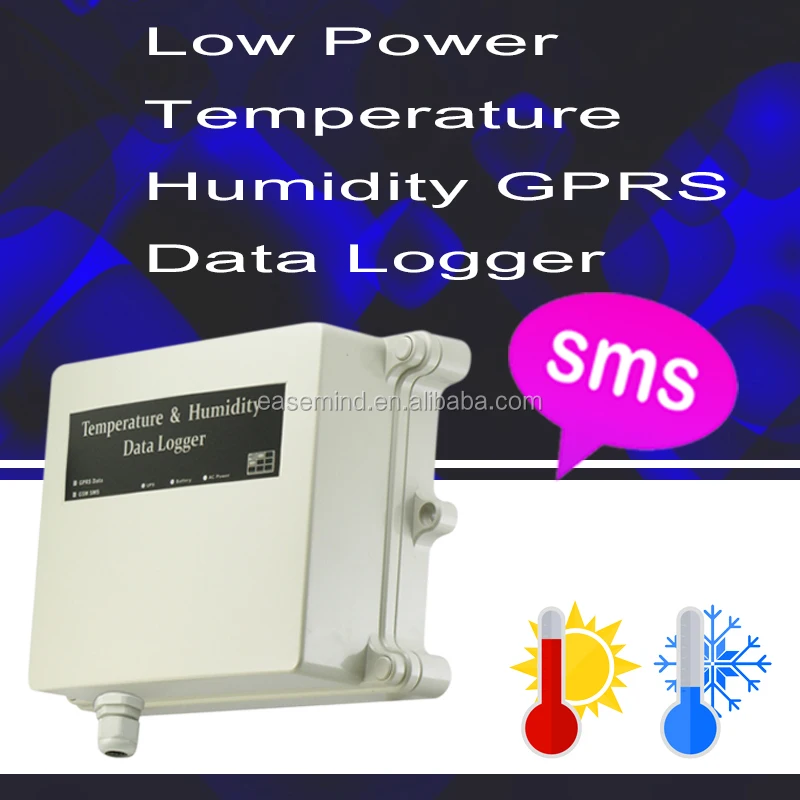

It is a Low Power GPRS Temperature and Humidity Data Logger with numerous Input and Outputs.
Its sleep mode provides average 2 years non-stop operation with internal battery built in side IP65 PVC case.





Overview:
* 2 Temperature Sensors
* 1 Humidity Sensor
* 2 Analog Channels
* 4 Digital Inputs
* 4 Pulse Channels
* 2 Digital Outputs
* RS485 Data In





Its internal 64KB memory logs more than a year data for one record each day.
Data can be uploaded to server at once a day to save power.
Flexible data logging interval starts from 1 minute up to 24 hours.





































































Power Input



6~10VDC



Power Consumption



10uA Sleep Mode



Digital Input



Dry Contact



Pulse Input



Pulse frequency



single Type



4~20mA



Digital Output



Max.DC24V@3A



Temp Accuracy



+/-0.5



Humidity Accuracy



+/-5%RH



Temperature Sensor



2 Temperature Sensors



Humidity Sensor



1 Humidity Sensor



Analog Channel



2 Analog Channels



Digital Input



4 Digital Inputs



Pulse Channel



Pulse Channels



Digital Output



2 Digital Outputs



Modbus



RS485 Data In









Features
1) Real Time GPRS and SMS Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via RS232 by PC software
6) Remote Setup by SMS or GPRS
7) RS485 Port support data capturing via sensor devices
8) Support Dynamic Domain Name or Fixed IP, UDP / TCP protocol data transmission
9) Internal high capacity battery





Free Software:
[1] Data Logger Setup software is bundled for routine configuration via SMS remotely, or via RS232 port locally

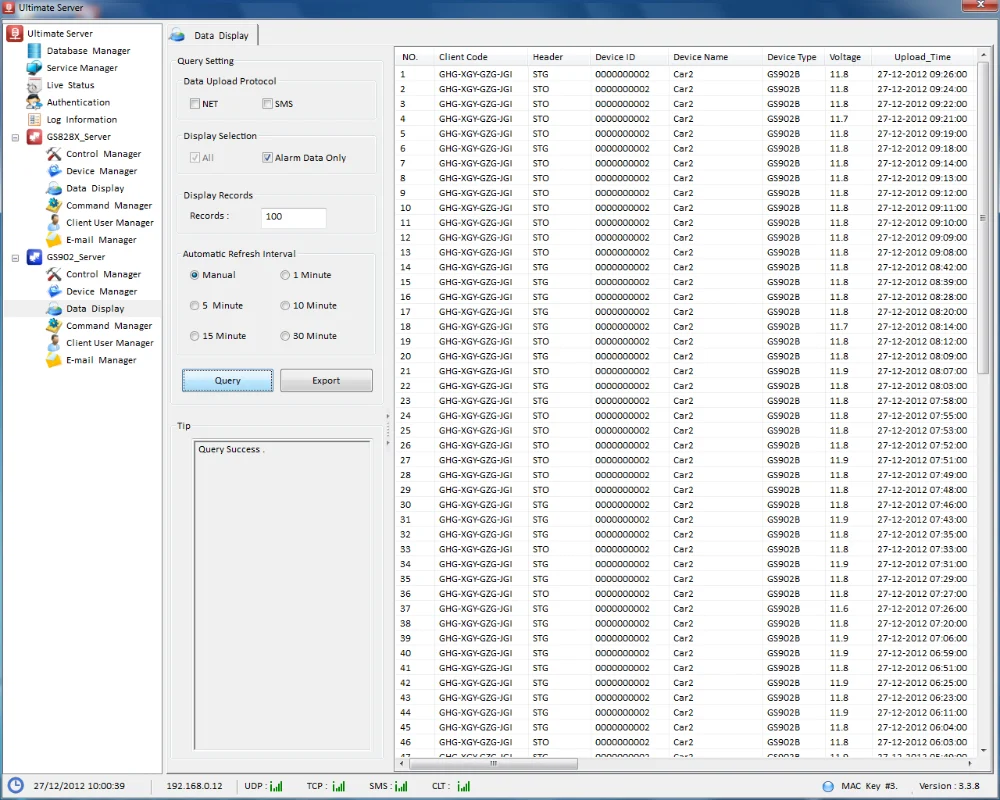

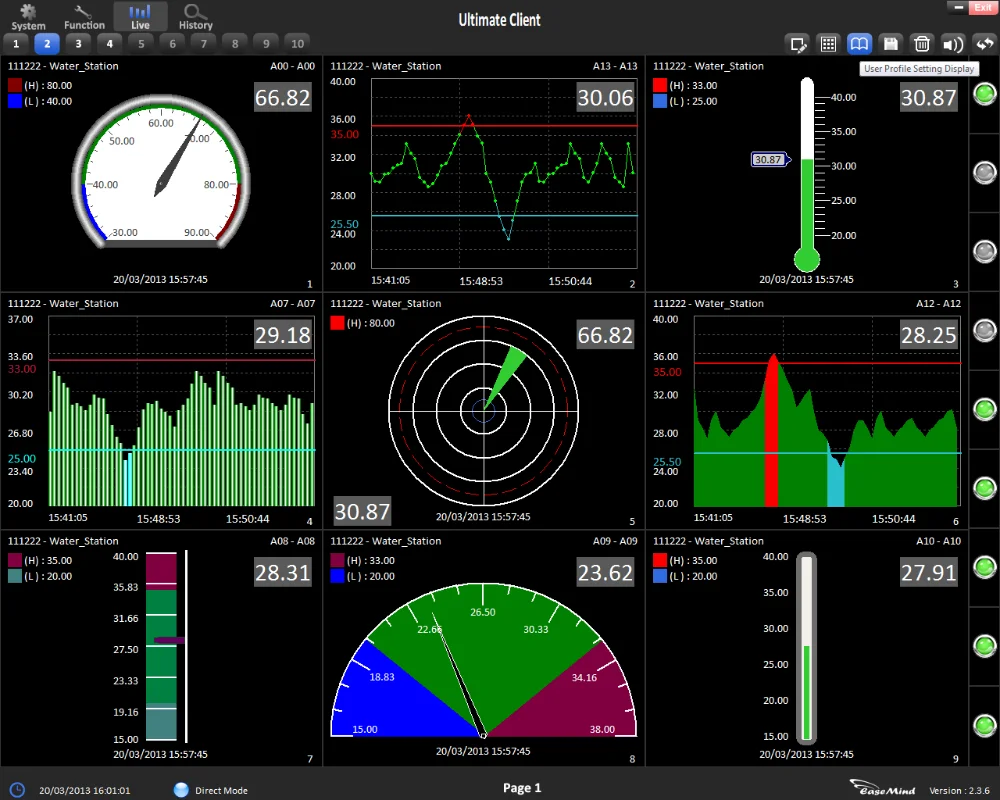

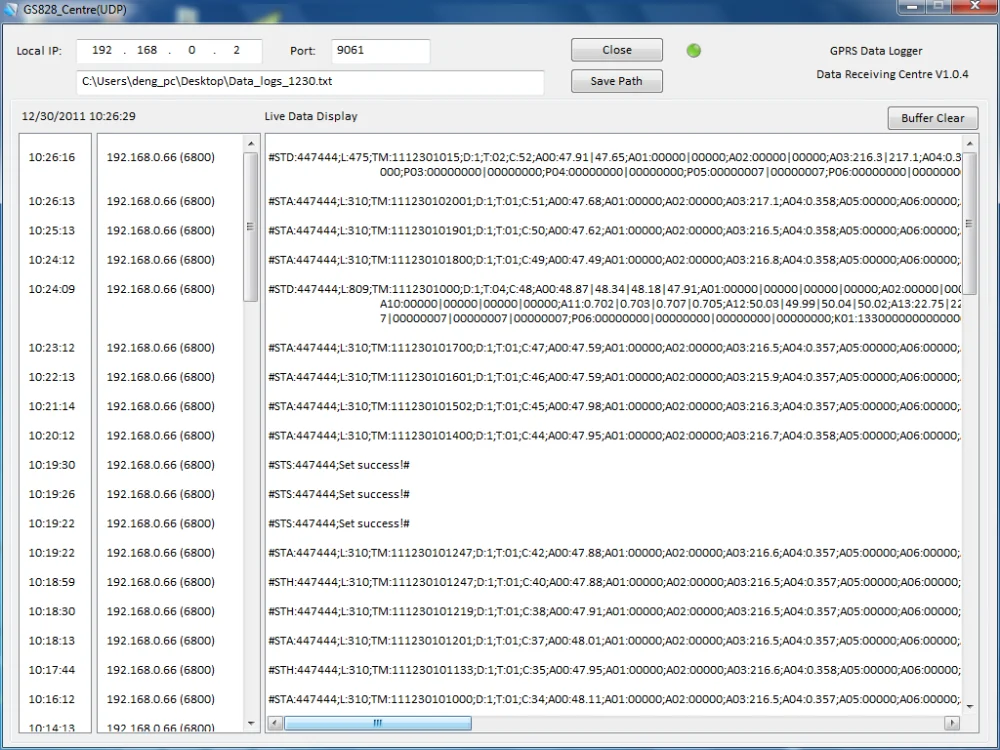

[2] Data Logger Centre software is also provided for receiving data via GPRS.
[3] UDP/TCP Testing Tool is provided for easy communication testing and user development





[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial Equipment Monitoring
* rural Equipment Monitoring e.g. Power Plant
* measuring equipment data capture and report via SMS/GPRS
* Food, storage, transport industry, building management
* Agricultural, laboratory, medical industry
