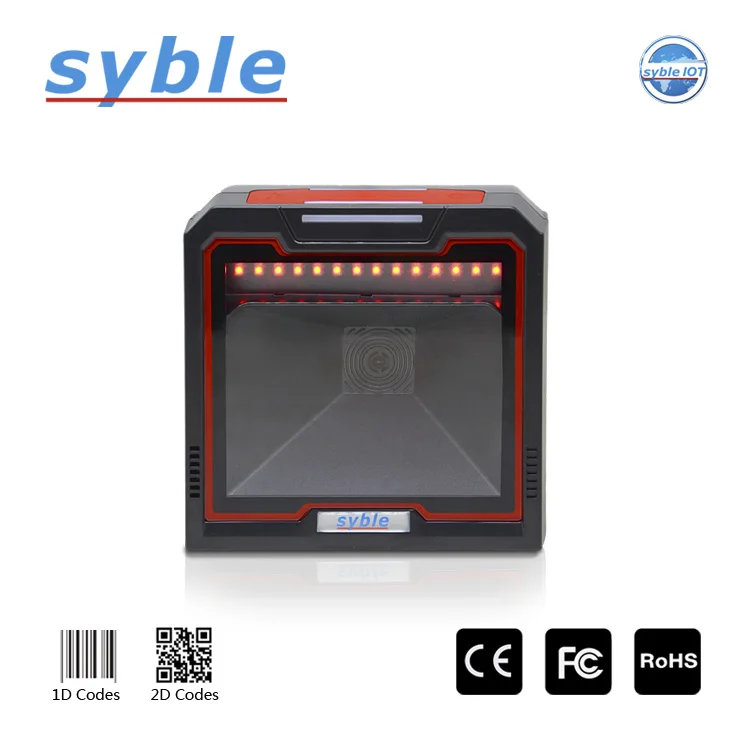

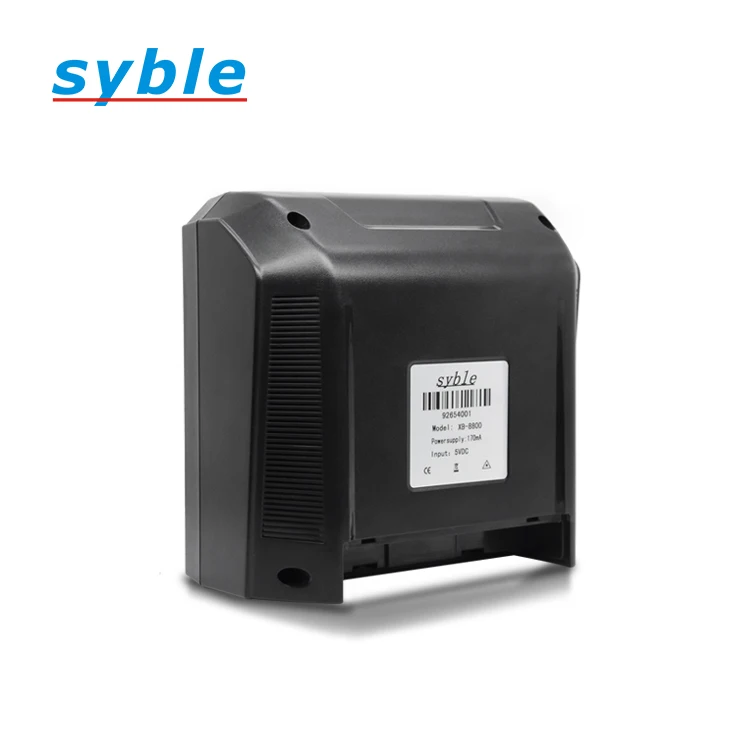

high speed high performance 2D omnidirctional desktop barcode scanner escaner automotriz
Model:XB-8808

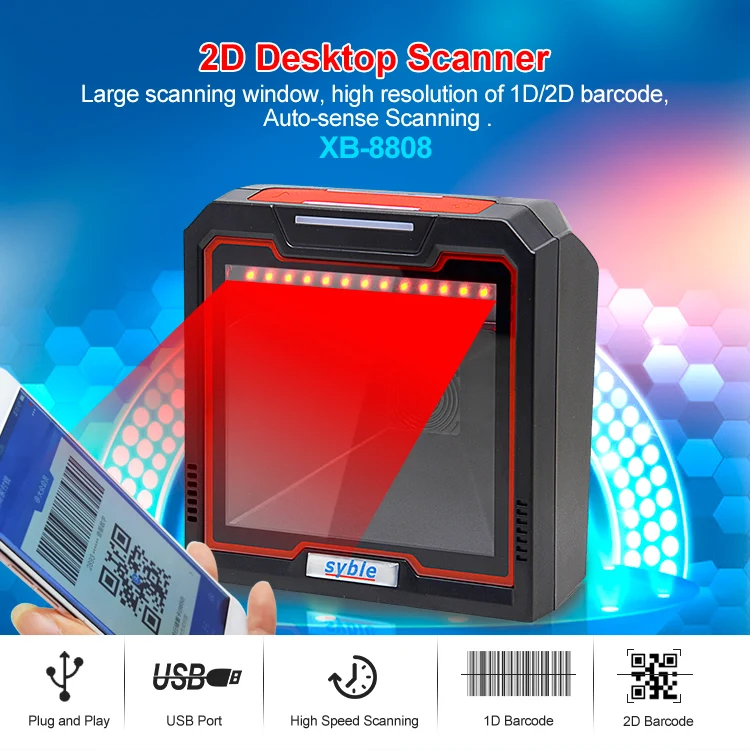

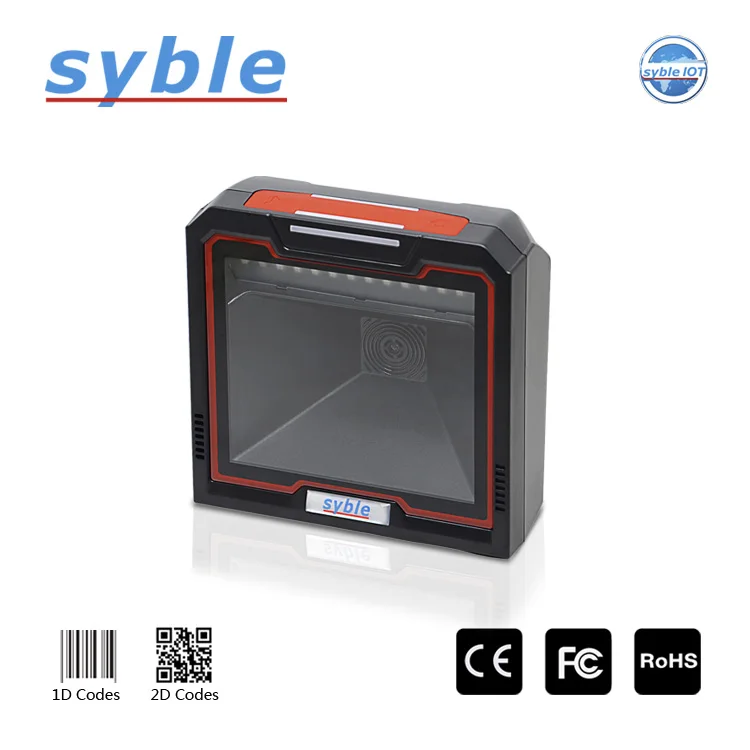

Syble XB-8808 is 2D desktop scanner, image sensor SXGA-W(Width 1280*1024) Ratio (5:4),and support Linux,Android,Windows XP,7 ,8, 10, MAC ,Support Multi-Language ,Shock resistance withstands three times
Features
--Automatic sleep and wake up mode which save power and extend life time
--Multiple interface and easy to switch by change a cable
--Powerfull decoding performance and reliability
--Fast scan speed reach 150times per second in 1d barcodes and 60 images per second in 2d barcodes
--Excellent motion tolerance
--Read all 1d & 2d barcodes from paper printed as well as mobile devices displays
Specification | |
Performance Parameters | |
Light Sources | SXGA-W(Width1280*high1024) Ratio(5:4) |
Supported symbologies | 1D: EAN-8, EAN-13, EAN-132 add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128,GS1-128, GS1 DataBar(RSS14), GS1 DataBar Limited, GS1 DataBar Expanded. 2D: PDF417, MicroPDF417, QR-code,Micro QR, Data Matrix, QR, Aztec. |
Scan Range | 5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(Code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
System compatibility | Linux,Android,Windows XP,7,8,10,MAC |
Minimum recognition accuracy | Code 39 4mil |
Motion tolerance | 3.8meters/second |
Scan Mode | Continuous Scanning |
Print contrast | 20% |
Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |

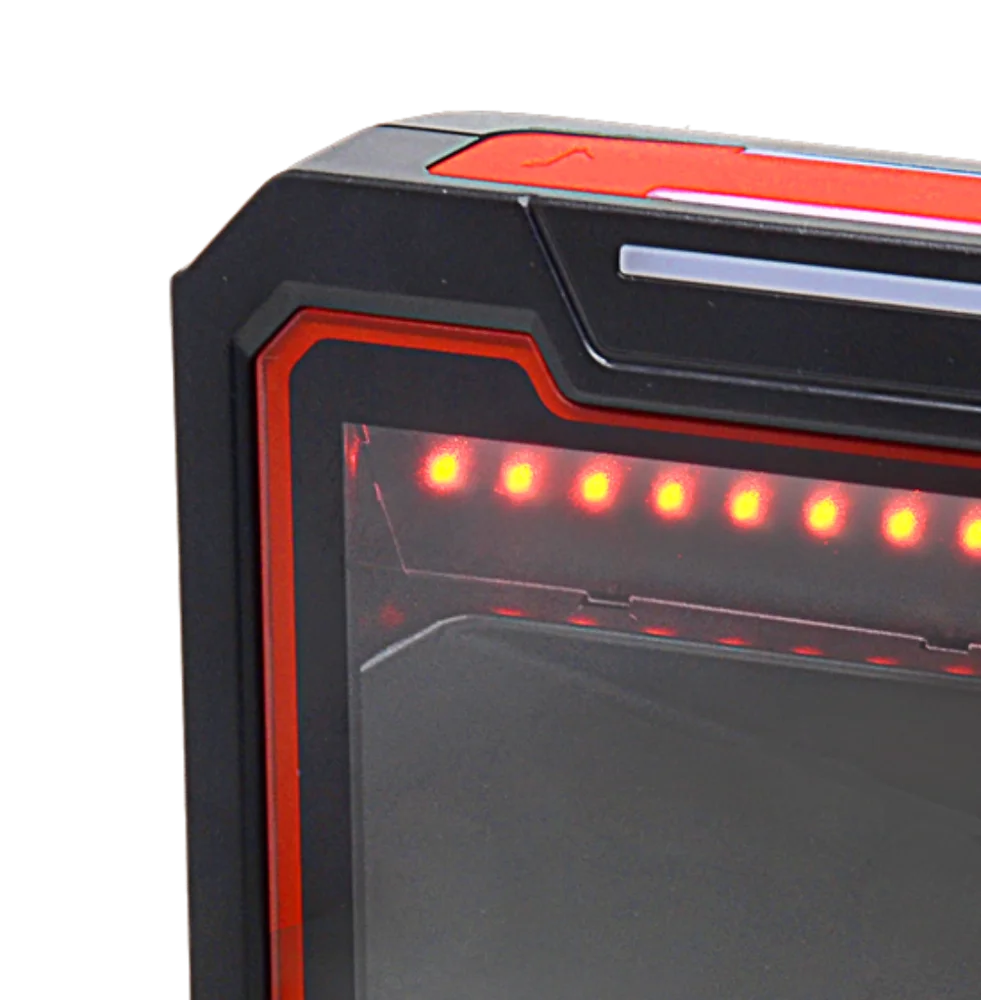

Mutual Move | Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt;Key: switch three tones; 1D code switch. |
Interface | USB(Drive-Free), RS232, USB-COM |
Physical Parameters | |
Dimensions | 152mm*82mm*152mm |
Weight | 497.1g |
Material | ABS+PC |
Cable length | 2M |
Environmental Parameters | |
Operating Temperature | -20℃ - 55℃ |
Storage Temperature | -20℃-60℃ |
Humidity | 5% to 95% RH.Non-condensing |
Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
Ambient Ligh | 0-70000LUX |
Electrical Parameters | |
Voltage | DC5V±5% |
Current | USB: Standby current 180mA; Working current 210mA; RS232: Standby current 180mA; Working current 210mA |
We are barcode scanner manfacturer in Guangzhou, which qualified by ISO9001:2008,all products passed CE,RoHS,and FCC etc.
| Safety Standards | |
| EMC | CE EN55022 B, FCC Part 15 Class B, SGS,IP54 Waterproof Test. |
| Laser safety | IEC 60825-1 Class 1 |

Technical support
Spare parts policy
Products service
Value-added services
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
