Электрический на открытом воздухе 30 тонн QD 5 50/10t модель двухбалочный мостовой кран
- Категория: Bridge Cranes >>>
- Поставщик: Henan Armagh Machine Equipment Co. Ltd.
Сохранить в закладки 62339249286:
Описание и отзывы
Характеристики
Product Description
Bridge crane can be divided into three types: ordinary bridge crane, simple beam bridge crane and special bridge crane for metallurgy. Ordinary bridge crane is generally composed of lifting trolley, operating mechanism of bridge frame and metal structure of bridge frame. The lifting trolley is composed of lifting mechanism, trolley running mechanism and trolley frame. The lifting mechanism includes motor, brake, reducer, drum and pulley set. The motor drives the drum to rotate through the reducer, so that the wire rope can be wound up or lowered from the drum to lift the weight. The trolley frame is a kind of frame which supports and installs lifting mechanism and trolley running mechanism, and it is usually welded structure.

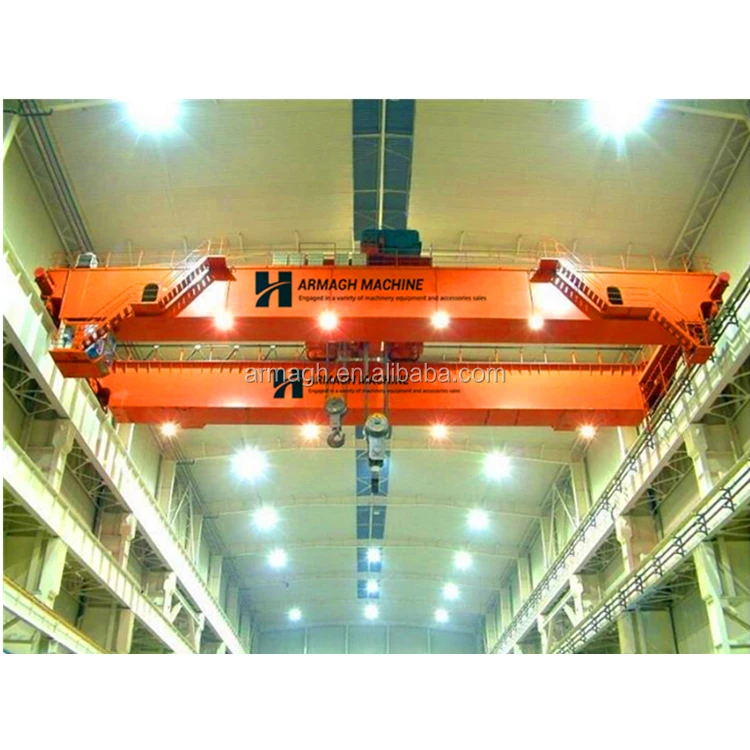

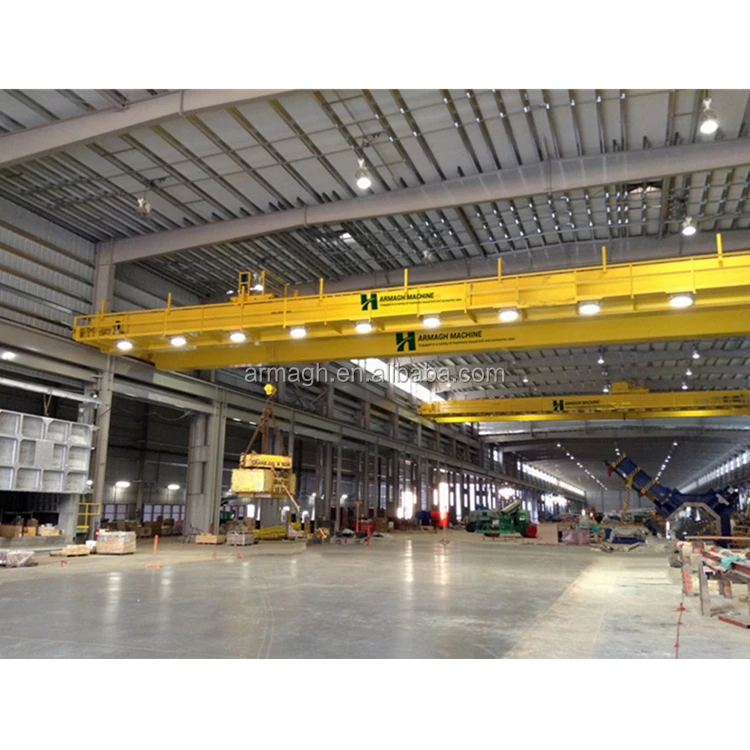

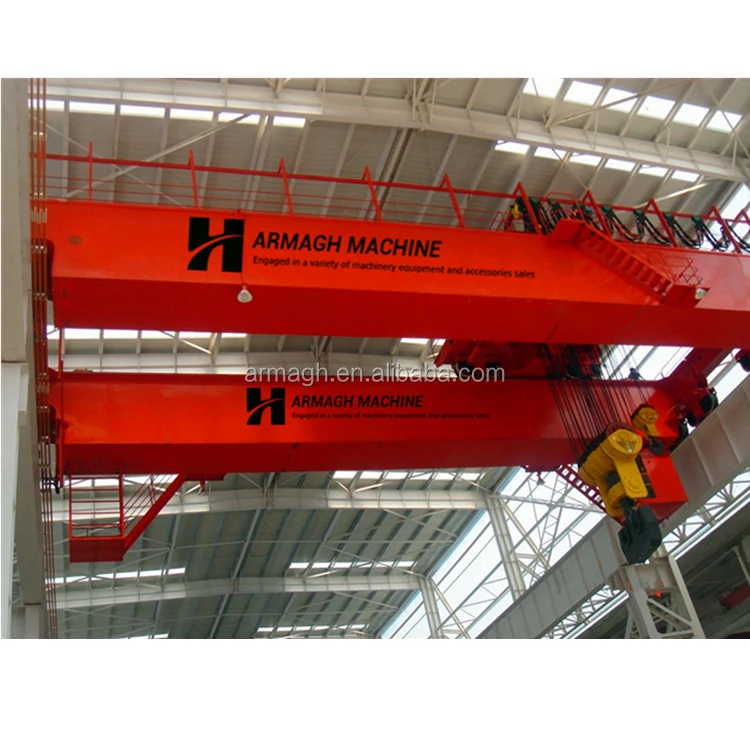

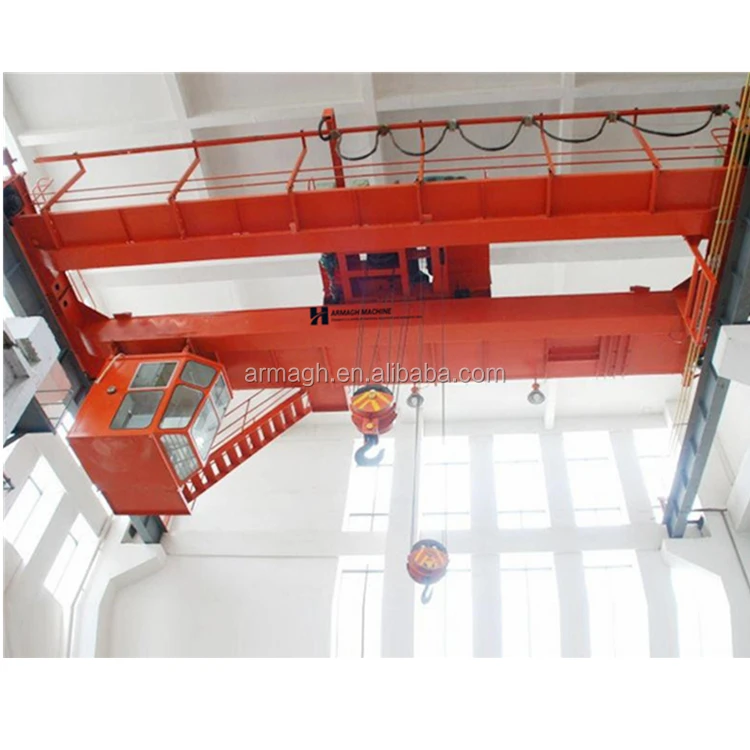

Detailed Images
Bridge crane can be divided into three types: ordinary bridge crane, simple beam bridge crane and special bridge crane for metallurgy. Ordinary bridge crane is generally composed of lifting trolley, operating mechanism of bridge frame and metal structure of bridge frame. The lifting trolley is composed of lifting mechanism, trolley running mechanism and trolley frame. The lifting mechanism includes motor, brake, reducer, drum and pulley set. The motor drives the drum to rotate through the reducer, so that the wire rope can be wound up or lowered from the drum to lift the weight. The trolley frame is a kind of frame which supports and installs lifting mechanism and trolley running mechanism, and it is usually welded structure.
Size Information
Size Chart of This Design
Loading capacity | 5 ~ 500t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Vary with lifting capacity, or customized. |
Span | 10.5~31.5 m/min |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Working class | A5~ A8 |
Working temperature | -20 ~ 40 ℃ |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC -36 / 48V |
Motor protection class | IP54 IP55 IP65 |
Control way | Cabin, wireless remote, pendant push button |
Safety device | Buffer current overload protection overload device power failure protection |
Application area | Factory, workshop, warehouse, power station, logistic, etc. |
Related Products
Packing&Shipping
Packing and Shipping：
1. We pack the grapples by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator grapples and parts, to help customer save ocean freight.
1. We pack the grapples by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator grapples and parts, to help customer save ocean freight.
Company Introduction
Since 1995,more than 50 years crane, hoist and winch produce Experience;
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your warranty period?
A: 12 months from cranes accepted;
3. Q: Do you have engineer oversea installation service?
A: Yes; We have;
4. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
5. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
Похожие товары
Использование в мастерской, простое управление, мостовой кран, мостовой кран, крюк, беспроводной пульт дистанционного управления
Двухбалочный 10-тонный мостовой кран с подъемной

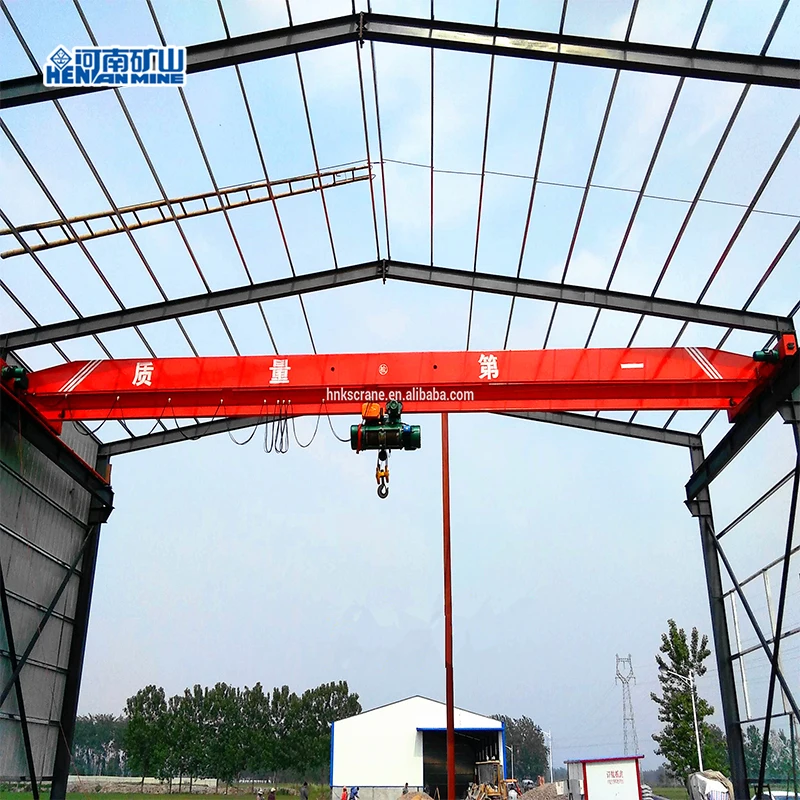

05 ton20 ton ld модель однобалочный мостовой кран от китайского производителя
6 000,00 $
Грузоподъемное оборудование с одним лучом грузоподъемность 2 5 тонн грузоподъемный кран одной
3 500,00 $
Передвижной однолучевой мостовой кран Schneider Electrical с индивидуальным интервалом
4 800,00 $ - 5 600,00 $
Бумажный завод, рабочий магазин, двухбалочный мостовой кран, цена 5 тонн 10 тонн

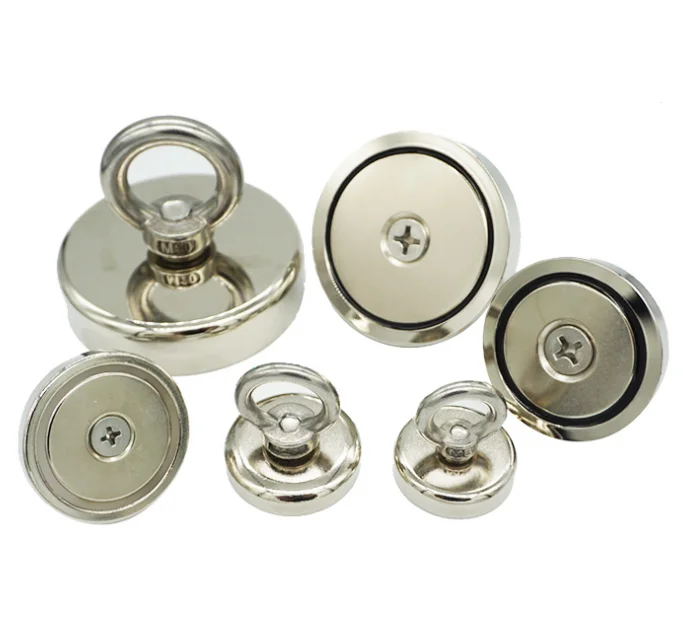

Неодимовый магнит из нержавеющей стали, болты, рыболовный магнит
