Guangzhou Oren Sewing Machine Co., Ltd.

weight loss gym exercise tracksuits sewing machine

Basic information:

Product specification:

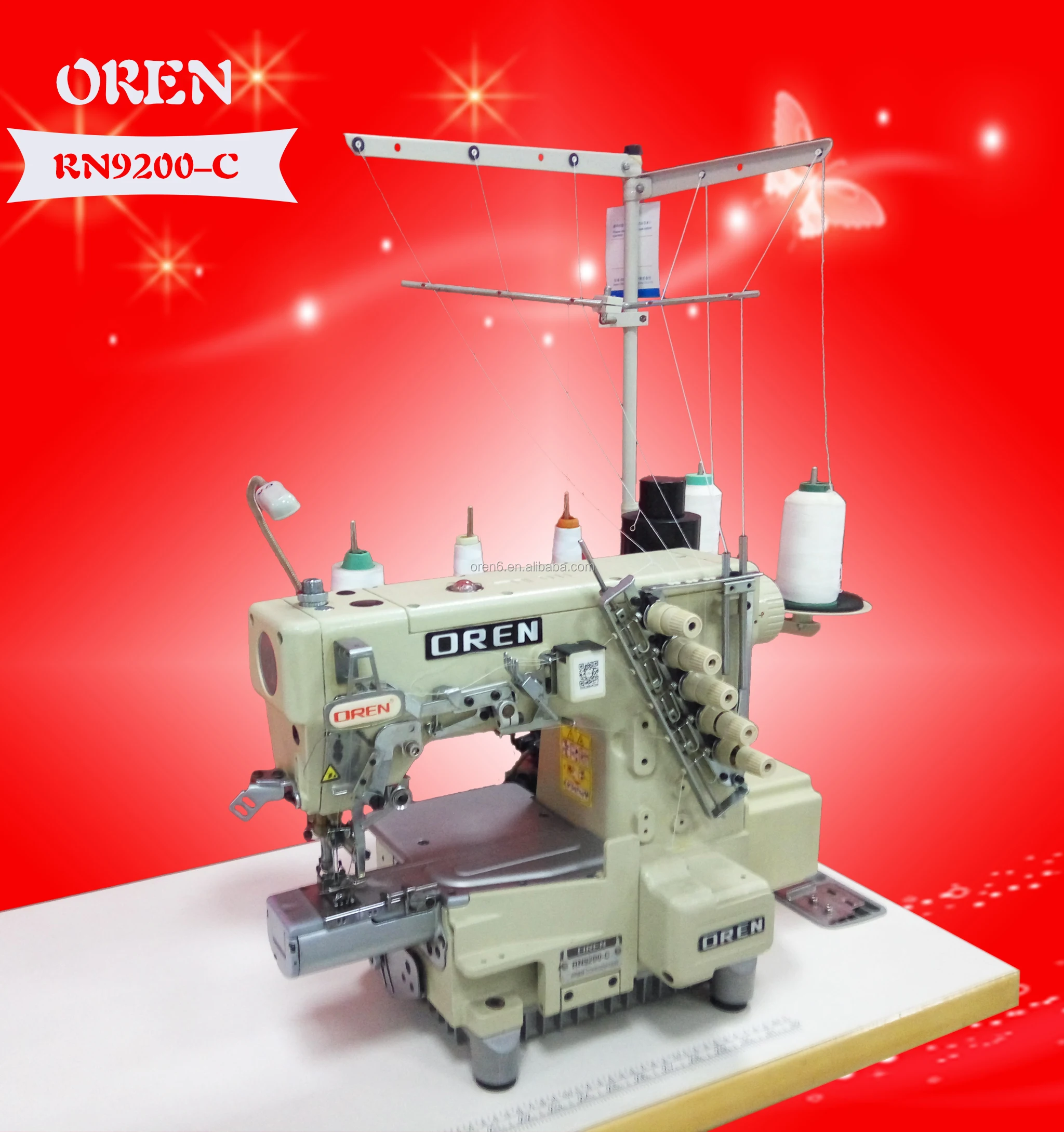

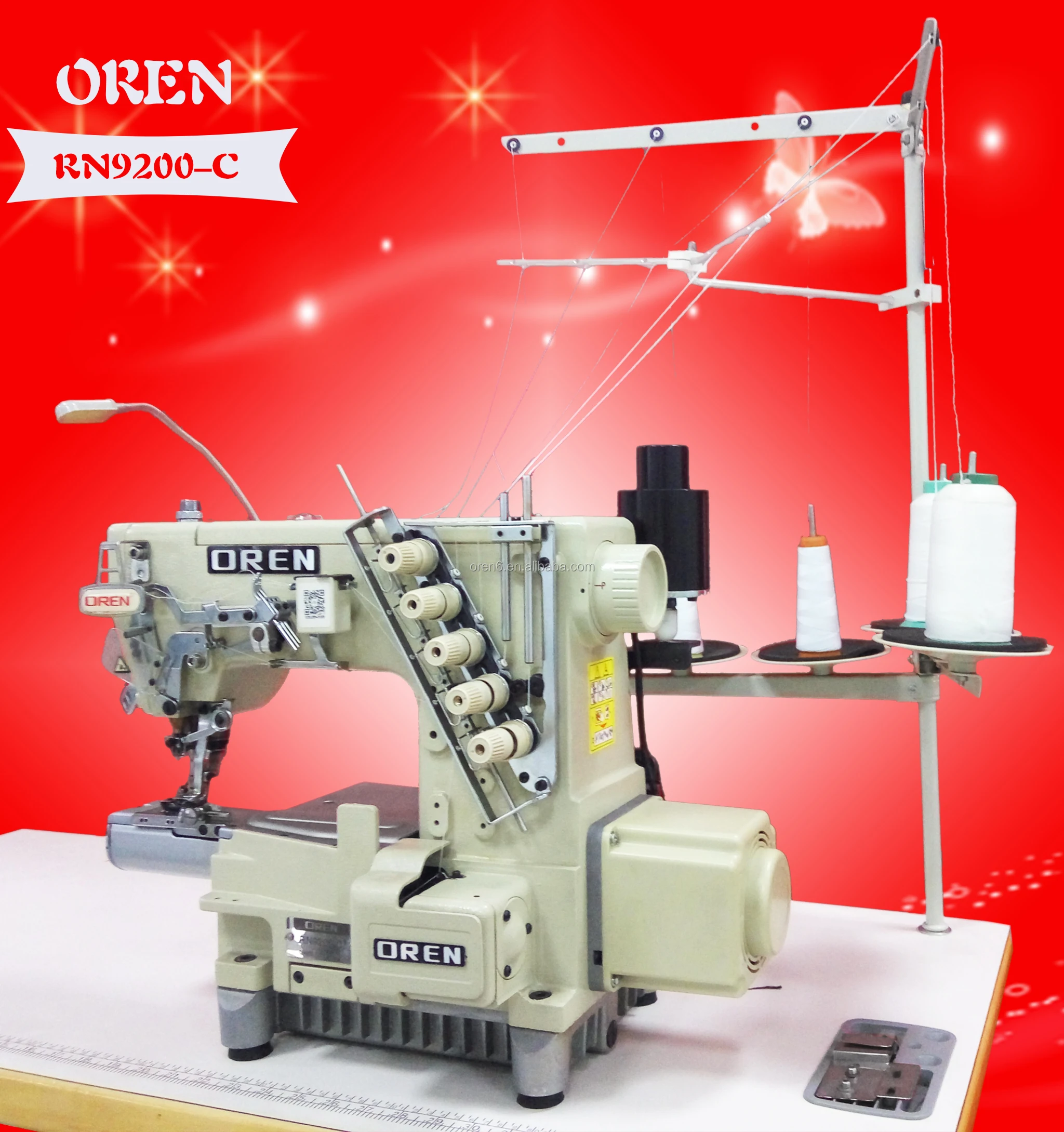

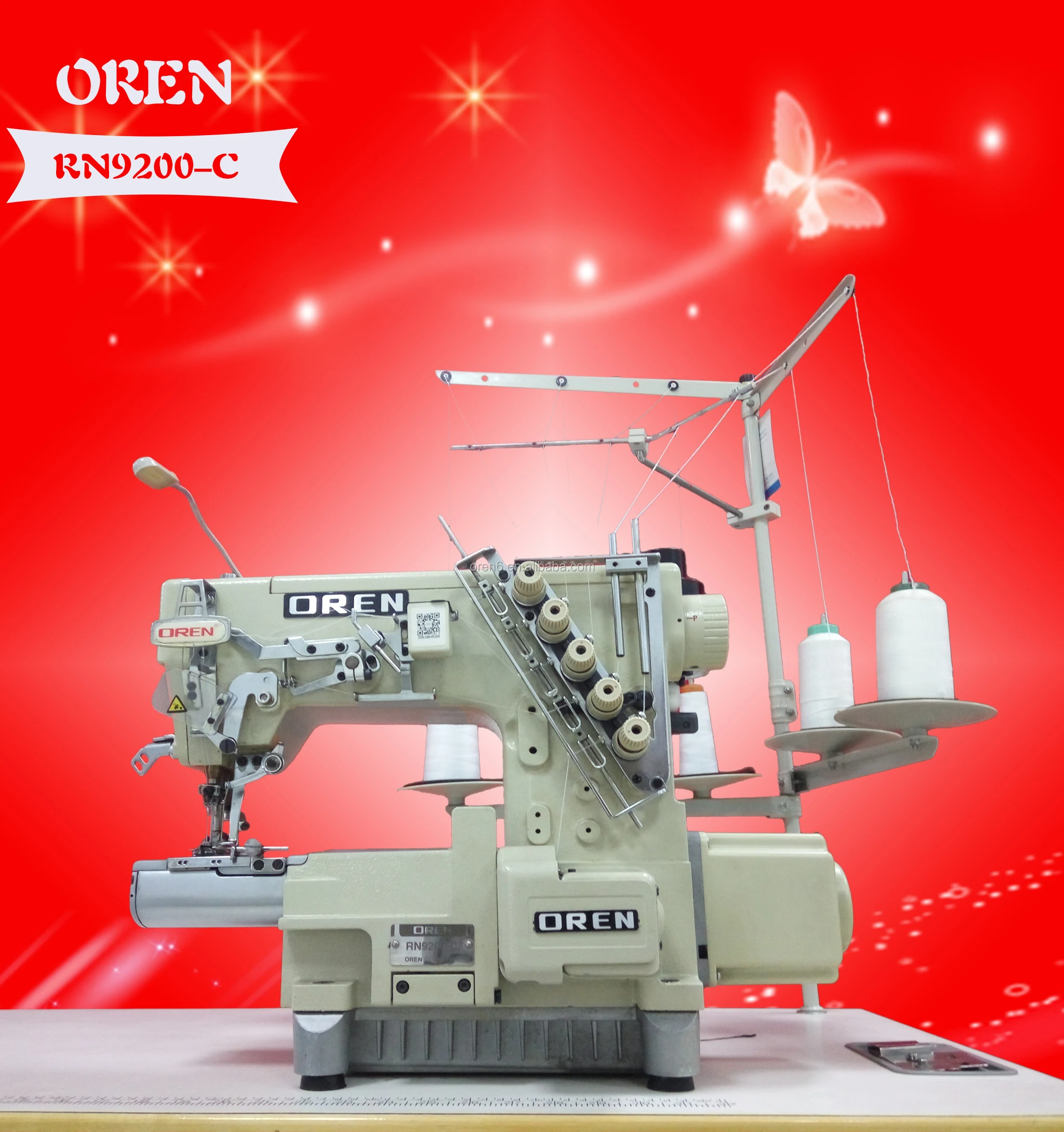

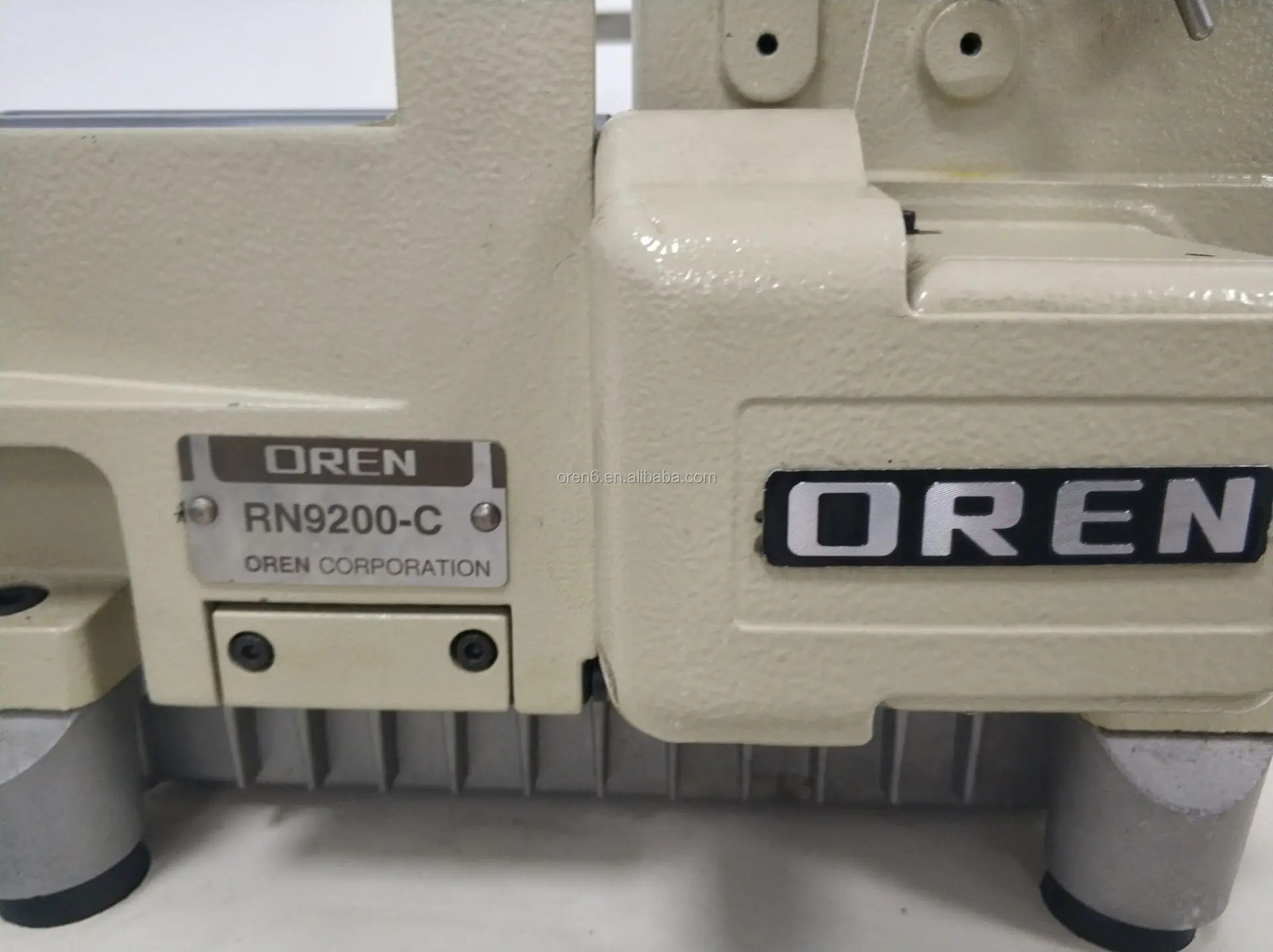

      Oren RN9200-C type high speed tension seam is also called special sewing machine. The stitches it sews are chain stitches. The stitch is mainly used for knitting garment's rolling collar, rolling edge, folding edge, stretching seam, patchwork seam and decorative edge, etc. In recent years into a myriad of change of style clothing, sewing machine also tense is often used in made sewing decorative stitch on the purpose of, and flat seaming machine sewing stitch there are many types of design change, such as three stitches four wire stretched seam (407 lines) variable into two needle three line stretched seam (406 lines), by two needle three line stretched into two stitches four wire stretched or three stitches five line stretched seam (602 lines or 605 lines), in order to understand the purpose of the flat seaming machine, from the flat seaming machine under the conveyor dynamic force, the design of the head, the respect such as the change of stitch to study, will give full play to the purpose of the flat seaming machine.

I. transmission power system of tension sewing machine:

      Because the tension sewing machine is mostly used for sewing knitted fabrics, so it is mostly used before and after two groups of feed tooth conveying power for conveying sewing materials, this kind of conveying power is two groups of feed teeth in a relatively independent. Before and after the two groups of feed teeth to adjust synchronous transmission action, or fast, slow respectively. When sewing elastic knitting fabric and thin knitting fabric, on the second floor can adjust feed than differential tooth feed speed, feed rate and feed tooth feed speed is slower than the differential tooth feed speed, the right to adjust the feeding teeth with differential feeding speed, can relieve after sewing cloth stretched and shrinkage deformation, make it beautiful.

Ii. Head type design

      The design of the head type of the tension sewing machine is mostly high platform type device, in order to cooperate with the production use of various sewing processes, the head type design also has the round mouth around the arm type, the round mouth out the arm type, the round mouth into the arm type and so on. The high table type stretched seam head can be used to sew the plane cutting piece of the long seam seam. The round mouth arm shape is designed for sewing the piping or hem edges of the cuff; The round mouth out arm type is used for sewing the seam of the tubular part, such as the side seam of sleeve bottom and the side seam of trousers. The round mouth into the arm is for sewing underwear bottom seam production design; In addition, the high table head can be equipped with bevel design to match the sewing of different types of cutting pieces. Some have a seam attachment (sewing aid) mounted on the right side of the head. When applied to the edging operation, make sure that the stitching attachment can be attached to the right side of the stitching plate.

Iii. Application of stretch sewing machine in the production process:

(1) for rolling edge sewing

Use baling to wrap the rough edges of the cut pieces around the seam if you want to use the smooth edges. Sewing the material layer on the seam too much and too thick, so stick put oneself cut at back when wear may be uncomfortable, but if used flat seaming machine sewing 602 (two needle four line stretched seam) or 605 (three needle five line stretched seam) line mark, the flash sewing binding, can be on the seam sewing the material layer from five layers to three layers, also can use 406 (two needle three line stretched seam) or 407 (three stitches four line stretched seam) line mark (the surface covered with decorative thread chain stitch machine are removed to 406 from 602 stitch to stitch), as shown in figure. The machine can be operated by a sewing assistant for mounting the rolling edge, which can not only reduce the thickness of the seam but also improve the operation efficiency.

(2) stretch the seam again after the seam

When knitted garments are stitched with over lock stitches, the seam part of the seam is protruding, so the seam part can be covered with tension stitches. The protruding seam is adhered to, but the operation of this process is more easily controlled by using special needle plate and press-foot to fix the seam.

(three) shang lace sewing process

Due to the width between the two or three stitches of the stretch stitch, additional reticular stitches may be covered with lace strips that are sewn directly onto the cut piece. This reduces the thickness of the seam and makes it more comfortable to wear. For example, women's knitted underwear is often sewn in this way.

(4) folding edge and stretching seam process

For the folding seam thickness thinning, the edge of the garment is often use package stitch sewing for single fold made sewing or wiring blinding again after processing, such as skirt hem, trousers, cuffs, etc., which reduces due to the bending of a double flanged seam made and often appear twisted edge phenomenon, but this kind of processing method should be made again after sewing stitch two process is complete, if the garment pattern matching can be used 406 (ii) needle three wire stretched seam line mark, the garment single ruffled stretched seam. Combine the two processes into one process to improve production efficiency.

(5) sewing on elastic fabrics

Due to the strong stretching force of stretch stitch, it is especially suitable for sewing knitted fabrics or other elastic fabrics, such as knitted t-shirts and underwear. In addition, stretched stitch can be covered in a net-like the adornment of the line, it besides has certain ornamental, knitting sweater with patch/available this stretched stitch sewing operation, which can reduce the thickness of the flange, and easy to operate, does not need to fold the edge of the hot patch seam of cuttings and can direct the patch pocket sewn, can save operation process and time.

Through the above process use analysis can be seen that the use of the machine is very wide, such as the effective use of its performance, the choice of the appropriate head type to apply, when appropriate with the appropriate sewing AIDS, can better play the high-efficiency characteristics of the machine.

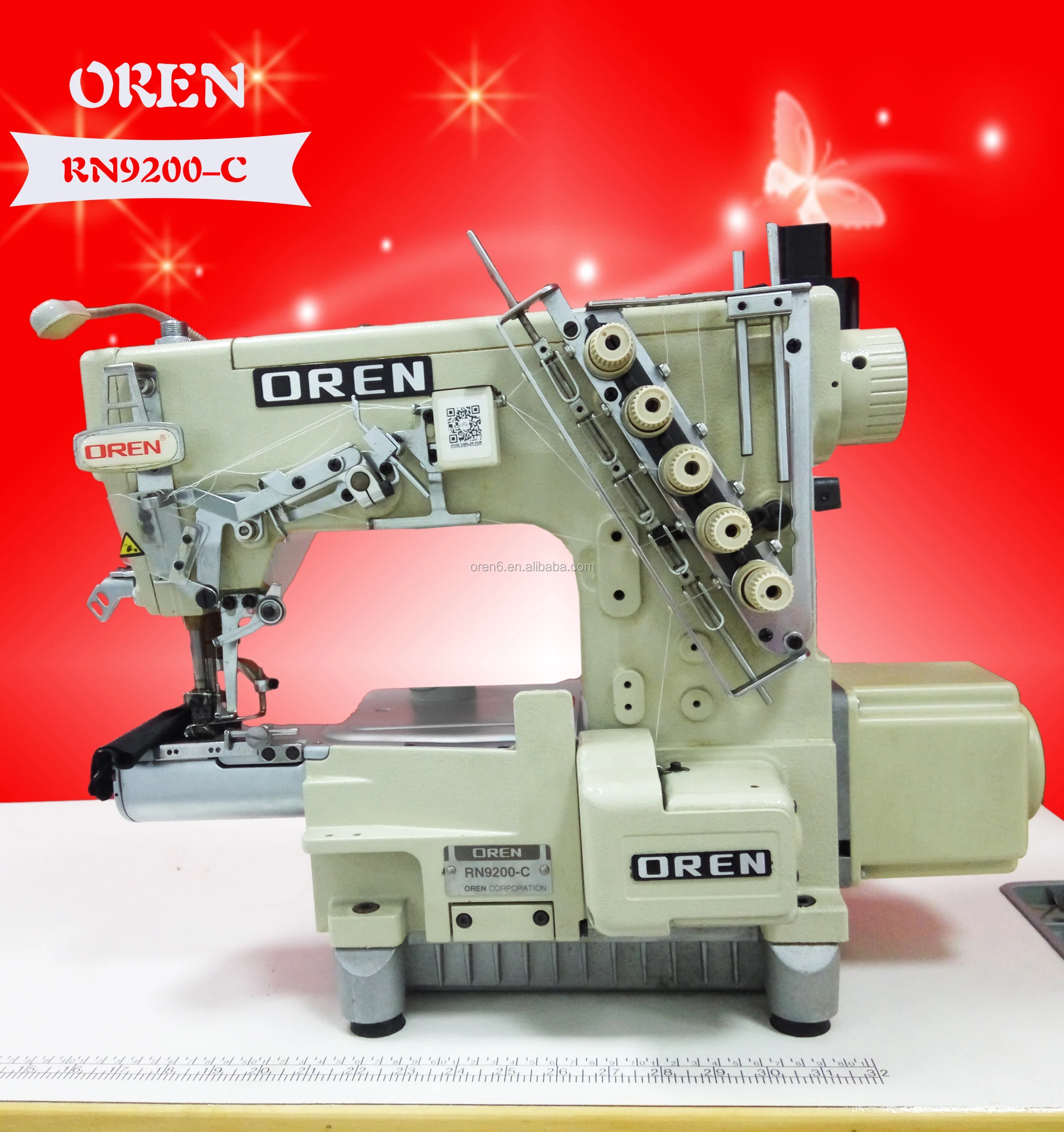

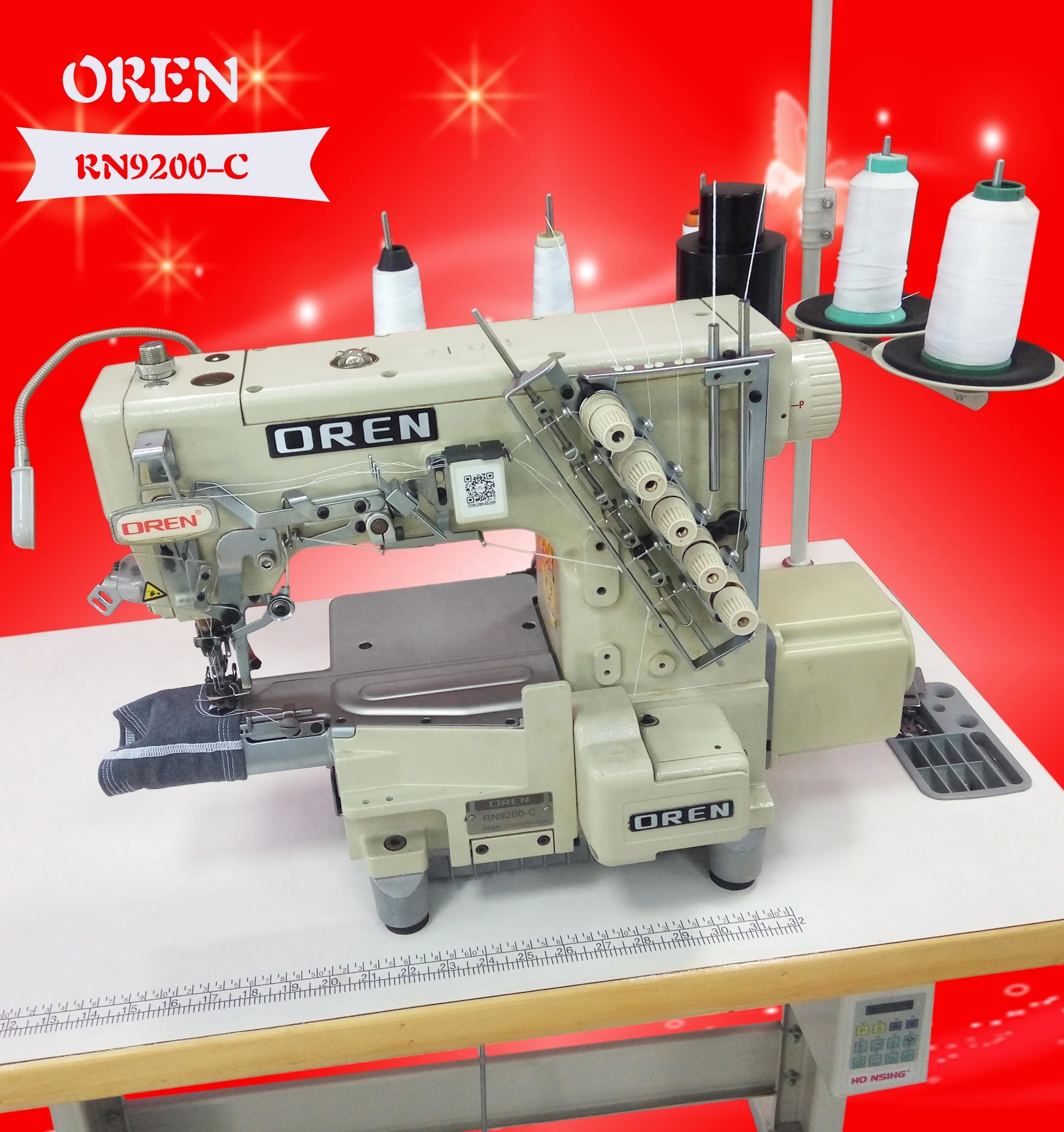

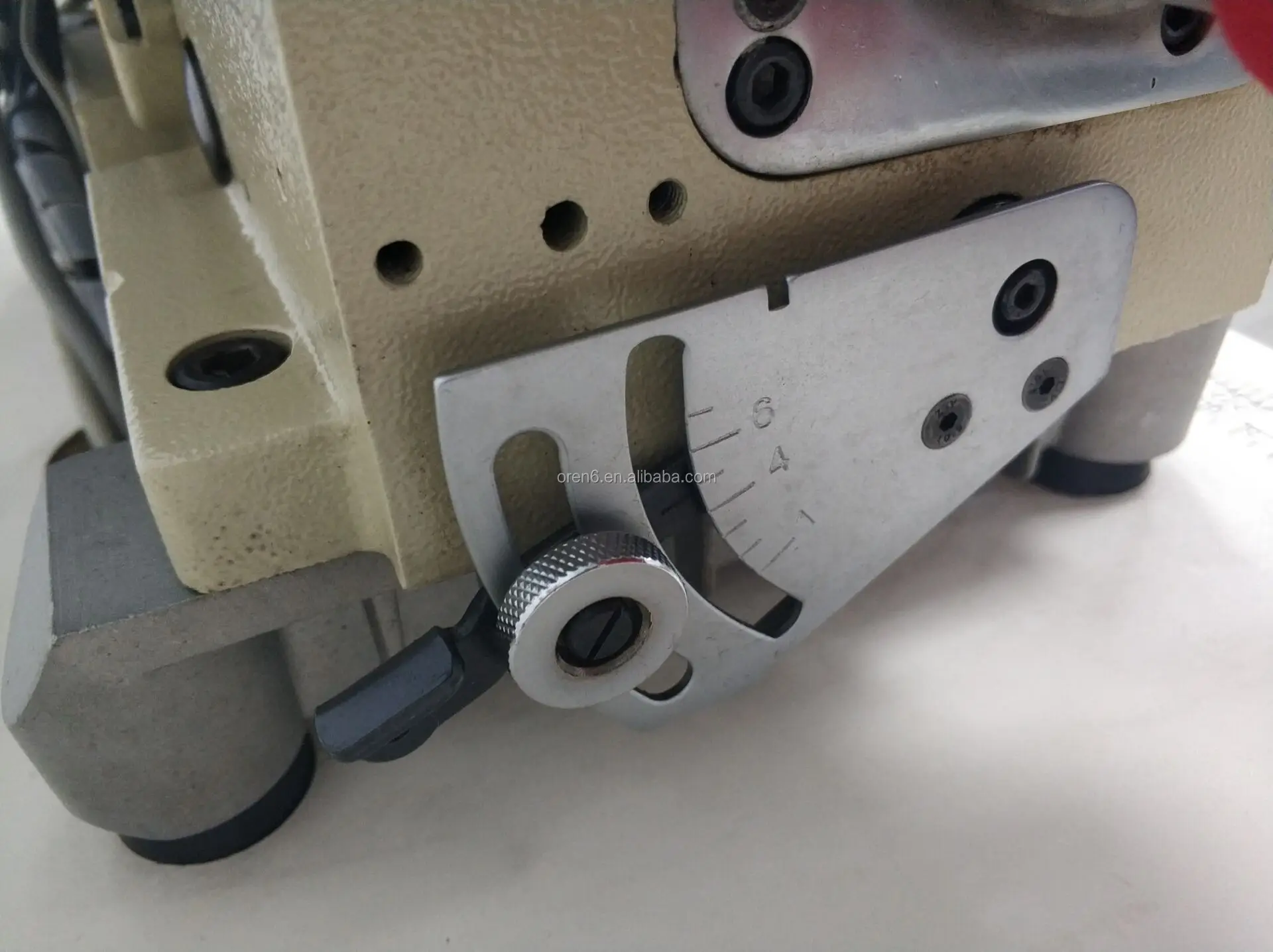

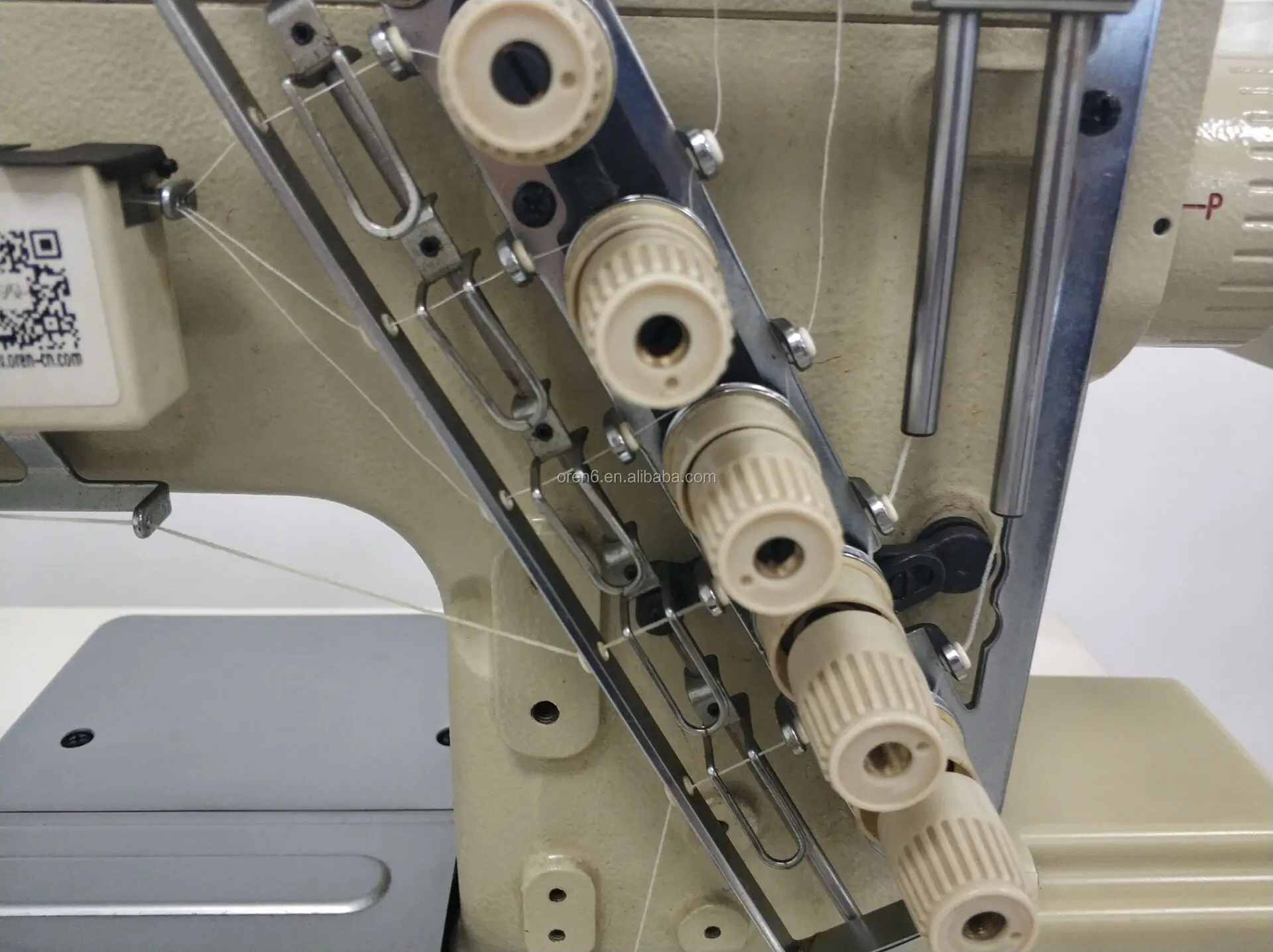

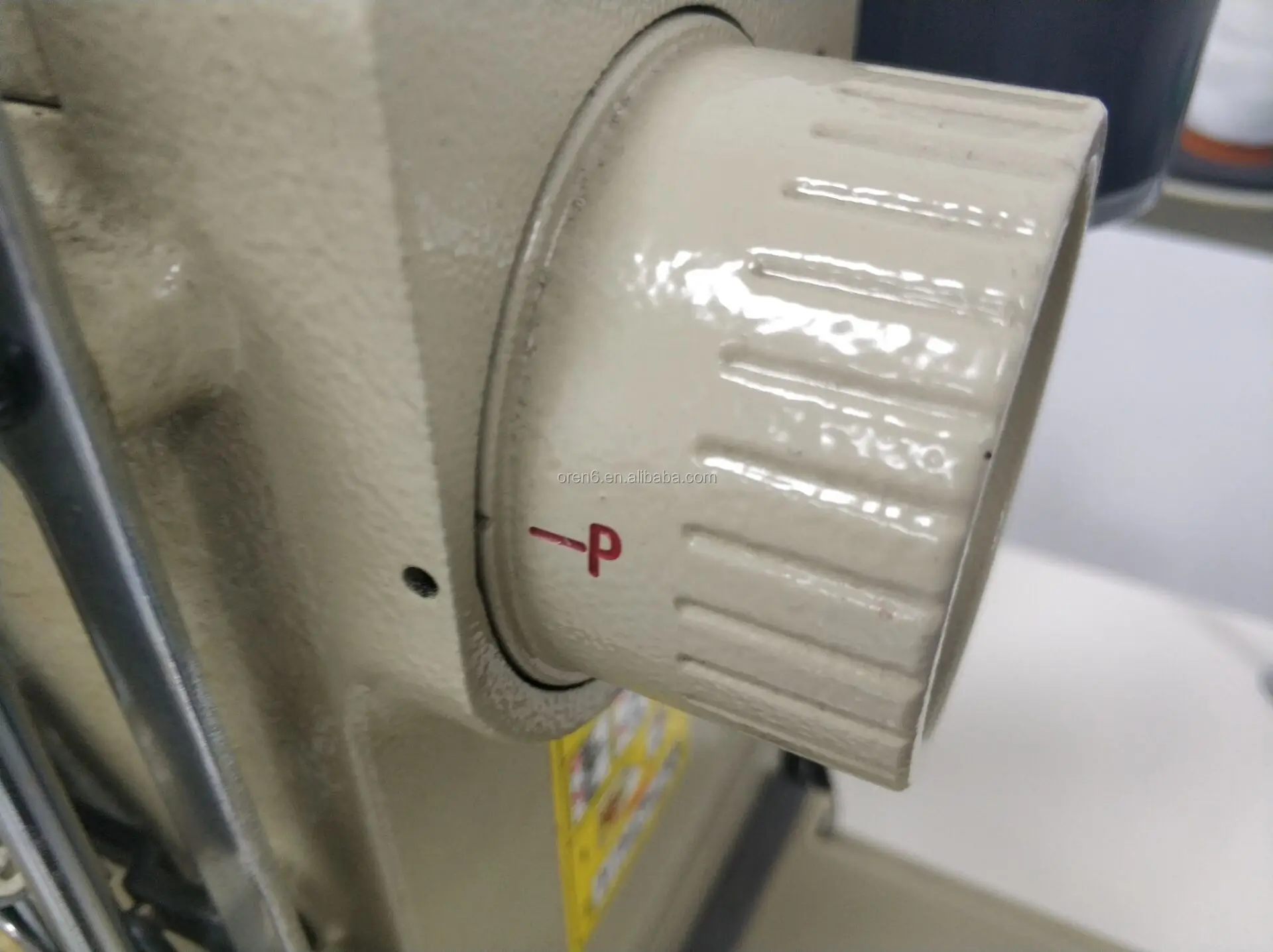

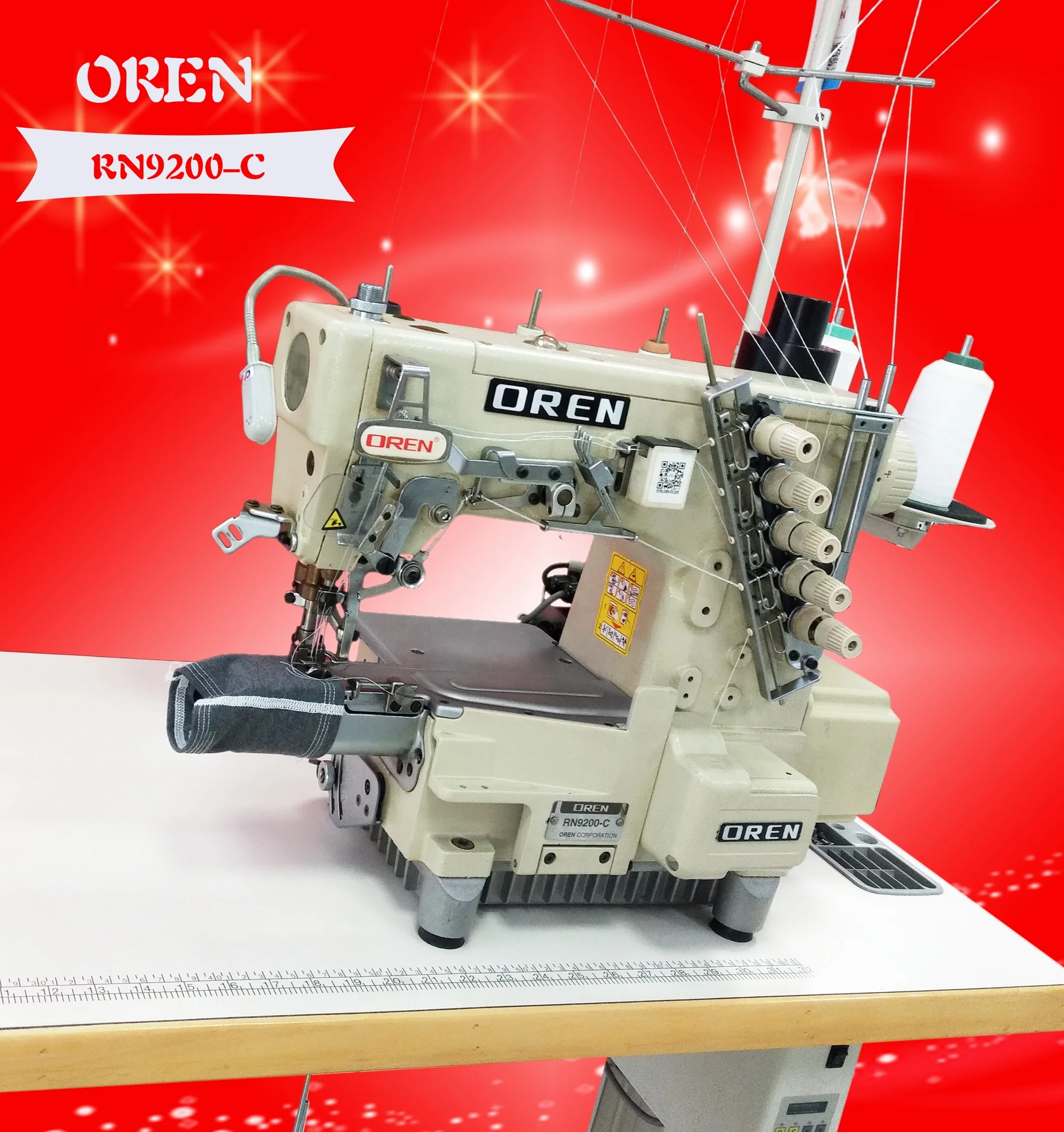

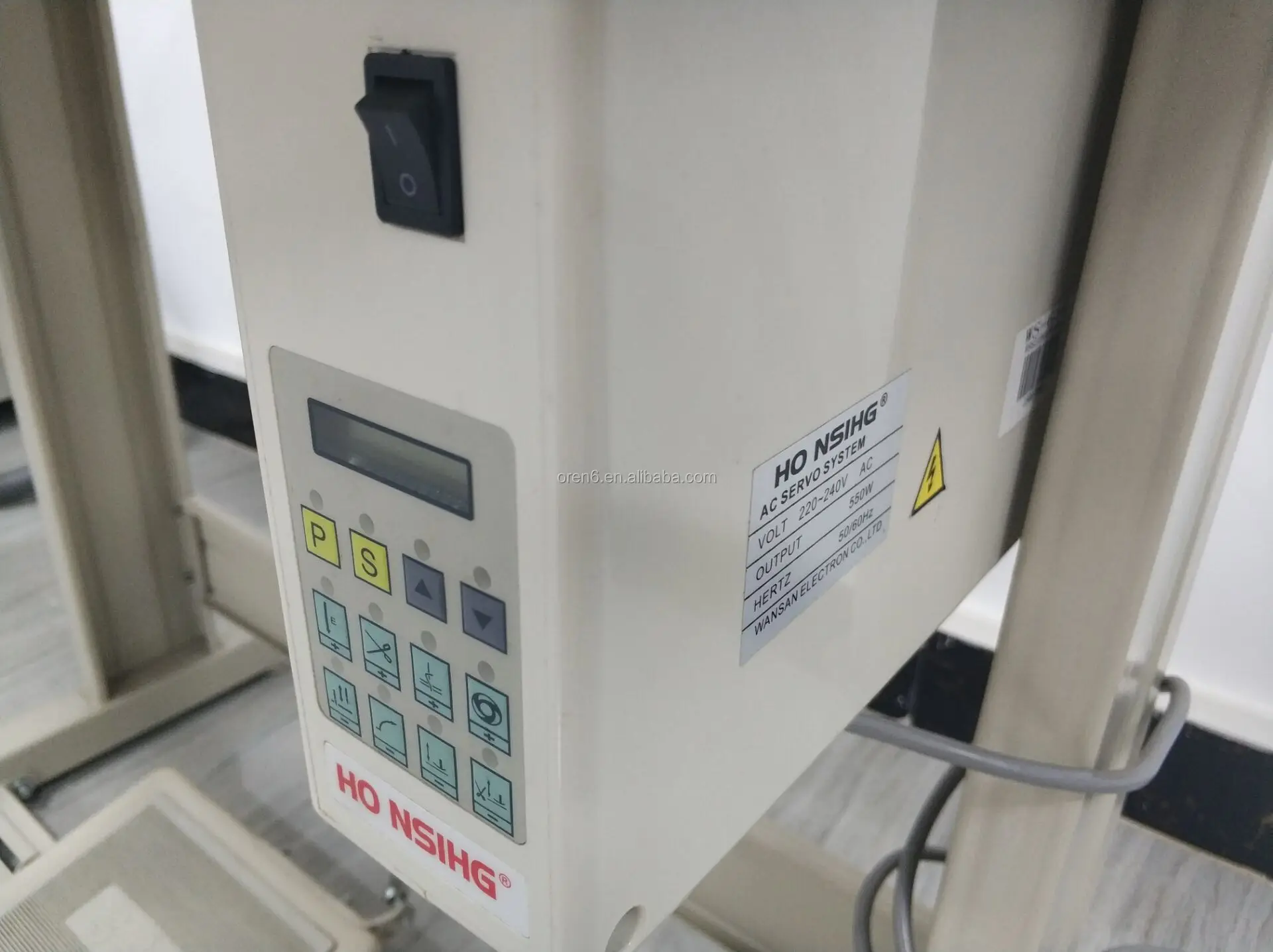

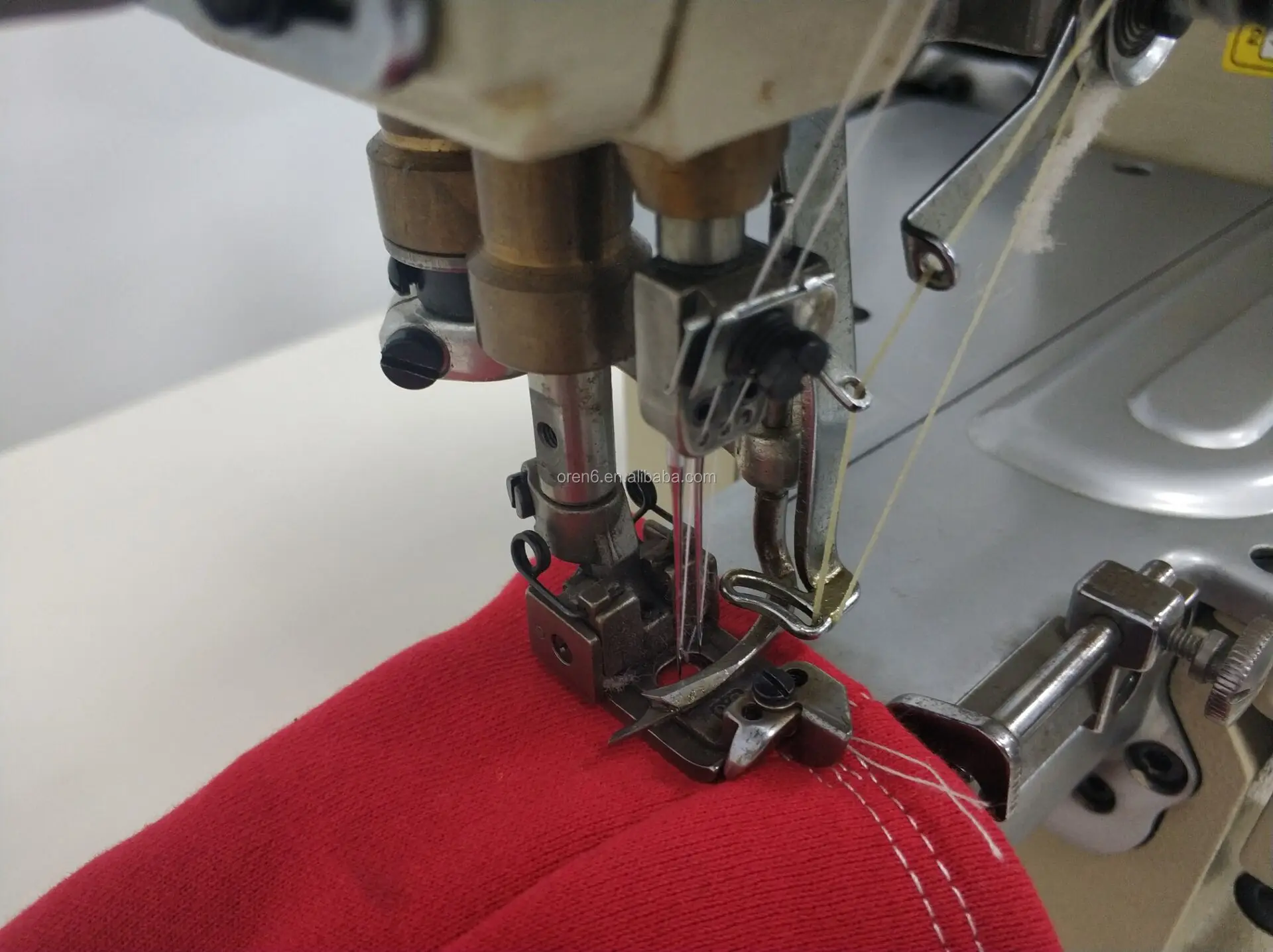

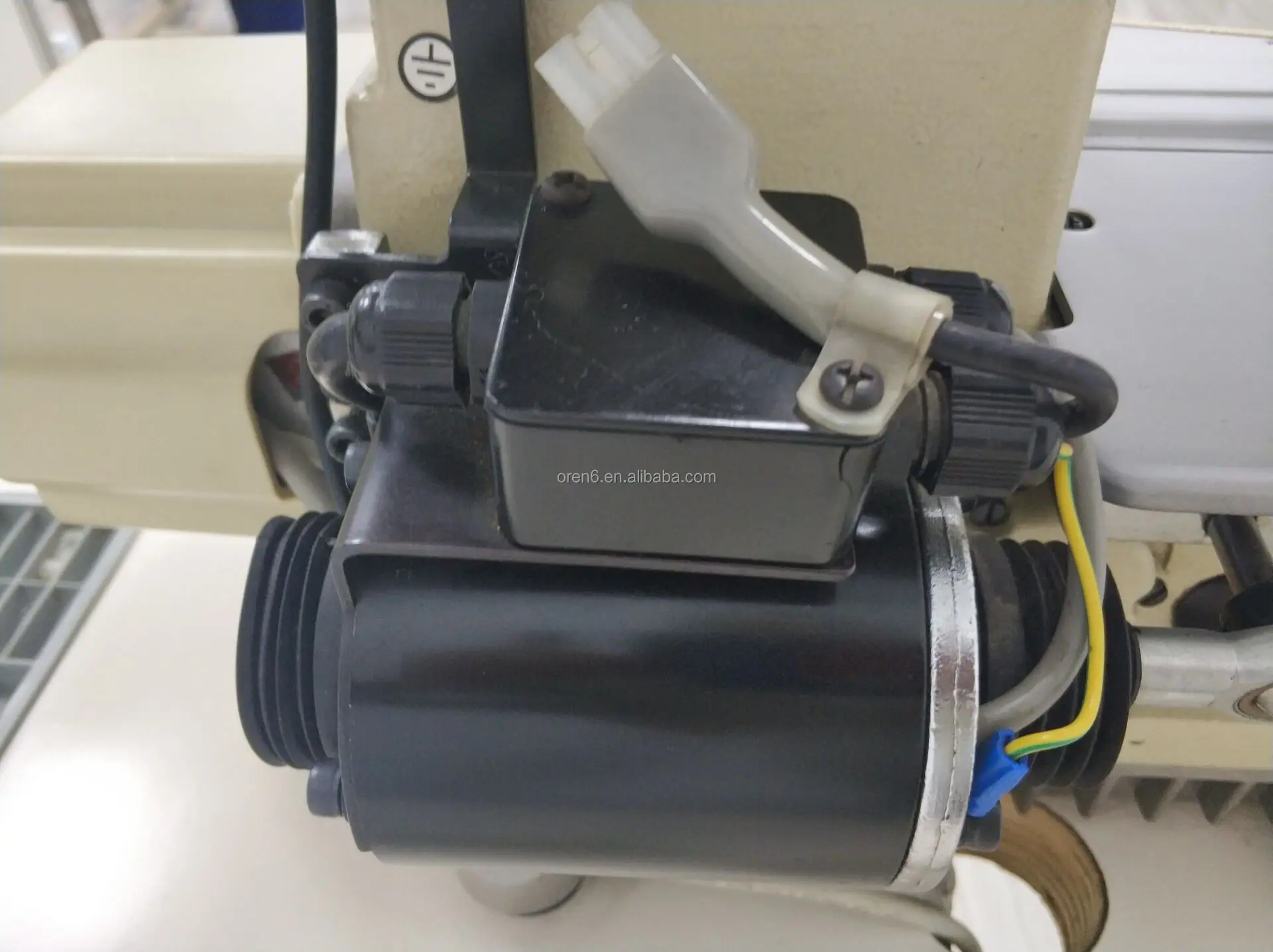

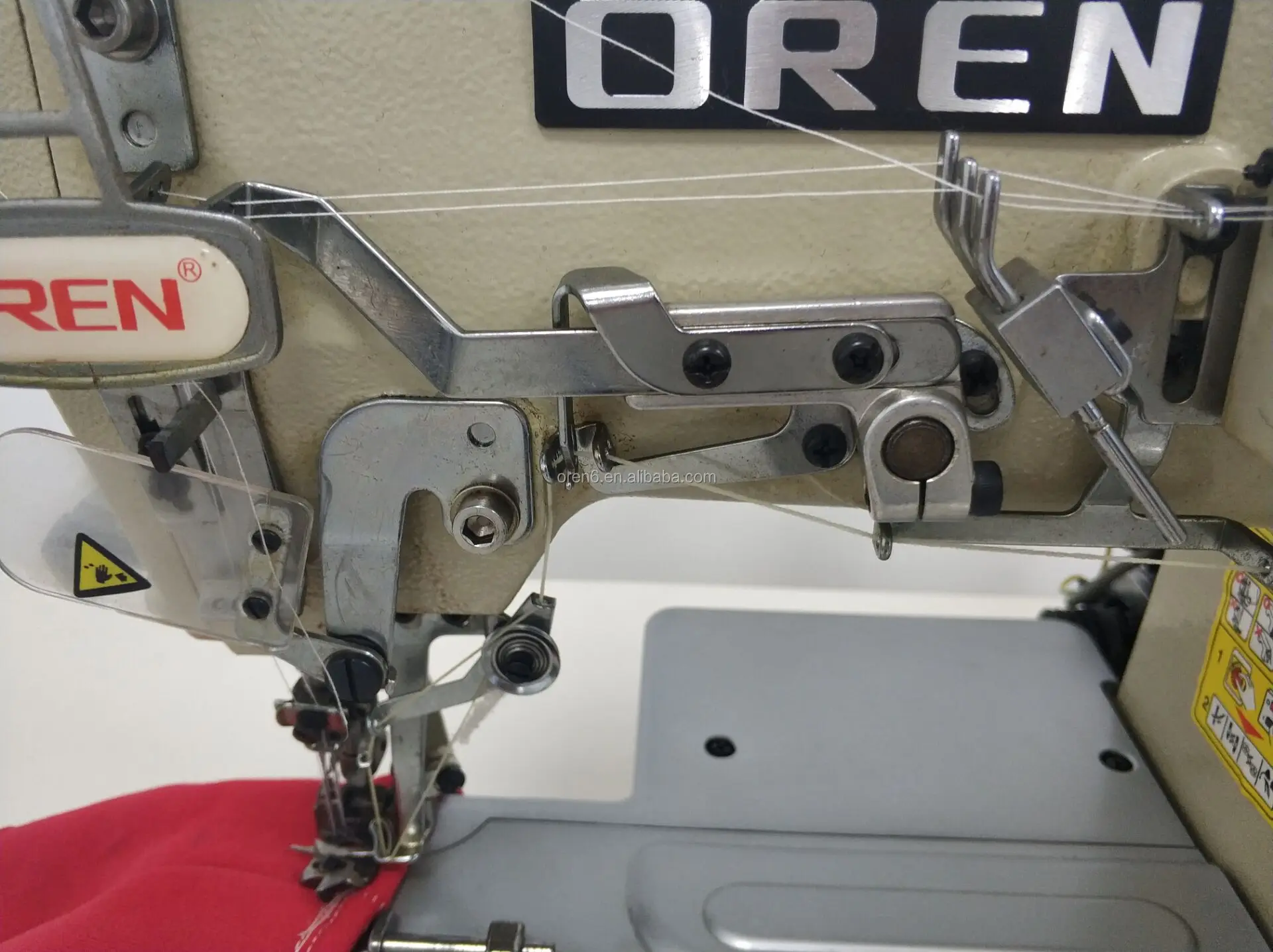

Product photos:

Quality Assurance:

      Market is the lifeline of enterprise development, a successful business, perfect marketing system is the enterprise the root of the existence, therefore, to strengthen the enterprise internal management and external image propaganda, on the basis of we have been committed to the development and management of market, establish a kind of can adapt to the modern market economy and the marketing pattern, and efforts from product development, quality management to do the right things after-sales service and so on each link, make our customers can get better products and services.

      All the company's equipment have clearly priced, and have three quality guarantees (3 days for return, 7 days for replacement, 1 year for use --- back to the factory for life free maintaining) let you buy it happy! Rest assured!

Products advantage:

      People need maintenance, machines need lubrication. The special machine lubricant developed by OREN co., LTD. of Japan can make the machine run at a high speed of 5000 RPM for more than 4 hours with a drop. It has good lubricity and stability. Because the product is a variety of natural plant extracts of non-ionic surfactant, so in high temperature resistance and rust resistance is absolutely unparalleled other oil, in addition; We also focus on solving the machine equipment for a long time to add oil on the surface of the clean, will not produce leakage and appearance corrosion, yellow, fall off and other phenomena, make it more environmental protection, health. It is especially suitable for the special requirements of external dripping of special machines and equipment. Parts in the process of using in high speed, the physical properties caused by the friction heat, part of the machine components can produce inefficient operation or jammed, affect the normal operation of the equipment, therefore, this product USES natural plant extract inactive lubricant, with dynamic system static, heat energy for power, restrain coefficient of friction, make impeded or stuck running the machine components immediately returned to normal. Eliminate the high - speed operation of the mechanical properties of heat and noise problems.

After-sales service:

      24 hours after-sales service, leave us a message or give us a call at any time.

CEO words:

      Precious cooperation, Honesty OREN: Let us work together to create an influential industrial sewing machine and accessories trading platform; Build a friendship bridge between manufacturers and customers!

Company information:

      Guangzhou OREN Sewing Machine Co., LTD, established in January 27, 2007, is a professional manufacturer engaged in the research, development, production, sale and service of CNC sewing machine, four needle six line sewing machine, mattress edge machine, computer embroidery machine, fancy sewing machine, etc. The company takes "serving the masses, facilitating the people" as its service purpose, takes "honest business, facilitating the people and benefiting the people" as its management purpose, takes "convenient, affordable and reassuring" as its management concept, and takes "loyalty to duty, honesty, integrity and overall situation" as its management cadres' code of conduct, and establishes "enthusiasm, sincerity and unity". "The dedication" of the OREN spirit, to solve the worries of customers. We are located in Left side of No. 1 FangShi Memorial Archway, Jiang-ren-san Road, Renhe Town, Baiyun District, Guangzhou City with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including CNC lathe, milling machine. In addition, we have obtained an export license, a certificate of origin and a certificate of inspection certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Southeast Asia, Africa and so on. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements

About OREN special machinery lubricating oil series explanation:

      The product is extracted from natural plants, colorless transparent liquid, no irritating odor to human body, skin without any harm, more for environmental protection, health, longer life, suitable for electronic drive, CNC machine tools, precision transmission and other high-end mechanical equipment high lubrication and maintenance.
