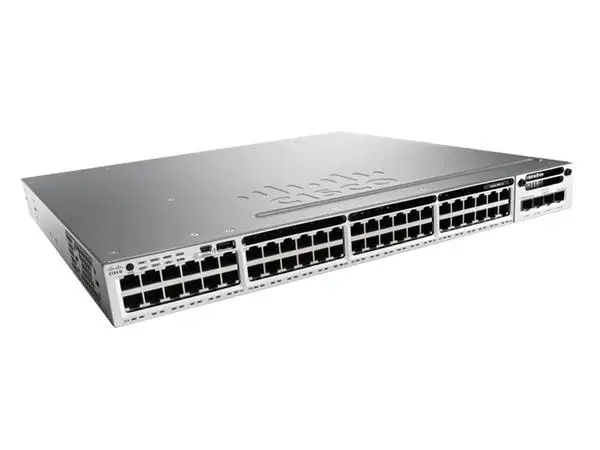

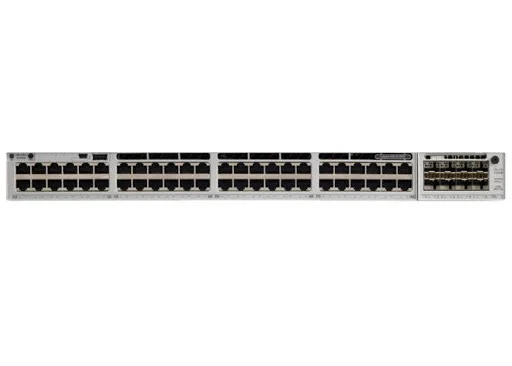

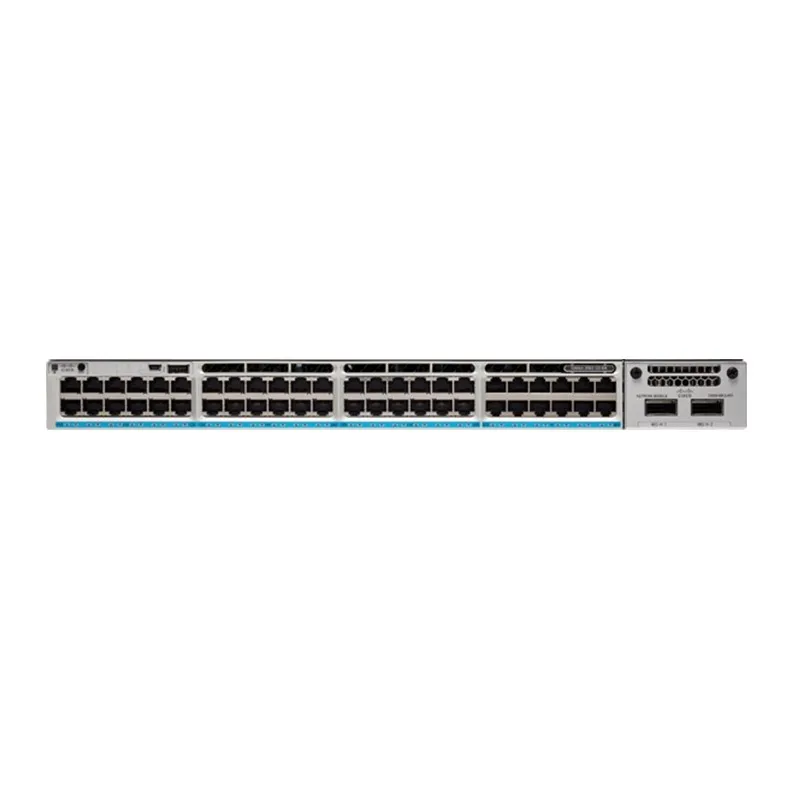

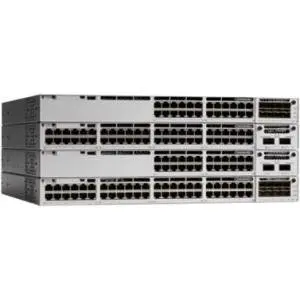

9300 48 портов PoE . Сеть преимущество C9300 48P A

Сохранить в закладки 62340144490:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description


























ProductC9300-48P-A
Product DescriptionCatalyst 9300 48-port PoE+. Network Advantage




Technical Specifications



Capacity


Type

VLAN IDs



Value

4000




Dimensions & Weight


Width

17.5 in



Depth

17.5 in



Height

1.7 in



Weight

16.73 lbs




Environmental Parameters


Min Operating Temperature

23 °F



Max Operating Temperature

113 °F



Humidity Range Operating

5 - 90% (non-condensing)



Min Storage Temperature

158 °F



Max Storage Temperature

104 °F



Humidity Range Storage

5 - 90% (non-condensing)




Flash Memory


Installed Size

16 GB




Header


Compatibility

PC



Manufacturer

Cisco



Packaged Quantity

1



Product Line

Cisco Catalyst



Model

9300



Brand

Cisco



Edition

Network Advantage




Interface Provided


Qty

48



Type

1000Base-T



Comments

PoE+



Connector Type

RJ-45




Miscellaneous


Compliant Standards

AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A



MTBF

277,770 hours



Height (Rack Units)

1



Encryption Algorithm

128-bit AES



Color Category

Gray




Networking


Type

Switch



Connectivity Technology

Wired



Remote Management Protocol

CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3



Compliant Standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x



Status Indicators

Status



Ports Qty

48



Features

16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)



Routing Protocol

BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP



MAC Address Table Size

32000 entries



Stackable

Stackable



Subcategory

Network hubs and switches



Power Over Ethernet (PoE)

PoE+



Advanced Switching

Layer 3



Manageable

Yes



Form Factor

Rack-mountable



Jumbo Frame Support

9198 bytes



Subtype

Gigabit Ethernet



PoE Budget

437 W




Performance


Type

Switching capacity



Value

128 Gbps




Ports


Qty

48



Type

10/100/1000 (PoE+)




Power Device


Frequency Required

50 - 60 Hz



Power Provided

715 Watt



Installed Qty

1



Max Supported Qty

2



Nominal Voltage

AC 120/230 V



Power Redundancy

Optional



Type

Internal power supply



Hot-Plug

Hot-plug




RAM


Installed Size

8 GB




Service & Support Details


Response Time

Next business day




Slot Provided


Type

Expansion slot



Total Qty

1



Free Qty

1




Software


Type

25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE C9300 Advantage Add-On Term, Cisco ONE C9300 DNA Advantage 48-port Term license, Cisco ONE StealthWatch License Term - 25 Flow Licenses




System Requirements


Min Operating System

Cisco IOS Universal
