Автоматическая машина для закручивания винтов/машина затяжки винтов

Автоматическая машина для закручивания винтов/машина затяжки винтов

Категория: >>>
Поставщик: Shenzhen Tianluo Automation Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

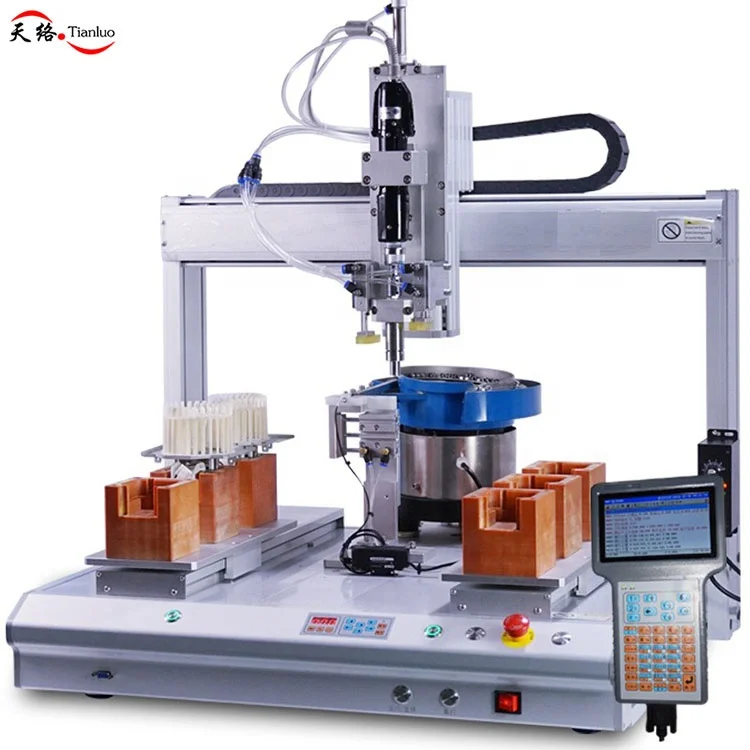

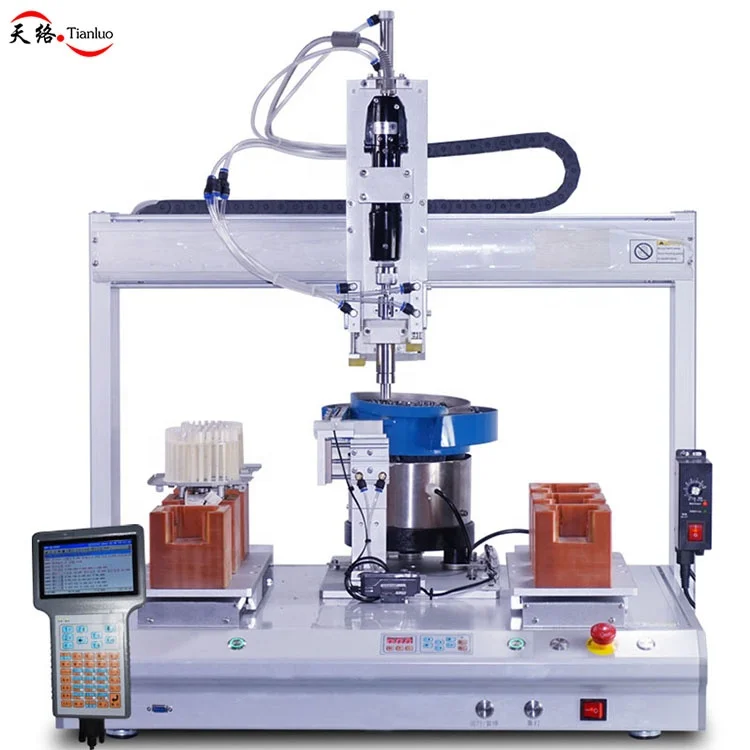

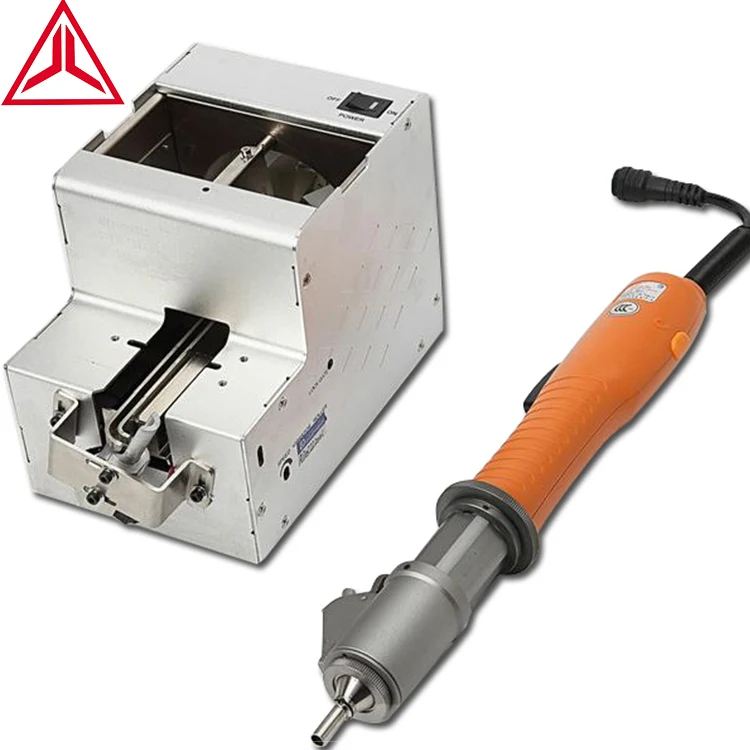

Automatic locking screw machine/screw tightening machine

Wall socket assembly machine

Reset switch assembly machine

Switch assembly machine

Product Description

Product function

This machine is suitable for automatic locking screw operation of small household appliances, electronic products, communication, mobile phones, tablet computers, notebook computers, keyboards, etc. It greatly improves production efficiency, reduces workers and reduces costs.

Light board automatic locking screw machine parameter details

Model	automatic lock screw machine
Electric Group	Imported HIOS electric batch
Feeder	Independent development
Control system	Independent professional screw machine system
Lock one screw time	0.6-1.5s
Travel range X/Y/Z/R (mm)	300/300/100 (400400,500500customizable)
Maximum load	10kg
Moving speed (mm/sec)	0-800
Repeatability accuracy	±0.02 mm/Axis
Program record mode	The 999 group
Display mode	LCD teaching box
Motor system	Precision micro stepping motor
Motion compensation function	3 axis
Input power supply	Full Voltage AC110V-220V
External control interface	RS232
Alarm function	Floating lock, lock strip, leakage


Machine Structure:

1. Adjustable positioning system.

2. The vibrator automatic feeding;

3. The structure sliding part is made of high speed steel, which is stable wear and good fixity;

4. 1 years warranty;

5. Alarm indication;

Main Features

1. This series machines is designed and manufactured specifically for the locking screw automation machine industry.

2. Automatic feeding.

3. Automatic detection, automatic start when material is detected, automatic stop when lack of material.

4. Automatic counting , set output.

5. Intuitive interface, simple and safe operation.

6. Abnormal shutdown, automatic alarming when reporting abnormal information.

Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.

Company Information

We have a strong management team and technology R&D center, and the technical team has 20 years of research and development experience. Complete supply and marketing channels, pre-sale and after-sale service. Products are exported to all over the world.

Our company's products include various full- automatic components production and processing equipment, full- automatic assembly equipment, full-automatic production lines, robotics and vision integration applications, etc. Its products have been widely used in electronics, watches, instruments, bicycles, computer manufacturing, auto parts, fine building materials, jewelry industries, etc.

Certifications

Our company has obtained many patents and inventions.

Our Services

1.Field installation, commissioning and training Item.

2.Ten years of quality, lifelong service.

3.Warranty :1 year

Packing & Delivery

Packing :Wooden box export packaging

Delivery port:Shenzhen / Guangzhou / Hong Kong.Customers can specify the delivery port

Customer cooperation

Overseas customers come to our company for experience and cooperation.
