Однофазный Инвертор солнечной энергии SNK-6KSL-HE изоляционный резистор
310,00-350,00 $
Оптовая продажа неэлектрифицированный Инвертор постоянного тока в переменный ток по ограничению на использование опасных материалов производстве электрического и электронного оборудования синусоида 48V 2000W для домашней солнечной системы 110VAC
- Категория: >>>
- Поставщик: Shenzhen Suns Energy Co. LimitedShenzhen Limited
Сохранить в закладки 62342769798:
Описание и отзывы
Характеристики
Product Description

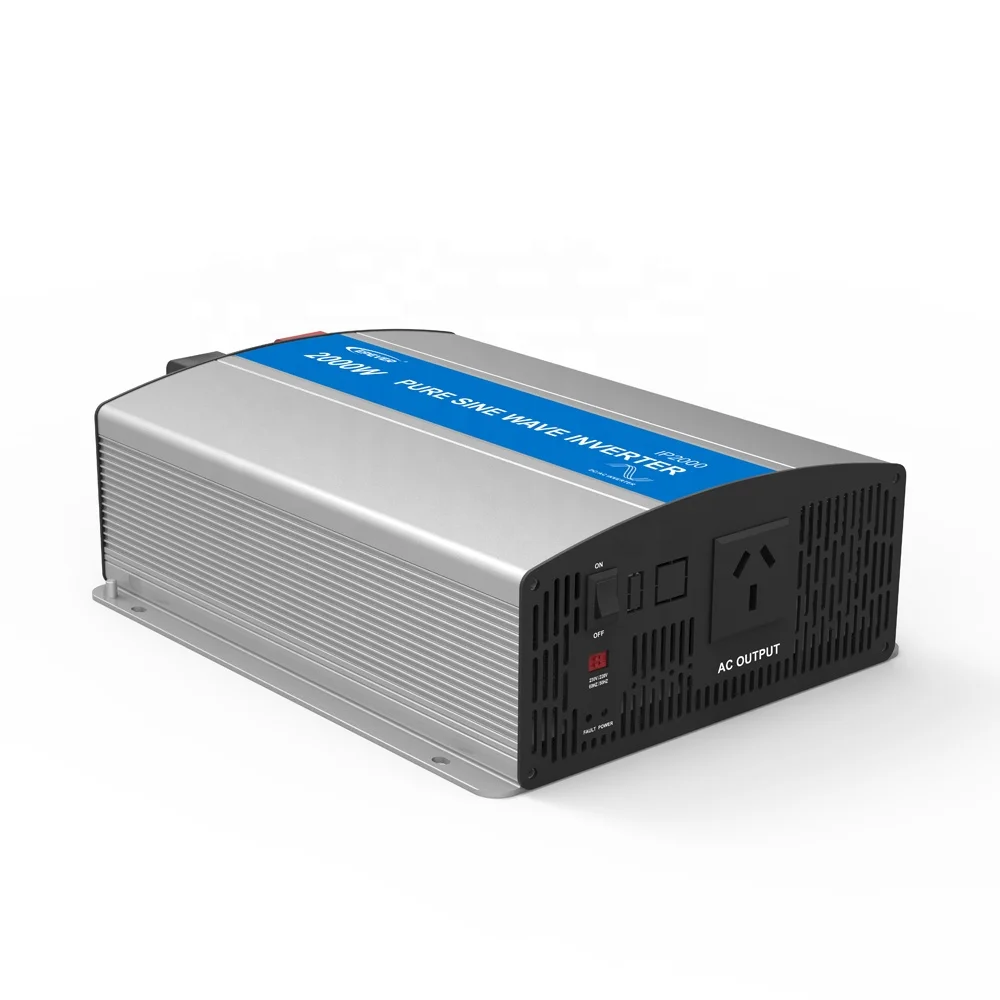

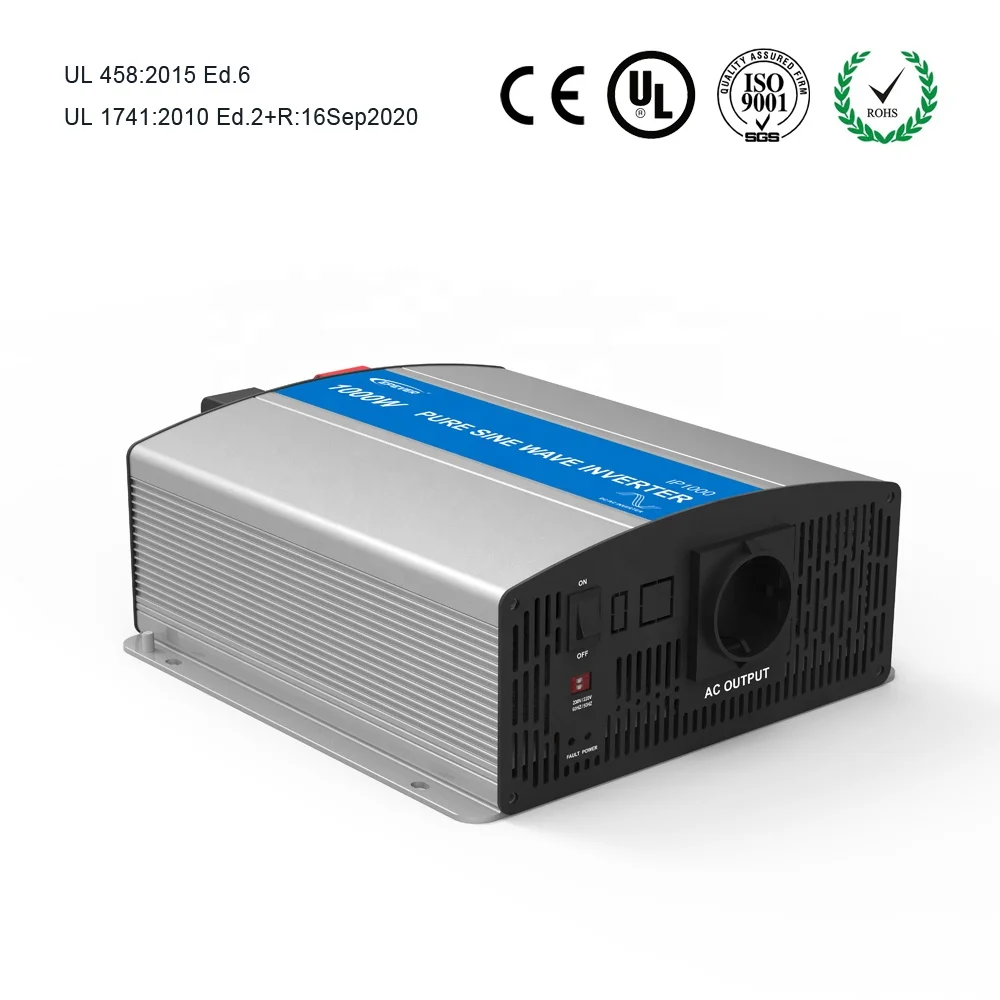

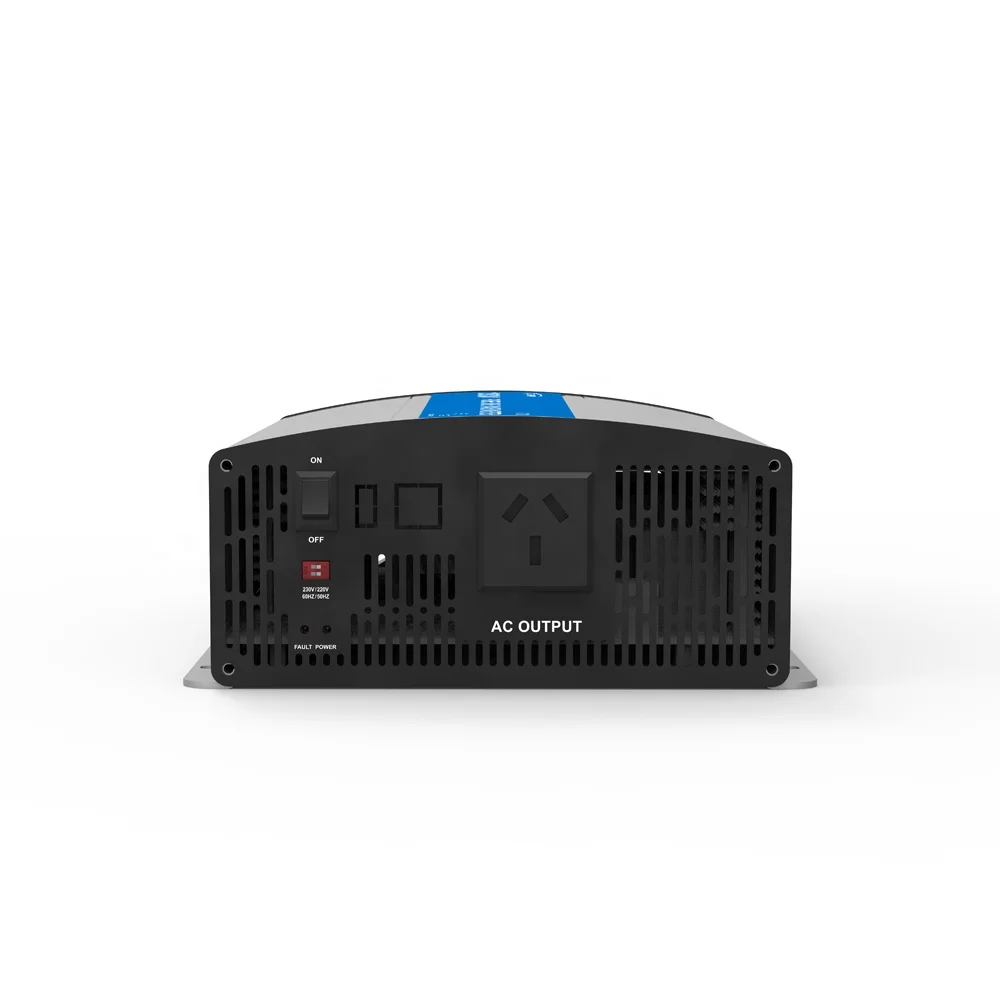

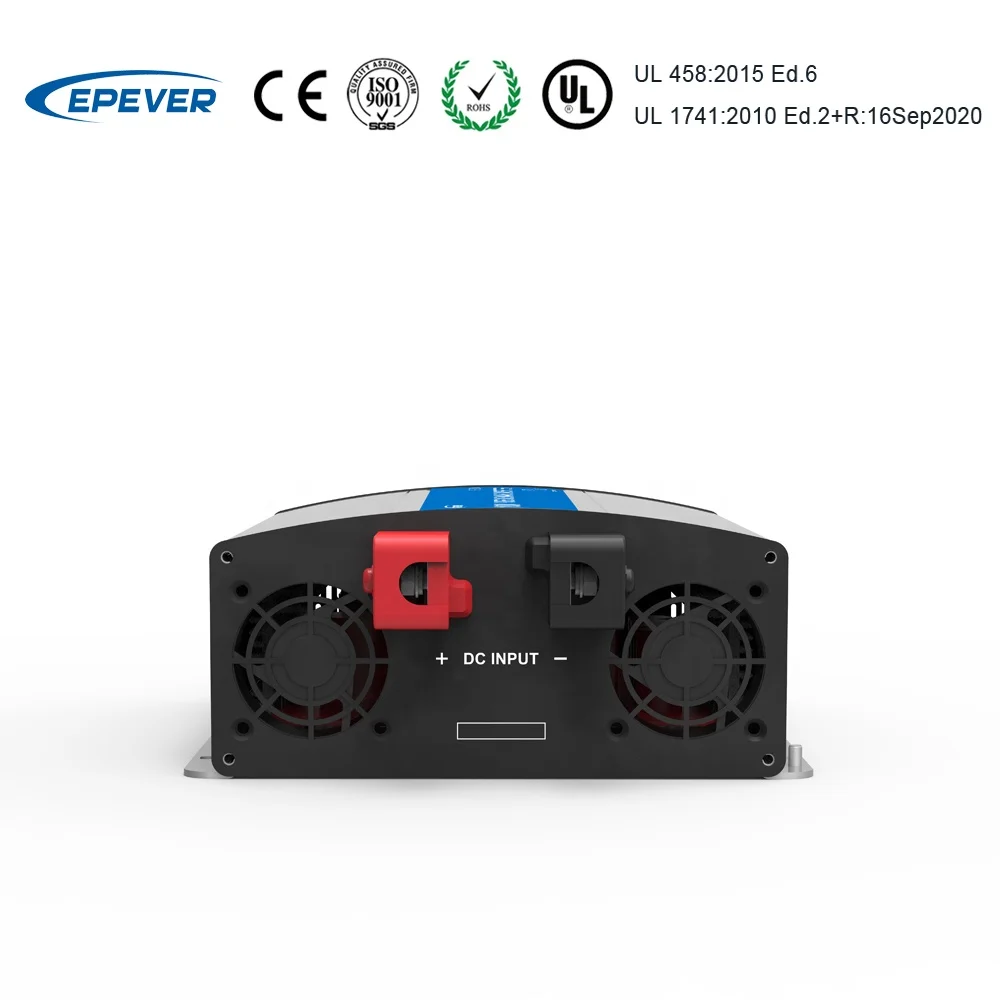

Off grid Power Inverter 2KW 48V
Off grid power Inverter DC to AC inverter pure sine wave 48V 2000W for home solar system 110VAC
Remarks:
Thanks for purchasing IPower series inverters. The product is a pure sine wave inverter which can convert 12/24/48VDC to 220/230VAC, 50/60Hz based on full digital and intelligent design. It features high reliability, high efficiency, concise outline, small volume, full protection functions, easy installation and operation. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply, etc.
Specifications:
Item | IP2000-22 | IP2000-42 | IP2000-21 | IP2000-41 |
Input Rated Voltage | 24VDC | 48VDC | 24VDC | 48VDC |
Input Voltage Range | 21.6~32VDC | 43.2~60VDC | 21.6~32VDC | 43.2~60VDC |
Input surge voltage | <40VDC | <80VDC | <40VDC | <80VDC |
No-load current | <0.6A | <0.4A | <0.6A | <0.4A |
Output Voltage | 220VAC(±5%) | 110VAC(±5%) | ||
Output Continuous | 1600W | |||
Output Power 15 min | 2000W | |||
Surge power | 3200W | |||
Power factor | 0.2-1(VA lower than output continuous power) | |||
Max.Efficiency | 95% | 95% | 94% | 94% |
Output Wave | Pure sine wave | |||
Output Frequency | 50/60Hz(±0.1%) | |||
Distortion THD | THD≤3% | THD≤5% | ||
Max. USB Output | 5VDC/Max.1A | |||
Binding post | D=10mm | |||
Overall dimension | 326.1*231.5*98.5mm | |||
Mounting dimension | 208*219.5mm | |||
Mounting hole size | D=5.5mm | |||
Net weight | 4.6kg | |||
Features:
1. Complete isolation-type inverter technology
2. Adoption of advanced SPWM technology,pure sine wave output
3. Dynamic current loop control technology to ensure inverter reliable operation
4. Wide DC input voltage range
5. Low output harmonic distortion (THD≤5%)
6. Optional output voltage and frequency at 110/120VAC,50/60Hz
7. High conversion efficiency up to 94%
8. USB output 5VDC/1A*
9. RS485 communication port*
10. Extensive Electronic protection
11. Only the model of the USB output port or RS485 port.
Company Information
FAQ
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 13 years experience in off grid solar field.
In addition, we use alibaba platform for 13 years as supplier.
Q2:Where is your factory located?
A:Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap
A:Our factory is located in Shenzhen which is near Shenzhen and Hong kong sea port. Cheap
and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).
Q4:How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015(Remark: This is a national level comprehensive strength certificate).
Q4:How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Packaging & Shipping
