Огнестойкая панель холодильной камеры с замком
- Категория: >>>
- Поставщик: Guangdong Dachang Energy-Saving Insulation Technology Ltd.
Сохранить в закладки 62347289146:
Описание и отзывы
Характеристики
Product Description

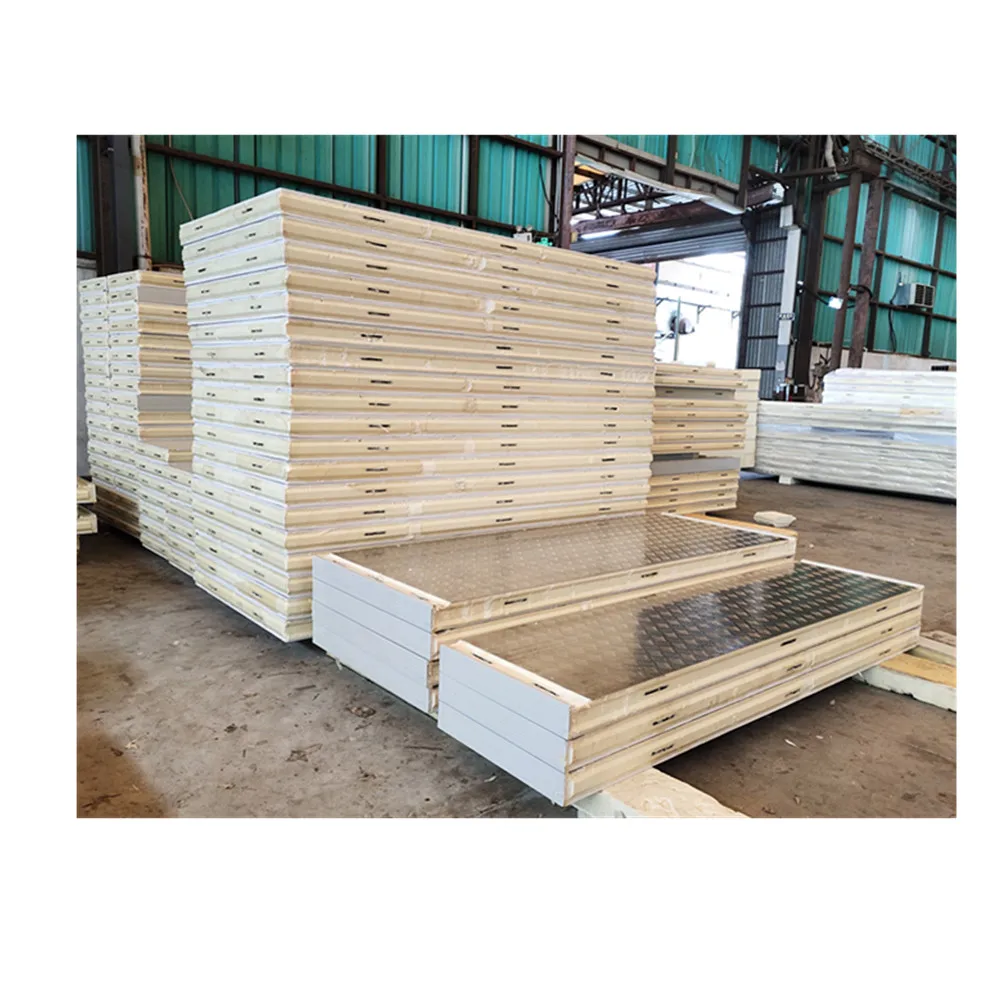

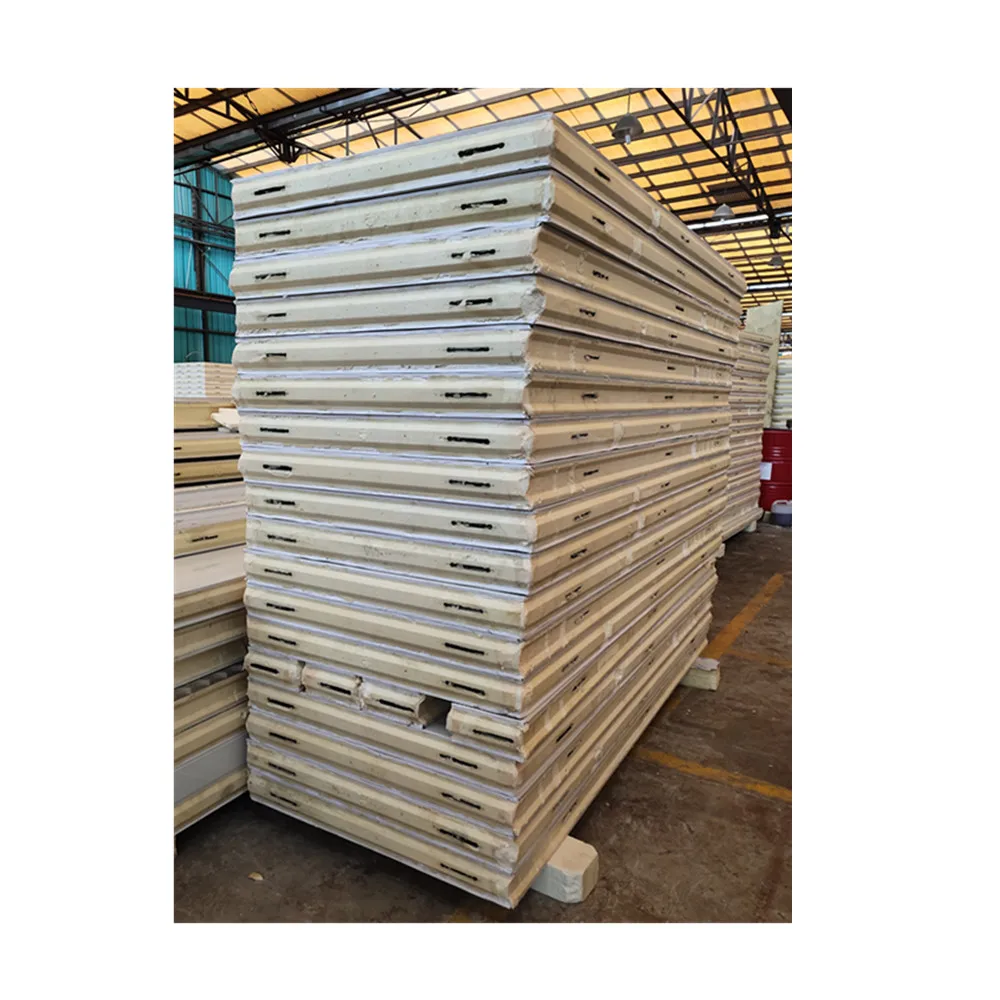

Cold storage cold room polyurethane panel with cam locks
1.cold room panels are male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them
together.
2.Standard width is 1183mm, maximum length can be 14m,in order to fit the container,the longest panel for oversea clients is 11.9m.
3. customized size cold room panels is acceptable in our factory.
together.
2.Standard width is 1183mm, maximum length can be 14m,in order to fit the container,the longest panel for oversea clients is 11.9m.
3. customized size cold room panels is acceptable in our factory.
4.cold room panels foamed by high pressure,100% polyurethane insulation, enviromentally friendly,density about 43kg/m3,flame retardant injected to the panel while foaming.
5.Gasket is around the edge of each cold rom polyurethane sandwich panel, when panel lock together,the cool air will not leak,and
the hot air can not come in .

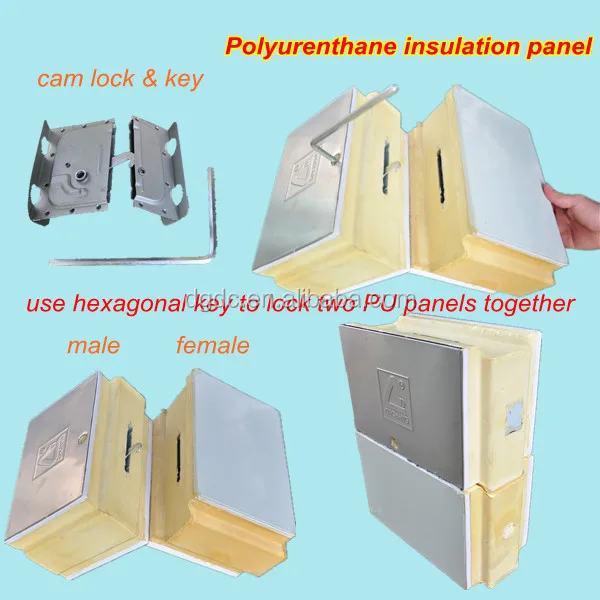

PU panels with cams
PU panels are with male and female with cam locks.
PU panels with gaskets
PU panels are iwth gasket around, good sealant

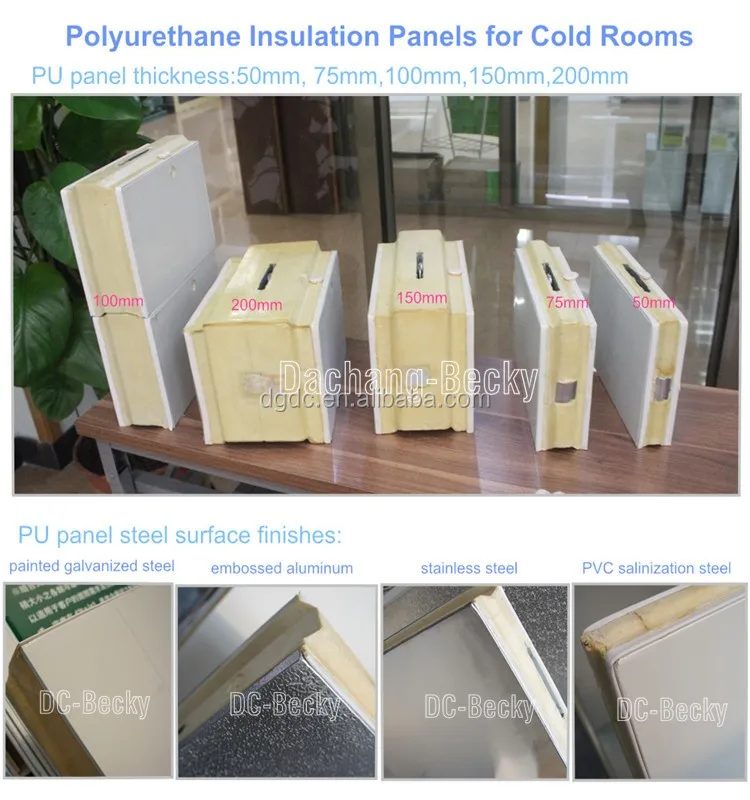

PU Panel Thickness | 50mm,75mm,100mm,150mm,200mm |
PU Panel Steel Sheet | Color painted steel |
Embossed aluminum | |
Stainless steel | |
PU Panel Density | 38~40kg/m3 |
Flame Resistance | B1 & B2 optional |
Installation Instructions
PU panel （Cold room）Installation
PU panels are male and fremale with cam locks, use hexagonal key to assemble.
Every panels stick with labels, assemble base on the drawing.
Step 1: floor panels
Step 2: wall panels,start from corner wall
Step 3: ceiling panels
Step 4: door panels
Our Advantages
1.Polyurethane panels are 100% polyurethane insulation, foamed by high pressure by using BASF foaming material,green to the
environment.
2. Polyurethane panels are foamed by high pressure, our pressure plate can bear the pressure up to 200 ton, even foaming, the
whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k)
3. Polyurethane panels are with fire retardant, B1 hard firing material; it refers to the safety problem.
4. The steel sheet of Polyurethane panels we purchase from Baosteel and POSCO which are the biggest steel factories in the world,
they promise the painted galvanized steel they produce will not fade in 15years, the protect film of the painted galvanized steel
is 0.07mm thick, well protect the steel sheet.
5. Polyurethane panels are male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock
them together.
6. Gasket is around the edge of each Polyurethane panels , when panel lock together,the cool air will not leak,and the hot air can
not come in .
No. | Inspection item | Unit | Technology Inspection | Insection result |
1 | Density | Kg/m3 | 32-50 | 43 |
2 | Compressing strength (10% deformation) | Kpa | ≥160 | 200 |
3 | Bending stregth | Kpa | ≥245 | 331 |
4 | Absorbing rate | % | ≤4 | 3 |
5 | Heating coefficient | W/m.k | 0.024 | 0.024 |
6 | Average burning time(vertical) | S | ≤30 | 3 |
7 | Average burning height(vertical) | S | ≤250 | 250 |
Company Profile
Your One-Stop Commercial Refrigeration Solutions
DACHANG provides innovative commercial refrigeration solutions for food retail, food services and industry as well as other usage areas. Energy efficiency and sustainable refrigeration together with ease of use and maintenance are at the core of these solutions.
DACHANG has been providing reliable refrigeration equipment since 1996, have been in this field for more than 26years.The products are manufactured at the factory in Dongguan, Guangdong,China.
DACHANG products and service portfolio includes cold rooms, ice storage freezer, remote and plug-in refrigeration cabinets, restaurant freezer and refrigeration systems as well as accessories and related services.
DACHANG products and service portfolio includes cold rooms, ice storage freezer, remote and plug-in refrigeration cabinets, restaurant freezer and refrigeration systems as well as accessories and related services.
DACHANG products are renowned for their highest standards in hygiene, ensuring food safety, and can be customized to best fit our customers’ concept and image requirements.
You have enough things to worry about with your business. Your refrigeration equipment shouldn’t be one of them. DACHANG can provides one-stop commercial refrigeration solutions for you.
Похожие товары
Высококачественная мебель для столовой в деревенском стиле, складной ротанговый стул из массива дерева
Канифоль различные хорошего качества канифоль Модифицированная малеиновая Смола WW класс CAS
1 100,00 $

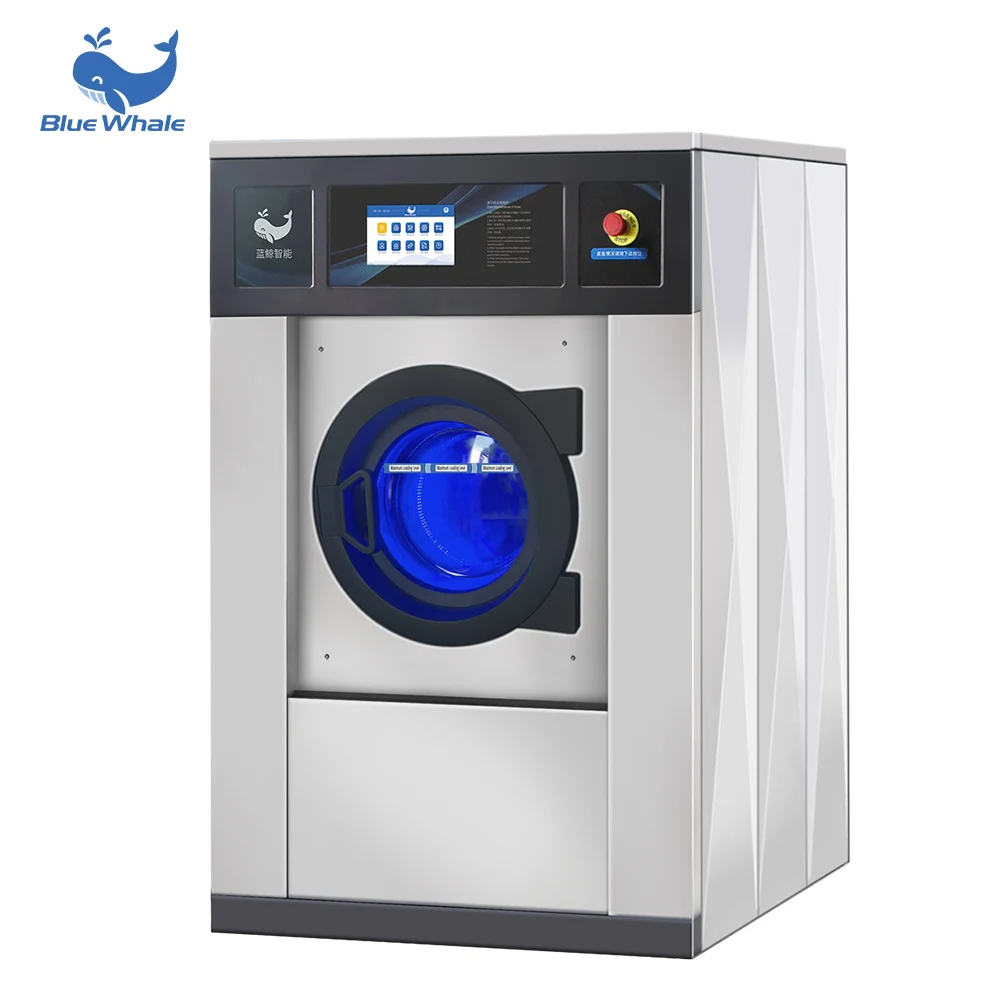

Большая Машина для мойки с высоким вращением, автоматический аппарат для мойки с максимальной скоростью 1000 об/мин
3 900,00 $ - 4 300,00 $
2023 10 кг 25 кг полипропиленовые тканые пластиковые пакеты, упаковка для сельскохозяйственной, зерновой, арахисовой, кукурузной, пшеничной муки
0,04 $ - 0,06 $
Высокомощный портативный ручной алюминиевый волоконно-лазерный сварочный аппарат 1500 Вт
5 400,00 $

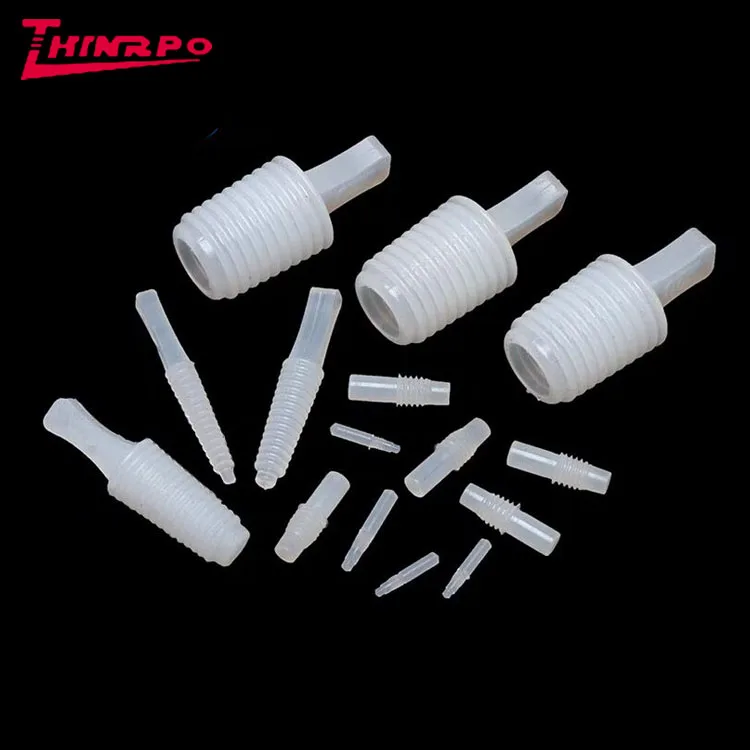

Производитель LSR пластиковых инъекций OEM изготовленный на заказ высокопрозрачный жидкий силиконовый резиновый продукт прозрачные части силикагеля

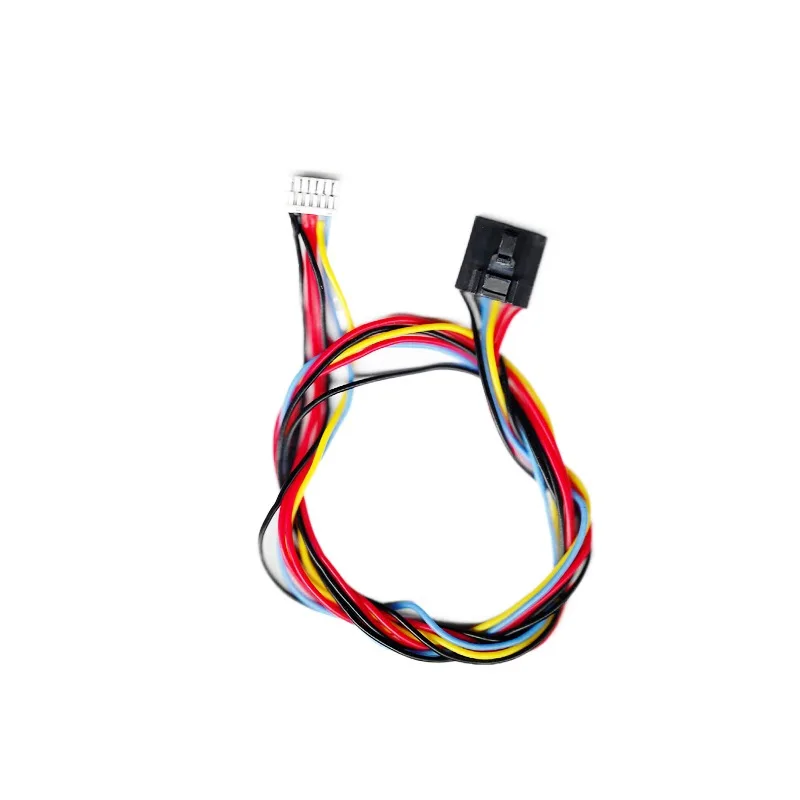

CUAV HV_PM 10-60 В X7 PRO Nora Контроллер полета кабель модуля питания
