ET-105B IP 16in1 Tuner ASI IP DVB-T Modulator with 8 DVB-T RF Carriers

Outline

ET-105B is a high performance and cost-effective DVB-T modulator designed. It has 16 DVB-C (DVB-(T)/S/S2, ATSC, ISDB-T optional) FTA tuner input to 8 non-adjacent carrier output with multiplexing and DVB-T modulating included. It also supports maximum 512 IP input port and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports.

ET-105B is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.

Key Features

* 16 DVB-C (DVB-(T)/-S/S2, ATSC, ISDB-T Optional) FTA Tuner + 2 ASI input+512 IP (GE1 only) input over UDP and RTP protocol

*  8*DVB-T RF output

*  1 IP(MPTS) output over UDP and RTP/RTSP, as mirror of one carrier

*  Excellent RF output performance index, MER≥40db

*  Support 8 groups multiplexing +8 groups DVB-T modulating

*  Support accurate PCR adjusting/PSI/SI editing and inserting

*  Support Web management, Updates via web

*  Redundancy Power Supply (optional)

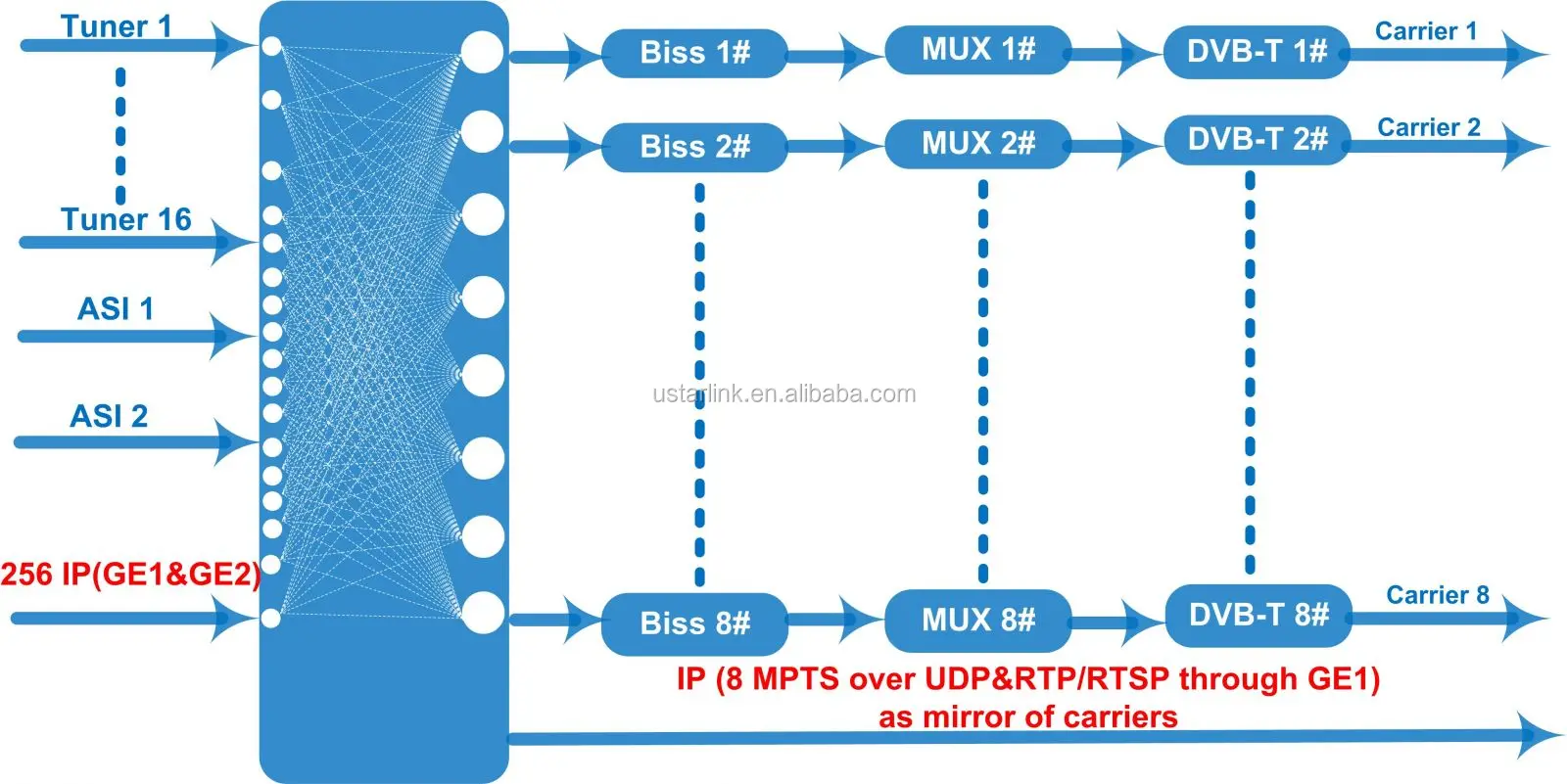

Inner Principle Chart

 Specifications

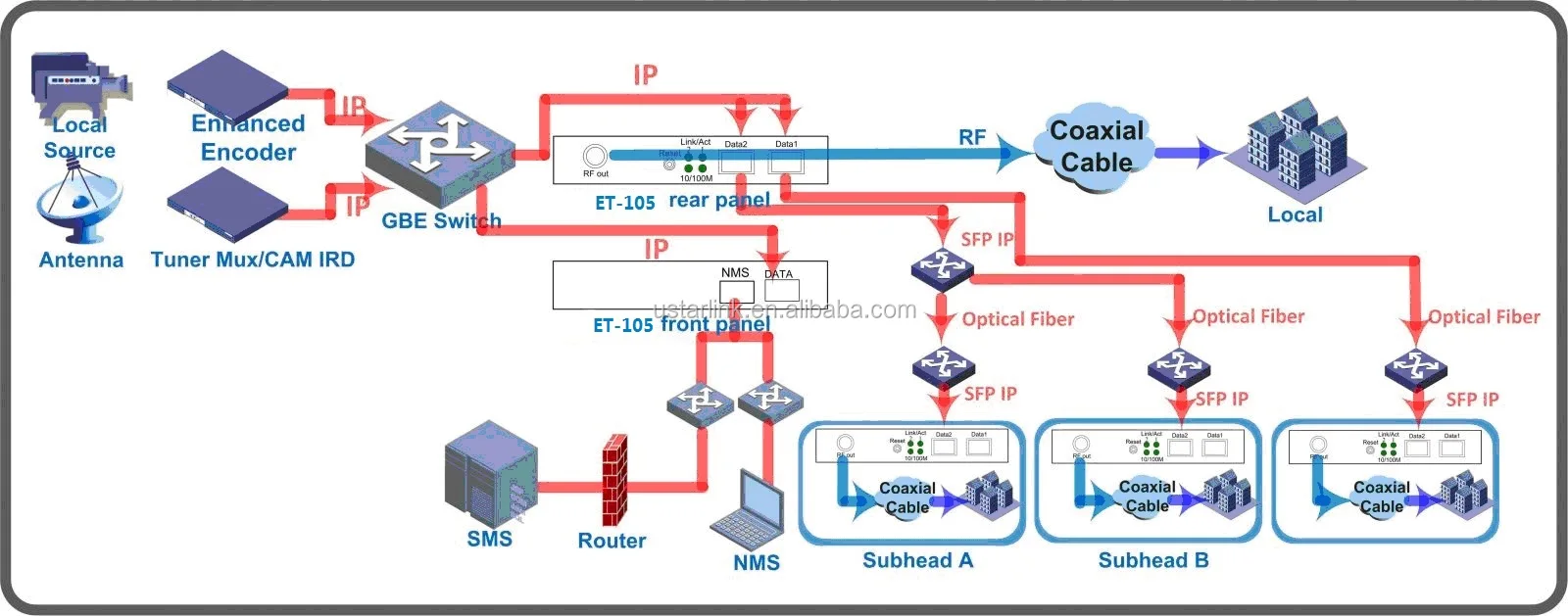

System Connection Sample (IP Based)

Q1: How could I test IPTV system?

We will provide on-line test by our cloud server or help install local server for customer test.

Q2: Could I add some function or design UI interfaces ?

Yes, We have powerful R&D strength to tailor customer's requirements.

Q3: How to make an order?

You can contact our sales by email, whatsapp, skype for quotation.

Q4: How to make payment?

You can make payment by bank TT, western union, Alipay, Paypal etc...

Q5: How about technical support?

We will provide on-line support by teamviewer or on-site support for our customer.
