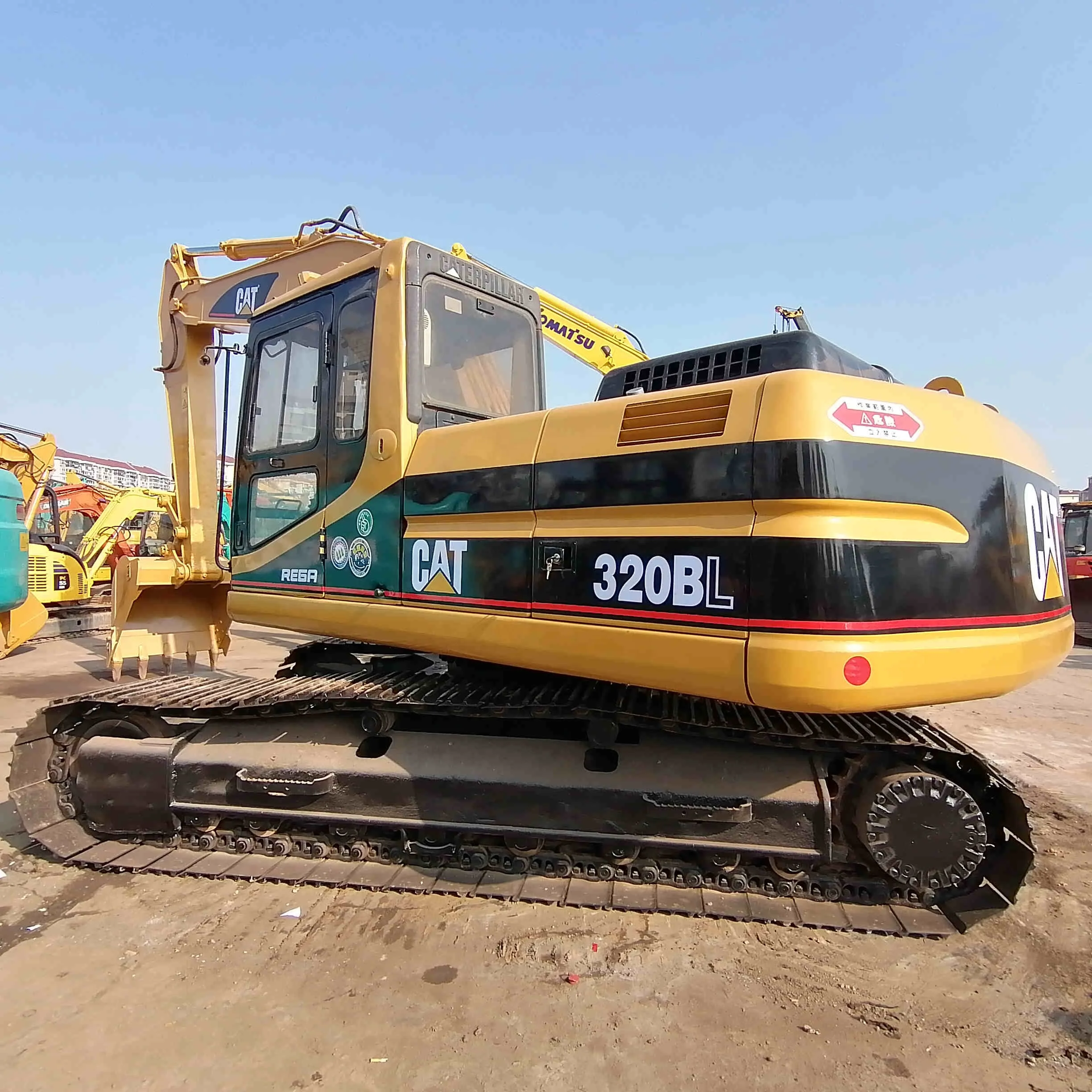

Экскаваторная машина, б/у, лучшее качество, оригинальная гусеница 320bl, сверхмощная серия cat 320
22 000,00 $ - 26 500,00 $
Материнская плата Rockchip 3288 Android linux для цифровых вывесок/рекламы/pos терминала/промышленного управления
- Категория: >>>
- Поставщик: Shenzhen Sharevdi Technology Co. Limited
Сохранить в закладки 62349900256:
Описание и отзывы
Характеристики

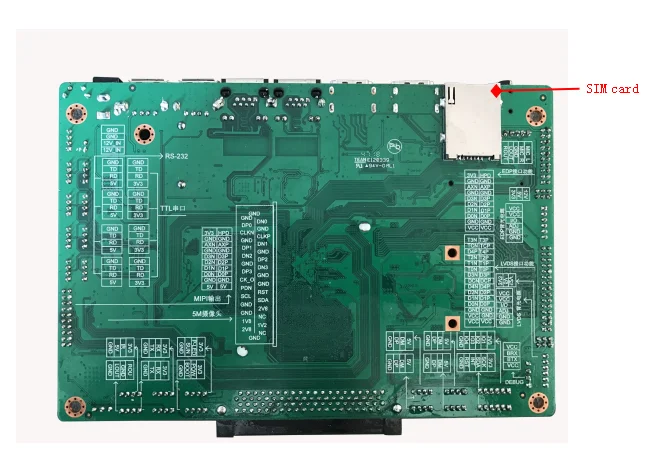

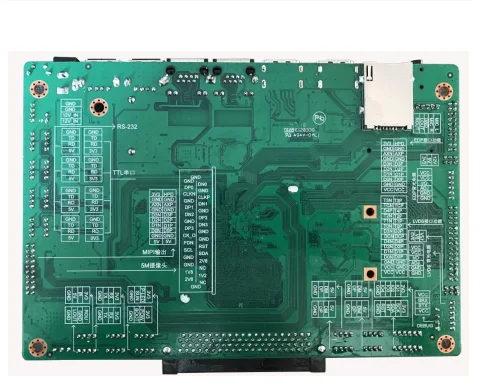

Stock Rockchip RK3288 Android motherboard For Digital Signage / Advertising machine / pos machine /Industrial Control
Simple introduction for this Stock Rockchip RK3288 Android motherboard For Digital Signage / Advertising machine / pos machine /Industrial Control:
Summary:
The H328 industrial control board adopts the micro RK3288 quad-core chip scheme, which supports Android5.1 system and Ubuntu14 dual system.
RK3288 is the world's first quad-core ARM A17 chip, the world's first CPU support for the latest super Mali-T76x series GPU chip and the world's first 4K*2K hardware-accelerated solution of h. 265 chip,up to the highest score 70000.
*Support the mainstream video format and image decoding,dual screen different display function;
*Dual 6/8/10 bit LVDS Interface, support 2K level output, can drive 7 "to 108" 2K display screen;
*Support eDP display interface output
*Support 4 k * 2 k Class HD-2160p output
*Support 4K video playback.
*Support infrared remote control, BL,4G/3G module/support serial port expansion/IO port extension /MIPI camera /HD_OUT output and other functions.
The chip with super nuclear speed makes the product become more perfect, which is widely used in advertising machine, interactive all-in-one machine, security,industrial control and other intelligent control areas.
Due to the characteristics of its hardware platform and Android intelligence, human-computer interaction and network equipment interaction are required,H328 can work perfectly as one smart terminal motherboard.
Features:
*High performance.
RK3288 chip adopts A17 scheme, which is one of the most powerful chips on the market.
Using a new chip RK3288 motherboard with speed super performance scheme, it can support up to HD 4K*2K video in various formats,it can also process complex interaction operation with high frequency.
*High stability.
With their own unique technology to ensure the stability of the product,H328 industrial control board is very stable in both hardware and software.It can work fine 7*24 hours and requires nobody to be on duty
*High level of integration
The H328 industrial control board integrates gigabit Ethernet, WiFi, BL, TF card extension and built-in 3G/4G mode,HD input, IR remote control function, HD output, LVDS, eDP, microphone and other functions, large
It can greatly simplified the whole machine design and can be applied for more areas.
*High Scalability
6*USB ports+10* Serial ports+1* I2C port+10* IO extendable ports for more peripherals equipment.
CPU | Rockcip RK3288, Cortex-A17, main frequency 1.8G |
Internal storage | DDR3 2GB (up to 4GB support) |
Built-in storage capacity | NAND FLASH 8GB/16G/32G optional (label 8GB, support EMMC) TF Card extension |
Operating system (OS) | Ubuntu14.04/Android5.1 |
Display screen interface | 1*eDP interface, support 3.3V/5V/12V power supply 1*LVDS interface (single, 6-bit, 8-bit, 10-bit dual), support 7 "- 108" display screen, 1080P 60Hz output, support 3.3V/5V/12V power supply 1*HD input 1*HD output, 1080P/4K 60Hz output supported Support for dual screen display function |
Backlit on board | Support for 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). Support USB multi-point infrared touch, multi-point capacitance touch, multi-point nano-film touch, multi-point acoustic touch, multi-point optical touch and so on. |
Network | RJ45 gigabit network port, support for Ethernet. |
With wifi module, support 2.4G WiFi, support Wi-Fi 802.11b/g/n protocol. | |
With BL, V2.1 EDR/BL 3.0 x 3.0 HS/4.0 | |
3G functional | |
Have 4G function | |
Audio | 1 * horn output (1 ≤ 6W 4R THD < 10%) 1 * microphone input |
Picture orientation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual rotation, support gravity induction automatic rotation screen function (optional) |
Camera | 1*MIPI camera feature, support 500W/1300W pixels (optional) Support for 800W-USB interface camera (optional) |
Infrared | 1 * infrared receiving seat, supporting infrared shaking control function |
Gorge line | 4 * 232 serial port, 6*TTL serial port |
Power adapter | Input: AC100-240V.50-60HZ, output: DC12V 2A~5A (screen appropriate) |
Key | 1 * upgrade key |
RTC | Support external real - time clock power supply battery, support timing switch machine. |
LED | 1 * Power status LED (red) |
USB | 6 USB (of which 1 USB OTG) |
IO port | 10* IO port, support input and output. |
Operating system | Google Android5.1/Ubuntu14.04 |
Basic software functionality | Camera, web browsing, web chat, email, e-book, resource manager |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
Video | Support H.264, VP8, mav, WMV, AVS, H.263, MPEG4 video format 1080p multi-video decoding, YouTube and other online video, up to 4K*2K output |
Picture | Support for browsing in various picture formats, such as JPG,BMP,PNG |
Sound effect mode | Clock, alarm clock, calculator, recording |
Linguistic support | Multi-language |
Sound recording | Support for recording in MP3,WMA format |
Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
Electronic book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Programme | calendar |
Typewriting | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
Tool | counter |
Weather+clock | |
sound recording | |
System management | APK installer |
Original ecological Android system, open root authority, can carry on product customization development | |
System setting | |
Global time | |
Support for wifi display |
Company Profile
SHAREVDI is a Top-ranking Enterprise which own a strong ability of hardware design and software development for more than 10 years.That make us gain a lot experience on developing embedded PC products and manufacturing industrial pc, thin client, zero client. OEM service can be provided for ARM kernel, Remote Desktop Protocol and X86 mini pc as well. We own the best SMT production line with experienced employees. Strictly QC team and large warehouse allow us to offer you products timely.
Похожие товары

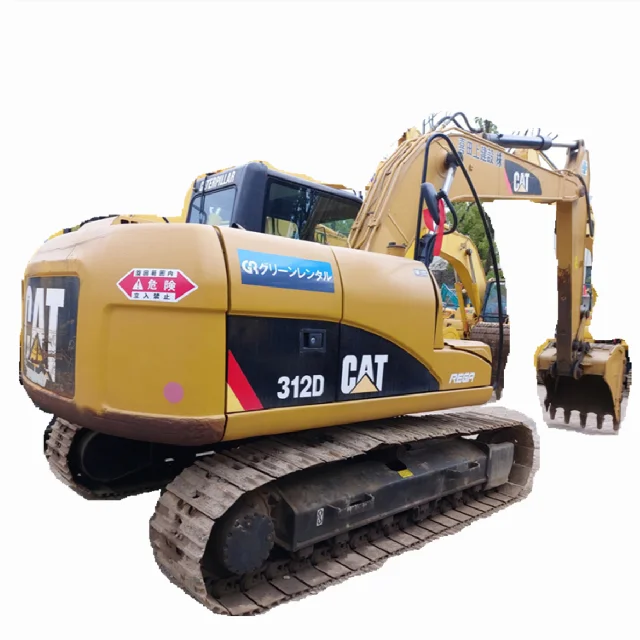

Прочный Подержанный оригинальный экскаватор CAT 312DL из двора для продажи
30 000,00 $ - 33 000,00 $
Сделано в Италии, гидравлический рабочий инструмент, вращение (среднее давление), комплект для модернизации гусеничных экскаваторов

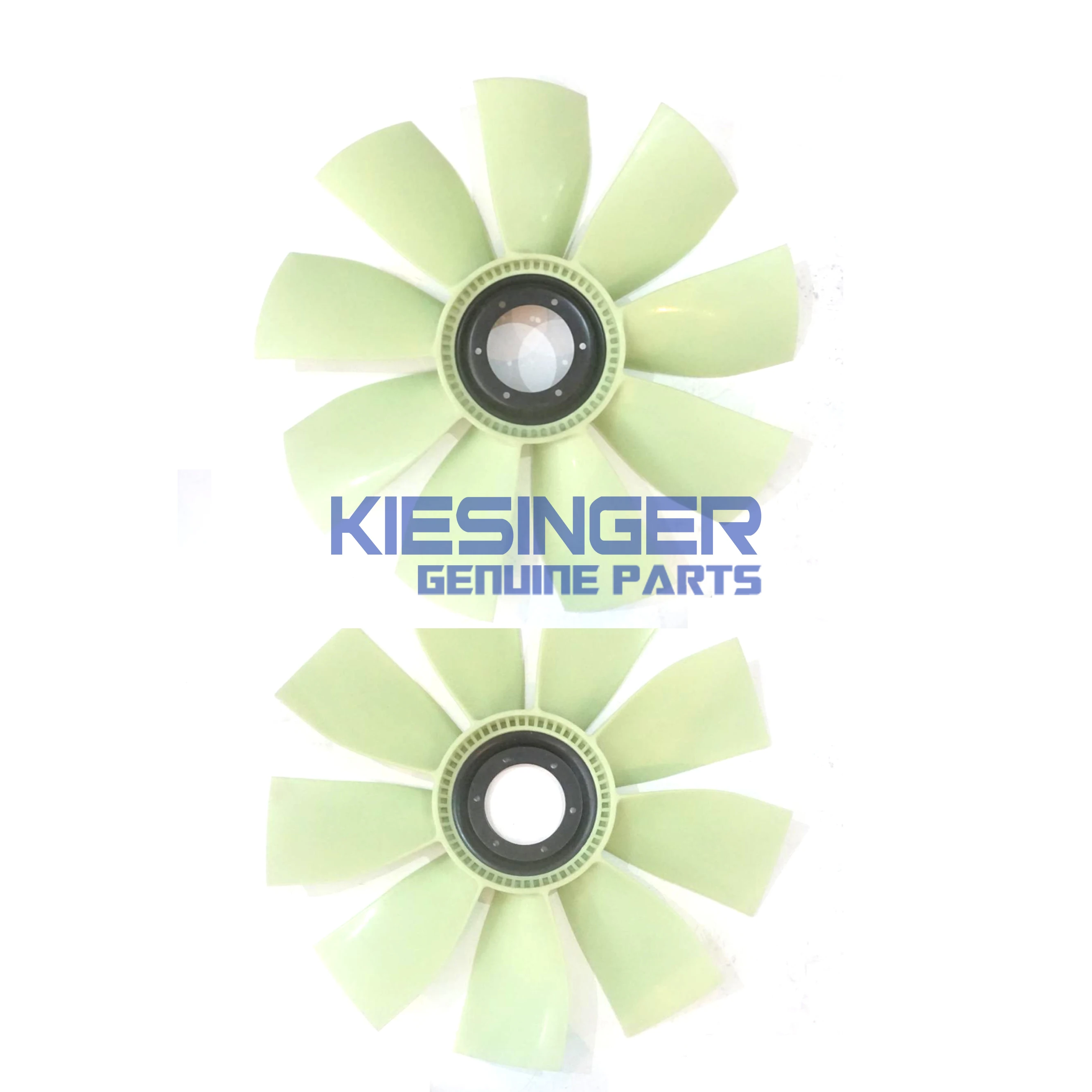

CH11085 Авто охлаждающий вентилятор радиатора лезвие CH11188 для
5,50 $

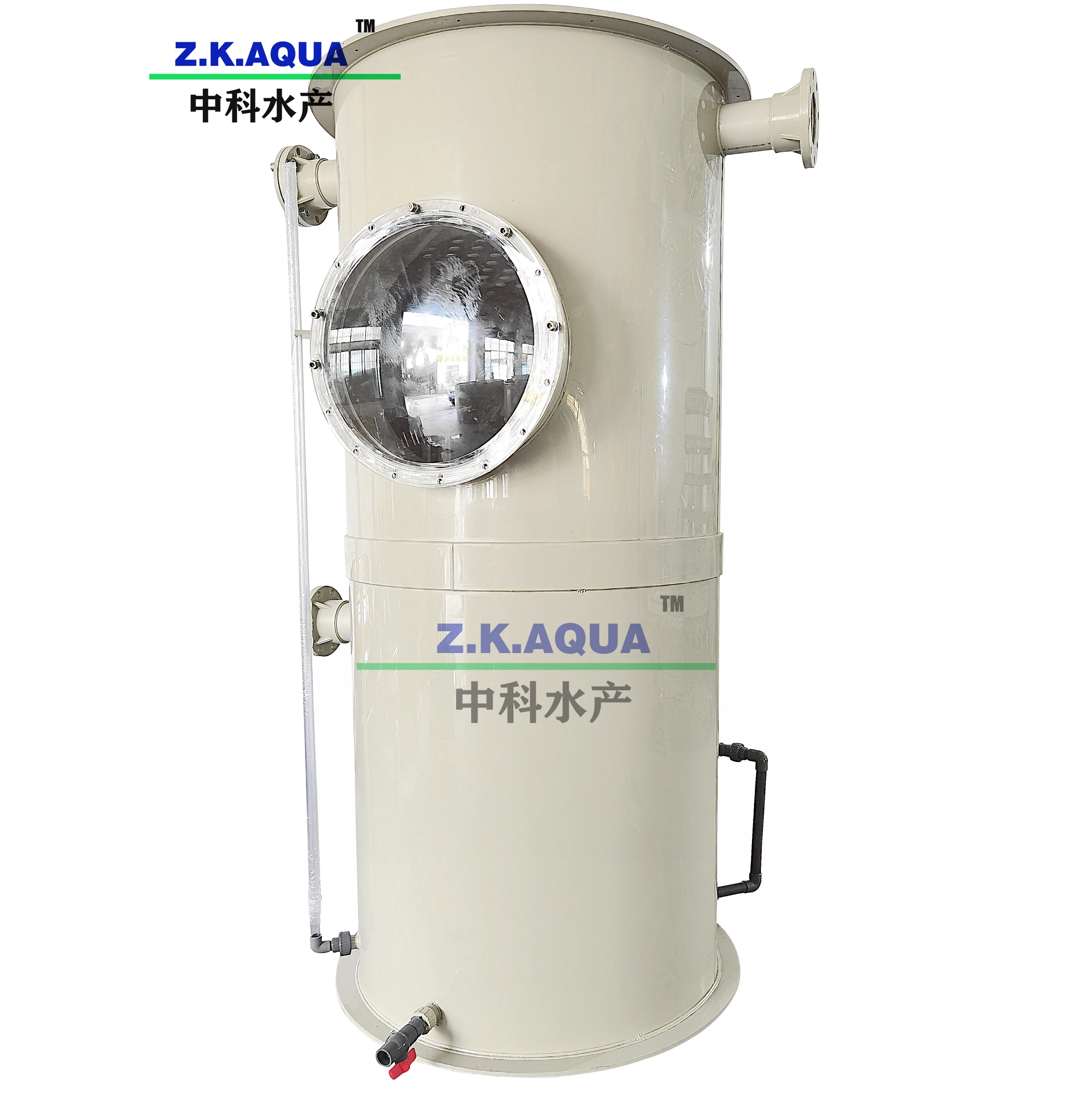

Высококачественный фильтр для воды CO2 дегазатор для рыбной фермы

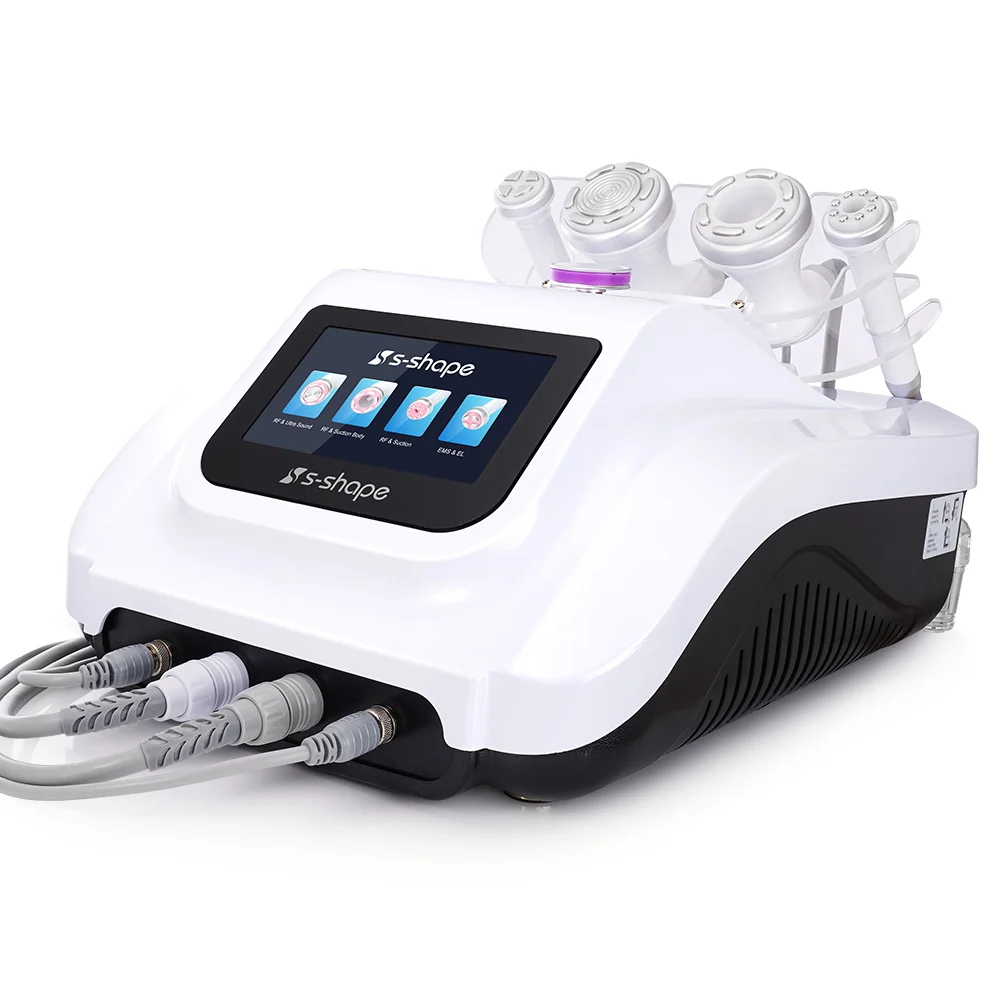

Портативная ультразвуковая кавитация 4 в 1, радиочастотный вакуумный аппарат для сжигания жира и похудения
