1.1/2.8” 2.0Mpiexls Sony Exmor IMX307 Starlight CMOS
2. 5x Optical Zoom Lens(f=2.7~13.5mm), Auto Focus
3.2.0MP available

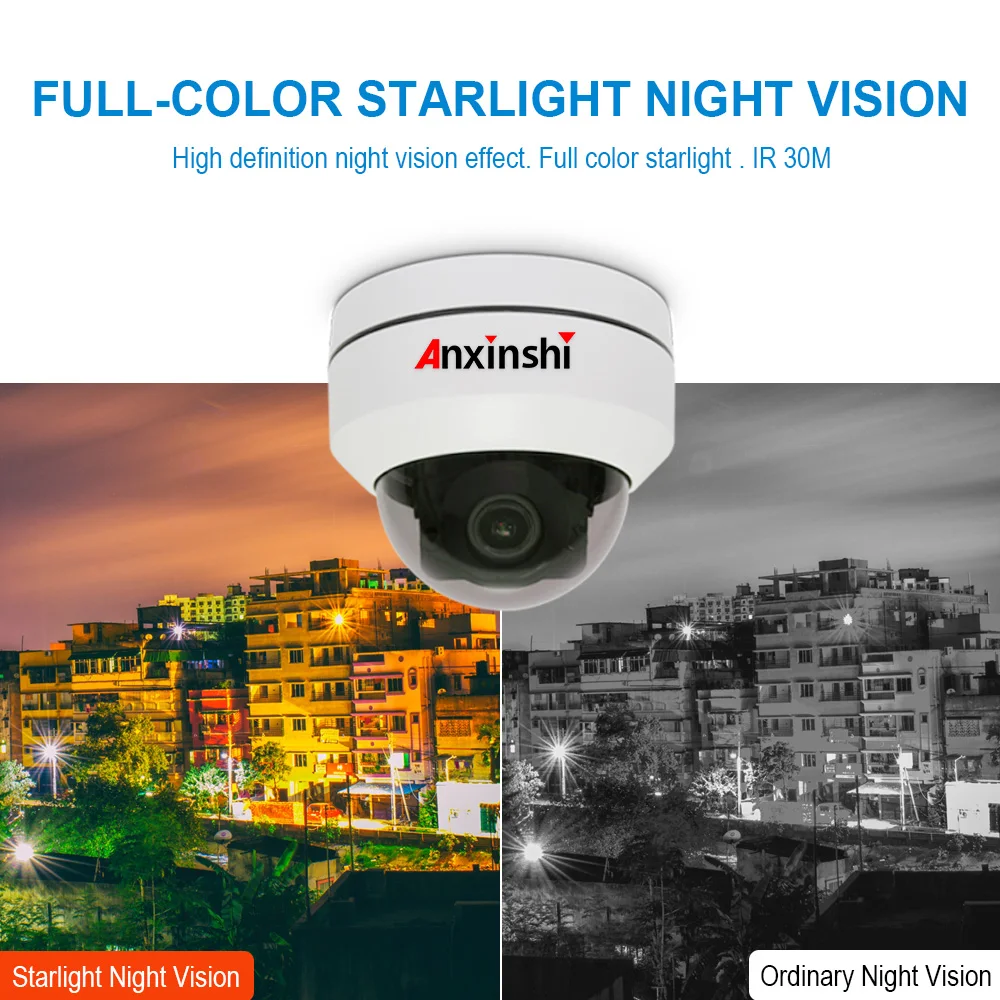

4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream; 1920(H)x1080(P)@25fps/30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance

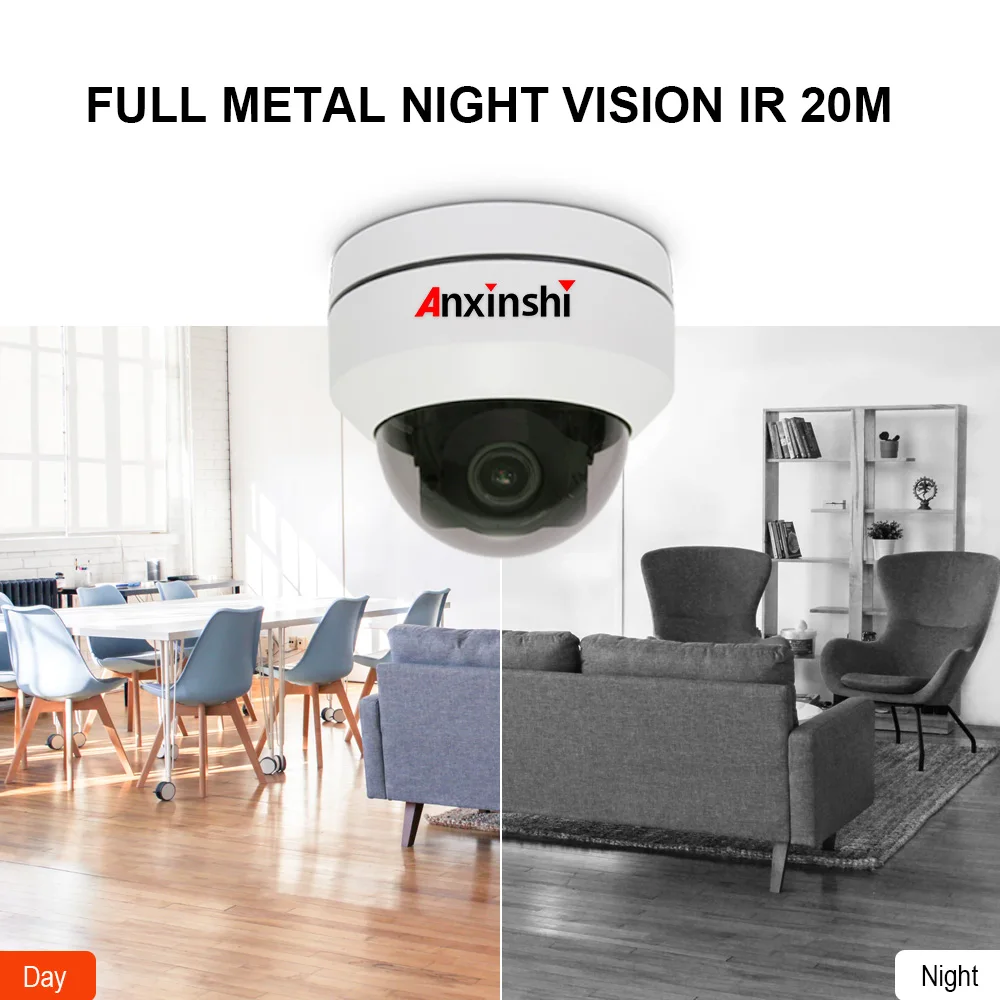

3. Nano-tech IR LED: 42µ x 3pcs, IR Range: 30M
4. With digital temperature controlling system protecting IR LED
5.Built-in Surge and Lightning Protection Devices

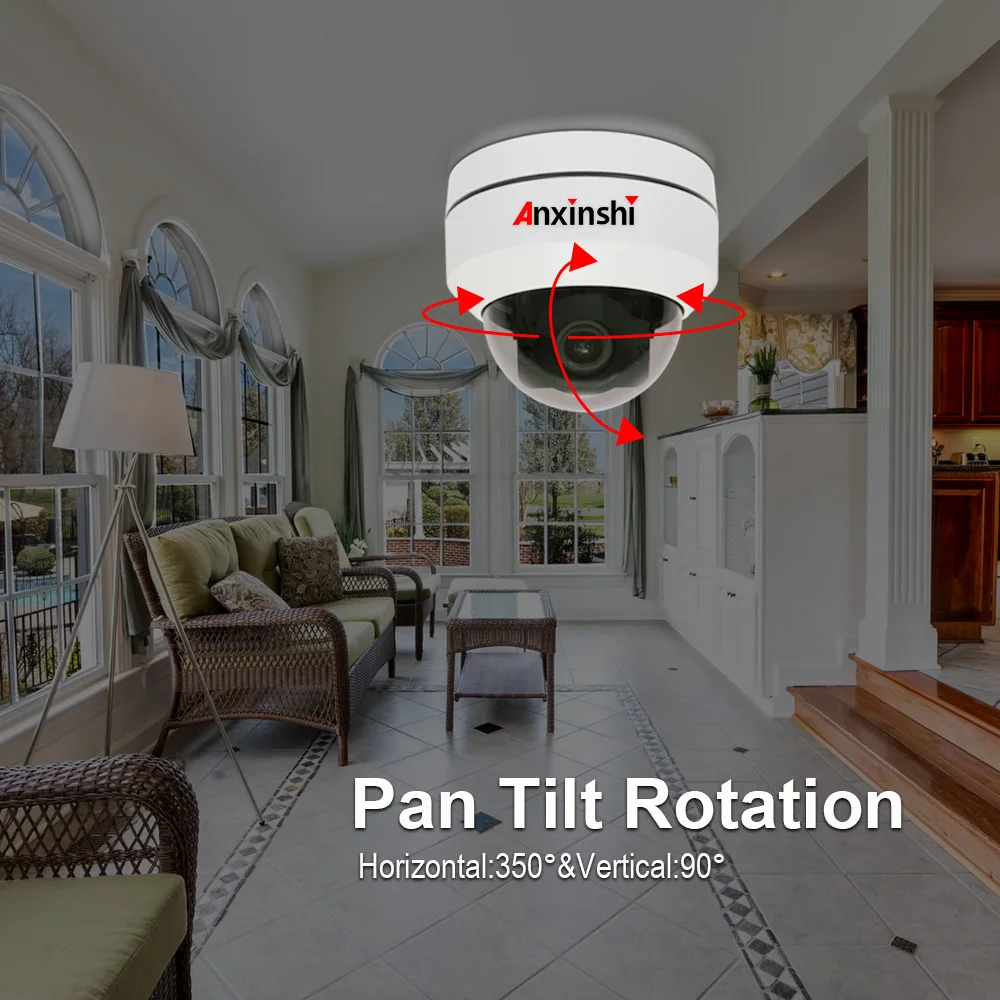

6. Pan Range: 0°~355°, Pan Speed: 120°/s, Tilt Range: 0°~90°, Tilt Speed: 45°/s

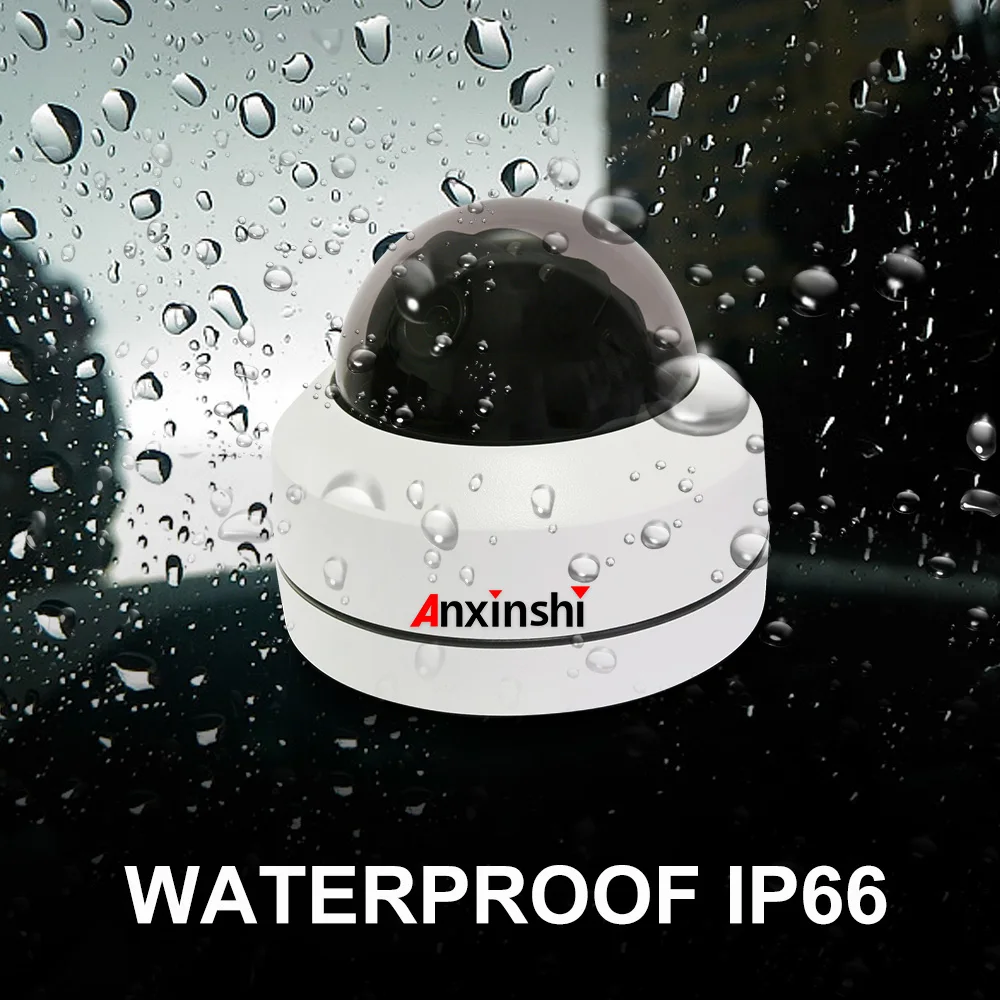

7.Waterproof Protection: IP66
| Form parameters | ||

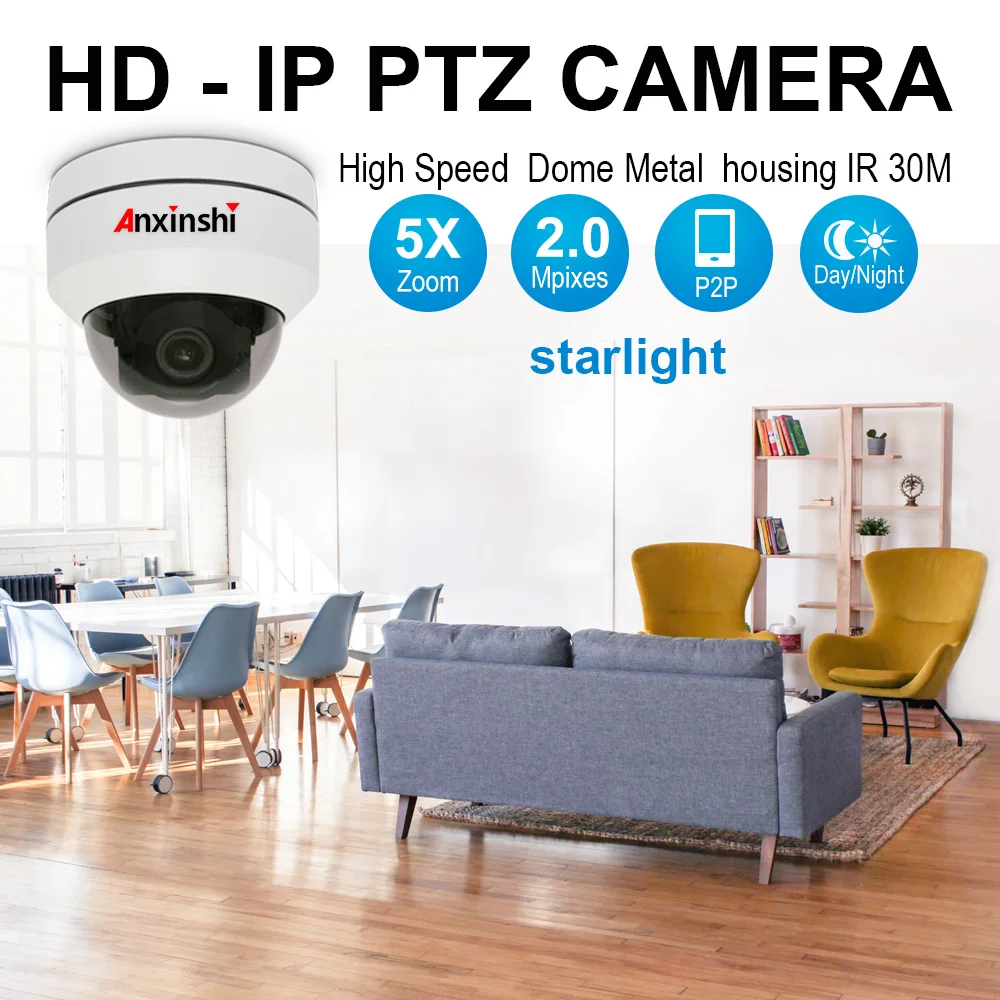

| Mode | Name and Description | ASIH302-005-027 2.5" Metal IP PTZ Camera |
| ASIH302-005-027 | ||
| Camera | Image Sensor | 1/2.8" Sony Exmor IMX307 Starlight CMOS |
| Effective Pixels | 2.0 Mpixes | |
| Min. Illumination | Color:0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON) | |
| Zoom | 5X Motorized zoom, f=2.7mm~13.5mm, D/N( ICR-Cut) | |
| Day/Night | Day / Night / External control(IR Cut Filter),IR 30M | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | Digital WDR≥70dB | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Digital noise Reduction | DNR, 3DNR | |
| Shutter speed | 1/25s~1/50,000s , 1/30s~1/60,000s | |
| Network | Video Compression | H.264 Main Profile/M-JPEG |
| Streams | Dual streams | |
| Frame Rate | Main stream: | |
| 1920*1080, 1-25(30)fps; 1280*720, 1-25(30)fps | ||
| Sub-stream: | ||
| 480*640, 1-25(30)fps; 480 *360 1-25(30fps | ||
| 352*288, 1-25(30)fps; 176*144, 1-25(30)fps | ||
| MJPEG: | ||
| 1920*1080, 1280*720, Close | ||
| Bitrate | CBR/VBR, bitrate:32Kbps~10Mbps variable | |
| Audio Compression | G711,PCM | |
| P2P | Android,IOS | |
| Protocols | TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP | |
| Motion detect | Support | |
| Privacy Zone Masking | Support | |
| Onvif | ONVIF Hikvision XM jovision personal protocol | |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
| Mini SD Card | Up to 64GB(Optional) | |
| IR Parameters | Luminary | 42µ x 3pcs |
| Night vision distance | 30M | |
| Lamp control | Auto, Manual, by Zoom | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 0°~355°, Horizontal | |
| Tilt Range | 0°~90°, Vertifcal | |
| Manual pan speed | 30º/S | |
| Manual tilt speed | 20°/S | |
| Preset speed | 100°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 128 | |
| Intelligent power | automatic save functions setting ,automatic wake up tour function | |
| off real time memory | ||
| General | Ingress Protection | IP66 |
| Power Supply | DC12V±10% | |
| Working Environment | -10°C~+50°C / Less than 95%RH (no condensation). | |
| Protection grade | TVS3000V lightning protechtion ,surge protection and voltage transient protection weather proof | |
| Weight | 450g. | |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
