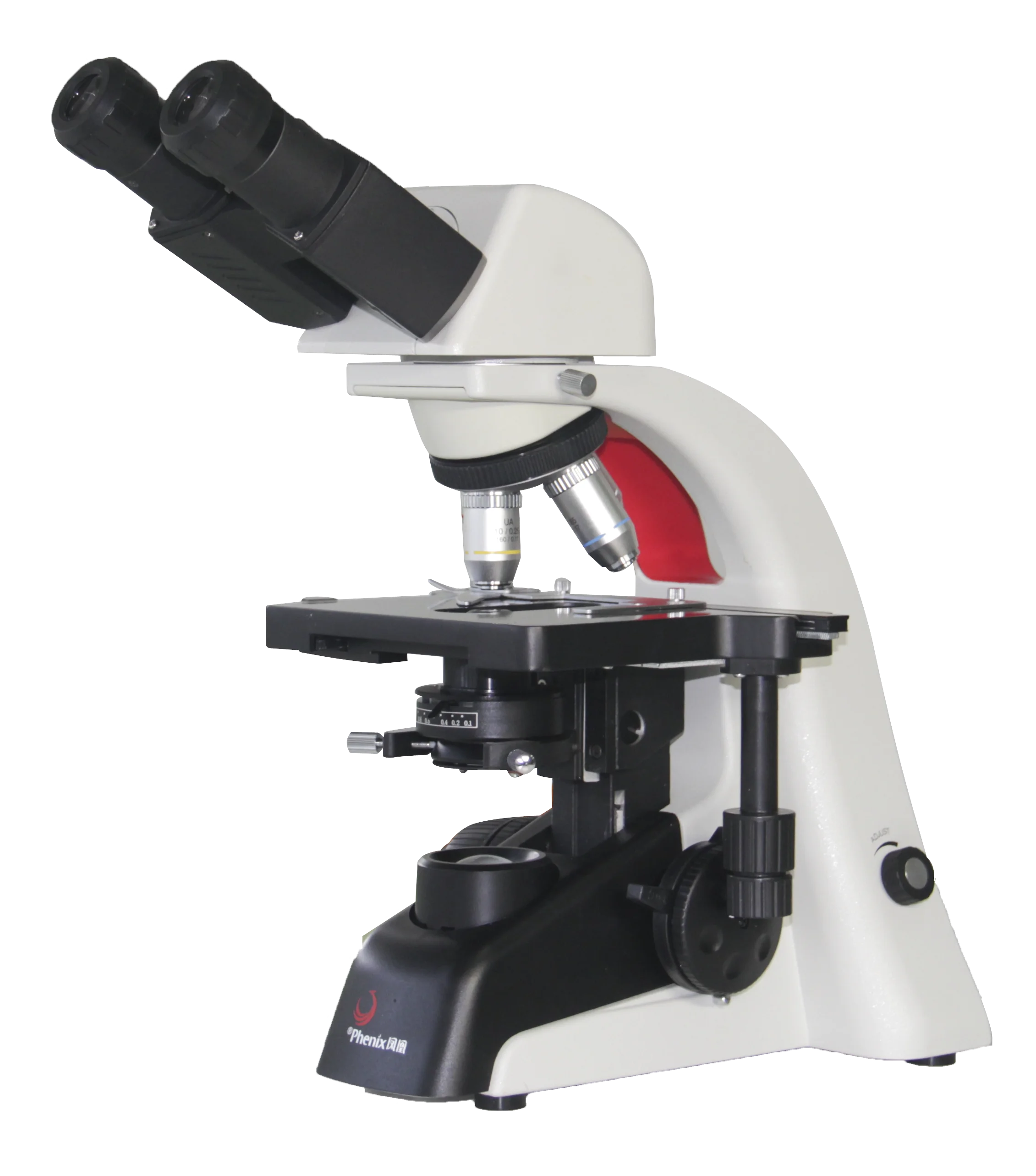

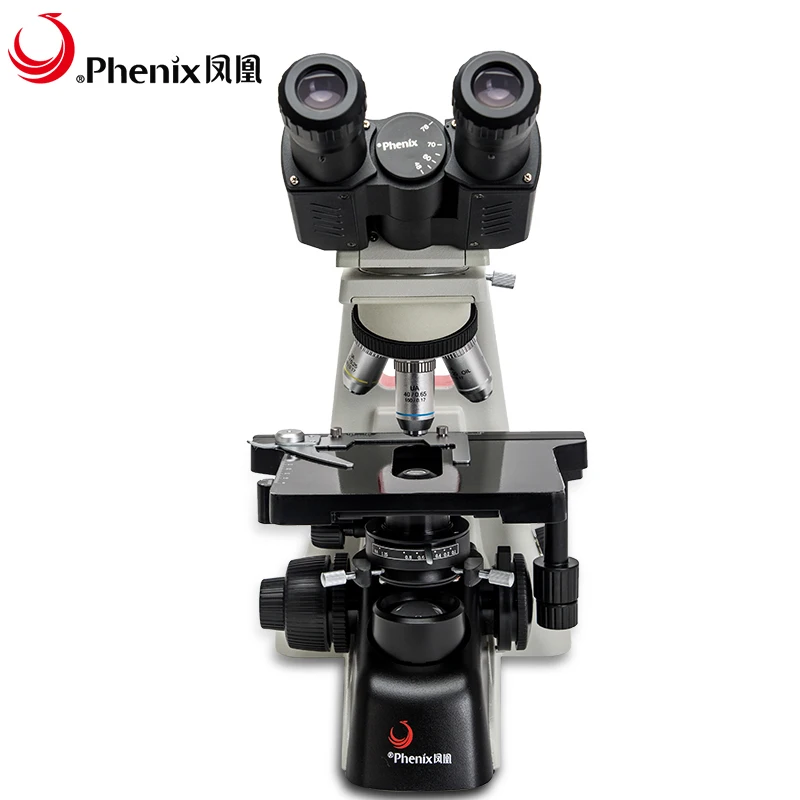

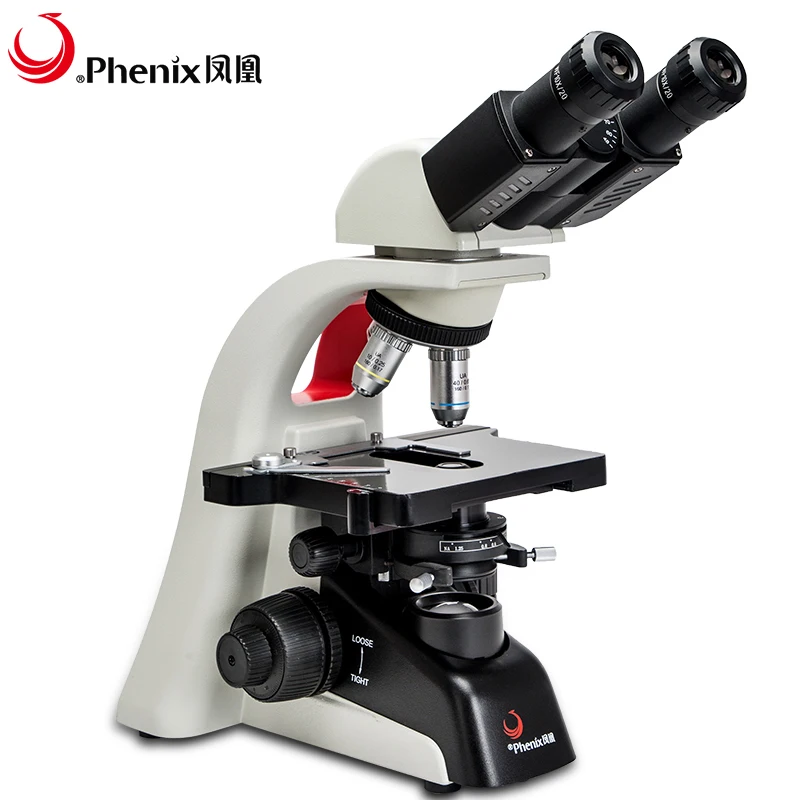

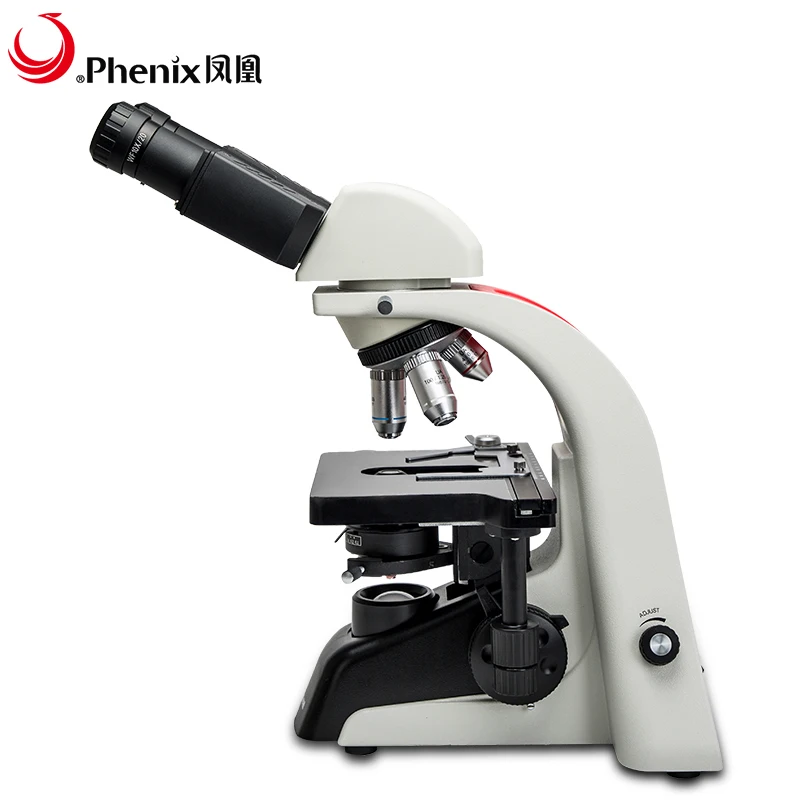

Jiangxi Phenix Professional Binocular Trinocular Head 40X-1600X Biological
Microscope

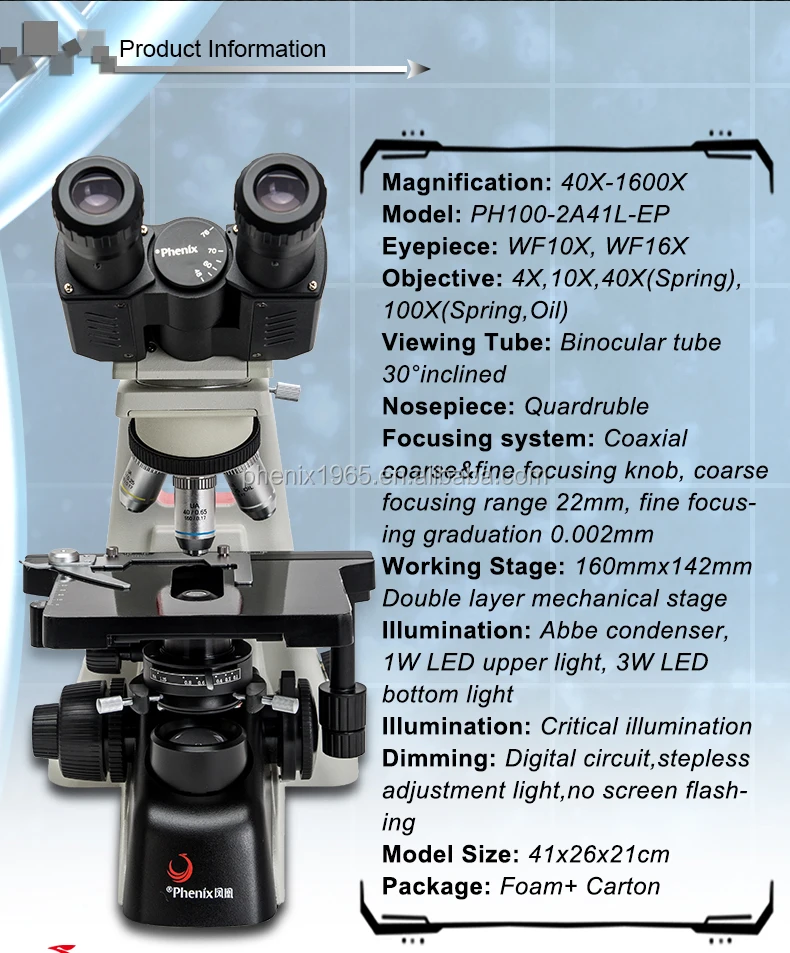

Specifications:
| Part Name | PH100-2A43L-EP | |
| Magnification | 40X-1600X | √ |

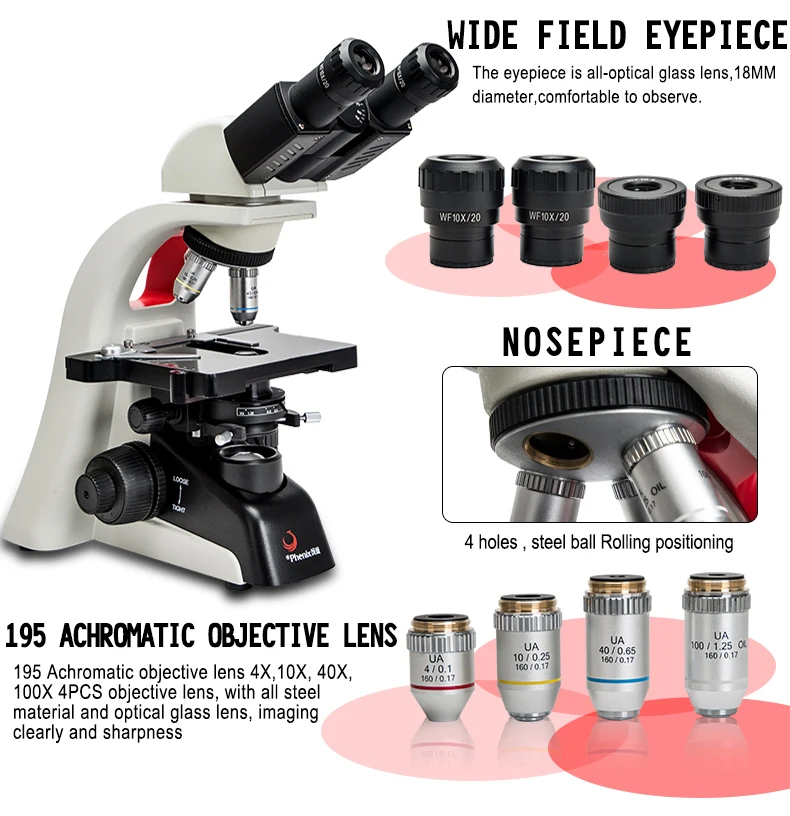

| Eyepiece | Wide Field WF10X/20mm,diopter adjustable | √ |
| Wide Field WF16X/15mm,diopter adjustable | √ | |

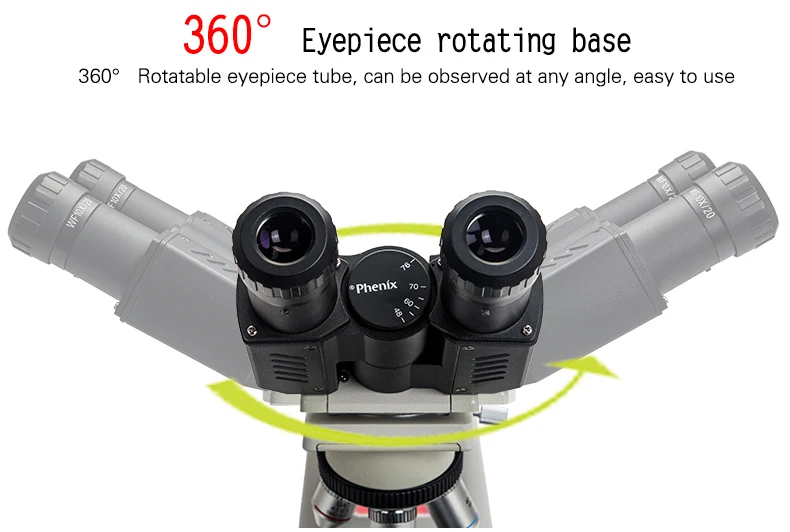

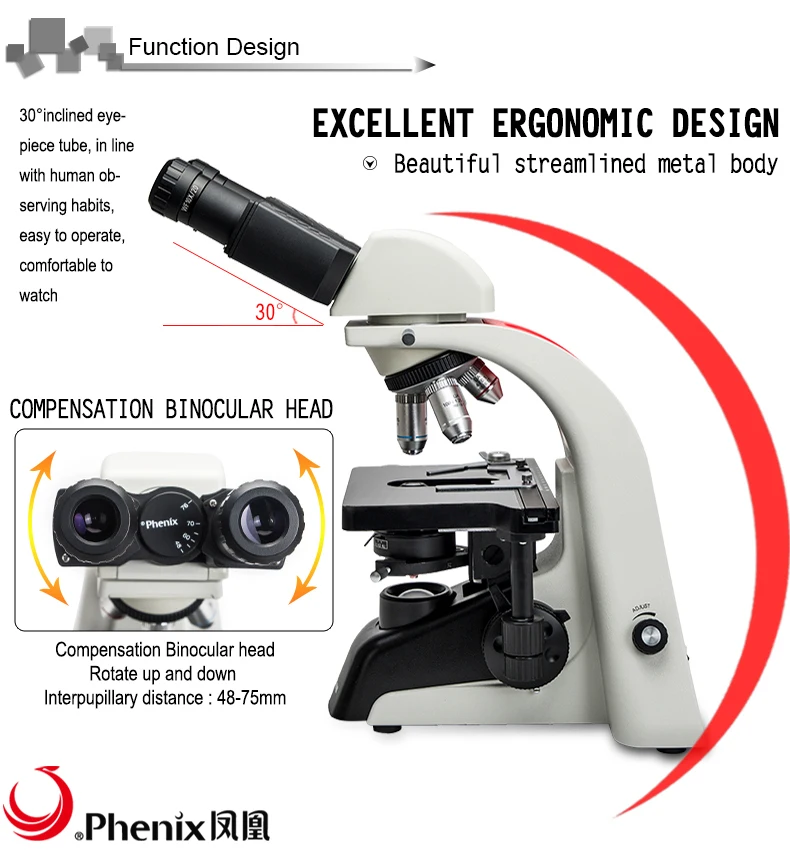

| Viewing head | Compensation Binocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable,with push-pull rod) | √ |
| Nosepiece | 4 Holes revolving nosepieces,inward | √ |
| 195mm Achromatic Objective | 4X,10X,40X(Spring),100X(Spring,Oil) | √ |

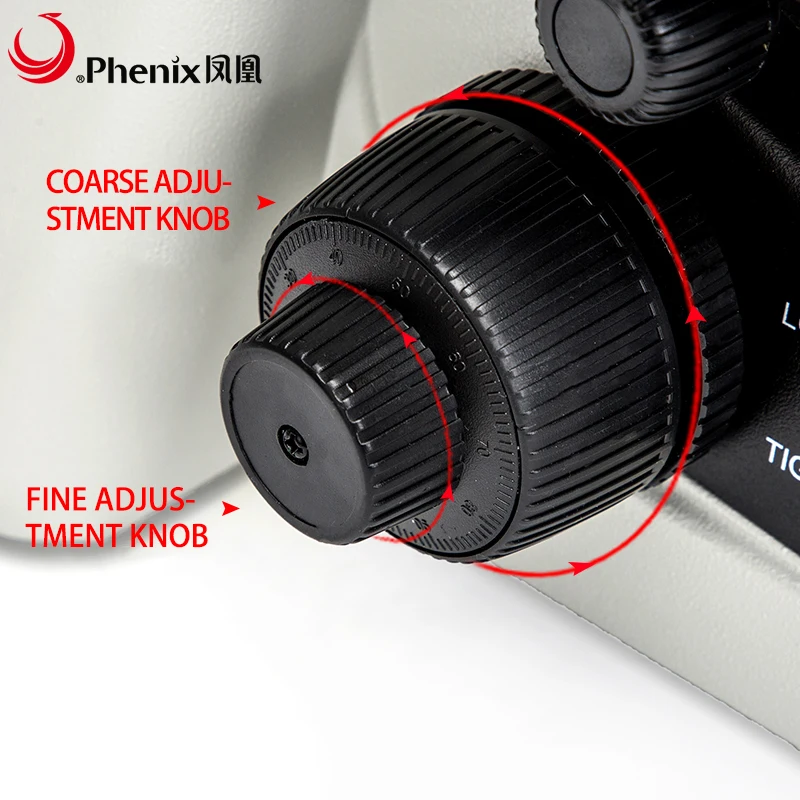

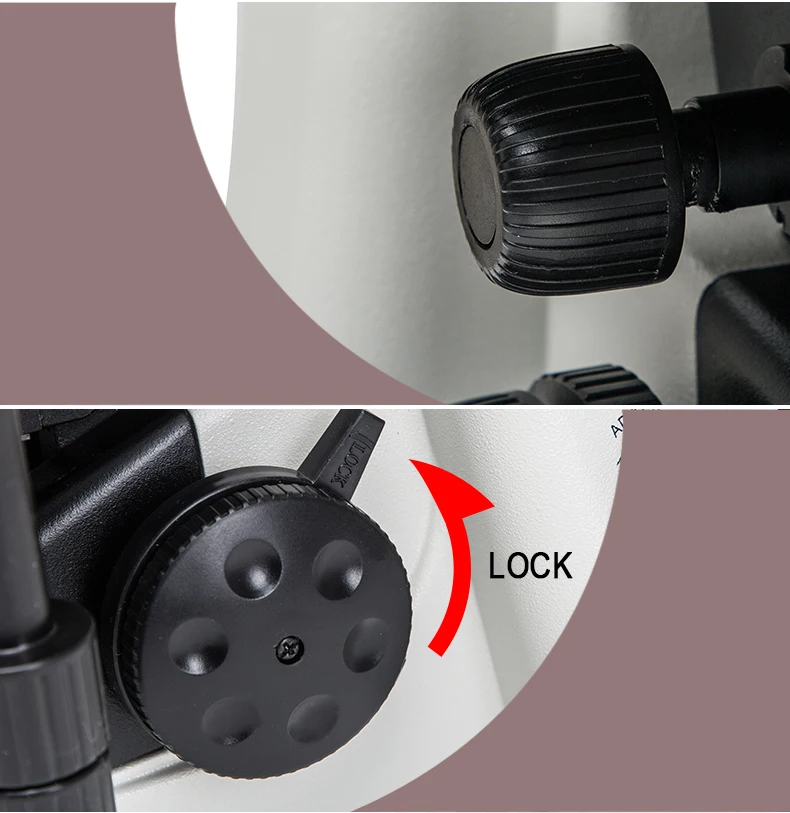

| Focusing System | Coarse & fine coaxial focusing knob, with the hand wheel tightness adjustment and random limit locking mechanism.coarse focusing range 22mm,fine focusing graduation 0.002mm | √ |

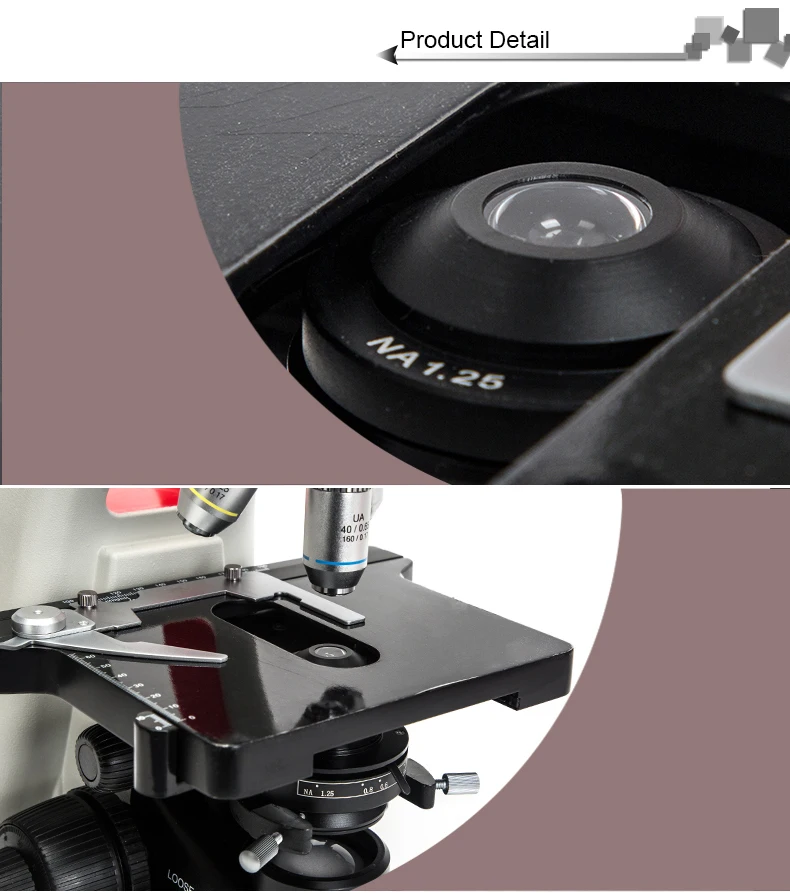

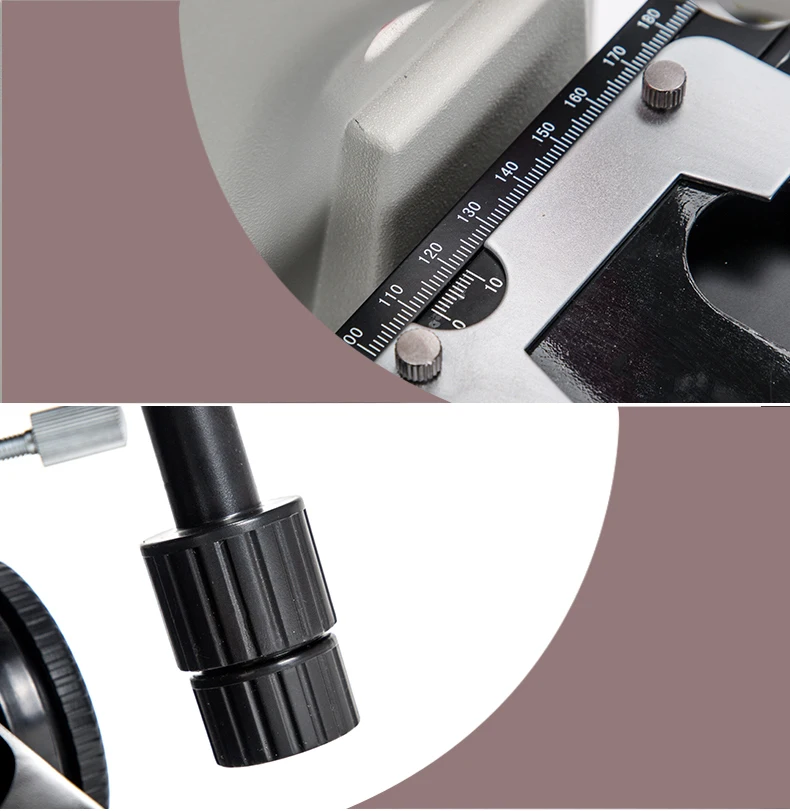

| Stage | Double layer mechanical stage,size 160*142mm,moving range 76*52mm,can hold 2 slides | √ |

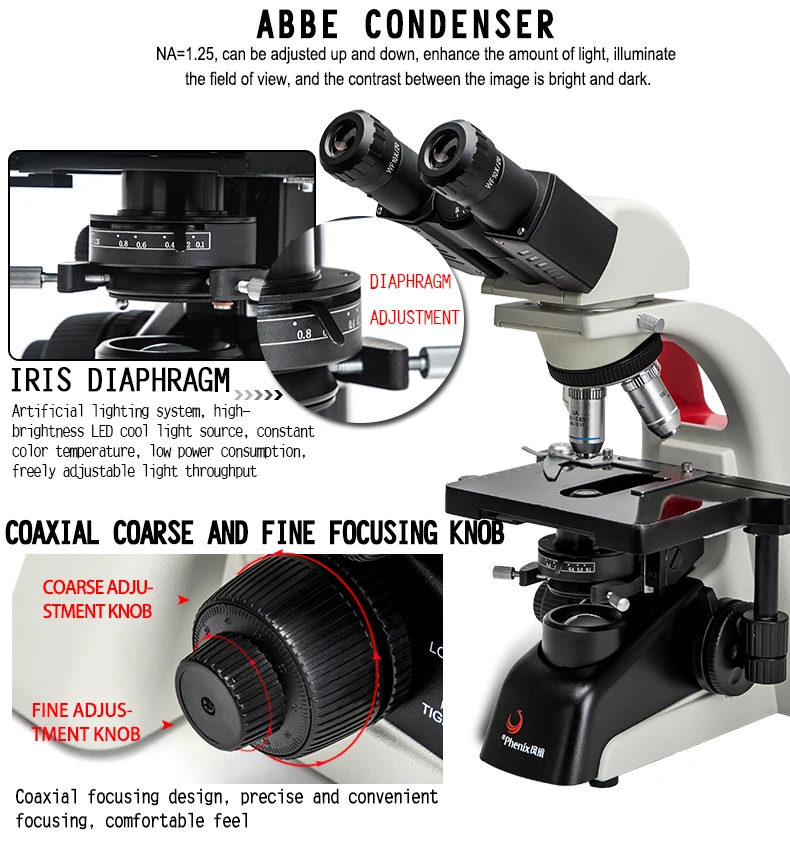

| Condenser | Abbe condenser N.A.=1.25,with iris diaphragm,center adjustment,and height adjust knob. | √ |

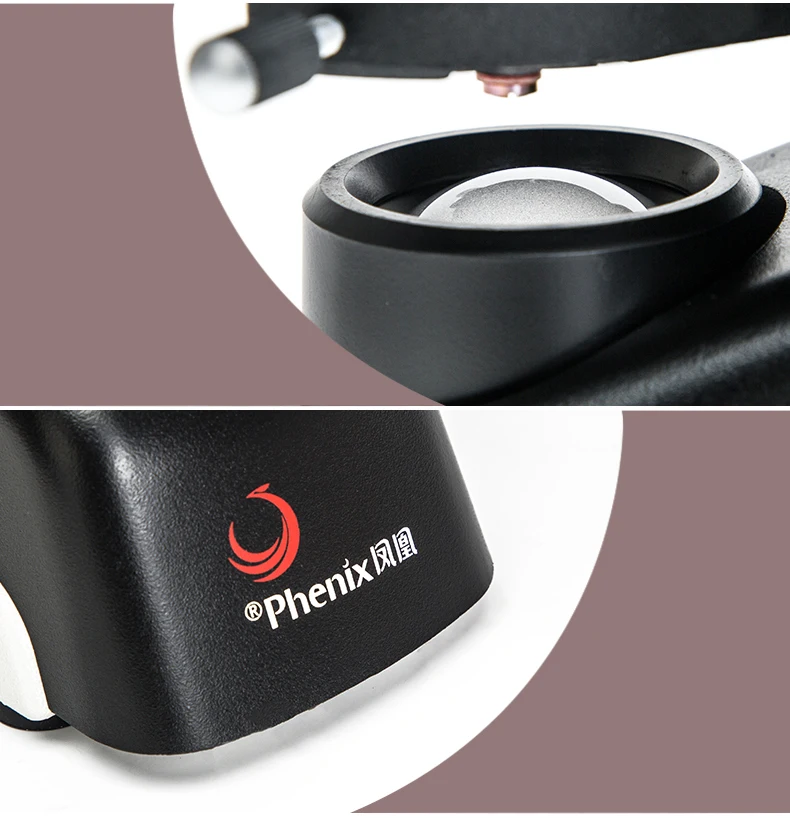

| Bottom light | LED,3W,compound eye illumination,brightness adjustable | √ |
| halogen lamp 12V/20W,brightness adjustable (Optional) | ||
| Power | External voltage stabilized power supply adapter DC 6V/2A | √ |




Optional Accessories:
| Optional Accessories | Eyepiece | WF10X/18mm with eyepiece micrometer |
| Objective lens | Objective:25X,63X | |
| CCD Adapter | CCD adapter:1/3”,1/2"mount | |
| Digital camera adapter | digital card camera adapter; digital SLR camera adapter | |
| Others | Dark field attachment; Limited Phase contrast attachmen; tInfinity phase contrast attachment; Epi-fluorescence attachment; Polarization attachment
|

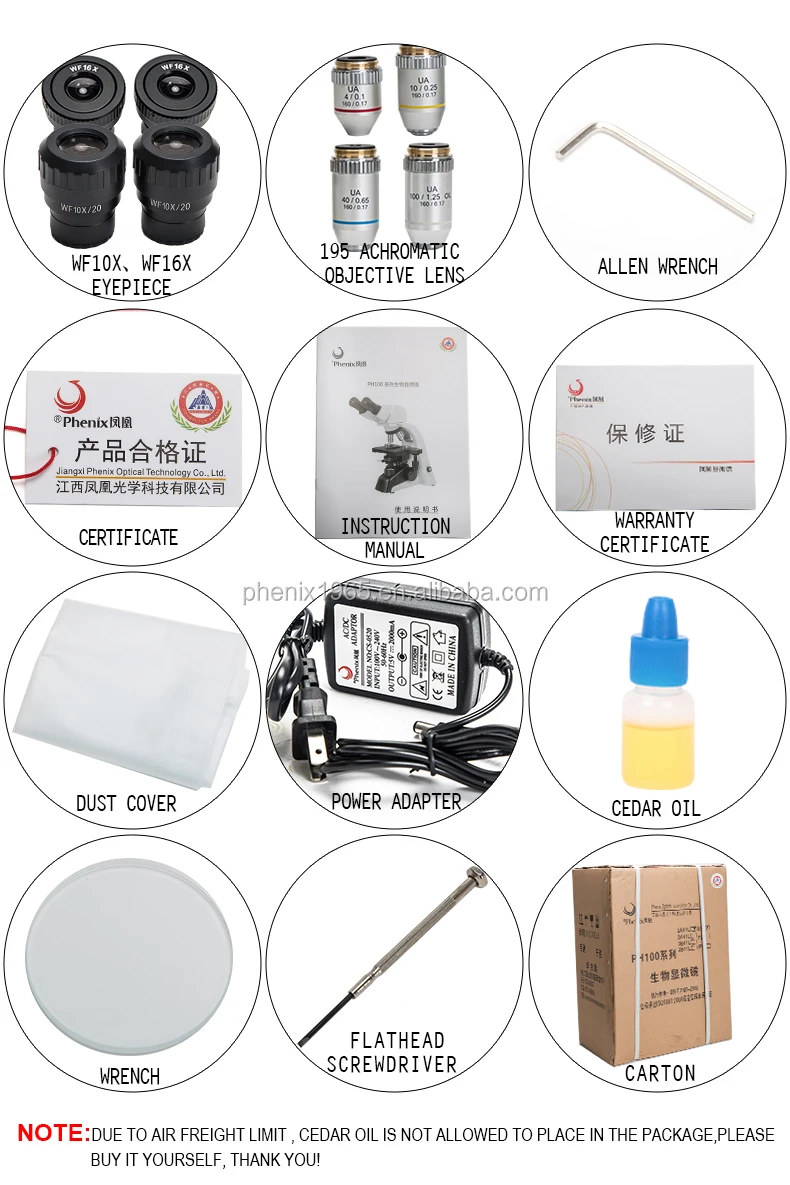

Packing: Foam+ Carton
Shipping Time: 5-20days after receive the deposit
Shipping Way: By Boat/ By Air / By Express (DHL/TNT/UPS/FeDEX/EMS or others)
Phenix Optical Technology Co.,Ltd is well-know as a large state-owned comprehensive enterprise with producing
integration optical instruments. Which is the base of national pivot exporter and excellent enterprise in China, jiangxi
high-tech enterprise. Possessed with integrated research ability, involving light, machine, electricity, and with perfect
after sale service system. The stock of "Phenix Optics" listed on shanghai stock exchange on May 28th, 1997, Which
was "the 1st stock' in the optical industried of China. It has successfully obtained the ISO9002 international Quality
System Certificate in 1998, making our product quality management stepped into international orbit. Our main
products are grouped into eight categories and around 200 assortments such as cameras, microscopes, medical
instrument, mapping instrument, optical cold processing equipment, movie instrument, telescopes, and all kinds of
lens and crystals. The products strictly according to the requirements of 'adopt the international standard ' and
Europe CE security certificate'.
Our company pay a close attention to education and medical undertaking, we always devote ourselves to the
research and product of biology microscope, stereo microscope , fluorescent microscope, metallography microscope,
digital microscope and digital interactive lab and relative products. The product not only best selling in in-land, but also
in foreign countries like Europe, USA, South-east Asia and other regions. Our comoany constantly improving product
function and quality. Making it suitable for these field, such as teaching, scientific research, medical treatment,
agriculture, electricity, environmental protection, spinning industry and ect.
Q: Are you a manufacturer?
A: Yes, we are a professtional microscope manufacture.
Q: How about your product qualit
A: " Phenix" is popular and well regarded in China. Our products are from the same lines that make
OEM and ODM for Leica, Zeiss, Nikon and Olympus. We make our own designs, software and institute
a rigorous quality control to insure that production with different manufacturers are obeying the
ISO9901/2000 standards as well as to guarantee our products are all of the high quality you have
come to except from Phenix Microscope!
