1. High Efficiency Tire Wire Extractor And Cutter Machine :

Application of the High Efficiency Tire Wire Extractor And Cutter Machine :

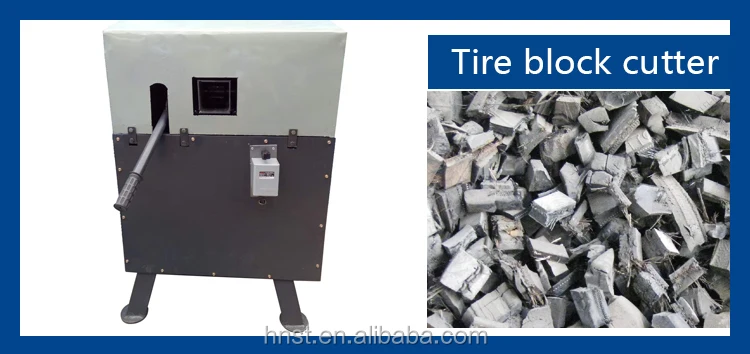

The rubber block cutter is used to cut rubber strips into 3--5cm blocks for grinding into rubber powder or rubber granule in the next step.

Operation of theHigh Efficiency Tire Wire Extractor And Cutter Machine :

Start the power, put tire strips into the feeder, and then strips will be cutted into 3-5cm rubber blocks.

Features of the High Efficiency Tire Wire Extractor And Cutter Machine :

Easy operation and maintenance, high efficiency, low noise.

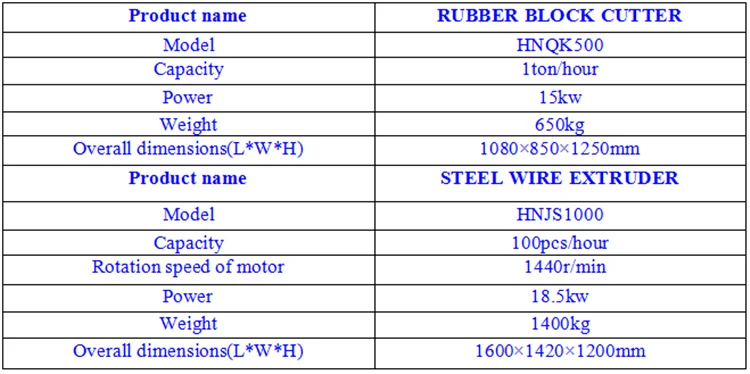

Technical specifications of the High Efficiency Tire Wire Extractor And Cutter Machine :

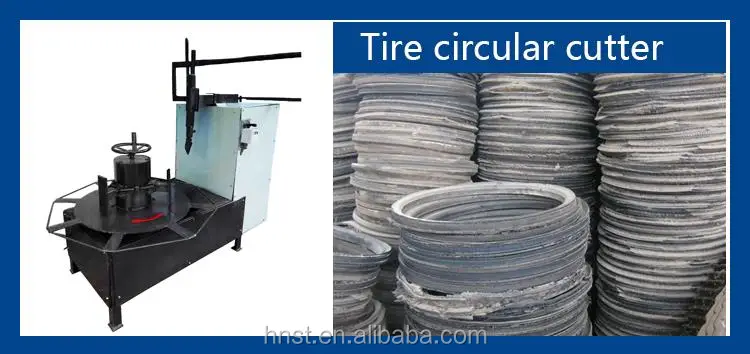

2. High Efficiency Tire Wire Extractor And Cutter Machine :

Application:

Cut tire bead from the whole tire for the rubber strip cutting in the next step.

Operation:

Put tire on the round platform, rotate the wheel to make the four claws catch inside of tire and fix steady, start the power supply, the platform start to rotary, handle the cutting knife control stick, leading the knife cut into tire, adjust the cutting depth until the tire sidewall cut off.

Features:

Reasonable design, stable performance, high quality, ease operation, long service life, low noise, no pollution, an ideal equipment for tire recycling.

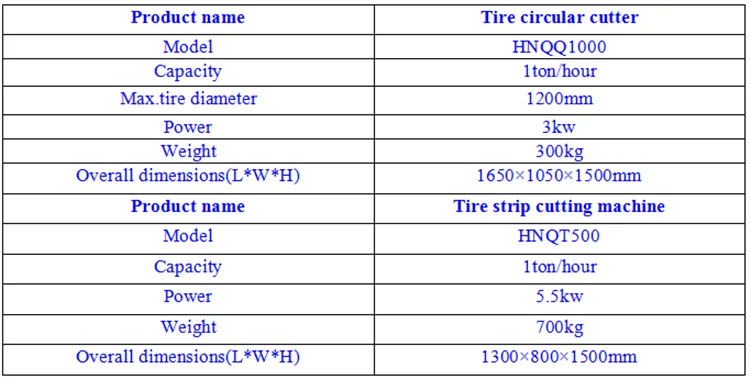

Technical specifications:

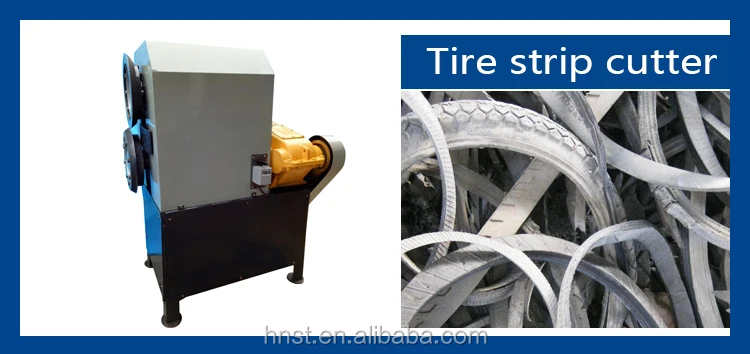

3. Tire strip cutting machine:

Application:

The strip cutting machine is applied to cut any tires with diameter less than 1200mm and large waste rubber into 3-5cm rubber strips.

The adjustment of rubber strip width:

There is a guiding rule in the middle of the two blades and the rubber strip width is up to the distance between the guiding rule and blade. The distance means the rubber strip width. The guiding rule can be adjusted by the left and right movement of the two screw rods.

The blade maintenance:

When the blade is not sharp, sharpen the blades with angle grinder. When sharpening the blades, the grinding wheel shall not focus on one position for a long time. When changing the blades, remove the lower blade first and then remove the upper blade; when installing the blades, fix the upper blade first and then fix the lower blade.

The machine maintenance:

First, check the motor if the default phase happens or if the short circuit happens, and check if the change-over switch works normally;

Second, check the gearbox and big gears if they are short of oil;

Third, the two blades are connected by two main shafts and each main shaft is supported and fixed by two sets of bearings. Check the bearing if the lubricating oil is short.

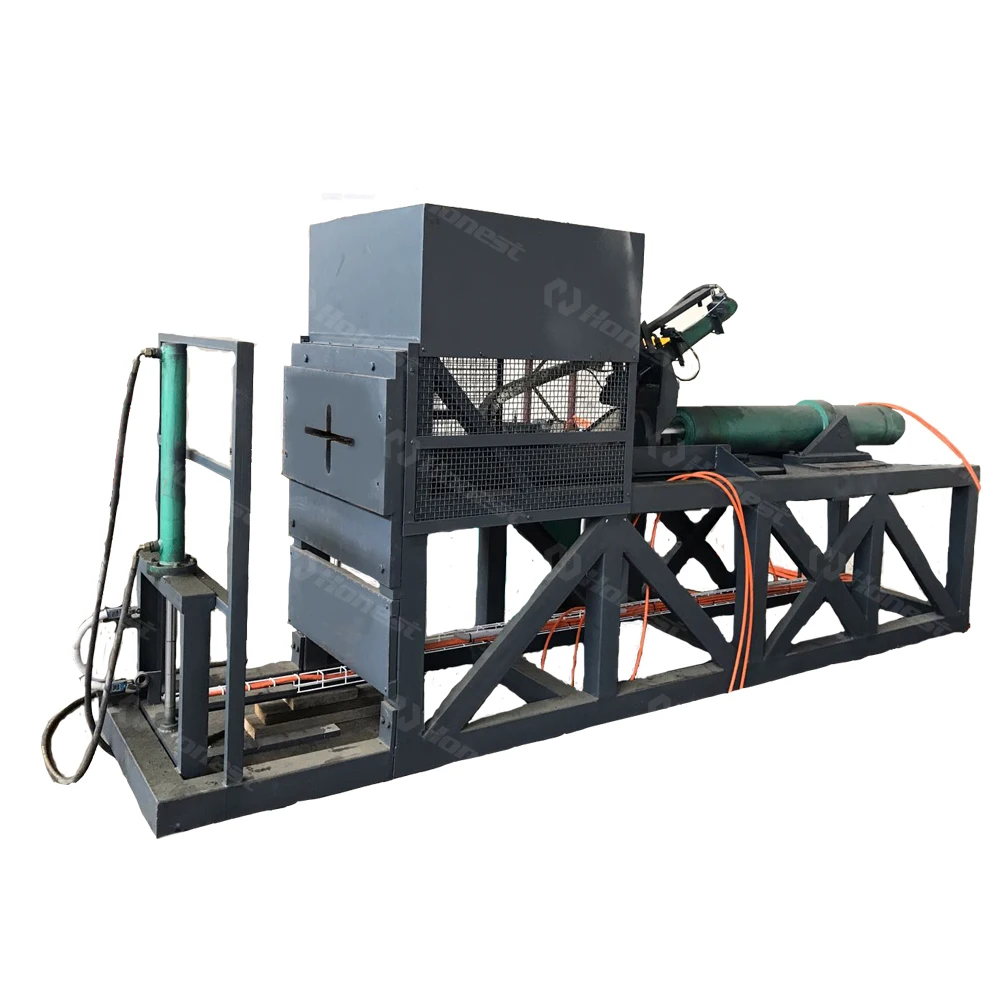

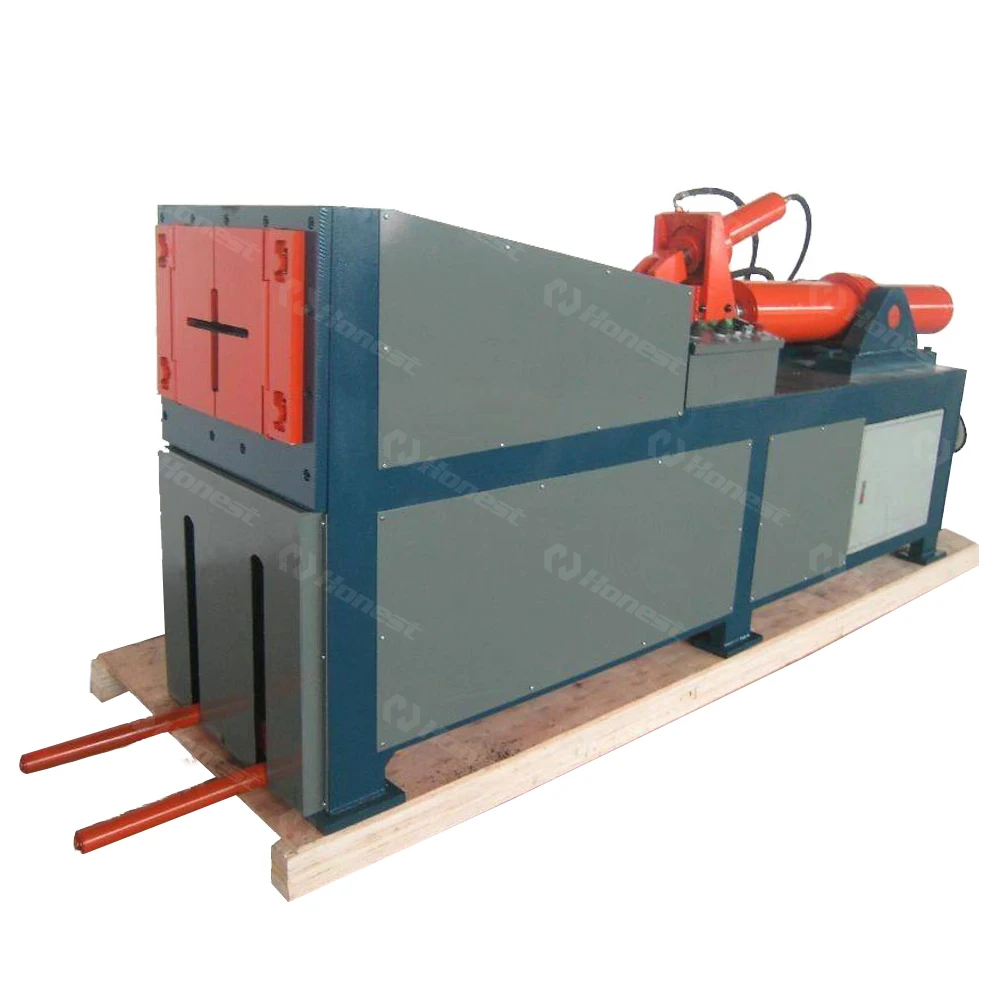

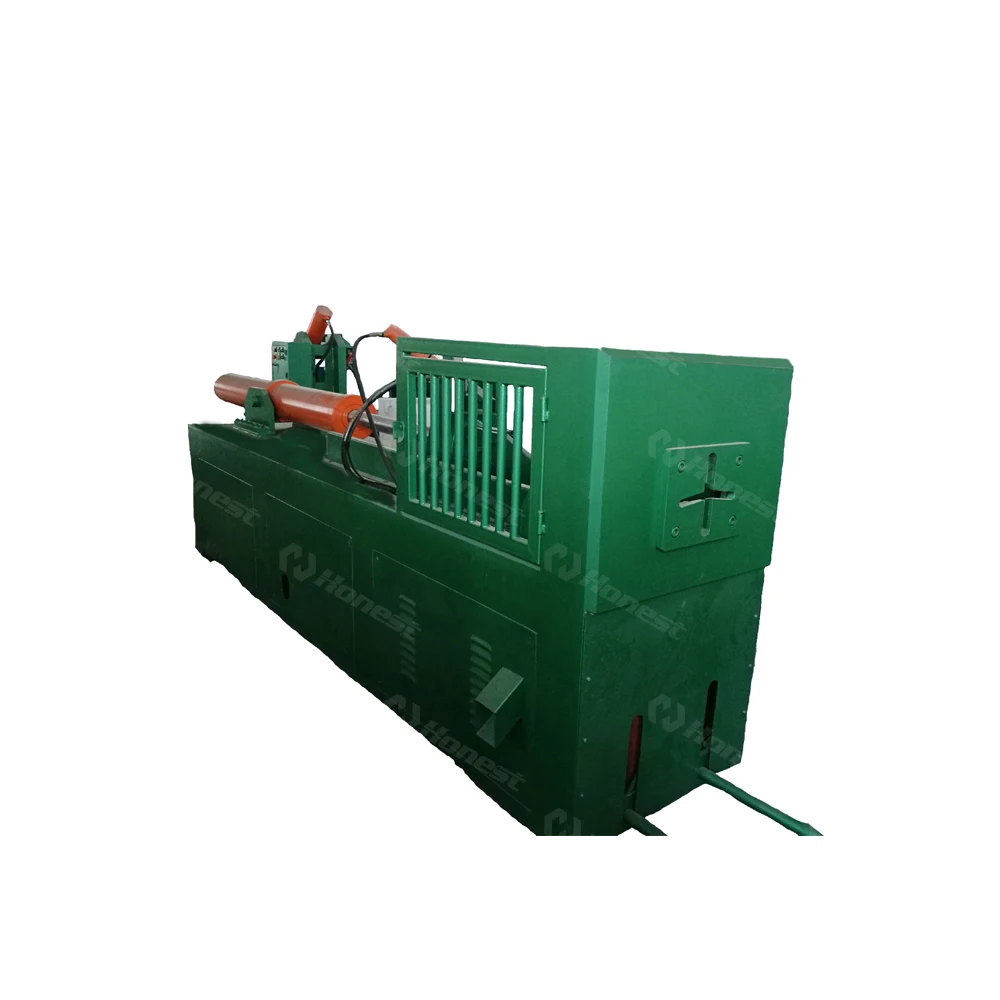

4. Steel wire extruder:

Application:

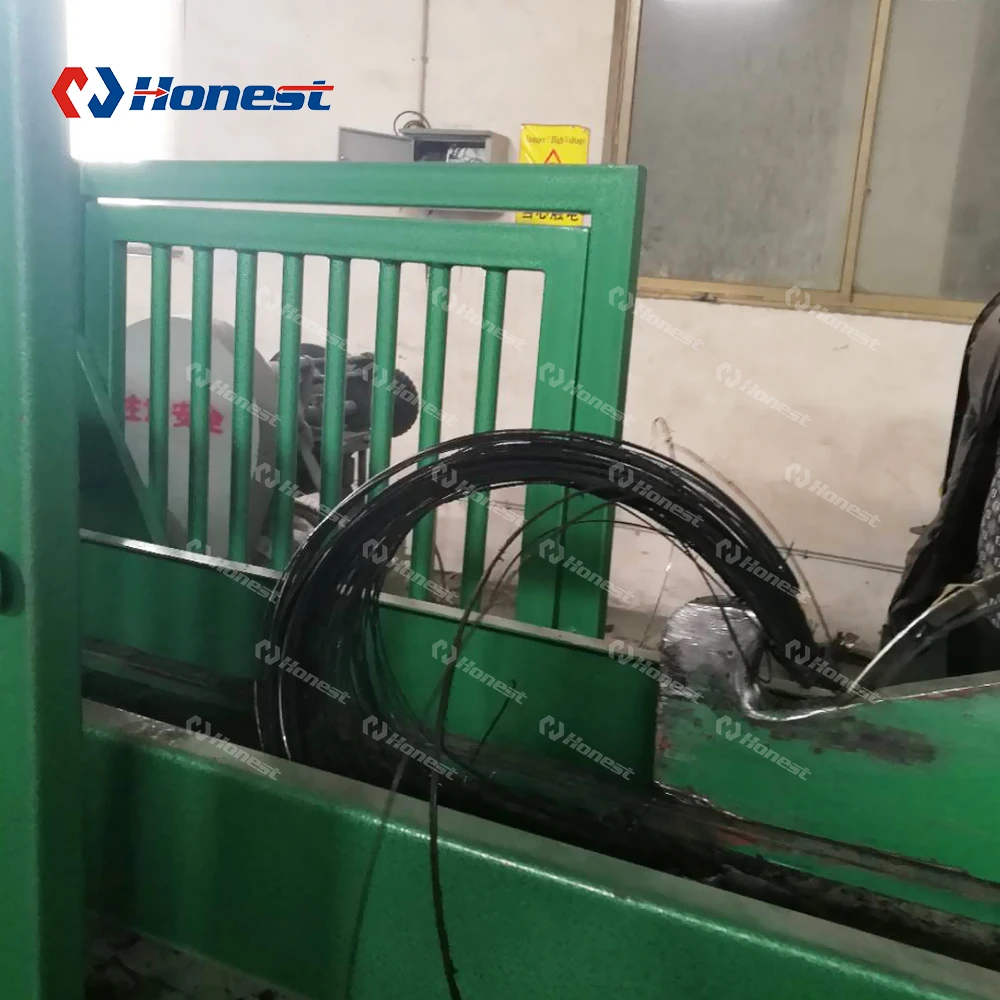

This steel wire extruder is mainly used to separate the rubber and steel wire from the tire bead of all kinds of tires and you can get a complete steel wire ring.

Operation:

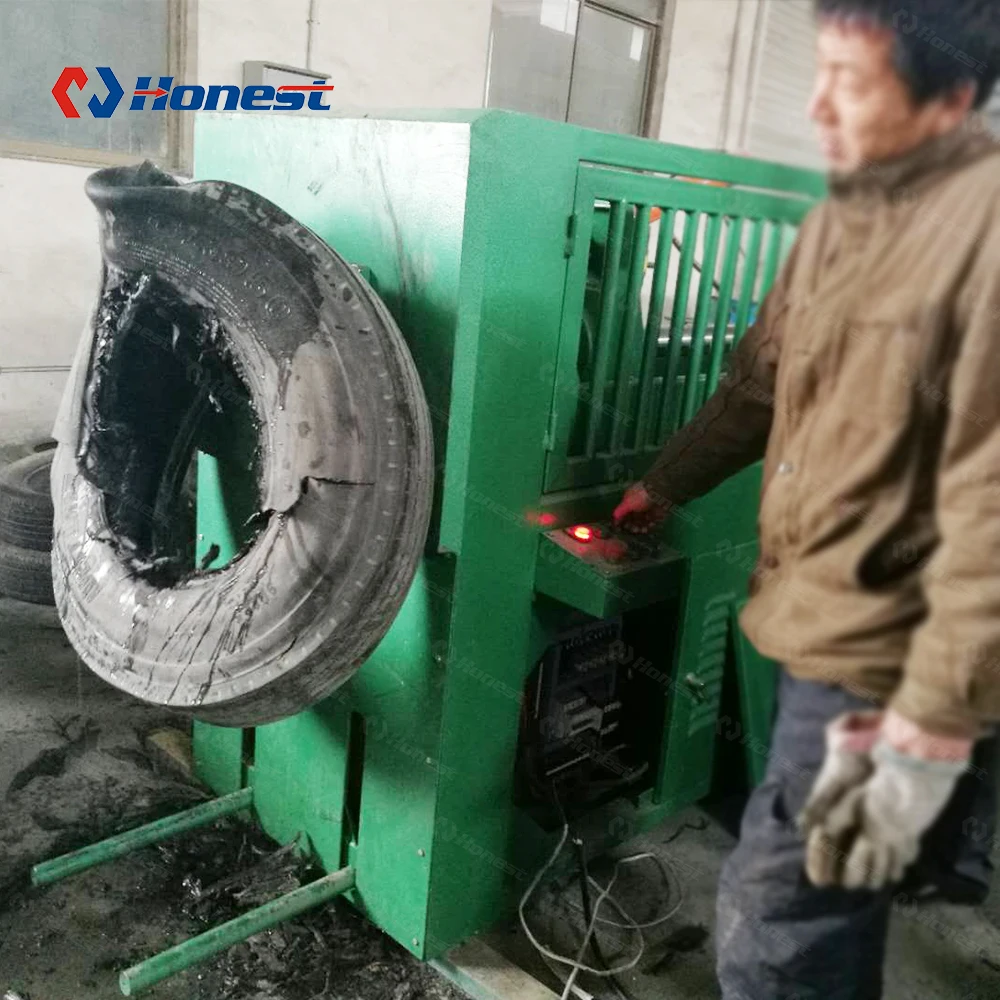

Start the power, put tire bead into the rollers of the steel wire extruder and then start the button to make the tire bead enter the rollers. After separating the rubber and steel wire, start the button to make the tire bead get out of the rollers, and then take out the tire bead from the rollers, so you get a complete steel wire ring.

Features:

Easy operation and maintenance, high separation efficiency.

Packaging: In plastic wrap, wooden case and container or as required.

Shipping: Within 15 days after receiving the deposit.

1. Professional service team to provide technical support for pre-sale, sale and after-sale.

2. 12 months quality warranty for main machine.

3. 24 hours feedback response: solve your problems online or on your working site.

4. Accessories and spare parts are available at cost price all year round.

Our company regards "quality  is life "as our enterprise  spirit. Our products have already passed

relevant International Quality Management System Certifications.  Our products are also  exported to European Union. We adopt highly abrasive  materials and advanced processing technique, making  the device s have long service life and wear - proof performance. We have won a great reputation  at home and abroad.


Innovation is our motive power; reputation is premise; quality is life; efficiency is guarantee;

service is foundation; brand is target. "Customer satisfaction" is our pursuit. Honest people

will continue to make innovation and try our best to offer perfect products to customers. We

 always adhere to the tenet of "making a famous brand by quality and promoting the brand

by service". Following the spirit of "Unity is strength, struggle, flexible innovation",  Honest

 people aims to create the  rate brand by professional  ethics of "contributing to the promotion

of national industry with all our strength".

1. Q: What raw materials can be used?

    A: Waste tire, bicycle tires, motorcycle tires, car tires, truck tires, construction tires, etc.

2.  Q: What international certificates do you have?

     A: We have already passed the international certificates of CE, ISO,etc.

3.  Q: What size of the tire is suitable for the semi-auto tire cutting system?

     A: The tire size shall be less than 1200mm.

4.  Q: How many tires can be processed within one hour?

     A: It's about 1ton per hour if the worker can operate skillfully.

5.  Q: What's your delivery time for the semi-auto tire cutting system?

     A: Normally, it needs about 15days for delivery.
